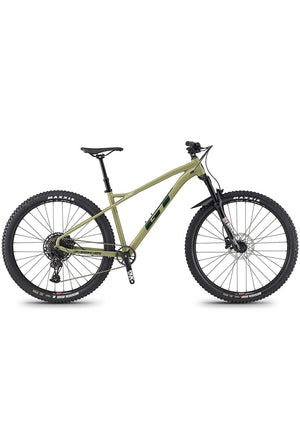

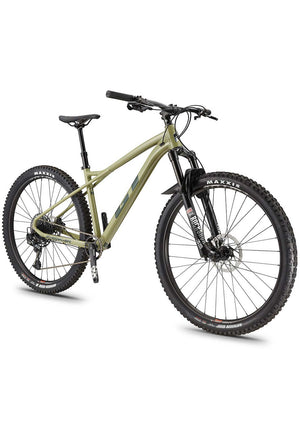

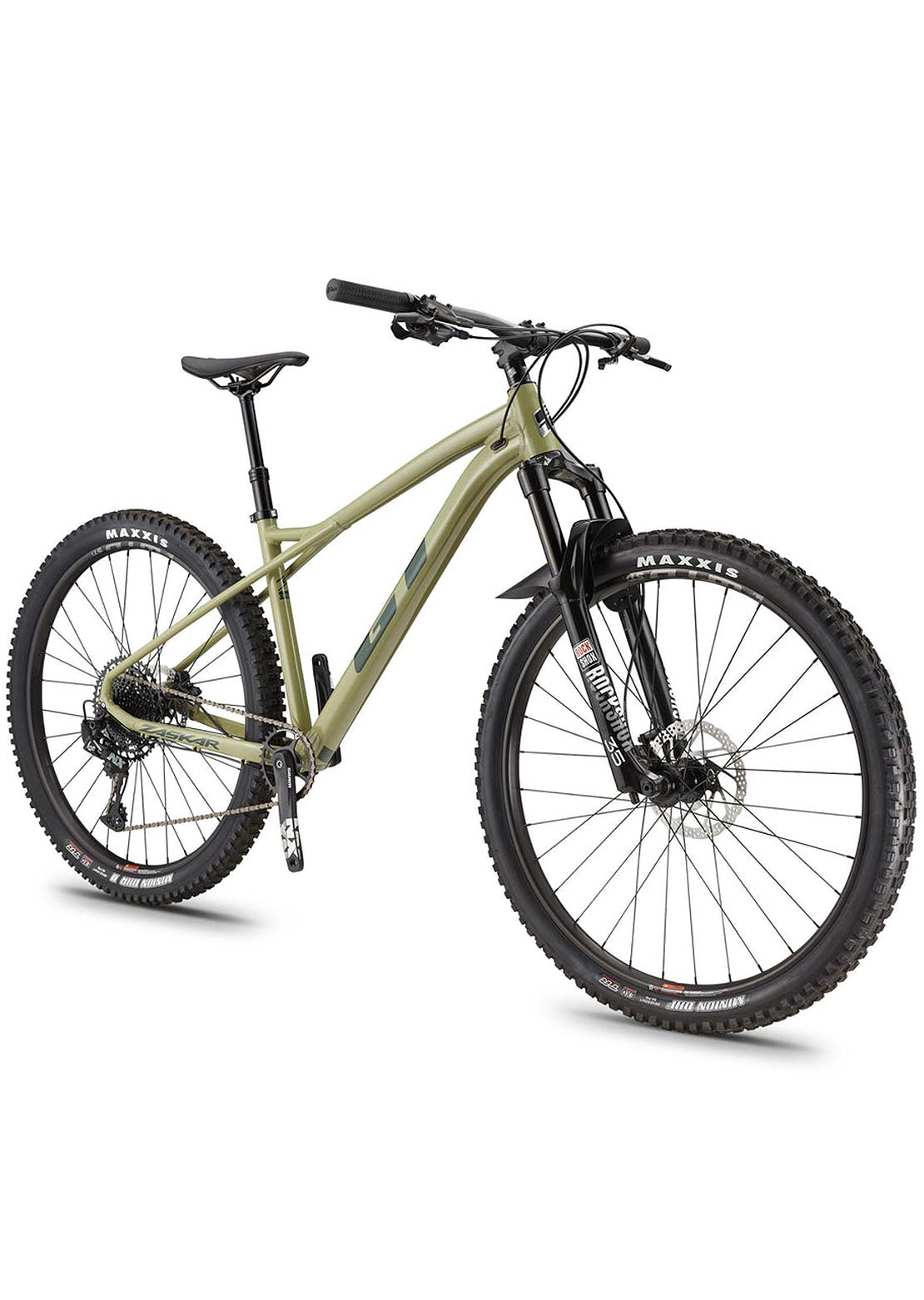

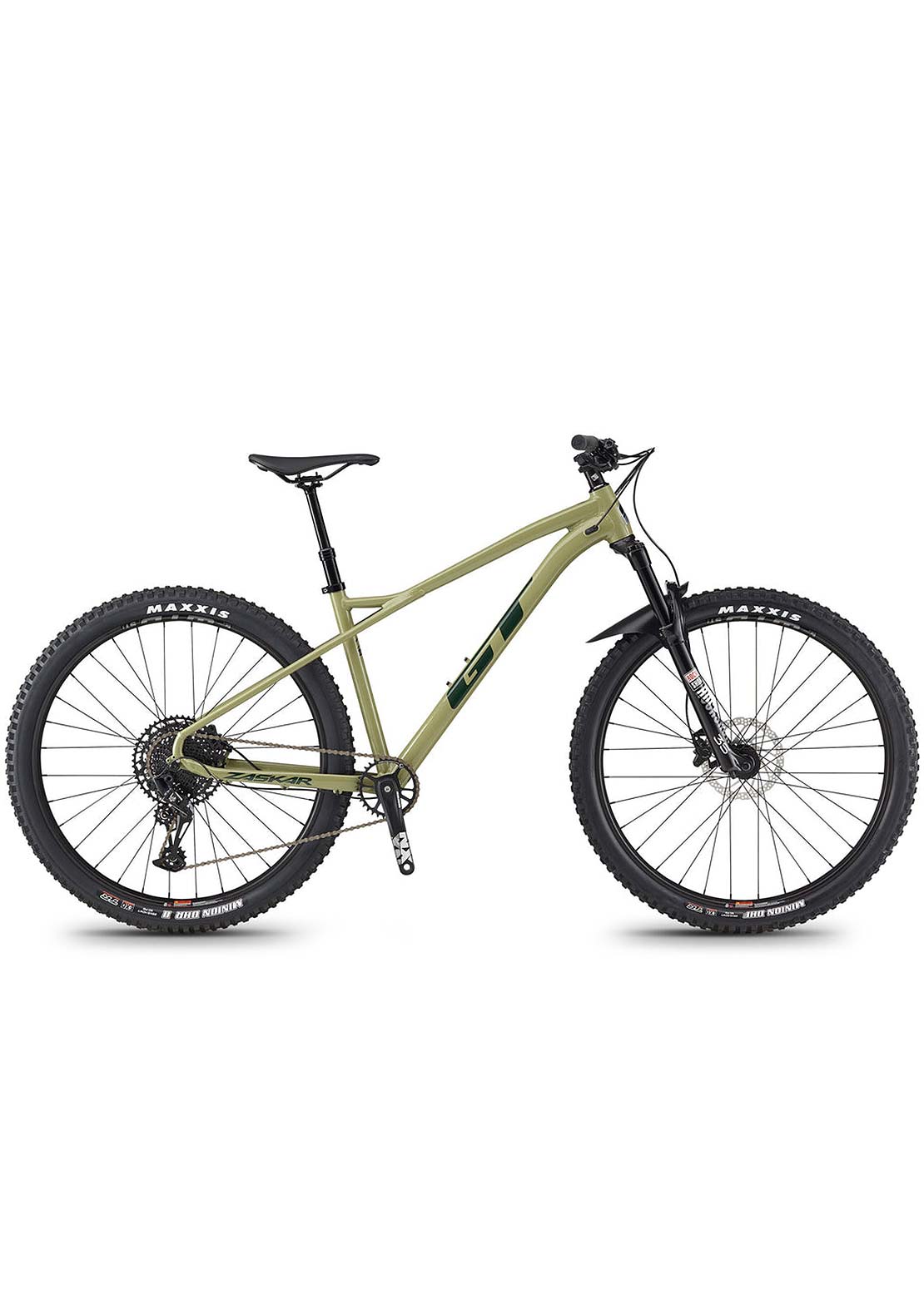

The King of Hardtails is conquering another domain. With 130mm of RockShox Gold suspension up front, dropper post, and grippy Maxxis tires, the Zaskar LT Expert is made for riders who put their value in the simple stroke of a great ride, without any fuss.
Triple Triangle Design
Zaskar’s seat stays have been decoupled from the seat tube to give a ‘floating’ connection between seatpost and rear axle, making it 50% more vertically compliant than a traditional double diamond frame for additional comfort.
Trail Tuned Geo
Zaskar LT’s longer wheelbase and slack headtube angle keeps it stable at high speed, making it more than capable of tackling any obstacle on any trail. Its upright seat tube angle keeps the rider over top of the cranks for improved climbing efficiency. Up or down, Zaskar LT is ready to rip.
More:
RockShox 35 Gold RL, 130mm fork
SRAM NX Eagle, 12-speed drivetrain
Shimano MT410 Hydro Disc, 180/160mm RT56 Rotors
Frame
Frame: Zaskar LT Alloy Frame, Triple Triangle™ Frame Construction feat. Floating Seatstays, BSA 73mm, Boost 12x148 Thru-Axle, Tapered Head Tube
Fork: RockShox 35 Gold RL, 130mm, 15x110mm, Tapered Steerer, 51mm OffSet
Wheel Size: 29
Wheels
Rims: WTB ST i30 TCS 2.0, 32h, Tubeless Ready
Front Hub: Formula DC-511, 15x110
Rear Hub: Formula DC-1248, 12x148
Front Tire: Maxxis Rekon, 29 x 2.4", Wire 60TPI Exo
Rear Tire: Maxxis Rekon, 29 x 2.4", Wire 60TPI Exo
Spokes: Stainless Steel, 14g
Drivetrain
Rear Derailleur: SRAM NX Eagle
Shifters: SRAM NX Eagle, 12-speed
Rear Cogs: SRAM SX Eagle, 11-50, 12-speed
Chain: SRAM SX Eagle, 12-speed
Crank: SRAM NX Eagle, 32t
Bottom Bracket: Truvativ Power Spline
Pedals: Not included
Cockpit
Handlebar: GT Alloy, 31.8mm, 15mm Rise, 5° upSweep, 9° BackSweep, 780 wide
Stem: GT Alloy Stem, 31.8mm Clamp, 45mm Length
Grips: Fabric Funguy
Headset: FSA No.42E, Integrated
Seatpost: TranzX Dropper, Internal Routing, 30.9
Saddle: Fabric Scoop Shallow/ Sport, Steel Rails
Brakes
Brakes: Shimano MT410 Hydro Disc, 180/160mm RT56 Rotors
Please note that, based on component availability and other factors, specifications are subject to change without notice.
Geometry
|
Sizes (mm) |
SM |
MD |
LG |
XL |
|
Seat tube length |
400 |
440 |
480 |
520 |
|
Seat tube angle effective |
75 ° |
75 ° |
75 ° |
75 ° |
|
Top tube horizontal |
593 |
615 |
637 |
660 |
|
Top tube actual |
586 |
601 |
620 |
641 |
|
Head tube angle |
66 ° |
66 ° |
66 ° |
66 ° |
|
Standover |
732 |
763 |
794 |
825 |
|
Head tube length |
105 |
1115 |
125 |
135 |
|
Stem length |
45 |
45 |
45 |
45 |
|
Wheelbase |
1181 |
1205 |
1229 |
1253 |
|
Front center |
737 |
761 |
785 |
809 |
|
Chainstay length |
450 |
450 |
450 |
450 |
|
Crank length |
170 |
170 |
175 |
175 |
|
Bottom bracket drop |
55 |
55 |
55 |
55 |
|
Bottom bracket height |
321 |
321 |
321 |
321 |
|
Fork rake |
51 |
51 |
51 |
51 |
|
Trail |
112 |
112 |
112 |
112 |
|
Stack |
624 |
634 |
643 |
652 |
|
Reach |
425 |
445 |
465 |
485 |
