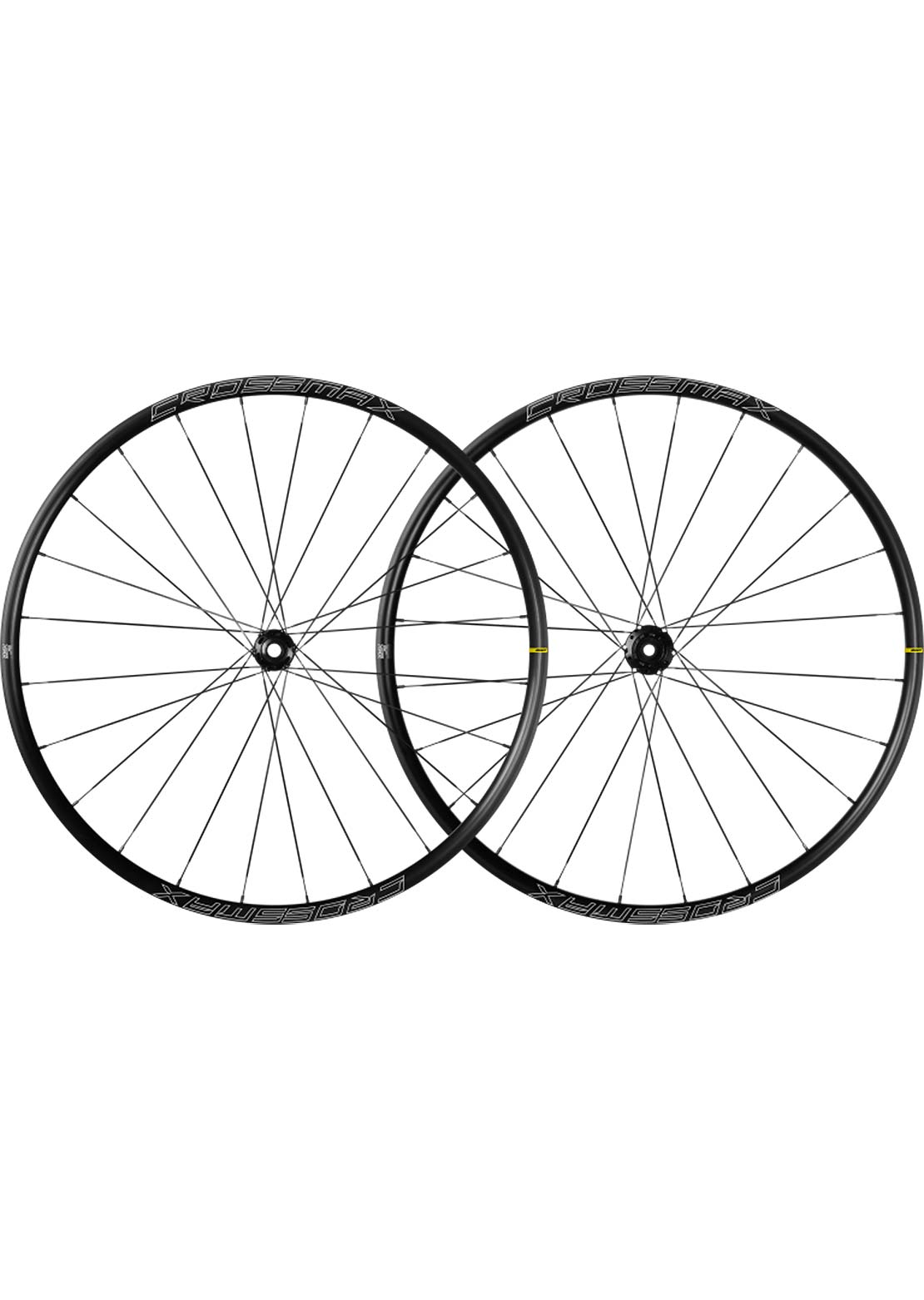

The name Crossmax has a long history in the world of XC riding and racing and this new wheelset lives up to its name with many of the same features and technologies as pro-level XC race wheels, but at a far more attainable price. One of the key factors is our UST technology, which allows for easy setup of tubeless ready tires and gives you all the associated benefits including better traction and control, a smoother ride quality and a reduced risk of punctures. The rim is welded for added reliability and features a 25mm internal width with a hookless profile.
The Infinity lighter hub design optimizes lateral stiffness and spokes tension. Our Instant Drive 360 freewheel with a double ratchet system provides fast engagement and top-level reliability. The rear hub is compatible with Shimano HG9, Micro Spline and SRAM XD driver bodies.
The Crossmax is available in 29'', with 6-bolt or center lock brake rotors and Boost axles (15x110 front and 12x148 rear) or standard axles (15x100 front and 12x142 rear). It is also available in 27.5'' with 6-bolt or center lock brake rotors and Boost axles (15x110 front and 12x148 rear), and 6-bolt rotor with standard axles (15x100 front and 12x142 rear). The wheel is delivered with valves, replacement spokes and accessories.
Light and durable
Welded rim construction for: a light and strong rim profile and a a perfectly sealed rim
Dynamic and agile
24 double butted spokes, Infinity hub platform , ID360 double ratchet freewheel system
Tubeless ready technology
A tubeless rim profile and tubeless tape make it easy to ride tubeless tires for more comfort and control
Weight
Weight Pair : 1770 g
Weight Front : 820 g
Weight Rear : 950 g
Rims
Material: Maxtal
Height: 21 mm
Joint: SUP welding technology
Internal width: 25 mm
Drilling: traditional (front/rear 24 holes)
Braking: disc
Profile: asymmetrical and hookless
ETRTO size: 622x25TSS
Tire: Tubetype or UST Tubeless Ready with Mavic Tubeless Tape
Spokes
Material: steel
Shape: straight, extra-flat, constricted, antirot (front and rear)
Nipples: steel, ABS, black
Lacing: crossed 2 (front and rear)
Hubs
Body material: aluminium
Body design: INFINITY
Disc standard : 6 Bolts or Center Lock®
Axle material: aluminum
Axle size: front 15x110 / rear 12x148
Axle size: front 15x100 / rear 12X142 - Convertible to quick release
Freewheel technology: Instant Drive 360
Freewheel: Shimano HG MTB / Shimano MS / Sram XD MTB
Bearing technology: QRM automatic setting - sealed cartridge
Compatibility
Freewheel body: convertible SHIMANO HG MTB steel (kit V3790101 sold separately)
Front axle adapters: 15x100 convertible to 9x100 (kit 99694101 sold separately)
Front axle adapters: 15x110 convertible to 9x110 (kits 99694101 + V2372501 sold separately)
Front axle adapters: convertible to 15x31mm with Torque Cap (kit V2374401 sold separately)
Rear axle adapters: 12x142 convertible to 9x135 (kit V2510801 sold separately)
Rear axle adapters: 12x142 convertible to 12x135 (kit V2510901 sold separately)
Rear axle adapters: 12x148 convertible to 9x141 (kit V2510801 sold separately)
