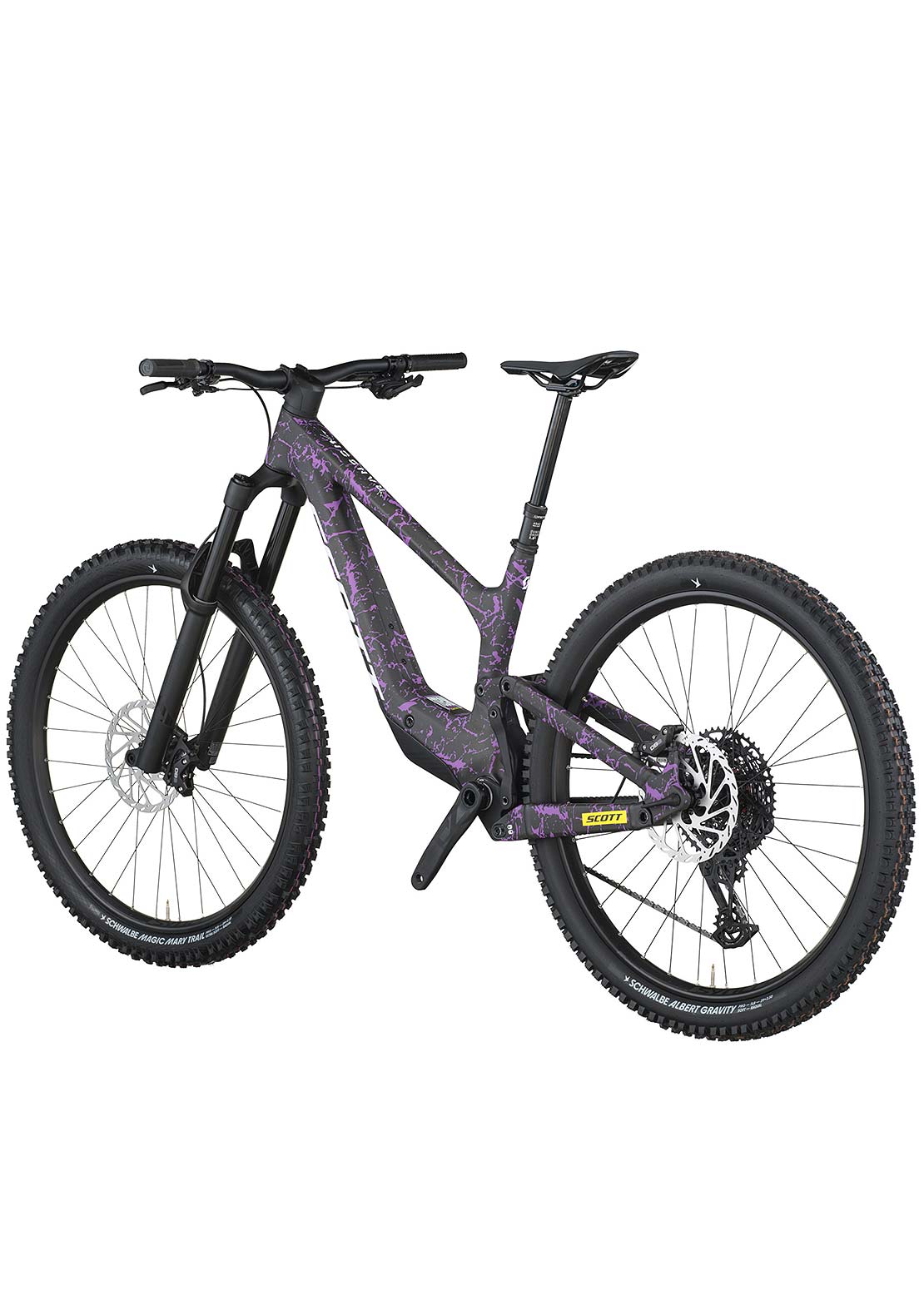

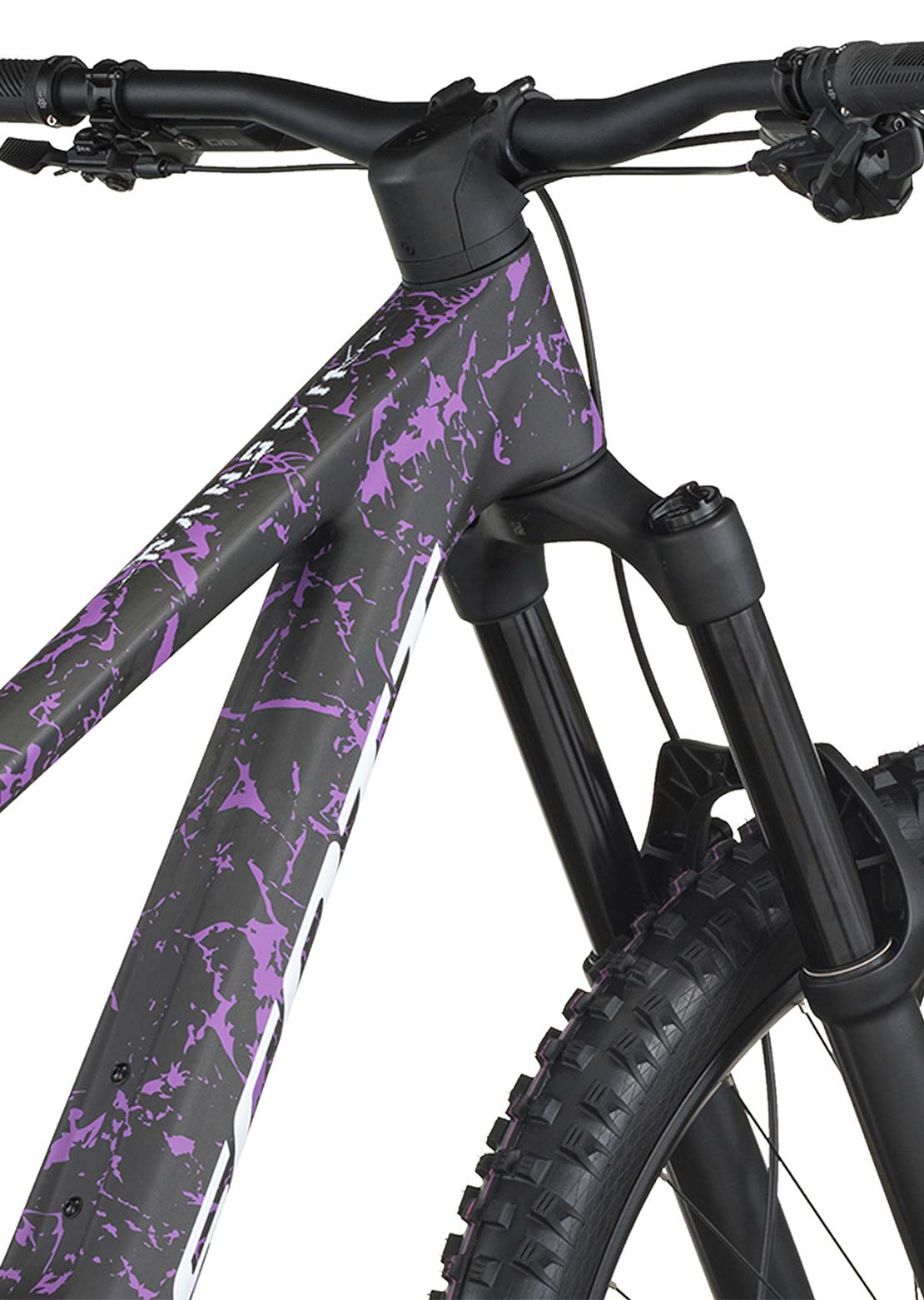

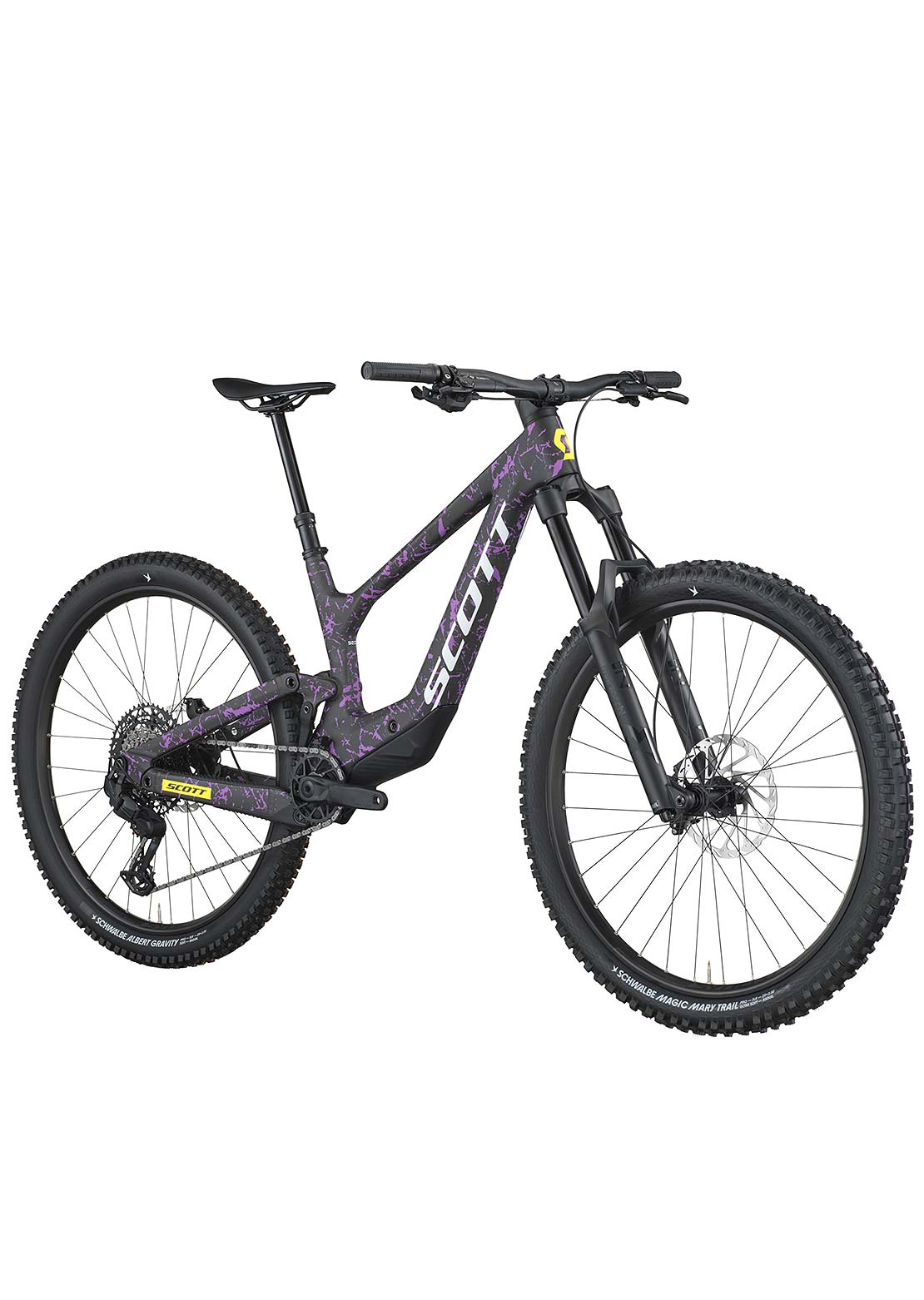

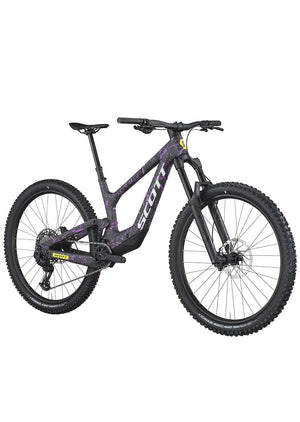

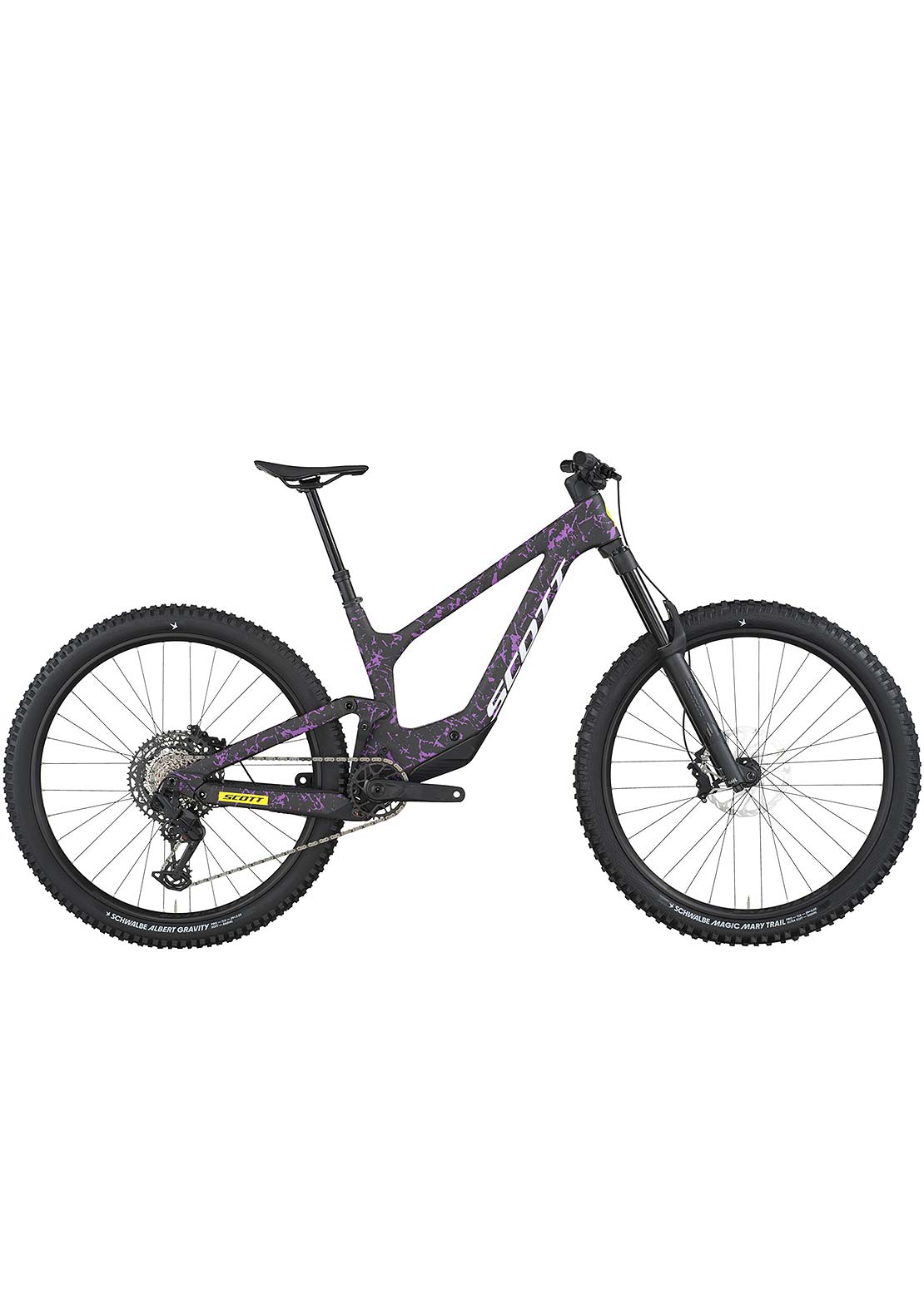

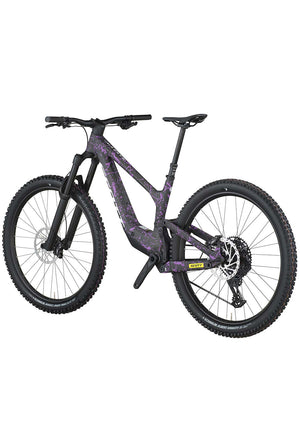

Introducing the all-new SCOTT Ransom. Our latest version of Ransom was uncompromisingly engineered for maximum downhill performance and an all-time confidence inspiring ride. Killer geometry paired with a supernatural suspension kinematic result in a bike that doesn’t take “no” for an answer. Don’t hold yourself hostage, ride Ransom. *Please note that bike specifications are subject to change
INTEGRATED SUSPENSION TECHNOLOGY
The all-new Ransom features our Patented Integrated Suspension system in unison with a 6-Bar Linkage. The resulting kinematic allows for maximized downhill capabilities and stability all the while maintaining its status as an efficient pedaler.
VERSATILITY
With versatility being the key for todays' riders, adaptability is an integral part of the bike's DNA to ensure the ride experience can be tailored to personal preferences or different racetrack conditions. This includes adjustable head angle, wheel size compatibility (mullet) and advanced shock compatibility.
NUDE SUSPENSION
The Ransom platform features our NUDE Suspension technology with the Float-X NUDE shock from FOX paired with fork options that favor more adjustability. When you pedal up to have the most fun on the way down, you want a shock that gives you full factory performance when things point downwards, but also a shock that won’t slow you down when you need to ride back up. This is where the Float-X NUDE shines.
INTERNAL STORAGE
The easy access to the inner frame frees further possibilities: Fully integrated in the down tube is the Syncros Matchbox Kit, which contains a Spare tube, Tire levers, Chain Tools and Multitool; This very clean and functional solution is easy to pull out and stow again ensuring one always has the most necessary.
GEOMETRY
The Ransom features a modern enduro geometry combining various aspects for a confidence inspiring ride in the roughest and fastest DH sections, but without compromising the bike’s agility and precision when needed in tight corners and on technical terrain.
FRAME CONSTRUCTION
Developed as a bike for demanding gravity use, the Ransom's frame features meticulously engineered structural strength and even load distribution throughout, resulting in a strong bike with outstanding riding characteristics.
FRAME: 6 Link kinematic / Adjustable head angle, Ransom Carbon HMF Mainframe with Alloy 6061 Swingarm, Syncros Cable Integration System, Integrated Suspension Technology, BB92 / UDH Interface / 12x148mm with 55mm Chainline / MX Ready
FORK: RockShox Zeb Select+ Charger 3, HSC - LSC - LSR adjustable / 15x110mm Maxle stealth axle, 42mm offset / Tapered Steerer, / 170mm travel
REAR SHOCK: FOX FLOAT X NUDE EVOL Piggy Back Trunnion / SCOTT custom w. travel / geo adj., 3 modes: Climb-Ramp Control-Descend, Custom large Air volume / Comp & Reb. Adj., Travel 170-130-Climb / T205X65mm / Bearing Hardware
REMOTE SYSTEM: TracLoc Technology, Rear Suspension & Dropper Remote, 3 Rear Suspension modes
REAR DERAILLEUR: SRAM NX Eagle 12 Speed
SHIFTERS: SRAM SX Eagle Trigger
CRANKSET: SRAM X1 1000 Eagle DUB Boost, 32T / Chainline 55mm
CHAINGUIDE: SCOTT custom
BB-SET: SRAM DUB PF integrated / shell 41x92mm
CHAIN: SRAM CN SX Eagle
CASSETTE: SRAM NX / PG1210 / 11-50 T
BRAKES: SRAM DB8 4 Piston Disc
ROTOR: SRAM Centerline Rotors F&R 200mm
HANDLEBAR: Syncros Endurance lock-on grips, Size S & M 12mm Rise / Size L & XL 20mm Rise / back sweep 8° / 780mm, Syncros Hixon 2.0 Alloy 6061 D.B.
H'STEM: Syncros AM 2.0, Syncros Cable Integration System, 4° rise / 6061 Alloy / 31.8mm / 40mm
SEATPOST: Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm, S size 140mm / M size 180mm / L & XL size 210mm
SEAT: Syncros Tofino 2.0, Crmo Rails
HEADSET: Syncros - Acros Angle adjust & Cable Routing HS System, ZS56/28.6 – ZS56/40 MTB, +-0.6° head angle adjustment
WHEELSET: Syncros Revelstoke 2.5 6 Bolt, F: 15x110mm, R: 12x148mm Boost, 30mm Tubeless ready rim 28Hr, Syncros Axle w/Removable Lever with Tool
FRONT TIRE: Maxxis Assegai / 2.5" / 60TPI Foldable / EXO+ / TR / 3C Maxx Gripp
REAR TIRE: Maxxis Dissector / 2.4" / 120TPI Foldable / DD/ TR / 3C Maxx Terra
EXTRAS: RS Zeb Fender
ACCESSORIES: Syncros IS Matchbox Kit / Syncros Multi-tool Matchbox 8
APPROX WEIGHT IN KG: 16.4 (Tubeless setup without Matchbox IS)
APPROX WEIGHT IN LBS: 36.16 (Tubeless setup without Matchbox IS)
MAX. SYSTEM WEIGHT: 128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
Geometry
|
S |
M |
L |
XL |
||
|
A |
HEAD TUBE ANGLE / ANGLE TUBE DE DIRECTION |
63.8 ° |
63.8 ° |
63.8 ° |
63.8 ° |
|
B |
HEAD TUBE LENGTH / HAUTEUR TUBE DE DIRECTION |
3.7 IN |
3.9 IN |
4.5 IN |
4.9 IN |
|
C |
TOP TUBE HORIZONTAL / LONGUEUR HORIZONTALE TUBE SUPÉRIEUR |
22.4 IN |
23.6 IN |
24.6 IN |
25.6 IN |
|
D |
STANDOVER HEIGHT / HAUTEUR ENTRE-JAMBES |
28.3 IN |
28.6 IN |
29.0 IN |
29.7 IN |
|
E |
BB OFFSET / DEPORT AXE DE PÉDALIER |
-1.0 IN |
-1.0 IN |
-1.0 IN |
-1.0 IN |
|
F |
BB HEIGHT / HAUTEUR AXE DE PÉDALIER |
13.8 IN |
13.8 IN |
13.8 IN |
13.8 IN |
|
G |
WHEEL BASE / ENTRAXE ROUES |
47.5 IN |
48.8 IN |
50.0 IN |
51.2 IN |
|
H |
BB CENTER TO TOPTUBE CENTER / DIST. BOITIER - MILIEU TUBE SUPÉRIEUR |
||||
|
I |
BB CENTER TO TOP OF SEATTUBE / DIST. BOITIER - SOMMET TUBE DE SELLE |
15.0 IN |
16.1 IN |
17.3 IN |
18.5 IN |
|
J |
SEAT ANGLE / ANGLE TUBE DE SELLE |
77.0 ° |
77.2 ° |
77.4 ° |
77.6 ° |
|
K |
CHAINSTAY / LONGUEUR DES BASES |
17.3 IN |
17.3 IN |
17.3 IN |
17.3 IN |
|
L |
REACH / REACH |
16.9 IN |
18.0 IN |
19.0 IN |
20.0 IN |
|
M |
STACK / STACK |
24.2 IN |
24.4 IN |
24.9 IN |
25.3 IN |
|
N |
STEM LENGTH / LONGUEUR POTENCE |
1.6 IN |
1.6 IN |
1.6 IN |
1.6 IN |
|
0 |
TRAIL / CHASSE AU SOL |
5.3 IN |
5.3 IN |
5.3 IN |
5.3 IN |
|
P |
FORK LENGTH / LONGUEUR FOURCHE |
22.9 IN |
22.9 IN |
22.9 IN |
22.9 IN |
|
Q |
MAXIMUM SEATPOST INSERTION / INSERTION MAXIMALE DE LA TIGE DE SELLE |
7.3 IN |
8.4 IN |
9.6 IN |
10.8 IN |
|
R |
CRANK LENGTH / LONGUEUR DE MANIVELLE |
6.5 IN |
6.7 IN |
6.7 IN |
6.7 IN |
