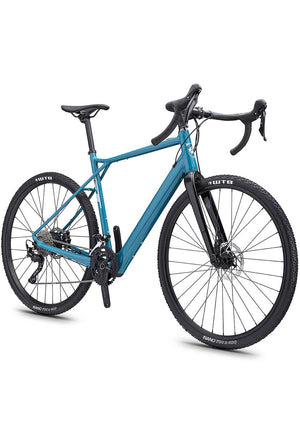

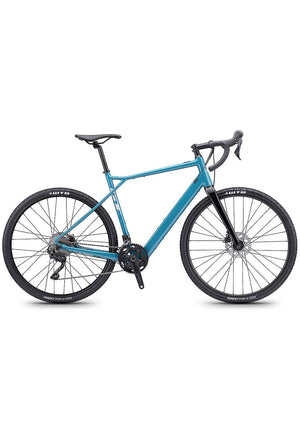

GT Bicycles Men's 700 eGrade Bolt Electric Bike

Vente

Color: Teal
Teal
Size: M

La livraison n'est pas disponible sur ce produit. Ramassage local seulement.

RETOUR
FACILES

ENTREPRISE

LOCALE

MEILLEUR

PRIX

Description
Caractéristiques
Spécifications
Description

Adding pedal assist to Bike Radar's gravel bike of the year? Yep. With the MAHLE ebikemotion drive unit and the Grade's floating seat stays you'll have all day comfort and confidence for whatever comes your way.

Caractéristiques

Frame

  • Frame: Grade Alloy Triple Triangle frame, Ebikemotion specific design, Internal Battery, Tapered Head Tube

  • Sizes Available: SM, MD, LG

  • Fork: GT Grade E-Carbon, 1.5" Tapered Carbon Steerer, 12x100 Thru-Axle

  • Wheel Size: 700c

Wheels

  • Rims: Shining, 32h

  • Front Hub: Formula, 12x100mm, 32H

  • Rear Hube: Bikemotion X35+, 32H

  • Front Tire: WTB Nano Comp, 700 x 40, Tubeless Ready

  • Rear Tire: WTB Nano Comp, 700 x 40, Tubeless Ready

Drivetrain

  • Rear Derailleur: Shimano GRX

  • Shifters: Shimano GRX400, 10-speed

  • Rear Cogs: Shimano HG500, 11-34T

  • Chain: KMC X10, 10-speed

  • Crank: Shimano GRX, 46/30

  • Bottom Bracket: Shimano BSA RS500

  • Chain Device: Chain Guide

  • Pedals: Not included

Cockpit

  • Handlebar: GT Butted 6061 Alloy, 16° Flare Drop

  • Stem: GT All Terra 3D Forged Alloy, 31.8

  • Grips: GT Grip Bar Tape w/Gel, 3.5mm

  • Headset: 1.5" Lower to 1-1/8" Upper w/ Reducer, 25mm Alloy Top Cap

  • Seatpost: GT All Terra Two Bolt Alloy

  • Saddle: Fabric Scoop Shallow/ Sport, Steel Rails

Brakes

  • Brakes: Shimano GRX 400 Hydro Disc, 160/160mmRT56 Rotors

E-Bike

  • Drive Unit: MAHLE ebikemotion X35 250W

  • Battery: MAHLE ebikemotion X35 250Wh

  • Charger: X35 Charger

Spécifications

Geometry

Sizes (mm)

SM

MD

LG

XL

Seat tube length

458

505

553

600

Seat tube angle effective

73 °

73 °

73 °

73 °

Top tube horizontal

545

562

581

601

Top tube actual

523

542

562

585

Head tube angle

70 °

71 °

71 °

71 °

Standover

741

782

822

862

Head tube length

124

150

183

214

Wheelbase

1062

1065

1086

1107

Front center

617

621

641

662

Chainstay length

455

455

455

455

Bottom bracket drop

75

75

75

75

Bottom bracket height

284

284

284

284

Fork rake

55

55

55

55

Stack

550

577

603

630

Reach

385

405

425

445
