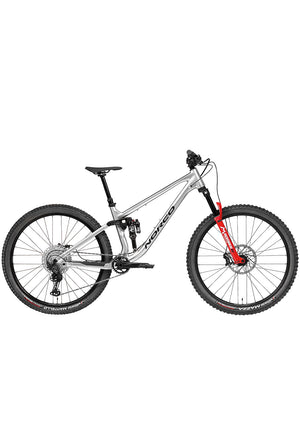

The new Norco Fluid FS A2 is built to tackle whatever trail leads to becoming the rider you want to be. Get everything out of the trail that you put into it. The Fluid FS A2's 130mm travel is precision engineered, pairing custom tuned suspension components with 140mm fork travel and boutique level fit & finish for maximum Trail performance & potential.
THREAD THE NEEDLE
Intuitive precision handling to pick the perfect line. Engineered using the same Norco technology and process as our top-tier Trail bikes to give you the ride of your life no matter what path you follow.
POTENTIAL FULFILLED
Top-tier design and features over-deliver as skills evolve. 6061 aluminum frame gives experienced Trail riders what they need to ride their best and helps evolving riders develop new skills and preferences without limits.
CUSTOM TUNED SUSPENSION
Sophisticated suspension components for full-platform performance and tunability. Precision-engineered 130mm rear suspension features custom-tuned dampers co-developed with the shock manufacturers to provide fully customized suspension setup and performance for every rider.
ROOM TO MOVE
Long-travel droppers and generous standovers get you through the rough stuff. Long-travel, size-specific 34.9mm dropper posts and low-slung top tubes create lots of room to move, letting you roll confidently through challenging terrain and push your limits.
PERFORMANCE FOR ALL
Refined design and expanded size range for accessible Trail performance. Boutique-level fit & finish is available in 5 frame sizes, delivering superior Trail performance to riders between 5’1” and 6’7” with components selected to offer peak performance and durability.
RIDE ALIGNED™
Perfect fit, dialed handling and personalized setup in minutes. The Ride Aligned™ Design System matches each Fluid FS to the human who rides it. Rider-first geometry and suspension kinematics combine with custom fit and suspension tuning for personalized performance from day one.
|
FRAME |
6061 Alloy, 130mm Travel |
|
FORK |
Marzocchi Bomber Z2, 140mm Travel, 44mm Offset |
|
REAR SHOCK |
Fox FLOAT X Performance, Custom Tune, 210x50mm |
Drivetrain
|
REAR SHIFTER |
Shimano SLX SL-M7100-IR I-Spec EV |
|
REAR DERAILLEUR |
Shimano XT RD-M8100 |
|
CRANKSET |
Praxis G2 Cadet M24, 30T, 170mm (S), 175mm (M - XXL) |
|
BOTTOM BRACKET |
Praxis M24 Cartridge Bearing, BSA Threaded |
|
CASSETTE |
Shimano SLX, 10-51, 12 Speed |
|
CHAIN |
Shimano Deore |
Brakes
|
FRONT BRAKE |
TRP Slate EVO, 4 Piston, Organic Pads |
|
FRONT BRAKE ROTOR |
TRP TR203-29, 203mm |
|
REAR BRAKE |
TRP Slate EVO, 4 Piston, Organic Pads |
|
REAR BRAKE ROTOR |
TRP TR203-29, 180mm |
|
BRAKE LEVERS |
TRP Slate EVO |
Components
|
HANDLEBAR |
e*thirteen 800mm, 20mm Rise |
|
STEM |
6061 Alloy, 40mm Length, 35mm Clamp |
|
SEATPOST |
SDG Tellis Dropper, 34.9mm, 150mm (s), 170mm (M, L), 200mm (XL, XXL) |
|
HEADSET |
Sealed Bearing, Tapered |
|
HEADSET SPACER |
2x10mm & 1x5mm- Black |
|
SADDLE |
Fizik Alpaca Terra with Wingflex |
|
GRIPS |
WTB Waffle, Lock-On |
|
PEDALS |
VP Nylon Flat |
|
SEATPOST CLAMP |
Norco Alloy Nutted Clamp |
Wheels
|
FRONT HUB |
Bear Pawls Sealed Bearing, 15x110mm Boost, 6 Bolt |
|
REAR HUB |
Bear Pawls Sealed Bearing, 12x148mm Boost, Micro Spline, 6 Bolt |
|
RIMS |
Stan's Flow D, 29", 32H |
|
FRONT TIRE |
Vittoria Mazza 2.4" Trail G2.0, Folding |
|
REAR TIRE |
Vittoria Martello 2.35" Trail G2.0, Folding |
|
SPOKES/NIPPLES |
Stainless, Black |
Geometry
|
S |
M |
L |
XL |
XXL |
||
|
Wheel Size |
29" |
29" |
29" |
29" |
29" |
|
|
Travel (mm front/mm rear) |
140/130 |
|||||
|
Reach |
420 |
450 |
480 |
510 |
540 |
|
|
Stack |
617 |
626 |
635 |
644 |
653 |
|
|
HTA |
Head Tube Angle |
65 |
||||
|
OS |
Fork Offset |
44 |
||||
|
ST |
Seat Tube Length |
360 |
390 |
410 |
460 |
510 |
|
STA |
Effective Seat Tube Angle |
76 |
76.3 |
76.7 |
77 |
77.3 |
|
RC |
Rear Centre Length |
425 |
430 |
435 |
440 |
445 |
|
BB |
Bottom Bracket Drop |
30 |
||||
|
BBH |
Bottom Bracket Height |
348 |
||||
|
HTT |
Horizontal Top Tube |
574 |
602 |
630 |
659 |
687 |
|
WB |
Wheelbase |
1166 |
1205 |
1245 |
1284 |
1323 |
|
SOH |
Standover |
678 |
690 |
699 |
736 |
767 |
|
HT |
Head Tube Length |
110 |
120 |
130 |
140 |
150 |
|
Trail |
128 |
|||||
|
Recommended Seatpost Drop |
150 |
170 |
200 |
|||
|
Maximum Post Insertion |
250 |
270 |
300 |
|||
|
Stem Length |
40 |
|||||
|
Crank Length |
175 |
|||||
|
Tire Size |
2.4" – 2.6" |
|||||
|
Water Bottle Compatible |
1 x 750 mL |
1 x 750 mL and 1 x 620 mL |
||||
