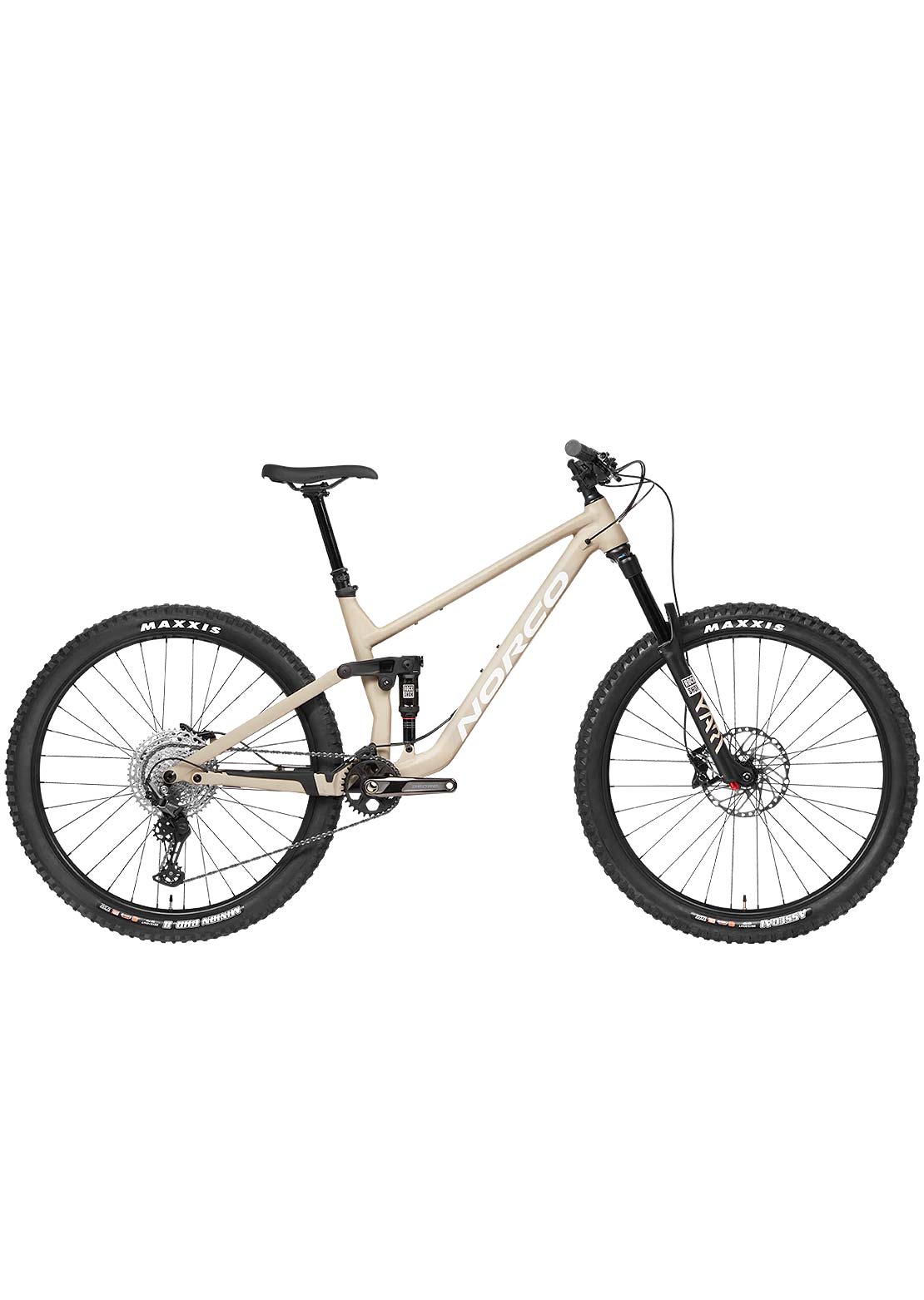

The Sight A3 boosts your All-Mountain confidence with incredible descending capability, adept, sure-footed climbing, and efficient pedaling. To make the Sight Aluminum, we had to re-think how you connect with the trail.
With maximum front and rear wheel grip on climbs and descents, Sight A3 maintains momentum and cadence in technical situations and allows the suspension to move freely without absorbing drivetrain energy.
MOUNTAIN
Science of Send. The Sight’s unparalleled descending capability, adept, sure-footed climbing, and efficient pedaling translates All-Mountain theory into a category smashing reality. Dynamic pedaling under rider input in a confident, stable chassis through rough terrain, the Sight elevates your All-Mountain experience.
PRECISION SUSPENSION
Exact suspension tune perfects every ride. RockShox and Fox suspension components are mated to our precisely-engineered Ride Aligned™ kinematics to produce 150mm of travel in back and 160mm up front.
LONG-TRAVEL DROPPER
Drop the saddle, send the drop. Every Sight features short seat tubes for maximum standover clearance and size-specific, long-travel dropper posts to get seats completely out of the way in the rough stuff.
DETAILS MATTER
Sweating the little stuff makes the ride better. Full sized water bottles fit on the full size range of every 27.5" and 29" model. Supportive side-wall 2.4” and 2.5” tires are equipped, but there’s clearance for up 2.6” because details matter. All of them.
ADDED FRAME FEATURES
Details that make a difference. Custom frame protection and a new shuttle guard protects each Sight from long, rowdy days on the trail and when it’s hanging off the back of your buddy’s pickup. Under-top tube mounts provide easy mounting for some of the most popular aftermarket storage bags or accessories.
SPEED CONTROL
Exactly the speed you need when you need it. Every Sight features 4-piston hydraulic disc brakes and 200/180mm rotors to hit the perfect line on every ride and pull you back when the ruckus gets a little out of hand.
RIDE ALIGNED™
The Sight uses Norco's Ride Aligned™ Design System. Ride Aligned™ matches each individual Sight to the human who rides it, creating a customized All-Mountain platform. Individual rider metrics, precise suspension kinematics, and proprietary app technology align you with your ride experience like never before.
|
FRAME |
Aluminum All-Mountain, 150mm Travel, 27.5" and 29" Options, UDH, Ride Aligned™ |
|
FORK |
RockShox Yari RC, Motion Control, 160mm, 37mm Offset (27.5), 44mm Offset (29) |
|
REAR SHOCK |
RockShox Deluxe Select R, 185x52.5mm Trunnion |
Drivetrain
|
REAR SHIFTER |
Shimano Deore SL-M6100-R |
|
REAR DERAILLEUR |
Shimano Deore RD-M6100 |
|
CRANKSET |
Shimano Deore FC-MT6120-1, 32T, 170mm |
|
BOTTOM BRACKET |
Shimano Sealed Bearing, BSA Threaded |
|
CHAIN TENSIONER |
GW 1x Flip Guide |
|
CASSETTE |
Shimano Deore CS-M6100-12, 10-51T, 12 Speed |
|
CHAIN |
Shimano Deore CN-M6100 |
Brakes
|
FRONT BRAKE |
Shimano Deore BR-MT420, 4 Piston, Metallic Pads |
|
FRONT BRAKE ROTOR |
Shimano RT-64, 203mm |
|
REAR BRAKE |
Shimano Deore BR-MT420, 4 Piston, Metallic Pads |
|
REAR BRAKE ROTOR |
Shimano RT-64, 180mm |
|
BRAKE LEVERS |
Shimano Deore BR-MT420 |
Components
|
HANDLEBAR |
Butted 6061 Alloy, 800mm, 25mm Rise |
|
STEM |
Alloy, 40mm Length, 35mm Clamp |
|
SEATPOST |
TranzX YS105, Adjustable Travel, 34.9mm, 150mm (S), 170mm (M), 200mm (L, XL) |
|
HEADSET |
FSA #57 E Sealed Bearing, Tapered |
|
SADDLE |
WTB Volt 250 Sport |
|
GRIPS |
SDG Thrice Lock-On, Thin (S, M), Thick (L, XL) |
|
SEATPOST CLAMP |
Norco design alloy nutted clamp 38.5mm |
Wheels
|
FRONT HUB |
Shimano HB-MT410 15x110mm Boost, Center Lock |
|
REAR HUB |
Shimano FH-MT510, 12x148mm Boost, Micro Spline, Center Lock |
|
RIMS |
WTB ST I30 TCS 2.0, 32H |
|
FRONT TIRE |
Maxxis Assegai 2.5" 3C Maxx Terra/EXO+/TR, Folding |
|
REAR TIRE |
Maxxis Minion DHR II 2.4" WT 3C, Maxx Terra/EXO+/TR, Folding |
|
SPOKES/NIPPLES |
Stainless, Black |
|
VALVES |
WTB Tubeless Presta |
|
SEALANT |
Stan's - 200ml |
Geometry
|
S |
M |
L |
XL |
S |
M |
L |
XL |
|
29" |
29" |
29" |
29" |
27.5" |
27.5" |
27.5" |
27.5" |
|
Travel (mm front/mm rear) |
|||||||
|
160/150 |
|||||||
|
Reach |
|||||||
|
425 |
455 |
485 |
515 |
425 |
455 |
485 |
515 |
|
Stack |
|||||||
|
612 |
612 |
621 |
630 |
585 |
594 |
603 |
612 |
|
HTA Head Tube Angle |
|||||||
|
64 |
64 |
64 |
64 |
63.5 |
63.5 |
63.5 |
63.5 |
|
OS Fork Offset |
|||||||
|
42 |
42 |
42 |
42 |
37 |
37 |
37 |
37 |
|
ST Seat Tube Length |
|||||||
|
370 |
395 |
435 |
465 |
370 |
395 |
435 |
465 |
|
STA Effective Seat Tube Angle |
|||||||
|
77 |
77.3 |
77.7 |
78 |
77 |
77.3 |
77.7 |
78 |
|
RC Rear Centre Length |
|||||||
|
430 |
435 |
440 |
445 |
430 |
435 |
440 |
445 |
|
BB Bottom Bracket Drop |
|||||||
|
25 |
25 |
25 |
25 |
15 |
15 |
15 |
15 |
|
BBH Bottom Bracket Height |
|||||||
|
350 |
350 |
350 |
350 |
342 |
342 |
342 |
342 |
|
HTT Horizontal Top Tube |
|||||||
|
566 |
593 |
621 |
649 |
560 |
588 |
617 |
645 |
|
WB Wheelbase |
|||||||
|
1187 |
1222 |
1262 |
1301 |
1180 |
1220 |
1259 |
1299 |
|
SOH Standover |
|||||||
|
678 |
690 |
698 |
712 |
668 |
673 |
681 |
702 |
|
HT Head Tube Length |
|||||||
|
100 |
100 |
110 |
120 |
100 |
110 |
120 |
130 |
|
Trail |
|||||||
|
136 |
136 |
136 |
136 |
137 |
137 |
137 |
137 |
|
Recommended Seatpost Drop |
|||||||
|
150 |
170 |
170 |
200 |
150 |
170 |
170 |
200 |
|
Maximum Post Insertion |
|||||||
|
200 |
225 |
265 |
265 |
200 |
225 |
265 |
265 |
|
Stem Length |
|||||||
|
40 |
|||||||
|
Crank Length |
|||||||
|
170 |
|||||||
|
Tire Size |
|||||||
|
2.35" – 2.6" |
|||||||
|
Water Bottle Compatible |
|||||||
|
1x620mL |
1x750mL |
1x750mL |
1x750mL |
1x620mL |
1x750mL |
1x750mL |
1x750mL |
