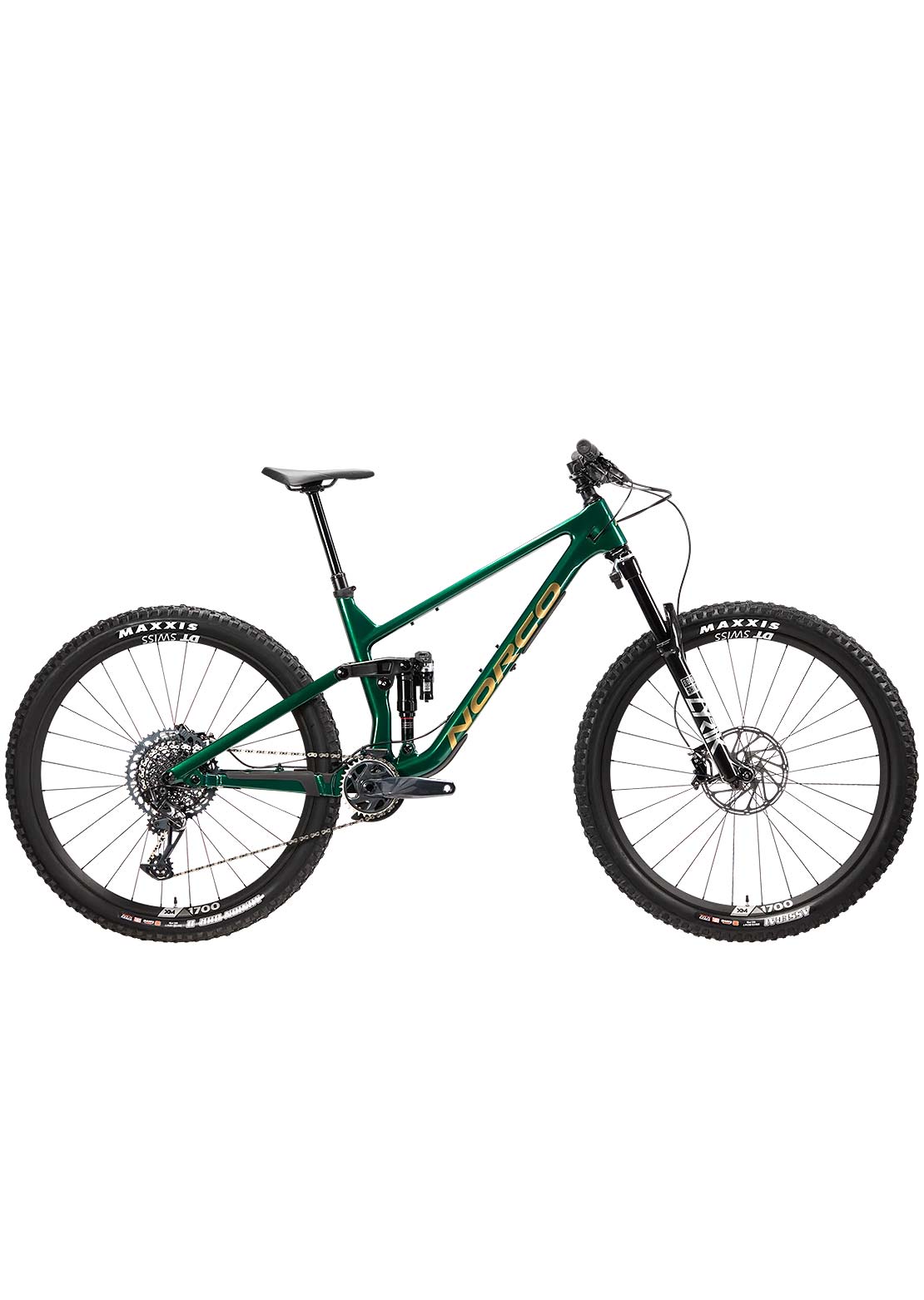

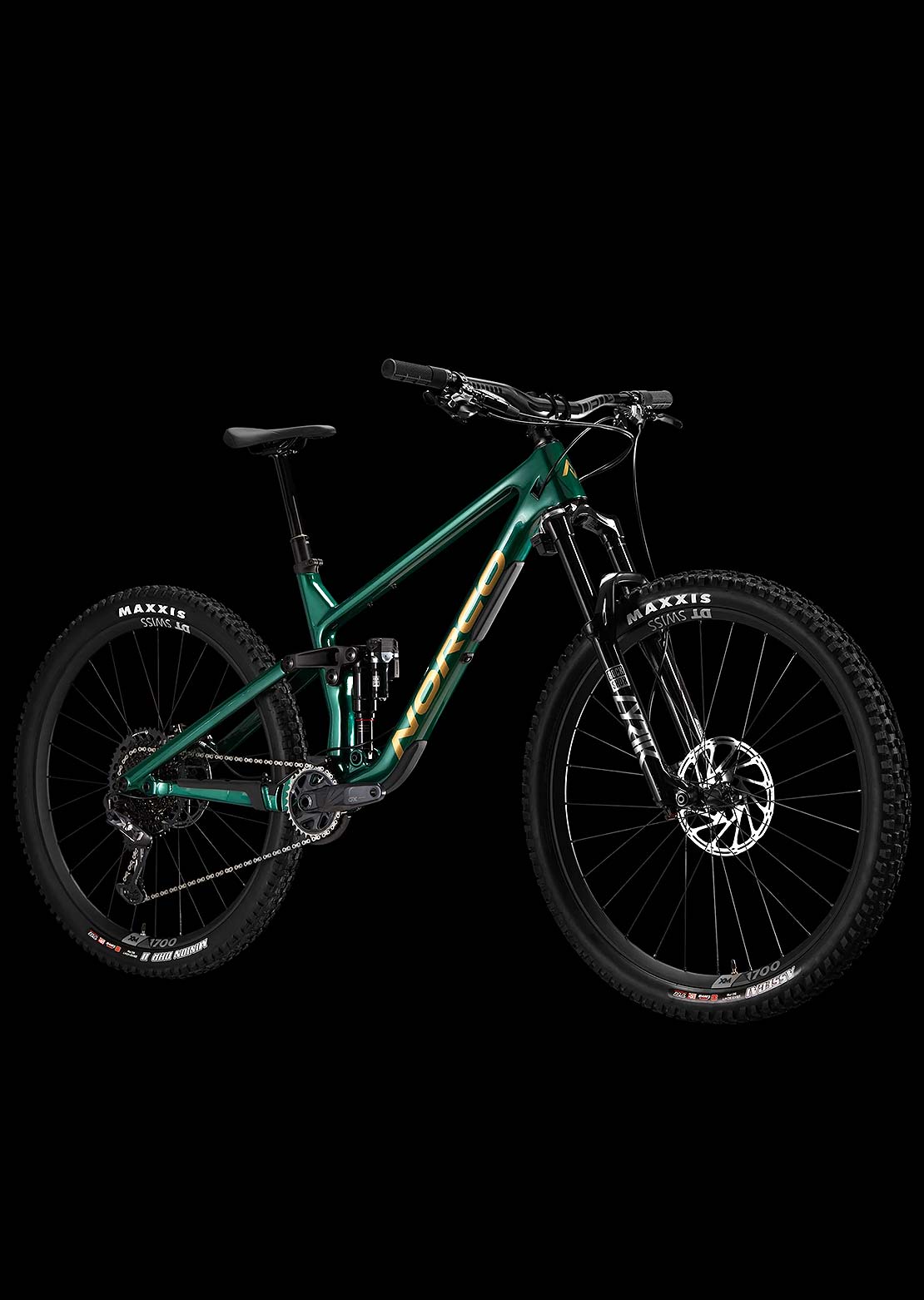

The Sight C Flight Attendant boosts your All-Mountain confidence with incredible descending capability, adept, sure-footed climbing, and efficient pedaling. To make the Sight Carbon, we had to re-think how you connect with the trail.
With maximum front and rear wheel grip on climbs and descents, Sight C Flight Attendant maintains momentum and cadence in technical situations and allows the suspension to move freely without absorbing drivetrain energy.
MOUNTAIN
Science of Send. The Sight’s unparalleled descending capability, adept, sure-footed climbing, and efficient pedaling translates All-Mountain theory into a category smashing reality. Dynamic pedaling under rider input in a confident, stable chassis through rough terrain, the Sight elevates your All-Mountain experience.
PRECISION SUSPENSION
Exact suspension tune perfects every ride. RockShox and Fox suspension components are mated to our precisely-engineered Ride Aligned™ kinematics to produce 150mm of travel in back and 160mm up front.
LONG-TRAVEL DROPPER
Drop the saddle, send the drop. Every Sight features short seat tubes for maximum standover clearance and size-specific, long-travel dropper posts to get seats completely out of the way in the rough stuff.
DETAILS MATTER
Sweating the little stuff makes the ride better. Full sized water bottles fit on the full size range of every 27.5" and 29" model. Supportive side-wall 2.4” and 2.5” tires are equipped, but there’s clearance for up 2.6” because details matter. All of them.
ADDED FRAME FEATURES
Details that make a difference. Custom frame protection and a new shuttle guard protects each Sight from long, rowdy days on the trail and when it’s hanging off the back of your buddy’s pickup. Under-top tube mounts provide easy mounting for some of the most popular aftermarket storage bags or accessories.
SPEED CONTROL
Exactly the speed you need when you need it. Every Sight features 4-piston hydraulic disc brakes and 200/180mm rotors to hit the perfect line on every ride and pull you back when the ruckus gets a little out of hand.
Frameset
|
FRAME |
Carbon All-Mountain, Aluminum CS, 150mm Travel, 27.5" and 29" options, UDH, Hangerless Interface Compatible, Ride Aligned™ |
|
FORK |
RockShox Lyrik Ultimate Flight Attendant, 160mm, 37mm Offset (27.5), 44mm Offset (29) |
|
REAR SHOCK |
RockShox Super Deluxe Flight Attendant, 185x52.5mm Trunnion |
Drivetrain
|
REAR SHIFTER |
SRAM X0 Eagle |
|
REAR DERAILLEUR |
SRAM X01 Eagle |
|
CRANKSET |
SRAM X01 Eagle Flight Attendant DUB, 34T (27.5), 32T (27.5 S), 32T (29), 170mm |
|
BOTTOM BRACKET |
SRAM DUB PF92 |
|
CASSETTE |
SRAM Eagle XG 1275, 10-52T |
|
CHAIN |
SRAM Eagle |
Brakes
|
FRONT BRAKE |
SRAM Code RSC, 4 Piston, Metallic Pads |
|
FRONT BRAKE ROTOR |
SRAM CenterLine, 200mm |
|
REAR BRAKE |
SRAM Code RSC, 4 Piston, Metallic Pads |
|
REAR BRAKE ROTOR |
SRAM CenterLine, 180mm |
|
BRAKE LEVERS |
SRAM Code RSC |
Components
|
HANDLEBAR |
Deity Ridgeline, 800mm, 25mm Rise |
|
STEM |
Alloy, 40mm Length, 35mm Clamp |
|
SEATPOST |
OneUp Adjustable Travel Dropper, 34.9mm, 150mm (S), 180mm (M, L), 210 (XL) |
|
HEADSET |
FSA #57 E Sealed Bearing, Tapered |
|
SADDLE |
Fizik Alpaca Terra, Wingflex |
|
GRIPS |
DMR DeathGrip Soft, Thin (S, M), Thick (L, XL) |
Wheels
|
FRONT HUB |
DT Swiss 350, 15x110mm Boost, 6 Bolt |
|
REAR HUB |
DT Swiss 350, 12x148mm Boost, XD, 6 Bolt |
|
RIMS |
DT Swiss M1700 Wheelset |
|
FRONT TIRE |
Maxxis Assegai 2.5" 3C Maxx Terra/EXO+/TR, Folding |
|
REAR TIRE |
Maxxis Minion DHR II 2.4" WT 3C, Maxx Terra/EXO+/TR, Folding |
|
SPOKES/NIPPLES |
DT Swiss |
|
VALVES |
DT Swiss Tubeless Presta |
|
SEALANT |
Stan's - 200ml |
Geometry
|
S |
M |
L |
XL |
||
|
Wheel Size |
29" |
29" |
29" |
29" |
|
|
Travel (mm front/mm rear) |
160/150 |
||||
|
Reach |
425 |
455 |
485 |
515 |
|
|
Stack |
603 |
612 |
621 |
630 |
|
|
HTA |
Head Tube Angle |
64 |
|||
|
OS |
Fork Offset |
42 |
|||
|
ST |
Seat Tube Length |
370 |
395 |
435 |
465 |
|
STA |
Effective Seat Tube Angle |
77 |
77.3 |
77.7 |
78 |
|
RC |
Rear Centre Length |
430 |
435 |
440 |
445 |
|
BB |
Bottom Bracket Drop |
25 |
|||
|
BBH |
Bottom Bracket Height |
350 |
|||
|
HTT |
Horizontal Top Tube |
564 |
593 |
621 |
649 |
|
WB |
Wheelbase |
1183 |
1222 |
1262 |
1301 |
|
SOH |
Standover |
682 |
687 |
704 |
726 |
|
HT |
Head Tube Length |
90 |
100 |
110 |
120 |
|
Trail |
136 |
||||
|
Recommended Seatpost Drop |
150 |
170 |
200 |
||
|
Maximum Post Insertion |
225 |
250 |
270 |
||
|
Stem Length |
40 |
||||
|
Crank Length |
170 |
||||
|
Tire Size |
2.35" – 2.6" |
||||
|
Water Bottle Compatible |
1x620mL |
1x750mL |
|||
