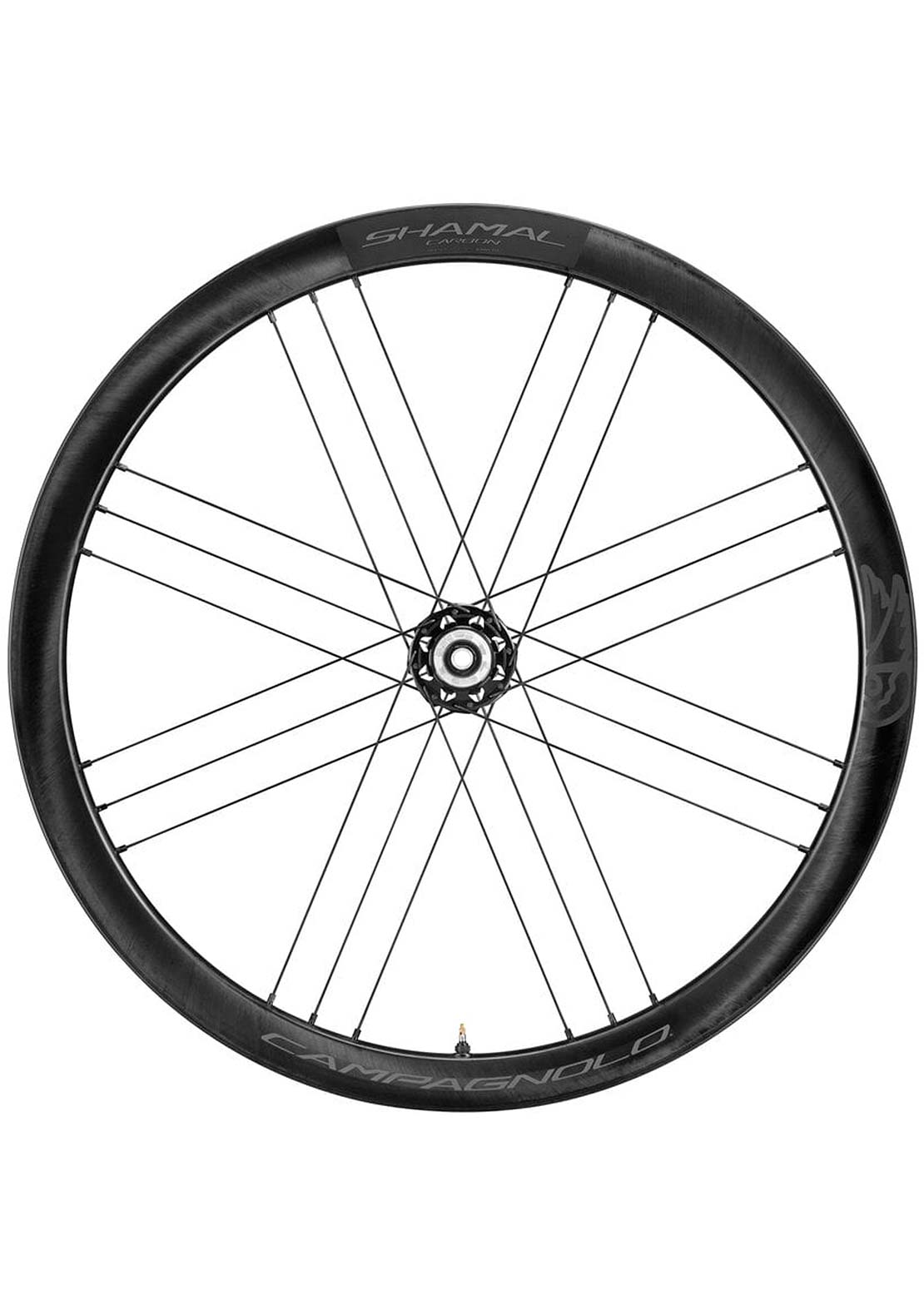

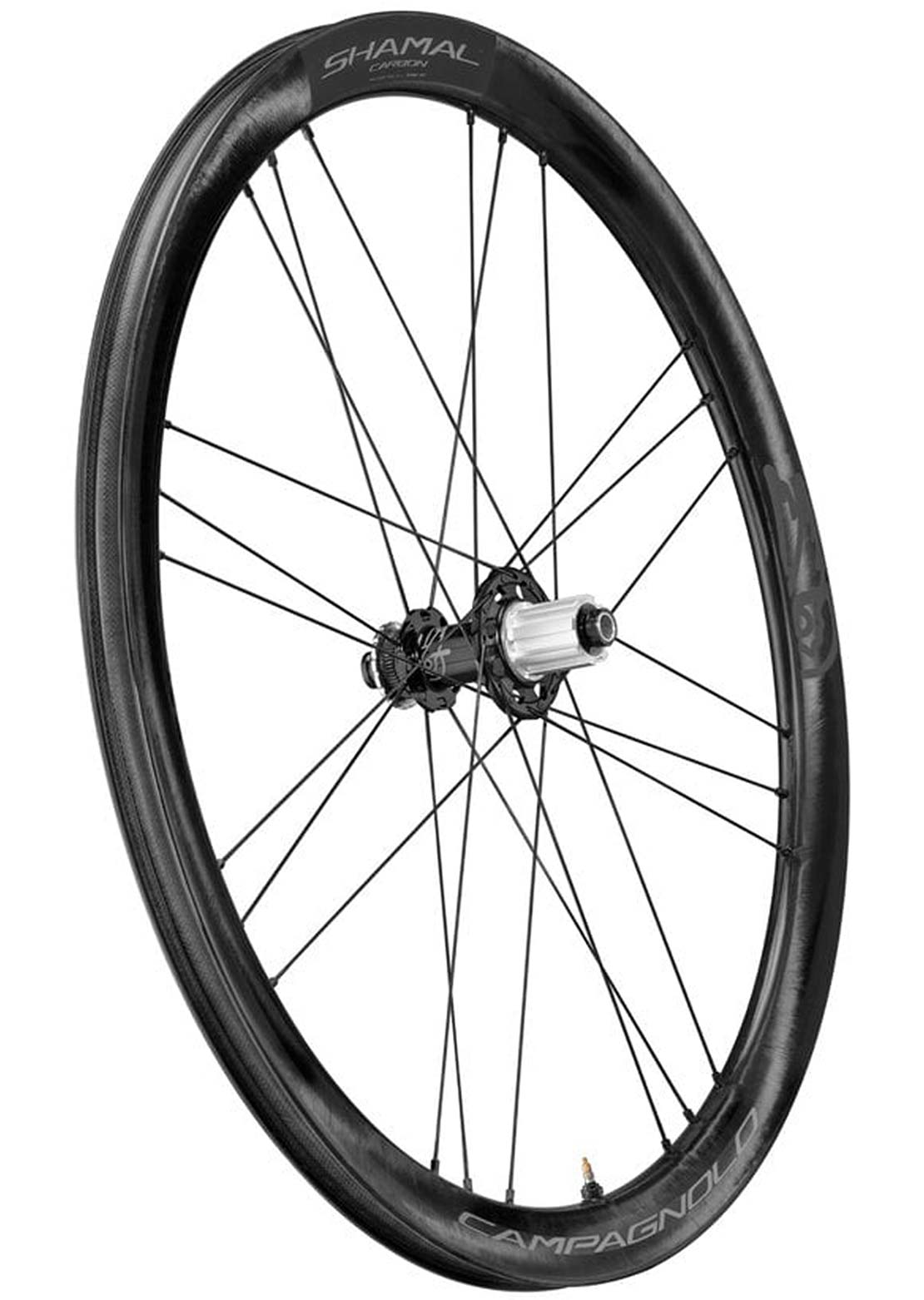

For Campagnolo, the SHAMAL family has always represented an evolutionary impulse beyond its own limitations, a challenge and a triumph. Since 1992, this wheel has been an icon for enthusiasts, who with SHAMAL saw the birth of the high-profile concept, a forerunner of what is currently available on the market. SHAMAL still has the same meaning for Campagnolo: breaking the mould to face the future.
The first Campagnolo wheel dedicated to endurance was born in keeping with this mantra, with a 21 mm internal channel that can accommodate larger tyres and ensure the cyclist maximum comfort on races and long rides. This new product was intended for a broader customer base, with a new, more accessible price point, but with every feature necessary to guarantee the maximum performance and style that characterise Campagnolo wheels. Carbon rim with unidirectional finish and a differentiated front/rear profile, modern rounded profile, new aluminium hubs, cup-and-cone bearing system. Every design decision is determined by the sole goal of improving cyclists’ performance over long hours on the saddle, providing comfort and rideability in all conditions.
The profile of the rim, which has an internal diameter of 21 mm, makes for perfect pairing with 25, 28 and 30 mm tyres. The wide channel, however, makes this wheel a complete all-rounder, also suitable for larger tyres that are perfect for gravel biking. Thanks to 2-Way Fit technology, Campagnolo guarantees complete compatibility with both clincher and tubeless tyres. The hole-free upper bridge, achieved through the patented MoMag system, allows a weight saving, increased rigidity and now also an aid to using tubeless tyres: no tape is required for the seal. Maintaining and cleaning the wheel on tyre changes has never been easier. These wheels are designed to ensure extreme performance, comfort and versatility for cyclists.
Campagnolo has always been a byword for reliability: the G3 spoking system with double spokes on the left of the front wheel ensures balanced and safe braking in all conditions. The construction of the whole wheel, engineered by considering every single component as part of a system, makes each Campagnolo product a godsend on longer rides, cyclosportives and the most demanding adventures. SHAMAL CARBON DB: a renewed icon that maintains its blazing, indefatigable soul, like the wind from which it takes its name.
2-WAY FIT™
2-WAY FIT™ is the innovative profile that lets you fit either a tubeless tire or a classic clincher.
DYNAMIC BALANCE™
The concept is as simple as it is genius: balancing the weight of the rim joint with a mass of identical weight on the opposite side of the rim.
G3 SPOKE GEOMETRY
Campagnolo’s iconic G3 geometry challenges the conventional configuration of wheel spokes on racing bikes. Groups of three parallel straight-pull spokes are in fact arranged in a ratio of 2:1.
MOMAG™
An absolute genius of a magnet. It is the tried and tested, patented “Mounting Magnet” system: MoMag™ for short.
N3W
N3W stand for NEXT 3 WAYS, a patented standard for a freewheel body engineered to house 11-, 12- and 13-speed cassettes with 9-, 10- and 11-tooth starting sprockets that is still compatible with older 9- and 10-speed cassettes.
SINGLE-JOINT CONSTRUCTION
The special lamination process designed to produce a rim with just one joint in the fiber: a lightweight resistant carbon monolith.
Weight
1.585 g
Spokes
24 steel spokes in the front elliptical aero cross section, spaced in groups of three through the G3 system
24 steel spokes in the rear elliptical aero cross section, spaced in groups of three through the G3 system

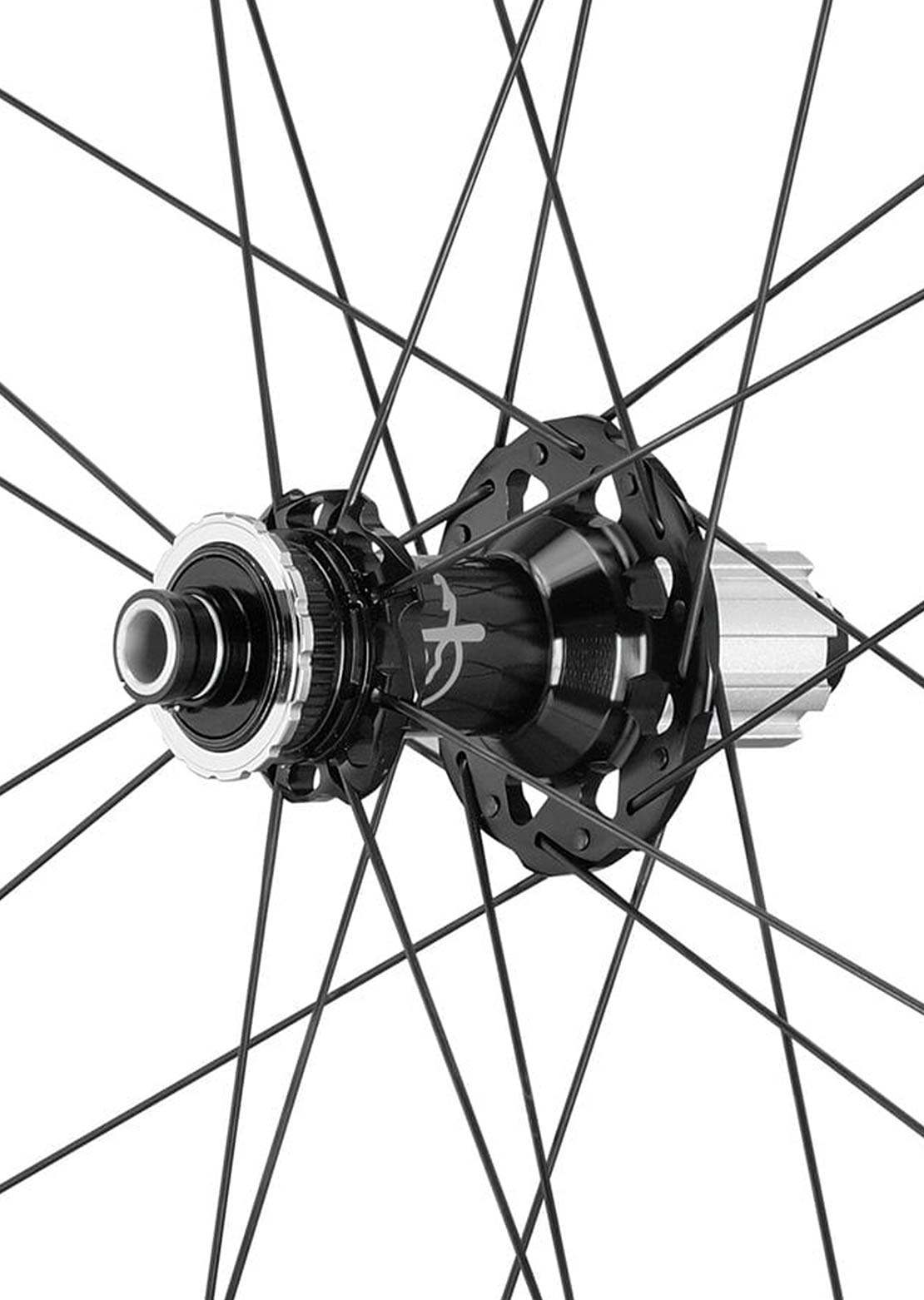

Hub
Black aluminium monolithic hub
USB cup-and-cone bearing system
Hub edge: 100 mm in the front, 142 mm in the rear
Axle type: 12mm aluminium thru axle
Cup-and-cone bearing system
Tyres
Clincher
Tubeless
Rim
Profile height: 35 mm front / 40 mm rear
Rim material: carbon
Rim cross section (H x W): 35-40/28.1 mm
Internal diameter of rim: 21 mm
Adhesive Stickers graphics
Assembly
The SHAMAL CARBON™ Disc Brake wheel is entirely hand-assembled by a specialised Campagnolo® technician and is 100% checked by electronic instrumentation.
This procedure ensures that every single Campagnolo® wheel offers maximum performance and reliability
Comes with
50 mm tubeless valve
Bushing to reduce the size of the valve hole
2 levers in composite material for tyre removal
User manual
N3W™ adapter kit driver body for 11-12s compatibility (Campagnolo N3W™ body version)
