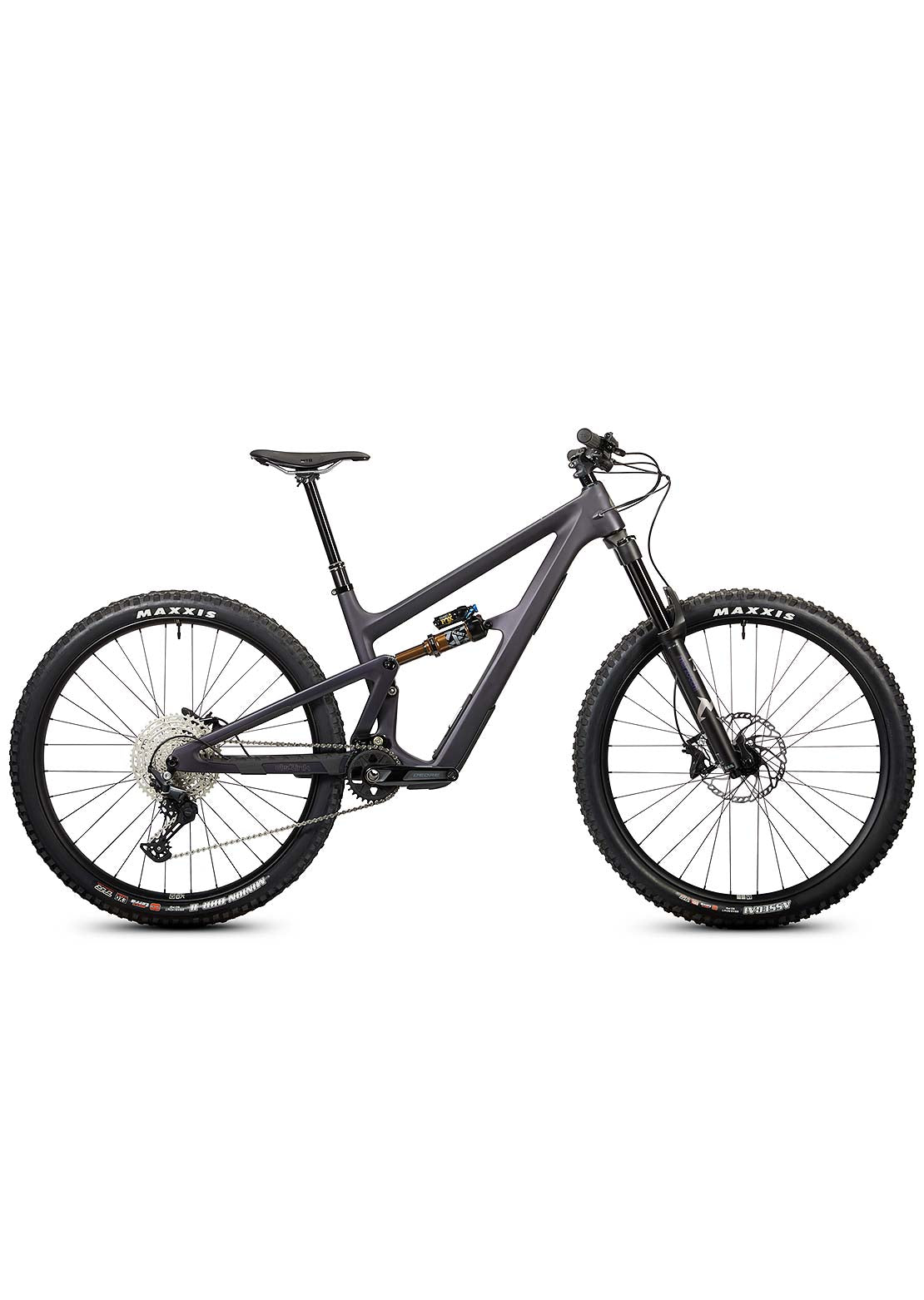

With multiple "Best in Test" awards and years of high level competition at the notoriously brutal Enduro World Series, it’s the ultimate trail-slaying machine. How do you improve on that? The new Ripmo is loaded with new features: internal downtube storage, a flip chip for mixed wheels, a slacker head angle, and increased coil compatibility. We've also expanded our sizing options and added size-specific details—right down to the bottom bracket height.
SIZE SPECIFIC EVERYTHING
Every rider deserves the same great ride feel, no matter their height or proportions. We use size specific seat tube angles and suspension kinematics to bring incredible balance and speed to all size riders. Even chainstay length and bottom bracket height are tailored to each frame size.
5 SIZES
We've added a third size in the middle of the bell curve to provide a fit that’s just right. With 80% of our riders falling between 5’5” and 6’0”, we introduced a new "Extra-Medium" size. The extra-medium (size 3) now sits in the middle of our size range, while our size five remains the traditional XL.
FLIP IT
We’ve added more adjustability with a new flip chip - now you can run 29” or 27.5”/29” mixed (MX) wheels on all sizes without compromising the geometry. The Extra Medium and larger sizes ship with 29” wheels, while the Small and Medium sizes come with MX wheels.
DW-LINK SUSPENSION
We continue to use the critically acclaimed dw-link suspension platform known for its efficient climbing and strong downhill performance; it sets the standard for modern mountain bikes. Drawing on the race-proven HD6 design, the Ripmo now has a coil spring friendly progressive shock rate and shorter clevis which makes it compatible with pretty much any coil shock. Our size-specific kinematics make sure every size bike pedals amazing while still keeping things quiet and calm on challenging trails.
INTERNAL FRAME STORAGE
Get that gear off your back and into your bike with our frame storage system. The latch operates effortlessly, even in cold, muddy conditions while wearing gloves. The door is water-resistant, rattle-free, and robust. We’ve partnered with Cotopaxi to craft a set of two internal bags for your snacks, tools, or whatever. Cotopaxi is known for high-quality construction and sustainable practices; the bags are crafted from remnants and dead stock, making each bag colorful and unique.
|
COMPONENT |
STANDARD COMPONENT |
|
Fork |
Fox Float 36, Factory Series, Grip X2, 160mm, 29”, 110mm x 15mm |
|
Shock |
Fox Float X, Factory Series, 2-Pos Adj. w/EVOL, 230mm x 60mm |
|
Wheels |
Blackbird Send Alloy, 32 Hole, Ibis Logo Hubs S–M, F: Send I 29" R: Send II 27.5" |
|
Front Tire |
Maxxis DHF, 29" x 2.5", Exo+ |
|
Rear Tire |
Maxxis DHR II, EXO+ S–M: 27.5" x 2.5", XM–XL: 29" x 2.5" |
|
Brakes |
Shimano Deore, M6120, 4-Piston |
|
Rotors (F/R) |
Shimano RT-66 6-Bolt 200F/200R |
|
Crankset |
Shimano Deore M6120 24mm spindle |
|
Bottom Bracket |
Shimano MT501 |
|
Rear Derailleur |
Shimano Deore M6100 SGS |
|
Shifter |
Shimano Deore, M6100 |
|
Cassette |
Shimano Deore, M6100, 10-51T |
|
Chain |
KMC X12 |
|
Headset |
Cane Creek 50: ZS44/ZS56 |
|
Grips |
Lizard Skins Single Clamp |
|
Handlebar |
Ibis Aluminum, 780mm |
|
Stem |
Ibis 31.8mm S–M: 40mm, L–XL: 50mm |
|
Seatpost |
KS Vantage Dropper S: 110-140mm, M-XM:140-170mm, L-XL: 180-210mm |
|
Saddle |
WTB Silverado Fusion CrMo 142 |
Images may not show actual build kit content. Pricing and specifications subject to change without notice. All prices are ex‐works Santa Cruz, CA. MSRP prices are US suggested retail prices and are exclusive of sales tax or VAT.
160MM FORK (575MM AXLE TO CROWN)
|
NOMINAL SIZE |
|
SM |
MD |
XM |
LG |
XL |
|
Seat Tube |
A |
15.6 |
15.7 |
16.3 |
18 |
18.8 |
|
Top Tube |
B |
22.8 |
23.8 |
24.8 |
25.8 |
27 |
|
Head Tube |
C |
3.3 |
3.7 |
4.3 |
4.9 |
5.5 |
|
Chainstay 29" |
D |
17.1 |
17.1 |
17.2 |
17.2 |
17.3 |
|
Chainstay MX |
D |
17 |
17 |
17 |
17.1 |
17.2 |
|
Seat Tube Angle |
E |
77° |
76.5° |
76.5° |
77° |
77.5° |
|
Saddle Height for Seat Tube Angle |
F |
25.6 |
27.6 |
29.3 |
31.1 |
32.7 |
|
Head Tube Angle |
G |
64.5° |
64.5° |
64.5° |
64.5° |
64.5° |
|
Wheelbase |
H |
47 |
48 |
49.2 |
50.6 |
52.3 |
|
Stack |
I |
24.3 |
24.5 |
24.9 |
25.3 |
25.7 |
|
Reach |
J |
17.2 |
18 |
18.8 |
19.9 |
21.3 |
|
BB Drop 29" |
K |
1.4 |
1.3 |
1.2 |
1.1 |
0.9 |
|
BB Height* |
13.3 |
13.4 |
13.5 |
13.7 |
13.8 |
|
|
Standover |
L |
27.3 |
28.9 |
29.8 |
30.4 |
30.9 |
|
Recommended Seatpost Drop |
5.5 |
6.7 |
7.3 |
8.4 |
8.4 |
|
|
Crank Length |
6.5 |
6.5 |
6.7 |
6.7 |
6.7 |
|
|
Tire Size |
0.1 |
0.1 |
0.1 |
0.1 |
0.1 |
|
|
Water Bottle Size |
0 |
0 |
0 |
0 |
0 |
*With Maxxis 29x2.4 WT tires = 748mm diameter, 27.5x2.5 WT rear tires = 708mm diameter.
|
Version |
V3 |
|
Frame Material |
Carbon front and rear triangle |
|
Frame Weight |
7.6 lbs XM frame w/ Fox Float X |
|
Wheel Size |
Size XM–XL: 29” wheels Size SM–MD: MX wheels (MX or 29” option in all sizes via flip chip) |
|
Tire Clearance |
2.5" |
|
Front Travel |
160mm |
|
Rear Travel |
150mm |
|
Shock Specs |
230mm x 60mm (coil shock compatible) |
|
Boost Axles |
148mm rear / 110mm front |
|
Seatpost Diameter |
34.9mm |
|
Rear Brake |
180mm Post mount / 220mm max rotor |
|
Chainstay Length |
29": 435–440mm, MX: 432–437mm |
|
Bottom Bracket |
Threaded BB (73mm BSA) |
|
Chainline |
55mm chainline |
|
Derailleur Hanger |
SRAM UDH |
|
ISCG 05 Compatible |
ISCG 05 Tab Mount available separately |
|
Headset |
ZS44 upper / ZS56 lower |
|
Bottle Mounts |
22oz bottle on size small, 26oz on all other sizes |
|
Frame Storage |
Large Internal frame storage with easy access door |
|
Frame Storage Bag |
Sustainably sourced internal frame bags produced in partnership with Cotopaxi |
|
Colors |
Heckleberry Purple or Olive Swamp Monster |
|
Sizes |
Small (S), Medium (M), Extra medium (XM), Large (L) and Extra Large (XL) |
