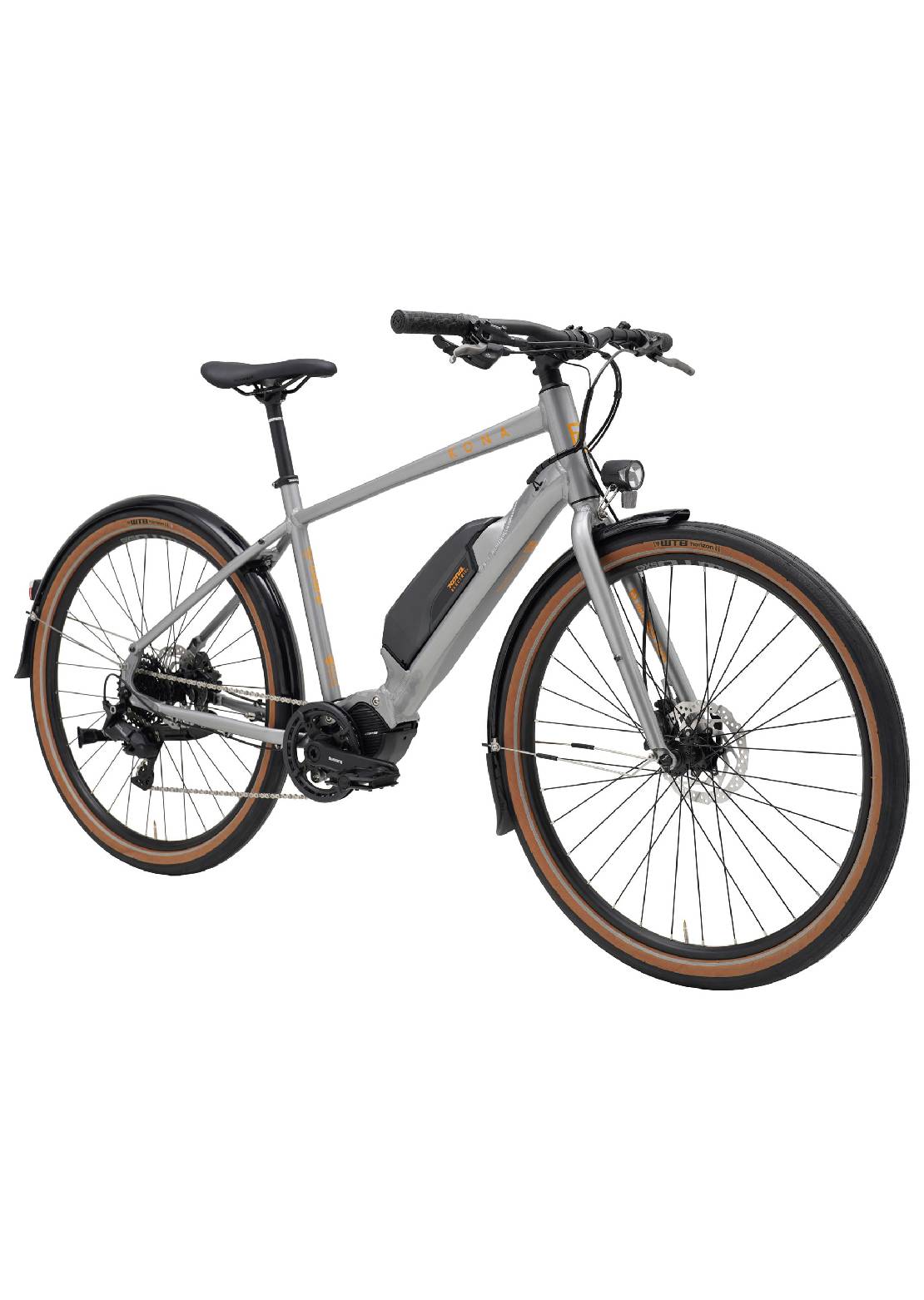

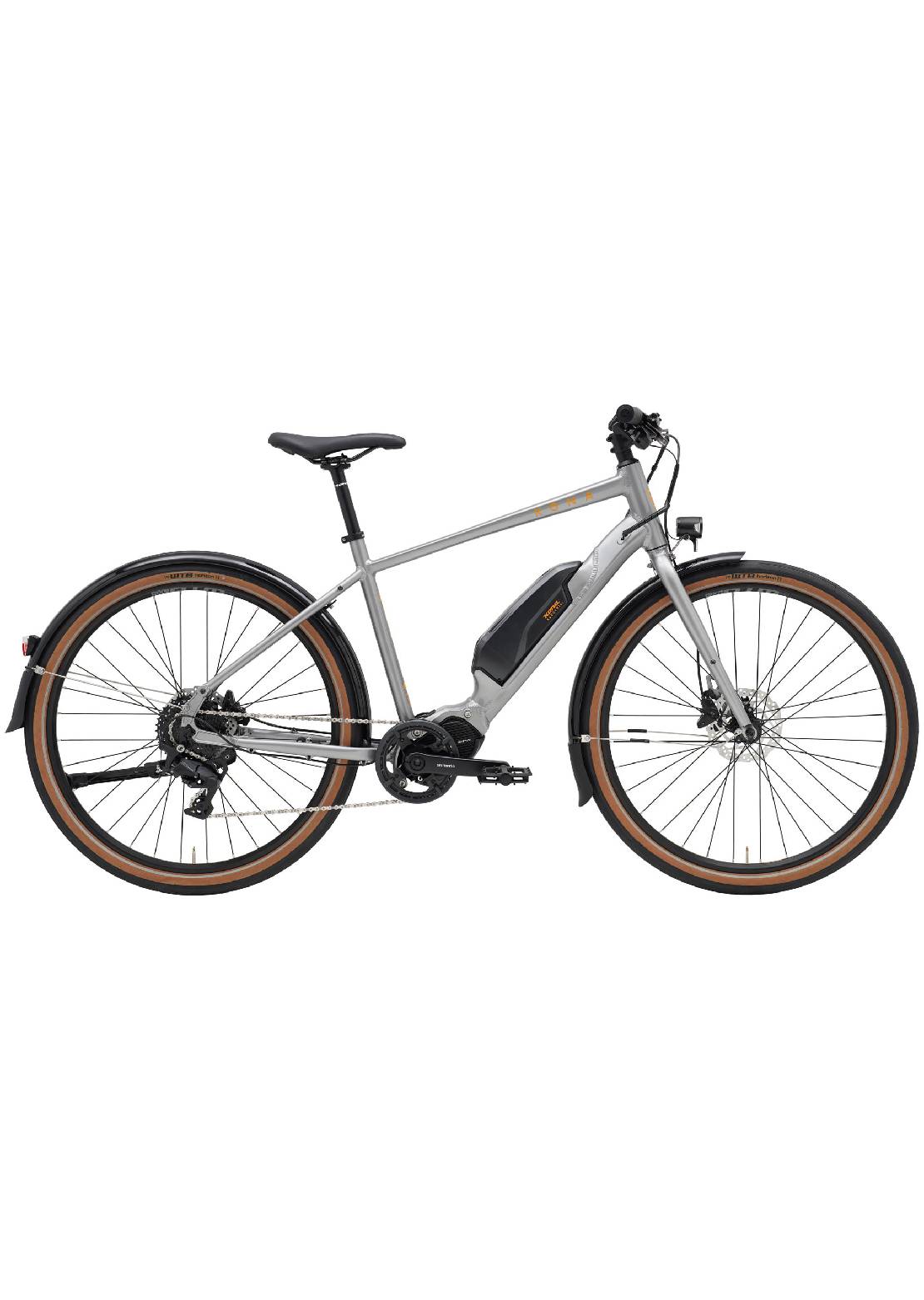

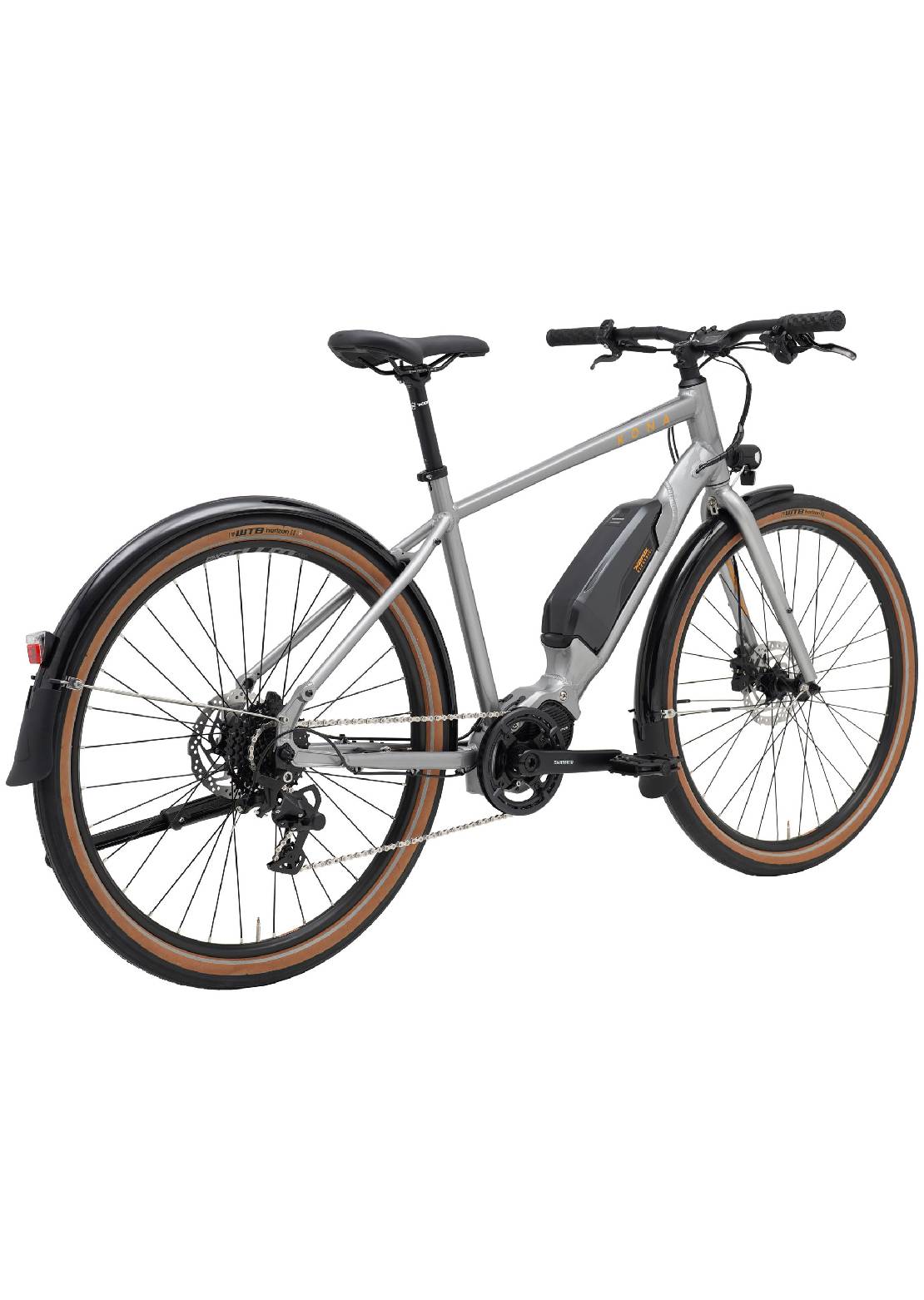

The Dew-E has redefined what commuting means to riders all over the world. In fact, we’ve heard it’s the best part of going to work for some people. We love the ride quality of the Dew-E and the fact that it’s helping cut down on the number of cars on the road. The semi-integrated battery keeps the lines of the bike nice and clean, while the Shimano pedal-assist motor keeps every rider smiling no matter how far or how steep their ride.
Complete with front and rear fenders and lights, the Dew-E is ready to rise and shine for the daily grind!
FRAME |
Kona 6061 Aluminum Butted |
SIZES |
S, M, L, XL |
REAR SHOCK |
N/A |
FORK |
Kona 6061 Aluminum |
CRANKARMS |
Shimano EN500 |
CHAINRINGS |
Shimano 38t |
BOTTOM BRACKET |
N/A |
PEDALS |
Feimin Platform |
CHAIN |
KMC eGlide |
CASSETTE |
Shimano CUES LG300 11-36t 9spd |
CHAINGUIDE |
N/A |
FRONT DERAILLEUR |
N/A |
REAR DERAILLEUR |
Shimano RDU4010 |
SHIFTER |
Shimano CUES 4000 |
BRAKE CALIPERS |
Shimano MT401 |
FRONT BRAKE ROTOR |
Shimano 160mm Centerlock |
REAR BRAKE ROTOR |
Shimano 160mm Centerlock |
BRAKE LEVERS |
Shimano MT410 |
HEADSET |
Feimin ZS44/ZS44 |
HANDLEBAR |
Kona Back 9º / Up 6º / Rise 25mm / Width 680mm |
STEM |
Kona 31.8mm / Rise 6º / Length S-M 60mm / L 70mm / XL 90mm |
SEATPOST |
Kona Commuter 27.2mm / S-M 350mm / L-XL 375mm |
SEAT CLAMP |
Kona Clamp 31.8mm |
GRIPS |
Kona Key Grip |
SADDLE |
Kona Commuter |
FRONT HUB |
Shimano 9x100mm |
REAR HUB |
Shimano 10x135mm |
SPOKES |
Stainless 2.0mm Black |
RIMS |
WTB SX19 |
FRONT TIRE |
WTB Horizon 650x47mm |
REAR TIRE |
WTB Horizon 650x47mm |
DRIVE UNIT |
Shimano DU-EP500 20mph / 32kmh |
BATTERY |
Shimano 504Wh |
DISPLAY |
Shimano SC-EN600 |
CHARGER |
Shimano 1.8A (100-240V) |
BATTERY LOCK |
Abus |
PAINT COLOR |
Gloss Metallic Dark Faux Raw w/ Mimosa Decals |
EXTRAS |
Fenders / Front & Rear Light / Kickstand |
All specifications are subject to change without notice.
GEOMETRY
SIZE |
S |
M |
L |
XL |
|
1 |
ST LENGTH |
420 |
470 |
520 |
580 |
2 |
TT LENGTH |
548 |
594 |
633 |
683 |
3 |
REACH |
398 |
423 |
439 |
465 |
4 |
STACK |
558 |
596 |
634 |
671 |
5 |
STANDOVER |
692 |
736 |
782 |
832 |
6 |
HT ANGLE |
70.0 |
70.0 |
70.0 |
70.0 |
7 |
HT LENGTH |
135 |
175 |
215 |
255 |
8 |
ST ANGLE |
75.0 |
74.0 |
73.0 |
72.0 |
9 |
CS LENGTH |
460 |
460 |
460 |
460 |
10 |
BB DROP |
60 |
60 |
60 |
60 |
11 |
BB HEIGHT |
282 |
282 |
282 |
282 |
12 |
WHEELBASE |
1089 |
1127 |
1157 |
1197 |
13 |
FRONT CENTER |
635 |
674 |
704 |
743 |
14 |
FORK LENGTH |
410 |
410 |
410 |
410 |
15 |
FORK OFFSET |
50 |
50 |
50 |
50 |
|
Hauteur / pouces |
Hauteur / métrique |
Sécoupe / pouces |
Sénurie / métrique |
Route / Rove |
Libre |
Cx / sutra |
Rosée |
COCO |
|
4'10"-5'1" |
147-155 cm |
24”-27” |
61-69 cm |
46-48 cm |
46 cm |
46-48 cm |
N / A |
XS |
|
5'0"-5'3" |
152-160 cm |
26"-29" |
66-74 cm |
48-50 cm |
46-49 cm |
48-50 cm |
Petit |
Petit |
|
5'2"-5'7" |
157-170 cm |
27"-30" |
69-76 cm |
48-52 cm |
49-51 cm |
48-52 cm |
Petit moyen |
Petit moyen |
|
5'6"-5'10" |
168-178 cm |
29"-31" |
74-79 cm |
52-54 cm |
51-54 cm |
52-54 cm |
Moyen |
Moyen |
|
5'9"-6'0" |
175-183 cm |
30"-33" |
76-84 cm |
52-56 cm |
54-55 cm |
52-56 cm |
Moyen large |
Moyen large |
|
5'11"-6'2" |
180-188 cm |
32"-35" |
81-89 cm |
54-58 cm |
54-55 cm |
54-58 cm |
Grand, xl |
Grand |
|
6'1"-6'5" |
185-196 cm |
33"-36" |
84-91 cm |
56-58 cm |
55 cm |
56-58 cm |
Xl |
N / A |
VTT / All Mountain / Splice (MTB / All Mountain / Gravity)
|
Hauteur / pouces |
Hauteur / métrique |
Sécoupe / pouces |
Sénurie / métrique |
ÉPISSURE |
MTB / XC Trail / Fat |
All Mountain / Enduro |
Gravité / dh |
|
4'10"-5'1" |
147-155 cm |
24”-27” |
61-69 cm |
Petit |
XS |
XS |
N / A |
|
5'0"-5'3" |
152-160 cm |
26"-29" |
66-74 cm |
Petit |
Petit |
Petit |
N / A |
|
5'2"-5'7" |
157-170 cm |
27"-30" |
69-76 cm |
Petit moyen |
Petit moyen |
Petit moyen |
Moyen |
|
5'6"-5'10" |
168-178 cm |
29"-31" |
74-79 cm |
Moyen |
Moyen |
Moyen |
Moyen |
|
5'9"-6'0" |
175-183 cm |
30"-33" |
76-84 cm |
Moyen large |
Moyen large |
Moyen large |
Moyen large |
|
5'11"-6'2" |
180-188 cm |
32"-35" |
81-89 cm |
Grand, xl |
Grand, xl |
Grand, xl |
Grand, xl |
|
6'1"-6'5" |
185-196 cm |
33"-36" |
84-91 cm |
Grand, xl |
Grand, xl |
Grand, xl |
Grand, xl |
