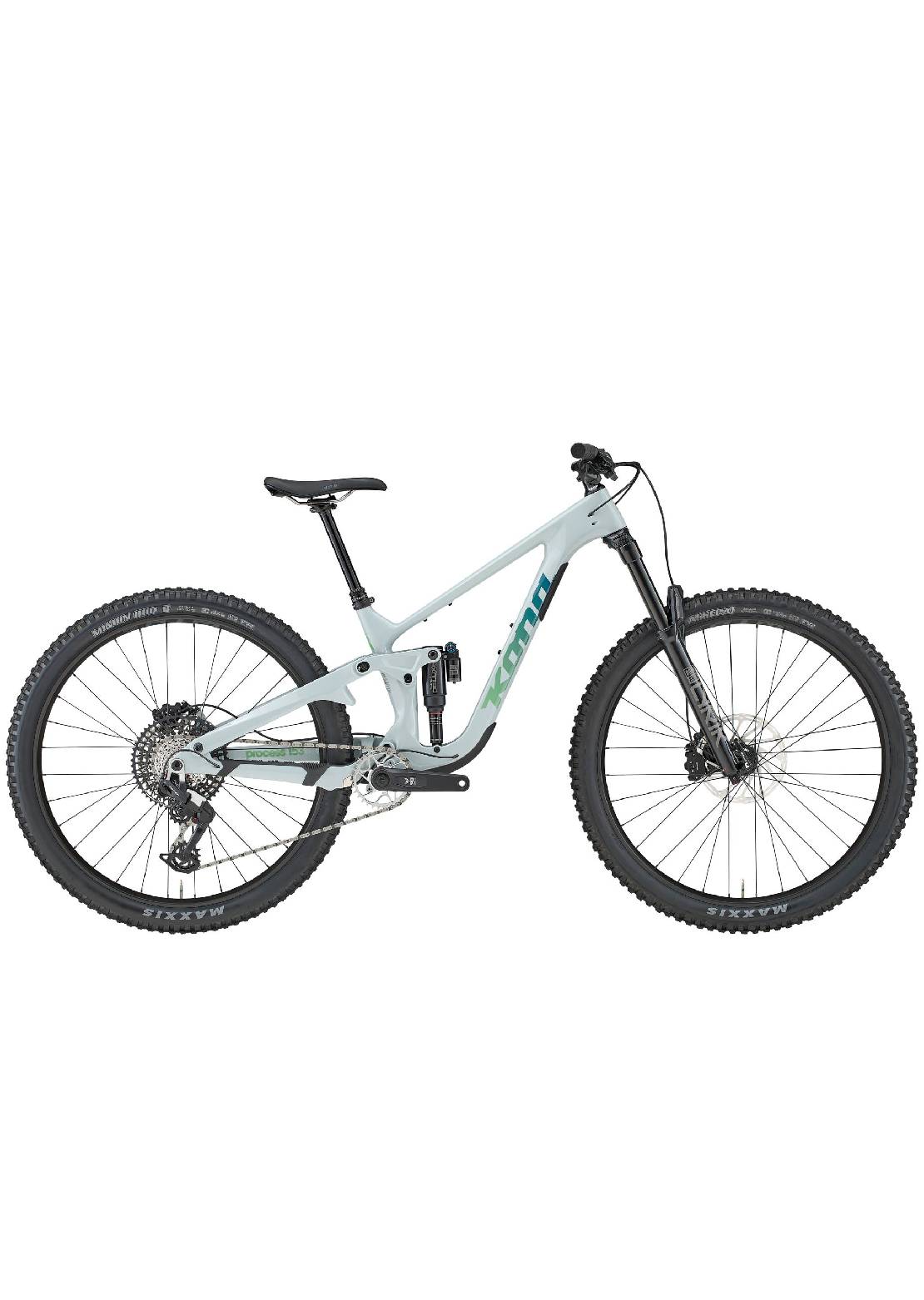

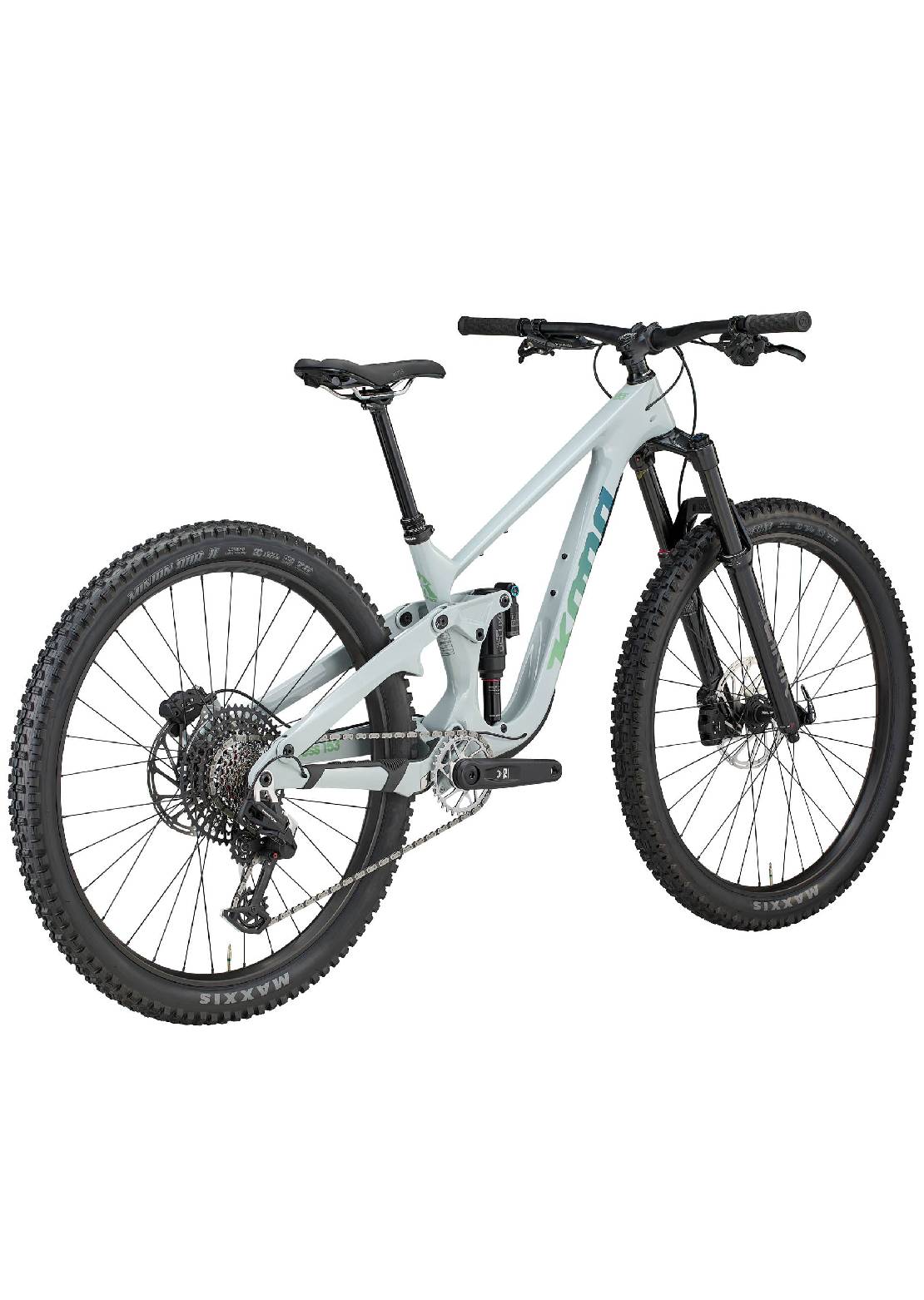

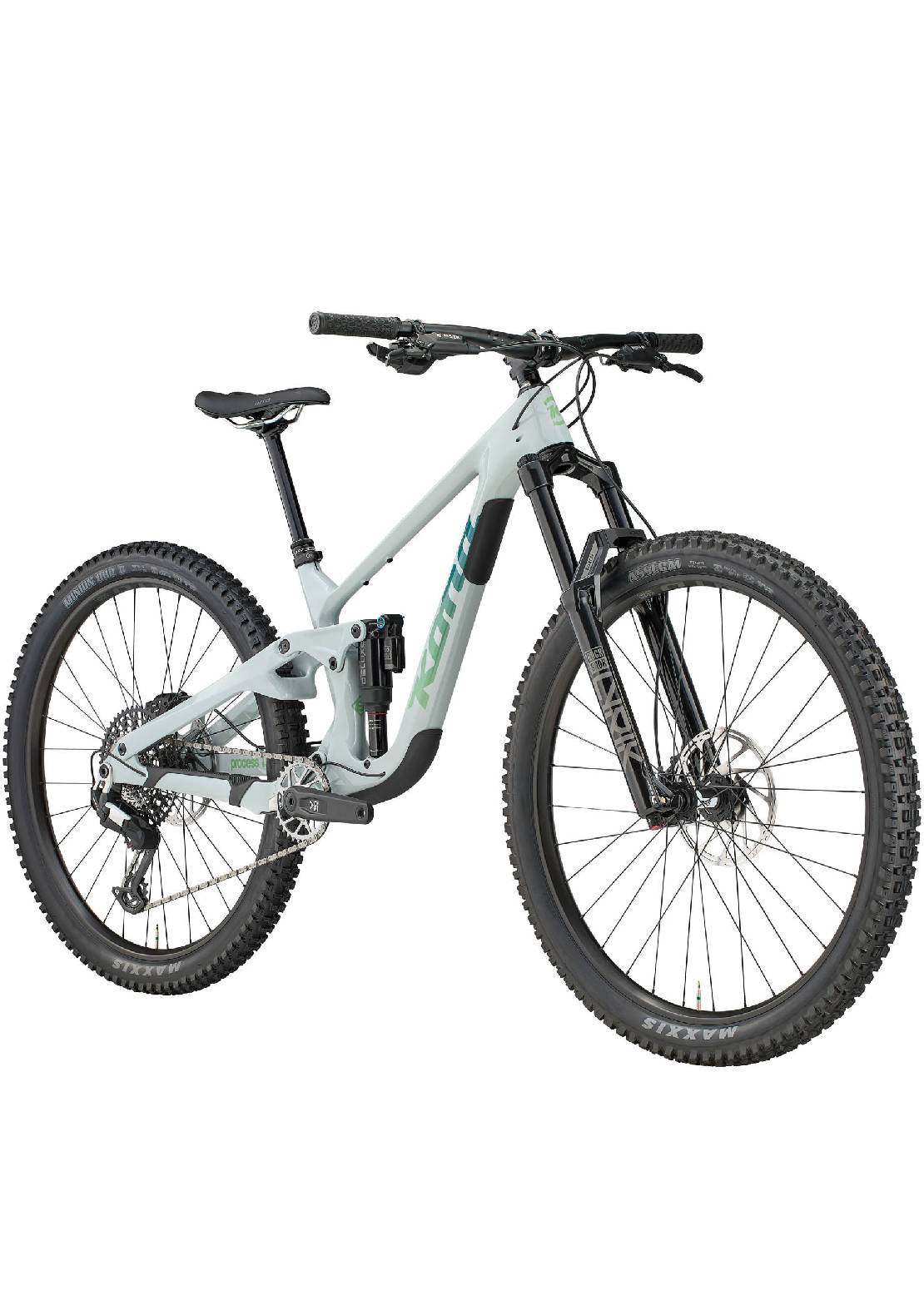

The Process 153 CR is the all-mountain bike that combines uncompromising performance with legendary toughness. This 160mm / 153mm travel carbon mountain bike is built to climb efficiently, charge technical terrain, and deliver Nirvana-level peace of mind with Valhalla-level confidence when the trail points down. Efficient on the climbs. An absolute beast on the descents. Just like you.
| FRAME | Kona Carbon 153mm Travel |
| SIZES | S, M, L, XL |
| REAR SHOCK | Rockshox Super Deluxe Select+ 205x57.5mm |
| FORK | RockShox Lyrik Select+ 160mm 29" |
| CRANKSET | SRAM Eagle 90 DUB 32t / Length S 165mm / M-XL 170mm |
| BOTTOM BRACKET | SRAM DUB PF92 MTB WIDE |
| PEDALS | n/a |
| CHAIN | SRAM Eagle 70 T-Type |
| CASSETTE | SRAM XS 1275 10-52t 12spd XD |
| CHAINGUIDE | n/a |
| FRONT DERAILLEUR | n/a |
| REAR DERAILLEUR | SRAM Eagle 90 Transmission |
| SHIFTERS | SRAM Eagle 90 Transmission |
| BRAKE CALIPERS | SRAM Maven Base |
| FRONT BRAKE ROTOR | SRAM Centerline 200mm 6B |
| REAR BRAKE ROTOR | SRAM Centerline 200mm 6B |
| BRAKE LEVERS | SRAM Maven Base |
| HEADSET | FSA Orbit No.57 ZS44/ZS56 |
| HANDLEBAR | Kona 35mm / Back 8º / Rise 18mm / Width S 760mm / M 780mm / L-XL 800mm |
| STEM | Kona 35mm / Rise 0º / Length 40mm |
| SEATPOST | TranzX Dropper +RAD Internal 31.6mm / Length S 150mm / M 170mm / L 200mm / XL 230mm |
| SEAT CLAMP | Kona Clamp 34.9mm |
| GRIPS | Kona Key Grip Lock-on |
| SADDLE | WTB Volt SL Fusion |
| FRONT HUB | DT Swiss 350 15x110mm |
| REAR HUB | DT Swiss 350 12x148mm XD |
| SPOKES | Stainless 2.0/1.8mm Black |
| RIMS | WTB KOM Trail i30 TCS |
| FRONT TIRE | Maxxis Assegai 29x2.5" WT EXO+ / TR / 3C MaxxGrip |
| REAR TIRE | Maxxis DHR II 29x2.4" WT EXO+ / TR / 3C (27.5x2.4" WT size S) |
| PAINT COLOR | Gloss Concrete w/ Greenstone Fade & Spot Matte Decals |
All specifications are subject to change without notice.
GEOMETRY
| Size | S | M | L | XL | |
| 1 | ST Length | 380 | 380 | 420 | 450 |
| 2 | TT Length | 574 | 599 | 628 | 667 |
| 3 | Reach | 430 | 455 | 480 | 515 |
| 4 | Stack | 615 | 615 | 625 | 635 |
| 5 | Standover | 690 | 700 | 710 | 720 |
| 6 | HT Angle | 64.5 | 64.5 | 64.5 | 64.5 |
| 7 | HT Length | 94 | 94 | 105 | 116 |
| 8 | ST Angle | 76.9 | 76.9 | 76.7 | 76.6 |
| 9 | CS Length | 435 | 435 | 435 | 435 |
| 10 | BB Drop | 20 | 30 | 30 | 30 |
| 11 | BB Height | 345 | 345 | 345 | 345 |
| 12 | Wheelbase | 1190 | 1215 | 1244 | 1284 |
| 13 | Front Center | 756 | 781 | 811 | 851 |
| 14 | Fork Length | 571 | 571 | 571 | 571 |
| 15 | Fork Offset | 44 | 44 | 44 | 44 |
|
Hauteur / pouces |
Hauteur / métrique |
Sécoupe / pouces |
Sénurie / métrique |
Route / Rove |
Libre |
Cx / sutra |
Rosée |
COCO |
|
4'10"-5'1" |
147-155 cm |
24”-27” |
61-69 cm |
46-48 cm |
46 cm |
46-48 cm |
N / A |
XS |
|
5'0"-5'3" |
152-160 cm |
26"-29" |
66-74 cm |
48-50 cm |
46-49 cm |
48-50 cm |
Petit |
Petit |
|
5'2"-5'7" |
157-170 cm |
27"-30" |
69-76 cm |
48-52 cm |
49-51 cm |
48-52 cm |
Petit moyen |
Petit moyen |
|
5'6"-5'10" |
168-178 cm |
29"-31" |
74-79 cm |
52-54 cm |
51-54 cm |
52-54 cm |
Moyen |
Moyen |
|
5'9"-6'0" |
175-183 cm |
30"-33" |
76-84 cm |
52-56 cm |
54-55 cm |
52-56 cm |
Moyen large |
Moyen large |
|
5'11"-6'2" |
180-188 cm |
32"-35" |
81-89 cm |
54-58 cm |
54-55 cm |
54-58 cm |
Grand, xl |
Grand |
|
6'1"-6'5" |
185-196 cm |
33"-36" |
84-91 cm |
56-58 cm |
55 cm |
56-58 cm |
Xl |
N / A |
VTT / All Mountain / Splice (MTB / All Mountain / Gravity)
|
Hauteur / pouces |
Hauteur / métrique |
Sécoupe / pouces |
Sénurie / métrique |
ÉPISSURE |
MTB / XC Trail / Fat |
All Mountain / Enduro |
Gravité / dh |
|
4'10"-5'1" |
147-155 cm |
24”-27” |
61-69 cm |
Petit |
XS |
XS |
N / A |
|
5'0"-5'3" |
152-160 cm |
26"-29" |
66-74 cm |
Petit |
Petit |
Petit |
N / A |
|
5'2"-5'7" |
157-170 cm |
27"-30" |
69-76 cm |
Petit moyen |
Petit moyen |
Petit moyen |
Moyen |
|
5'6"-5'10" |
168-178 cm |
29"-31" |
74-79 cm |
Moyen |
Moyen |
Moyen |
Moyen |
|
5'9"-6'0" |
175-183 cm |
30"-33" |
76-84 cm |
Moyen large |
Moyen large |
Moyen large |
Moyen large |
|
5'11"-6'2" |
180-188 cm |
32"-35" |
81-89 cm |
Grand, xl |
Grand, xl |
Grand, xl |
Grand, xl |
|
6'1"-6'5" |
185-196 cm |
33"-36" |
84-91 cm |
Grand, xl |
Grand, xl |
Grand, xl |
Grand, xl |
