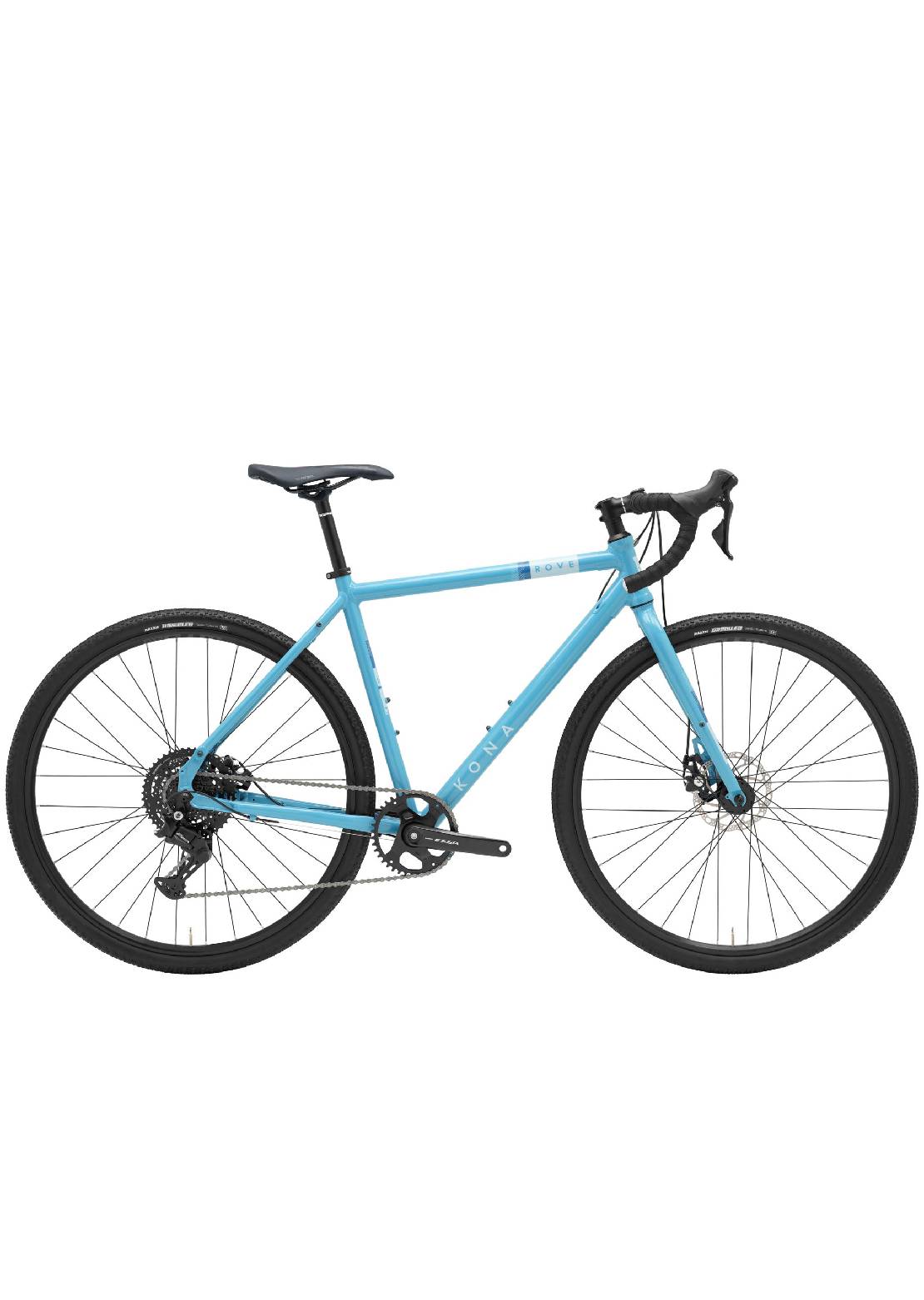

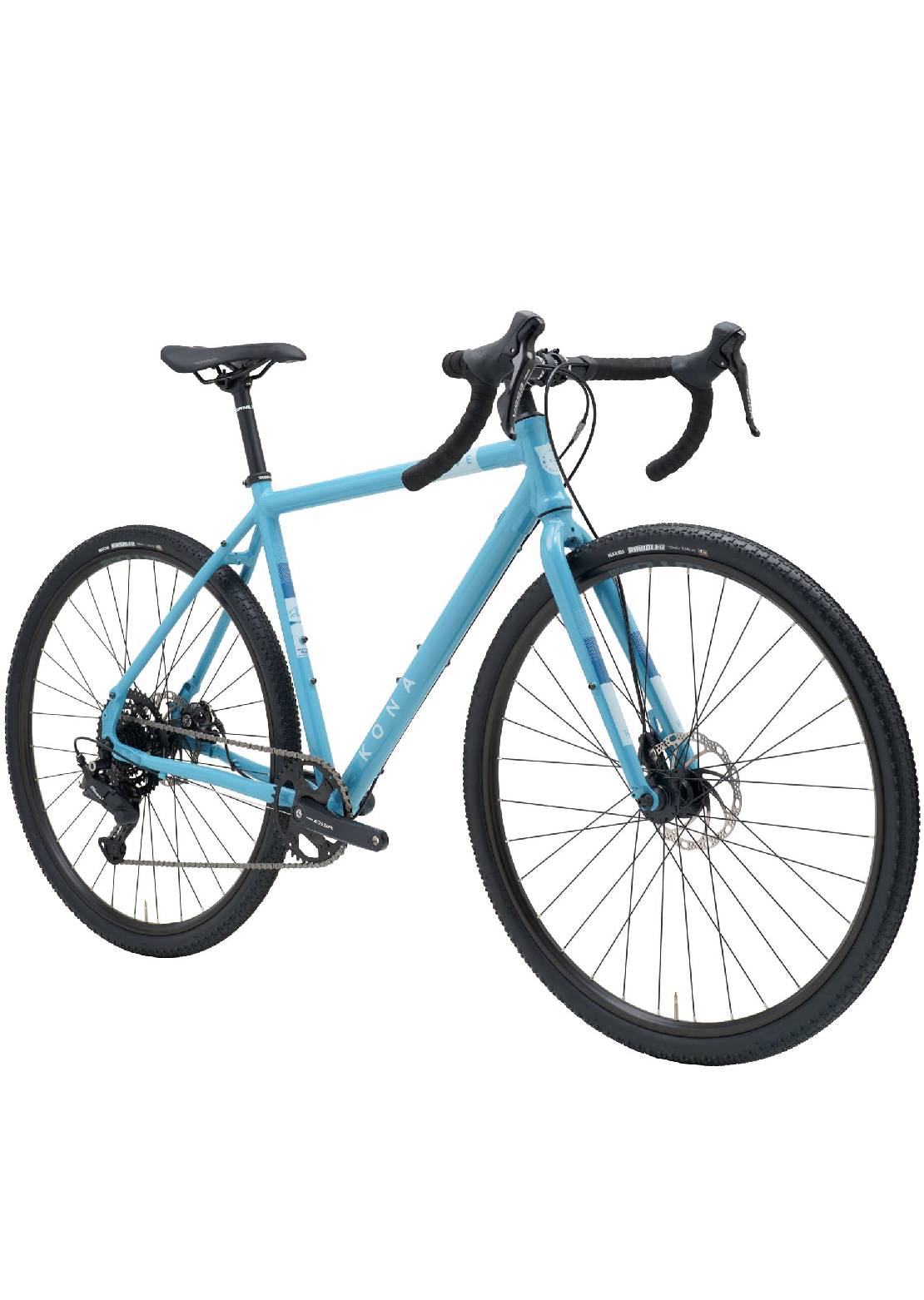

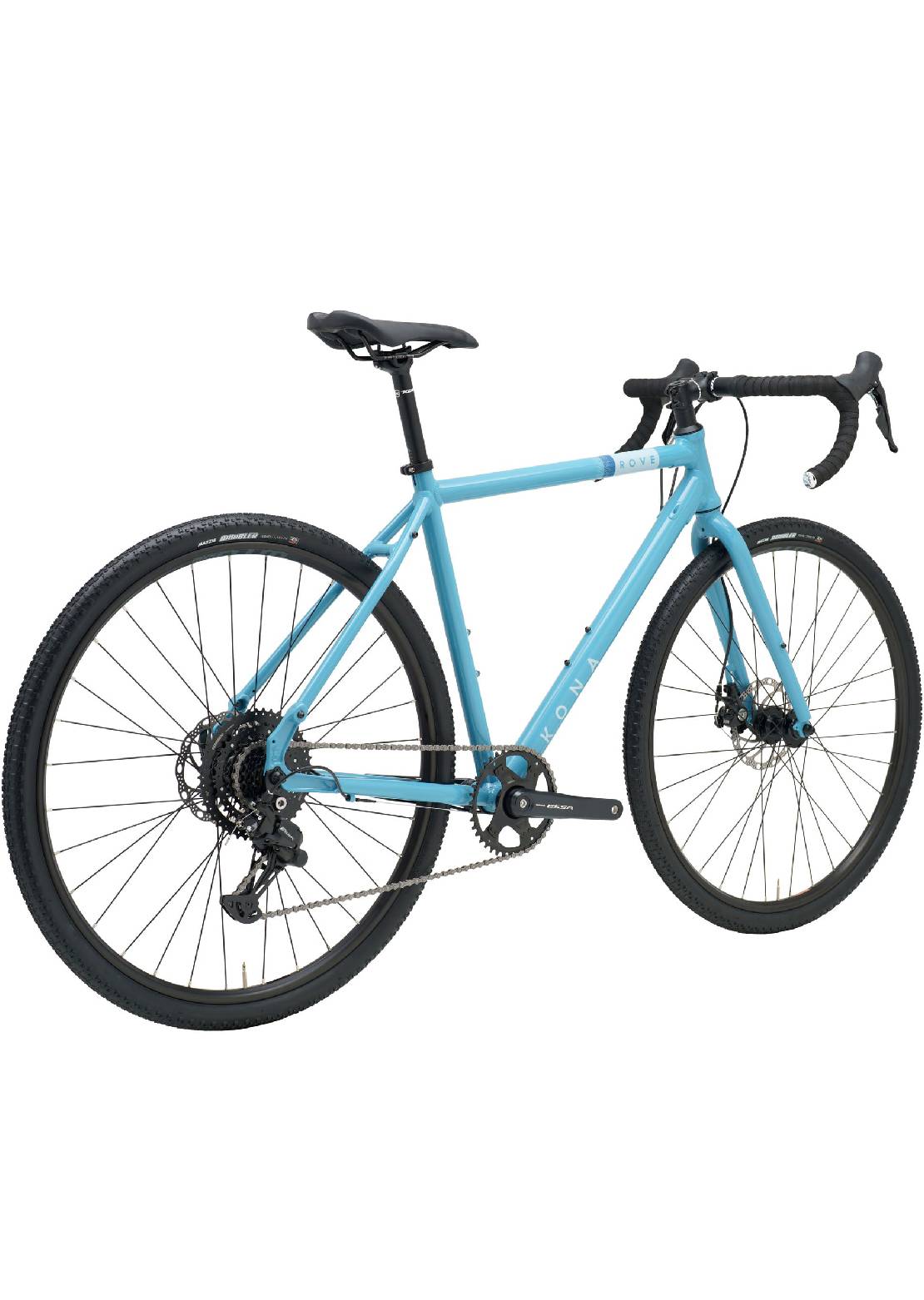

Rove AL is an affordable drop bar bike that doesn’t cut corners. With updated geometry that mirrors our high-end gravel line, the Rove AL is versatile, comfortable, and ready for errands, school, or dirt road adventures. Same trusted frame, smarter fit, same entry level price range.
| FRAME | Kona 6061 Aluminum Butted |
| SIZES | 48, 50, 52, 54, 56, 58 |
| REAR SHOCK | n/a |
| FORK | Kona 6061 Aluminum Disc |
| CRANKSET | Shimano ESSA 2000 40t / 48-56 170mm / 58 175mm |
| BOTTOM BRACKET | Shimano BSA 68 |
| PEDALS | n/a |
| CHAIN | KMC Z8.3 |
| CASSETTE | Shimano ESSA HG300 11-45t 8spd |
| CHAINGUIDE | n/a |
| FRONT DERAILLEUR | n/a |
| REAR DERAILLEUR | Shimano ESSA RDU2000 |
| SHIFTERS | Shimano ESSA U2000 |
| BRAKE CALIPERS | Tektro Mira CX |
| FRONT BRAKE ROTOR | Tektro 160mm 6B 1.8mm |
| REAR BRAKE ROTOR | Tektro 160mm 6B 1.8mm |
| BRAKE LEVERS | Shimano ESSA U2000 |
| HEADSET | Feimin ZS44/ZS44 |
| HANDLEBAR | Kona Gravel Dropbar 31.8mm / Width 48 42cm / 50-52 44cm / 54 46cm / 56-58 48cm |
| STEM | Kona 31.8mm / Rise 6º / Length 48-52 60mm / 54-56 70mm / 58 80mm |
| SEATPOST | Kona w/Offset 27.2mm / 48-52 350mm / 54-58 375mm |
| SEAT CLAMP | Kona Clamp 31.8mm |
| GRIPS | Kona Cork Tape |
| SADDLE | Kona Gravel |
| FRONT HUB | Joytech 9x100mm |
| REAR HUB | Joytech 10x135mm |
| SPOKES | Stainless 2mm Black |
| RIMS | WTB SX19 |
| FRONT TIRE | Maxxis Rambler 700x40mm |
| REAR TIRE | Maxxis Rambler 700x40mm |
| PAINT COLOR | Gloss Blue Smoke w/ Celestial Blue & Pastel Decals |
All specifications are subject to change without notice.
GEOMETRY
| Size | 48 | 50 | 52 | 54 | 56 | 58 | |
| 1 | ST Length | 480 | 500 | 520 | 540 | 560 | 580 |
| 2 | TT Length | 522 | 537 | 552 | 568 | 584 | 601 |
| 3 | Reach | 380 | 385 | 390 | 395 | 400 | 405 |
| 4 | Stack | 528 | 547 | 566 | 584 | 601 | 620 |
| 5 | Standover | 745 | 765 | 786 | 805 | 825 | 843 |
| 6 | HT Angle | 69.5 | 69.5 | 70 | 70 | 70 | 70 |
| 7 | HT Length | 90 | 110 | 130 | 150 | 170 | 190 |
| 8 | ST Angle | 75 | 74.5 | 74 | 73.5 | 73 | 72.5 |
| 9 | CS Length | 435 | 435 | 435 | 435 | 435 | 435 |
| 10 | BB Drop | 74 | 74 | 72 | 72 | 70 | 70 |
| 11 | BB Height | 281 | 281 | 283 | 283 | 285 | 285 |
| 12 | Wheelbase | 1032 | 1044 | 1052 | 1064 | 1076 | 1091 |
| 13 | Front Center | 608 | 620 | 627 | 639 | 650 | 662 |
| 14 | Fork Length | 410 | 410 | 410 | 410 | 410 | 410 |
| 15 | Fork Offset | 50 | 50 | 50 | 50 | 50 | 50 |
|
Hauteur / pouces |
Hauteur / métrique |
Sécoupe / pouces |
Sénurie / métrique |
Route / Rove |
Libre |
Cx / sutra |
Rosée |
COCO |
|
4'10"-5'1" |
147-155 cm |
24”-27” |
61-69 cm |
46-48 cm |
46 cm |
46-48 cm |
N / A |
XS |
|
5'0"-5'3" |
152-160 cm |
26"-29" |
66-74 cm |
48-50 cm |
46-49 cm |
48-50 cm |
Petit |
Petit |
|
5'2"-5'7" |
157-170 cm |
27"-30" |
69-76 cm |
48-52 cm |
49-51 cm |
48-52 cm |
Petit moyen |
Petit moyen |
|
5'6"-5'10" |
168-178 cm |
29"-31" |
74-79 cm |
52-54 cm |
51-54 cm |
52-54 cm |
Moyen |
Moyen |
|
5'9"-6'0" |
175-183 cm |
30"-33" |
76-84 cm |
52-56 cm |
54-55 cm |
52-56 cm |
Moyen large |
Moyen large |
|
5'11"-6'2" |
180-188 cm |
32"-35" |
81-89 cm |
54-58 cm |
54-55 cm |
54-58 cm |
Grand, xl |
Grand |
|
6'1"-6'5" |
185-196 cm |
33"-36" |
84-91 cm |
56-58 cm |
55 cm |
56-58 cm |
Xl |
N / A |
VTT / All Mountain / Splice (MTB / All Mountain / Gravity)
|
Hauteur / pouces |
Hauteur / métrique |
Sécoupe / pouces |
Sénurie / métrique |
ÉPISSURE |
MTB / XC Trail / Fat |
All Mountain / Enduro |
Gravité / dh |
|
4'10"-5'1" |
147-155 cm |
24”-27” |
61-69 cm |
Petit |
XS |
XS |
N / A |
|
5'0"-5'3" |
152-160 cm |
26"-29" |
66-74 cm |
Petit |
Petit |
Petit |
N / A |
|
5'2"-5'7" |
157-170 cm |
27"-30" |
69-76 cm |
Petit moyen |
Petit moyen |
Petit moyen |
Moyen |
|
5'6"-5'10" |
168-178 cm |
29"-31" |
74-79 cm |
Moyen |
Moyen |
Moyen |
Moyen |
|
5'9"-6'0" |
175-183 cm |
30"-33" |
76-84 cm |
Moyen large |
Moyen large |
Moyen large |
Moyen large |
|
5'11"-6'2" |
180-188 cm |
32"-35" |
81-89 cm |
Grand, xl |
Grand, xl |
Grand, xl |
Grand, xl |
|
6'1"-6'5" |
185-196 cm |
33"-36" |
84-91 cm |
Grand, xl |
Grand, xl |
Grand, xl |
Grand, xl |
