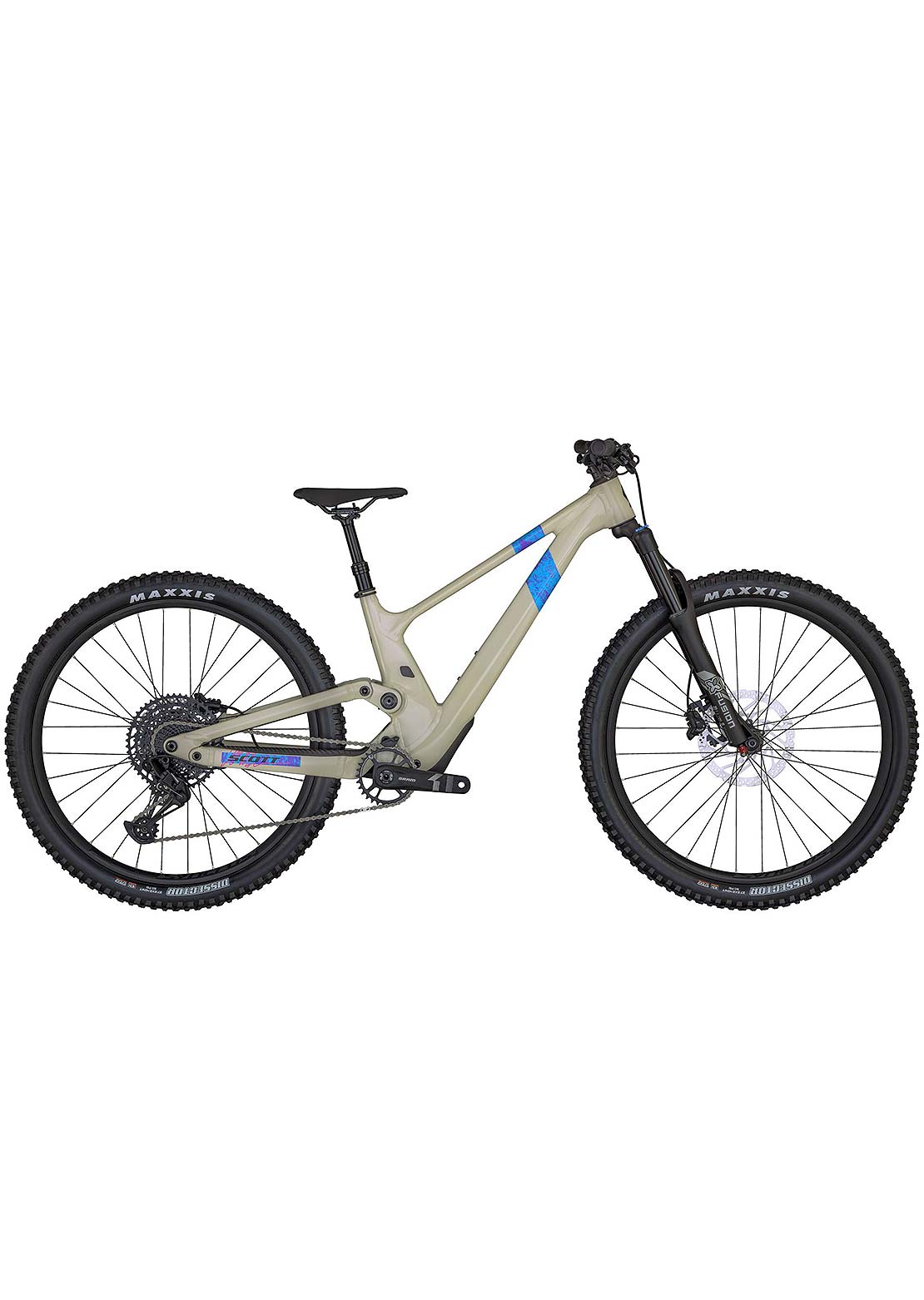

Get into the next league with the all new SCOTT Genius 700 ! The adult dream bike is now available for the younger generation with 27.5" wheels and 150mm of suspension travel front and rear. We took years of integration expertise and adapted it for the next generation of riders. If you think you're ready to handle the most epic trails, this bike could very well be your new best friend. *Please note that bike specifications are subject to change without prior notice
FRAME: Genius Alloy 6061, Integrated suspension technology, Virtual 4 link kinematic / adjustable head angle, Syncros cable integration system, BB92 / UDH interface / 12x148mm with 55mm Chainline
FORK: X-Fusion Sweep Boost RC 27.5", tapered / 110x15mm / Air kids tune, 150mm travel
REAR SHOCK: X-Fusion 02Pro R Trunnion KIDS, vertical valve position / rebound adjuster / Kids tune, 150mm travel / 185x55mm
REAR DERAILLEUR: SRAM SX Eagle 12 Speed
SHIFTERS: SRAM NX Eagle Trigger / MMX
CRANKSET: SRAM X1 1000 CL55 Eagle DUB / 155mm / 30T
CHAINGUIDE: SCOTT custom
BB-SET: SRAM DUB PF 92 MTB Wide / shell 41x92mm
CHAIN: SRAM CN SX Eagle
CASSETTE: SRAM SX Eagle / PG-1210 / 11-50T
BRAKE LEVERS: Shimano BL-MT501
BRAKES: Shimano BR-MT500
ROTOR: Shimano SM-RT30 CL / F:203 R:180
HANDLEBAR: Syncros Hixon 2.0 Alloy 6061 D.B., 12mm Rise / back sweep 9° / 740mm, , Syncros Performance XC lock-on grips
H'STEM: LEADTEC / 40mm / +/-7°, 31.8mm clamp
SEATPOST: Syncros Dropper Ducan Remote, 31.6mm / 80mm / Kid centric custom tune / Remote Lever I-Spec II
SEAT: Syncros Future Pro
HEADSET: Syncros - Acros Angle adjust & Cable Routing HS System, -0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB
HUB (FRONT): Formula CL-811 / 15x110mm
HUB (REAR): Formula CL-148S / 12x148mm
SPOKES: Stainless Black 15G / 1.8mm
RIMS: Syncros X-30S / 32H / 30mm / Sleeve Joint
FRONT TIRE: Maxxis Dissector / 27.5x2.4" / 60TPI Foldable, Tubeless Ready / EXO
REAR TIRE: Maxxis Dissector / 27.5x2.4" / 60TPI Foldable, Tubeless Ready / EXO
APPROX WEIGHT IN KG: 14.7
APPROX WEIGHT IN LBS: 32.41
MAX. SYSTEM WEIGHT: : 80kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
S
Geometry
|
Spécifications
|
||
|
A |
HEAD TUBE ANGLE |
65.4 ° |
|
B |
HEAD TUBE LENGTH |
3.5 IN |
|
C |
TOP TUBE HORIZONTAL |
22.2 IN |
|
D |
STANDOVER HEIGHT |
27.2 IN |
|
E |
BB OFFSET |
-1.8 IN |
|
F |
BB HEIGHT |
12.3 IN |
|
G |
WHEEL BASE |
46.7 IN |
|
I |
BB CENTER TO TOP OF SEATTUBE |
15.0 IN |
|
J |
SEAT ANGLE |
78.7 ° |
|
K |
CHAINSTAY |
17.3 IN |
|
L |
REACH |
17.4 IN |
|
M |
STACK |
23.7 IN |
|
N |
STEM LENGTH |
1.6 IN |
|
P |
FORK LENGTH |
21.3 IN |
|
Q |
MAXIMUM SEATPOST INSERTION |
6.8 IN |
|
R |
CRANK LENGTH |
6.1 IN |
