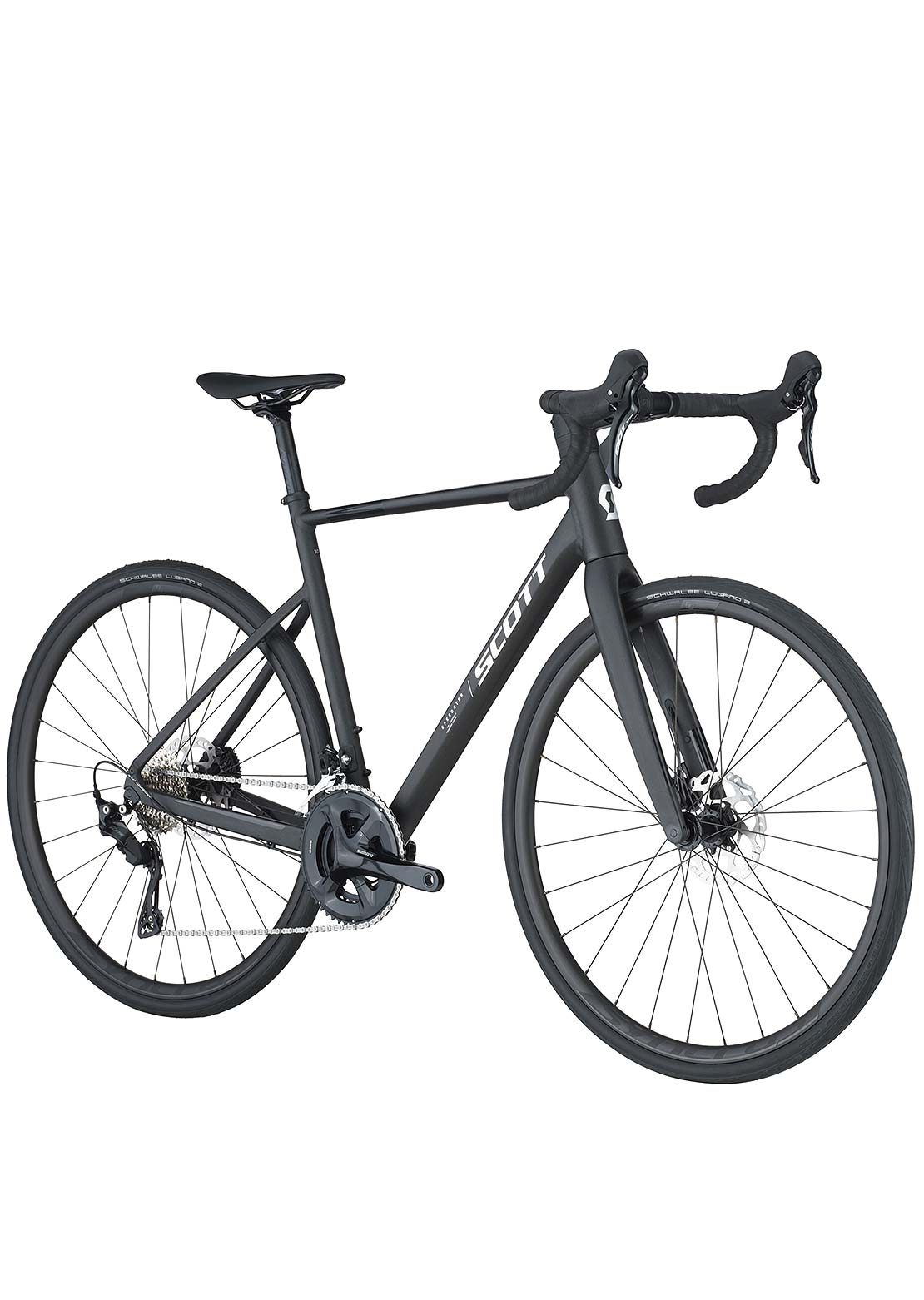

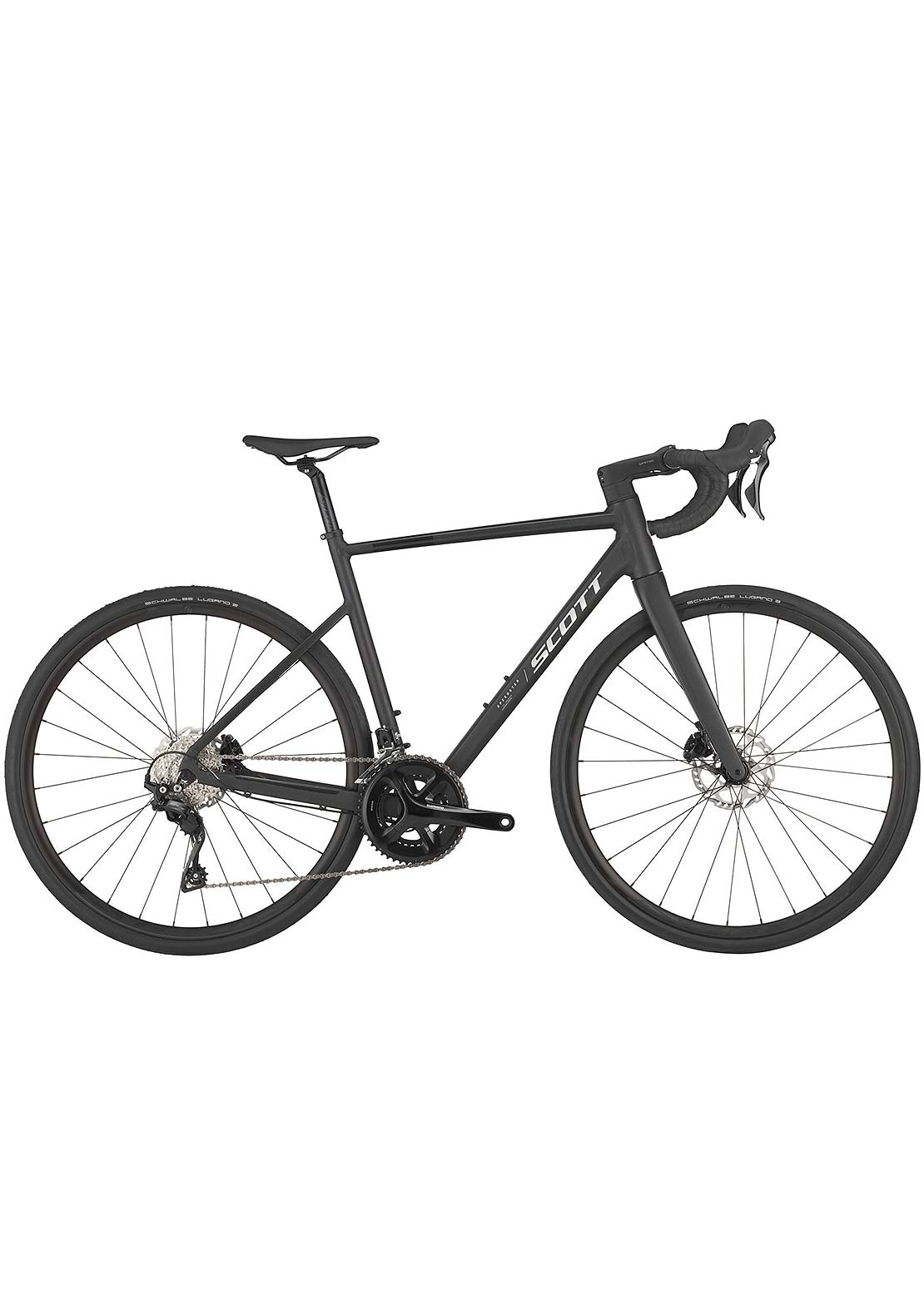

The SCOTT Speedster 10 is a light, agile, and cost efficient alloy road bike. With fully integrated cables, not only will this bike ride well, but it will most definitely look the part! *Please note that bike specifications are subject to change without prior notice.
FRAME: Speedster Disc, 6061 D.Butted Alloy, Endurance geometry, int. cable routing, Syncros fender kit ready
FORK: Speedster HMF Disc, 1 1/4"-1 1/2" Eccentric Carbon steerer
REAR DERAILLEUR: Shimano 105 RD-R7100, 24 Speed
FRONT DERAILLEUR: Shimano 105 FD-R7100
SHIFTERS: Shimano 105 ST-R7120 Disc, Dual control 24 Speed
CRANKSET: Shimano FC-RS520, 50/34
BB-SET: Shimano BB-RS500-PB
CHAIN: Shimano CN-M6100-12
CASSETTE: Shimano CS-R7101, 11-34
BRAKES: Shimano BR-R7170 Hyd.Disc
ROTOR: Shimano RT-CL700 rotor 160/F and 160/R
HANDLEBAR: Syncros Creston 2.0 Compact, 31.8mm
H'STEM: Syncros RR2.5, 1 1/4", four Bolt 31.8mm
SEATPOST: Syncros RR2.5 27.2/350mm
SEAT: Syncros Tofino Regular 2.5
HEADSET: Acros AIF-1133
HUB (FRONT): Formula Team II CL Disc 28 H
HUB (REAR): Formula Team II CL Disc 28 H
SPOKES: Black 2mm
RIMS: 28 Front, 28 Rear, Syncros Race 25 Disc
FRONT TIRE: Schwalbe Lugano, 700x32C
REAR TIRE: Schwalbe Lugano, 700x32C
APPROX WEIGHT IN KG: 10.2
APPROX WEIGHT IN LBS: 22.49
MAX. SYSTEM WEIGHT: 120kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
Geometry
|
XXS/47 |
XS/49 |
S/52 |
M/54 |
L/56 |
XL/58 |
XXL/61 |
||
|
A |
HEAD TUBE ANGLE / ANGLE TUBE DE DIRECTION |
70.5 ° |
71.0 ° |
72.0 ° |
72.5 ° |
73.0 ° |
73.3 ° |
73.3 ° |
|
B |
HEAD TUBE LENGTH / HAUTEUR TUBE DE DIRECTION |
3.7 IN |
4.1 IN |
4.8 IN |
5.6 IN |
6.4 IN |
7.2 IN |
8.0 IN |
|
C |
TOP TUBE HORIZONTAL / LONGUEUR HORIZONTALE TUBE SUPÉRIEUR |
20.3 IN |
20.7 IN |
21.3 IN |
21.8 IN |
22.4 IN |
23.0 IN |
23.5 IN |
|
D |
STANDOVER HEIGHT / HAUTEUR ENTRE-JAMBES |
28.9 IN |
29.7 IN |
30.7 IN |
31.5 IN |
32.3 IN |
33.1 IN |
34.0 IN |
|
E |
BB OFFSET / DEPORT AXE DE PÉDALIER |
-2.8 IN |
-2.8 IN |
-2.8 IN |
-2.8 IN |
-2.8 IN |
-2.8 IN |
-2.8 IN |
|
F |
BB HEIGHT / HAUTEUR AXE DE PÉDALIER |
10.8 IN |
10.8 IN |
10.8 IN |
10.8 IN |
10.8 IN |
10.8 IN |
10.8 IN |
|
G |
WHEEL BASE / ENTRAXE ROUES |
39.4 IN |
39.7 IN |
39.8 IN |
40.0 IN |
40.3 IN |
40.6 IN |
41.1 IN |
|
H |
BB CENTER TO TOPTUBE CENTER / DIST. BOITIER - MILIEU TUBE SUPÉRIEUR |
16.9 IN |
17.7 IN |
18.9 IN |
19.7 IN |
20.5 IN |
21.3 IN |
22.4 IN |
|
I |
BB CENTER TO TOP OF SEATTUBE / DIST. BOITIER - SOMMET TUBE DE SELLE |
18.5 IN |
19.3 IN |
20.5 IN |
21.3 IN |
22.0 IN |
22.8 IN |
24.0 IN |
|
J |
SEAT ANGLE / ANGLE TUBE DE SELLE |
75.0 ° |
75.0 ° |
74.5 ° |
74.0 ° |
73.5 ° |
73.1 ° |
73.0 ° |
|
K |
CHAINSTAY / LONGUEUR DES BASES |
16.7 IN |
16.7 IN |
16.7 IN |
16.7 IN |
16.8 IN |
16.8 IN |
16.8 IN |
|
L |
REACH / REACH |
14.8 IN |
15.1 IN |
15.2 IN |
15.4 IN |
15.2 IN |
15.7 IN |
16.0 IN |
|
M |
STACK / STACK |
20.4 IN |
20.8 IN |
21.7 IN |
22.5 IN |
23.4 IN |
24.2 IN |
24.9 IN |
|
N |
STEM LENGTH / LONGUEUR POTENCE |
3.3 IN |
3.3 IN |
3.7 IN |
4.1 IN |
4.1 IN |
4.4 IN |
4.4 IN |
