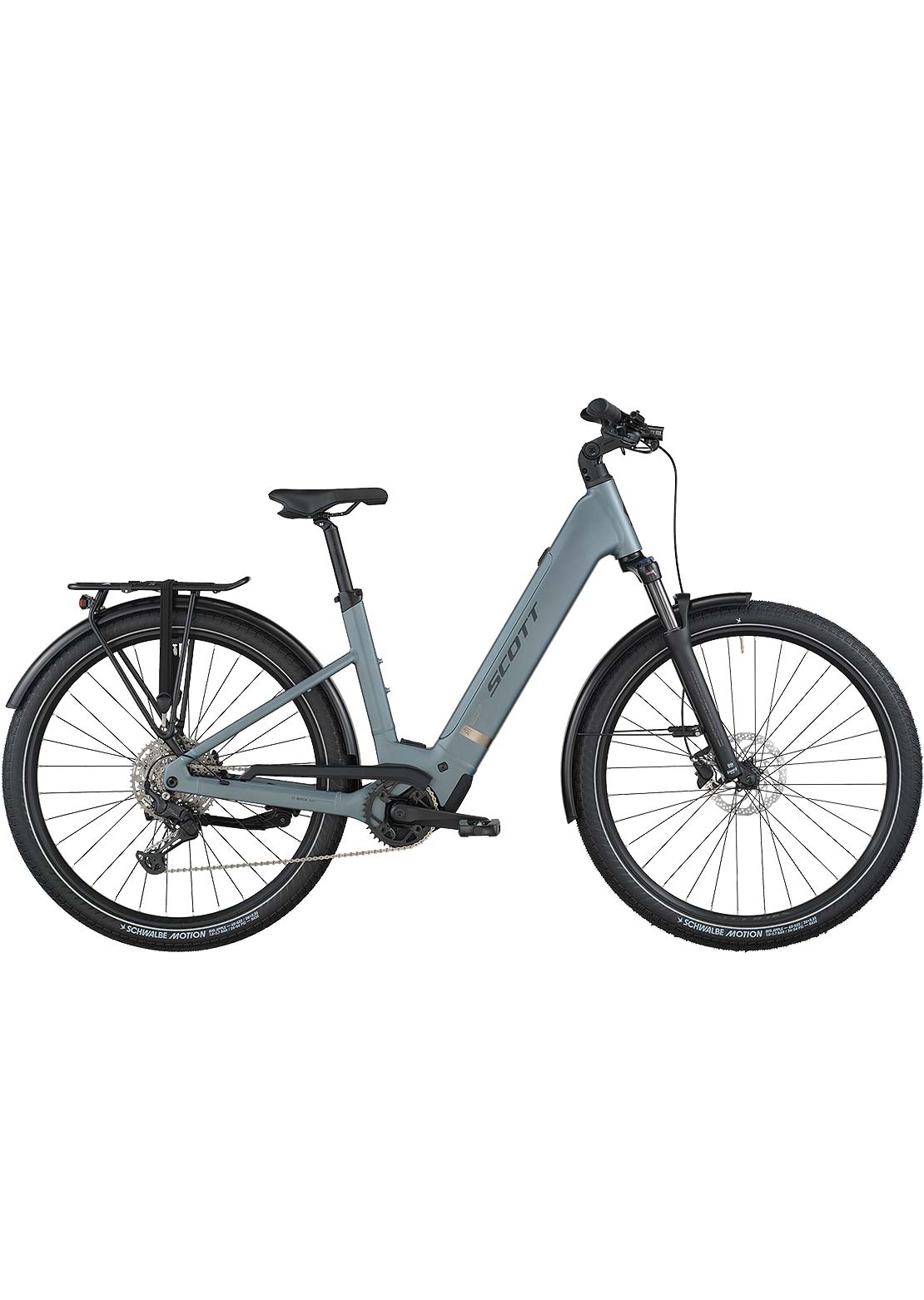

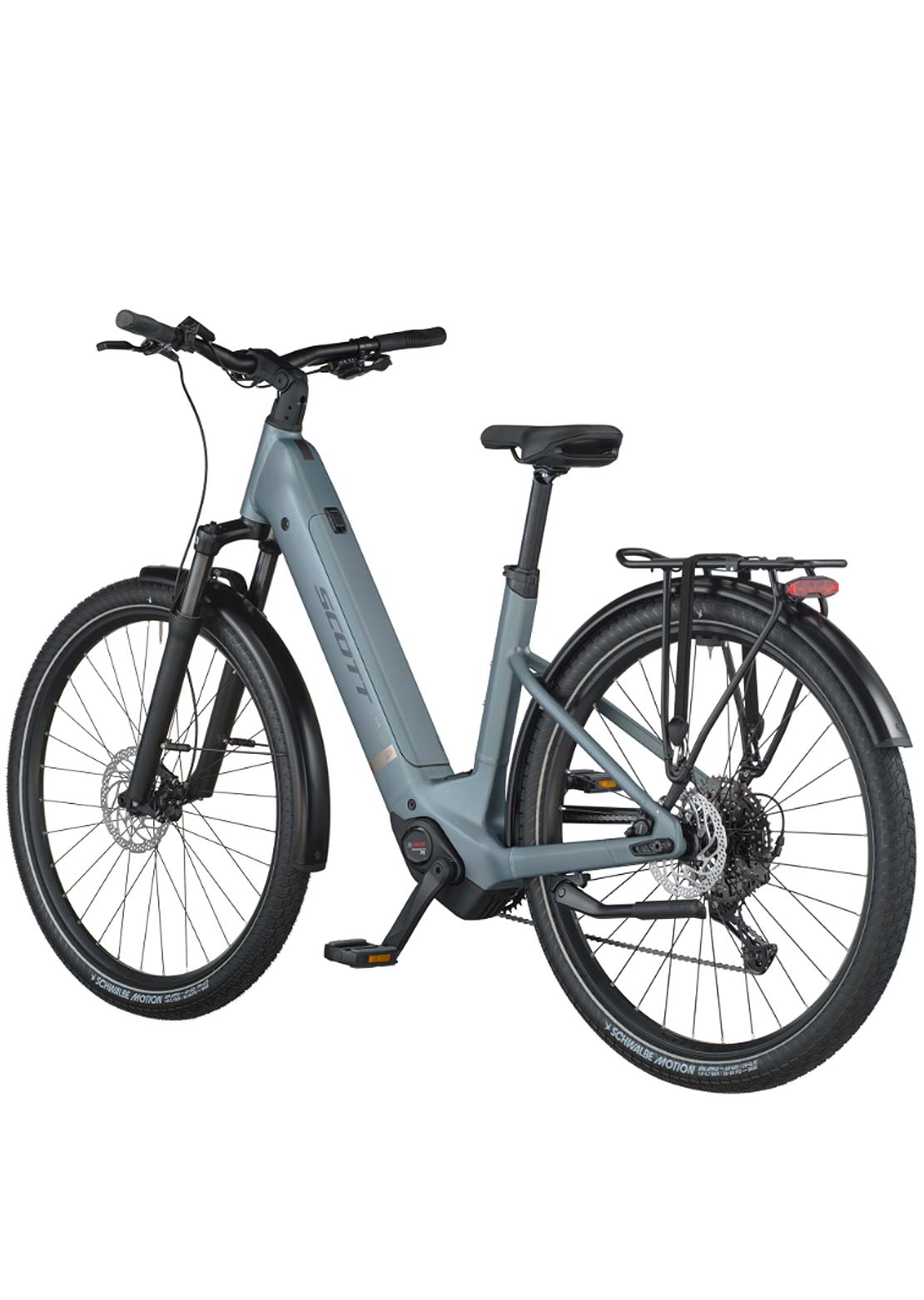

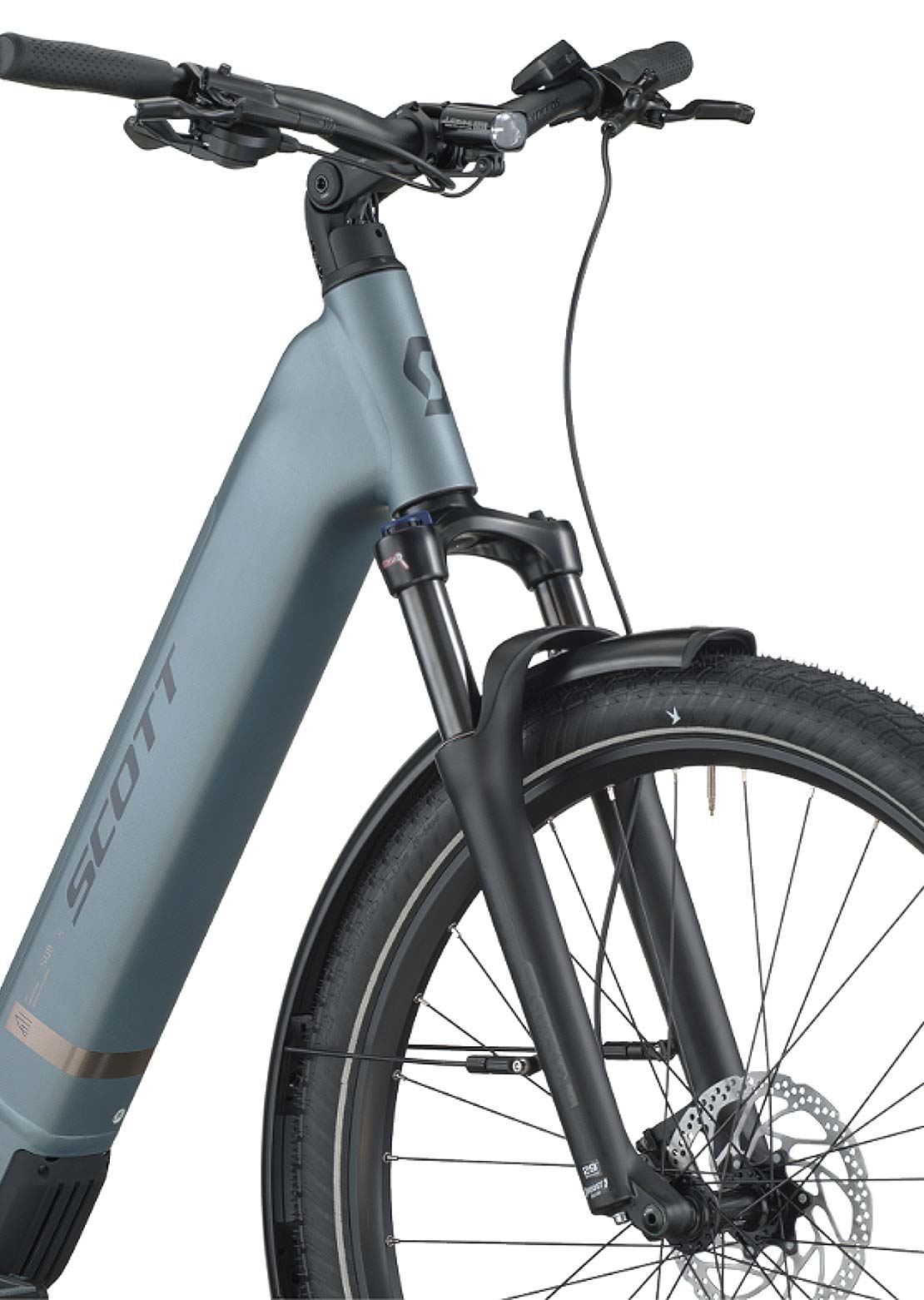

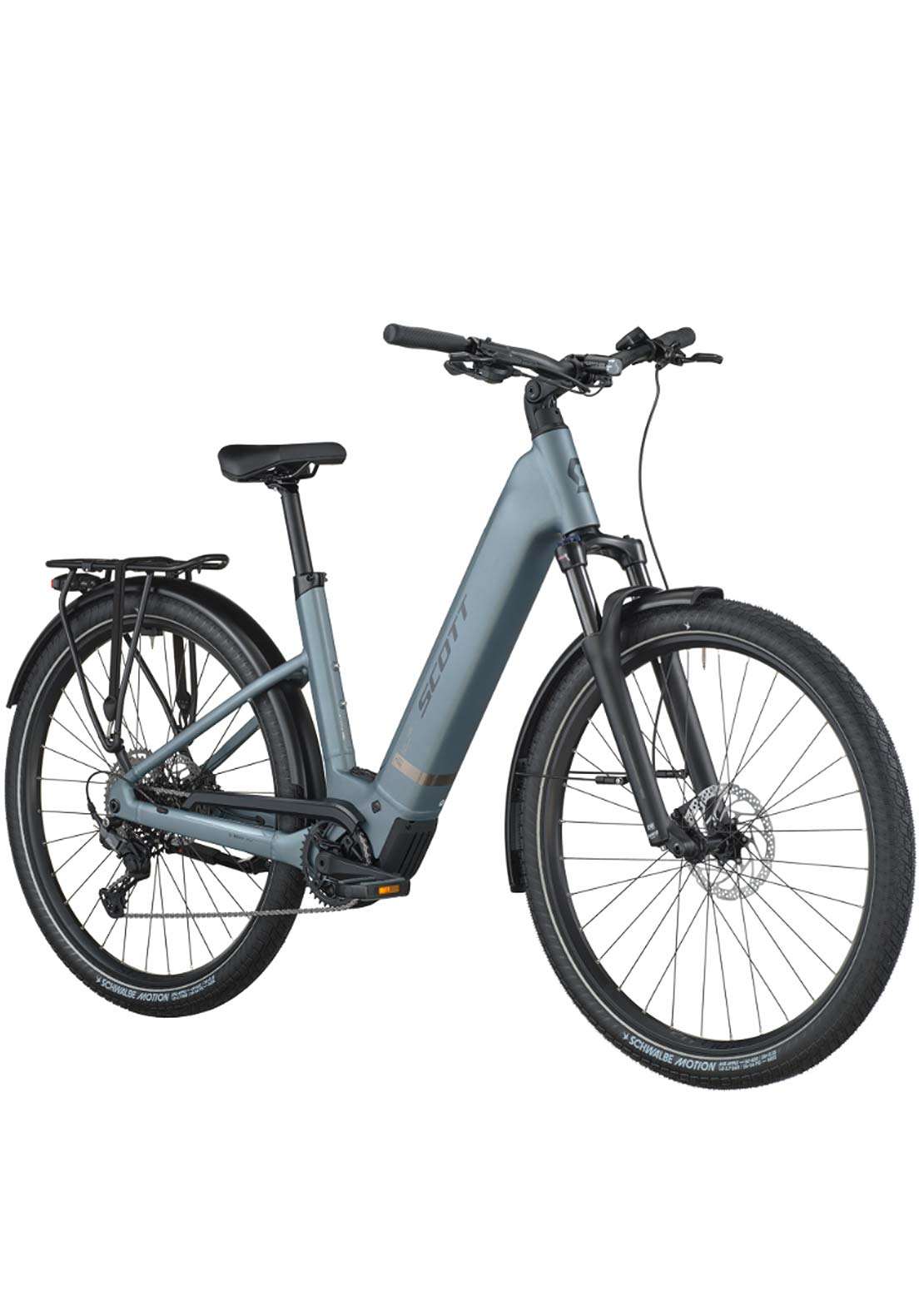

The Sub Sport 20 Wave E-Bike is the smart and convenient way to embrace cycling in the city and a great value. With its step-through frame design that favors most riders and its strong, user-friendly Bosch motor, it’s a bike that makes urban riding a breeze and delivers range for every journey. Its frame shape eliminates the need to throw a leg over the saddle, and makes it an approachable design that’s comfortable to mount and dismount, and versatile with any type of clothing you’ll be pedaling to your destination.
The Sub Sport 20 Wave uses the quiet Bosch’s Performance PX motor and an 600Wh battery unit. When you start pedaling, the power delivery feels smooth and natural, inspiring confidence for rides in busier areas of town and navigating inclines. There are also multiple mode settings to select to dial in the perfect amount of juice you need for any ride you’ll do on Sub Sport. Its balanced geometry, stable platform, and front suspension provide exceptional handling, ensuring a comfortable ride even on rough pavement.
Whether you’re commuting to work, running errands, or embarking on longer routes, the Sub Sport 20 Wave excels, and can carry up to 25kg on its rear rack (fitting an optional kids’ seat for the little ones). Combined with Shimano’s 10-speed drivetrain, it offers the perfect gearing and power to make urban riding the most efficient and enjoyable way to get around. *Please note that bike specifications are subject to change without prior notice.
SYNCROS COCKPIT
The new Syncros cockpit, equipped with an adjustable stem, gives the handlebar a sleek and attractive look.
HEAVY-DUTY REAR RACK AND POWERFUL LIGHTS
Planning to carry a heavy load? No problem. The e-bike comes with a heavy-duty rear rack that supports up to 27 kg, perfect for a kids’ seat as well. Compatible with the Racktime Snap it 2.0 system adapter, the bike also features a powerful Lezyne front light and Syncros rear light: the rear light, integrated into the rear rack, is still visible with a kids’ seat mounted and thanks to its wraparound design, ensures visibility from a broader spectrum of angles.
SYNCROS COMBO
The new Syncros combo features a single-piece design with an integrated display, front light and cables, creating a sleek and aesthetically appealing handlebar.
SUB GEOMETRY
With diverse needs in mind, we have designed the bike’s geometry with two frame shapes, a more classic frame and a low step-through called “wave”, which is easier to mount and dismount. Pick the one that fits best suits you.
FRAME: Alloy S-XL=29", 6061 Alloy custom butted tubing, Top extraction battery, UDH Interface, 12x148mm with 52mm Chainline
TRAVEL: 100mm
FORK: SR Suntour XCM34 LO Coil, Tapered, 15x110 bolt Axle, Lock Out, 100mm Travel
DRIVE UNIT: Bosch Performance Line PX (BDU347Y), EU: 25kmh
BATTERY: PowerTube 600Wh
DISPLAY: Bosch Purion 200
CHARGER: 2A Charger
SHIFTERS: Shimano CUES RD-U6000GS 10 Speed
CRANKSET: FSA CK-220 170mm
CHAINGUIDE: Syncros
CHAINRING: FSA 38T
CHAIN: Shimano LG500
CASSETTE: Shimano CS-LG40010 11-48 T
BRAKES: Shimano BR-MT200 Disc
ROTOR: Front: SM-RT30 CL 180mm, Rear: SM-RT30 CL 160mm
HANDLEBAR: Syncros UC3.0 680mm, Rise 12mm, Backsweep 15°
H'STEM: Syncros UC 3.0 adjustable with front Light mount
SEATPOST: Syncros 3.0, 31.6mm, 350mm
SEAT: Syncros Capilano
HEADSET: Acros, 1.5"- 1.5", semi integ. OD 50/61mm, ID 44/55mm
HUB (FRONT): Shimano HBTC50015BB CL, 15x110mm
HUB (REAR): Shimano FHTC500HMBB, 148x12mm
SPOKES: Black Spokes
RIMS: Syncros X18 Disc
FRONT TIRE: Schwalbe Big Apple Performance, 60-622
REAR TIRE: Schwalbe Big Apple Performance, 60-622
LIGHTS: Front Lezyne Hecto E65, Rear Lezyne Light
RACK: Racktime carrier SnapIt 2.0 25KG
PEDALS: Marwi SP-828
APPROX WEIGHT IN KG: 29.8
APPROX WEIGHT IN LBS: 65.7
MAX. SYSTEM WEIGHT: 160kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
Geometry
|
S / 900 |
M / 900 |
L / 900 |
XL / 900 |
||
|
A |
HEAD TUBE ANGLE / ANGLE TUBE DE DIRECTION |
68.2 ° |
68.2 ° |
68.2 ° |
68.2 ° |
|
B |
HEAD TUBE LENGTH / HAUTEUR TUBE DE DIRECTION |
6.3 IN |
6.3 IN |
6.7 IN |
6.7 IN |
|
C |
TOP TUBE HORIZONTAL / LONGUEUR HORIZONTALE TUBE SUPÉRIEUR |
22.6 IN |
23.4 IN |
24.2 IN |
24.2 IN |
|
D |
STANDOVER HEIGHT / HAUTEUR ENTRE-JAMBES |
25.1 IN |
24.9 IN |
24.8 IN |
24.8 IN |
|
E |
BB OFFSET / DEPORT AXE DE PÉDALIER |
-3.0 IN |
-3.0 IN |
-3.0 IN |
-3.0 IN |
|
F |
BB HEIGHT / HAUTEUR AXE DE PÉDALIER |
11.8 IN |
11.8 IN |
11.8 IN |
11.8 IN |
|
G |
WHEEL BASE / ENTRAXE ROUES |
46.9 IN |
47.6 IN |
48.5 IN |
48.5 IN |
|
H |
BB CENTER TO TOPTUBE CENTER / DIST. BOITIER - MILIEU TUBE SUPÉRIEUR |
||||
|
I |
BB CENTER TO TOP OF SEATTUBE / DIST. BOITIER - SOMMET TUBE DE SELLE |
17.3 IN |
18.9 IN |
20.5 IN |
22.0 IN |
|
J |
SEAT ANGLE / ANGLE TUBE DE SELLE |
76.9 ° |
76.9 ° |
76.9 ° |
76.9 ° |
|
K |
CHAINSTAY / LONGUEUR DES BASES |
19.0 IN |
19.0 IN |
19.0 IN |
19.0 IN |
|
L |
REACH / REACH |
16.3 IN |
17.0 IN |
17.7 IN |
17.7 IN |
|
M |
STACK / STACK |
27.4 IN |
27.1 IN |
27.8 IN |
27.8 IN |
|
N |
STEM LENGTH / LONGUEUR POTENCE |
3.5 IN |
3.5 IN |
3.5 IN |
3.5 IN |
|
0 |
TRAIL / CHASSE AU SOL |
3.9 IN |
3.9 IN |
3.9 IN |
3.9 IN |
