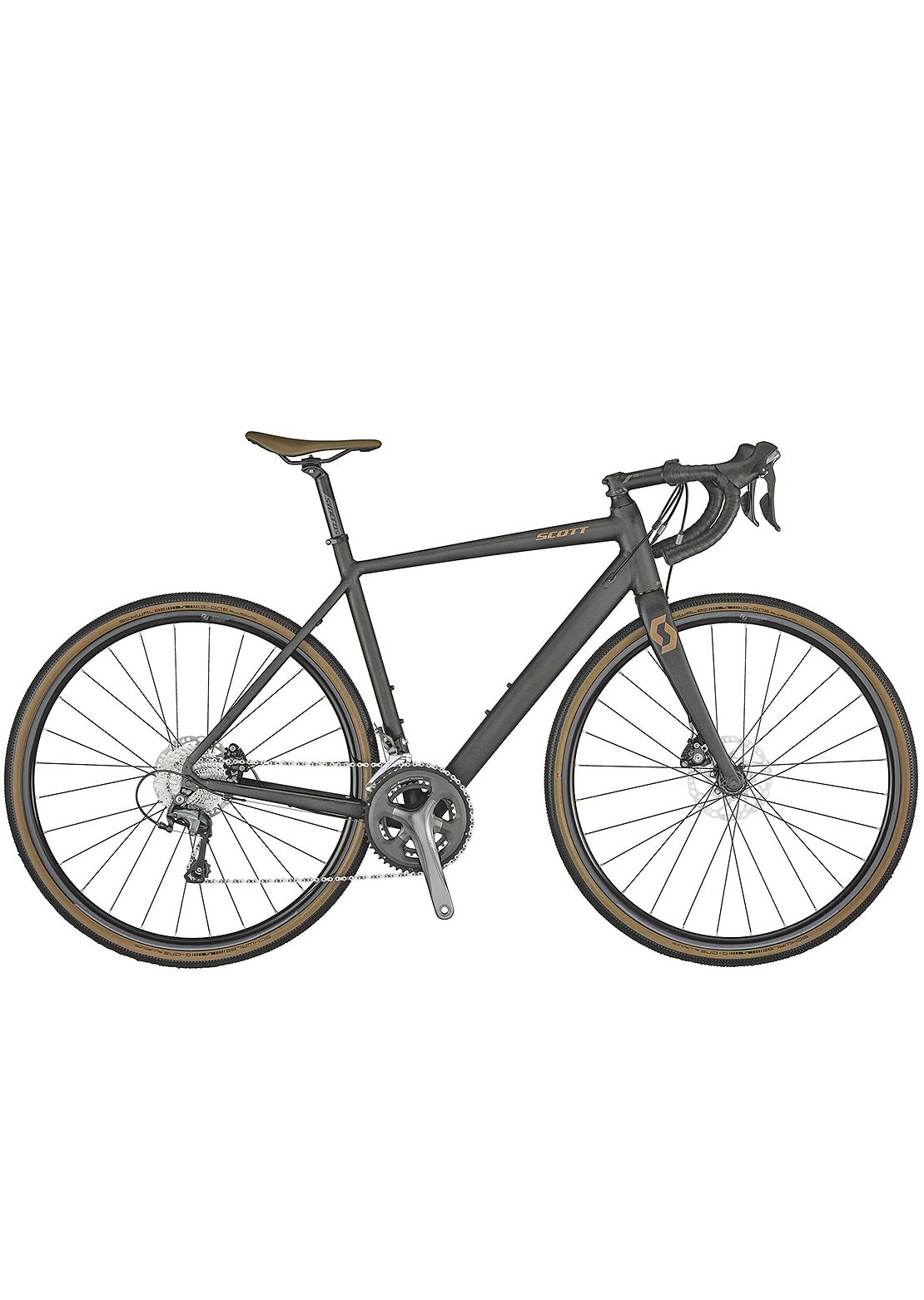

The SCOTT Speedster Gravel 40 is your one stop do-it-all shop for when the path gets less travelled. With a Shimano drivetrain, some rugged Schwalbe G-One tires and Syncros components, the Speedster Gravel 40 is well equipped for any and all adventures.
FRAME: Speedster Gravel Disc / D.Butted 6061 Alloy, Endurance geometry / Integrated Headtube
FORK: Speedster Carbon Disc, 1 1/8"-1 1/4" Carbon steerer
REAR DERAILLEUR: Shimano Tiagra RD-4700-GS, 20 Speed
FRONT DERAILLEUR: Shimano Tiagra FD-4700
SHIFTERS: Shimano Tiagra ST-4700, Dual control 20 Speed
CRANKSET: Shimano Tiagra FC-4700, Hyperdrive 50x34 T
BB-SET: Shimano BB-RS500-PB
CHAIN: KMC X10
CASSETTE: Shimano CS-HG500, 10 Speed 11-34 T
BRAKES: Shimano BR-RS305 Black Mech.Disc
ROTOR: Shimano SM-RT64 rotor 160/F and 160/R
HANDLEBAR: Syncros Creston 2.0 Compact, 31.8mm
H'STEM: JD ST123A Alloy, 1 1/8" / four Bolt 31.8mm
SEATPOST: Syncros RR2.5 27.2/350mm
SEAT: Syncros Tofino Regular 2.5
HEADSET: Integrated Steel Cup
FRONT HUB: Formula Team II CL Disc 28 H
REAR HUB: Formula Team II CL Disc 28 H
SPOKES: SHA-DAR Black 2mm
RIMS: Syncros Race 24 Disc, 28 Front / 28 Rear
FRONT TIRE: Schwalbe G-One Allround, 700x35C
REAR TIRE: Schwalbe G-One Allround, 700x35C
APPROX WEIGHT IN KG: 10.45
APPROX WEIGHT IN LBS: 23.04
MAX. SYSTEM WEIGHT: 120 kg
The overall weight includes the bike the rider the equipment and possible additional luggage.
Geometry
|
XXS/47 |
XS/49 |
S/52 |
M/54 |
L/56 |
XL/58 |
XXL/61 |
|||||||||
|
A |
head tube angle |
70.5 ° |
71.0 ° |
72.0 ° |
72.5 ° |
73.0 ° |
73.3 ° |
73.3 ° |
|||||||
|
B |
HEAD TUBE LENGTH |
4.4 IN |
4.8 IN |
5.6 IN |
6.3 IN |
7.1 IN |
7.9 IN |
8.7 IN |
|||||||
|
C |
TOP TUBE HORIZONTAL |
19.9 IN |
20.3 IN |
20.9 IN |
21.5 IN |
22.0 IN |
22.6 IN |
23.2 IN |
|||||||
|
D |
STANDOVER HEIGHT |
28.6 IN |
29.2 IN |
30.2 IN |
31.0 IN |
31.8 IN |
32.6 IN |
33.5 IN |
|||||||
|
E |
BB OFFSET |
-2.6 IN |
-2.6 IN |
-2.6 IN |
-2.6 IN |
-2.6 IN |
-2.6 IN |
-2.6 IN |
|||||||
|
F |
BB HEIGHT |
11.1 IN |
11.1 IN |
11.1 IN |
11.1 IN |
11.1 IN |
11.1 IN |
11.1 IN |
|||||||
|
G |
WHEEL BASE |
38.3 IN |
38.6 IN |
38.6 IN |
38.9 IN |
39.0 IN |
39.3 IN |
39.9 IN |
|||||||
|
H |
BB CENTER TO TOPTUBE CENTER |
16.1 IN |
16.9 IN |
18.1 IN |
18.9 IN |
19.7 IN |
20.5 IN |
21.7 IN |
|||||||
|
I |
BB CENTER TO TOP OF SEATTUBE |
18.5 IN |
19.3 IN |
20.5 IN |
21.3 IN |
22.0 IN |
22.8 IN |
24.0 IN |
|||||||
|
J |
SEAT ANGLE |
75.0 ° |
75.0 ° |
74.5 ° |
74.0 ° |
73.5 ° |
73.1 ° |
73.0 ° |
|||||||
|
K |
CHAINSTAY |
16.6 IN |
16.6 IN |
16.6 IN |
16.6 IN |
16.6 IN |
16.6 IN |
16.6 IN |
|||||||
|
L |
REACH |
14.4 IN |
14.7 IN |
14.9 IN |
15.0 IN |
15.1 IN |
15.3 IN |
15.6 IN |
|||||||
|
M |
STACK |
20.3 IN |
20.8 IN |
21.7 IN |
22.5 IN |
23.3 IN |
24.1 IN |
24.2 IN |
|||||||
