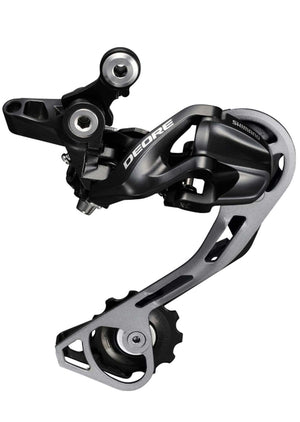

Using a low profile SHIMANO SHADOW RD design, the SHIMANO DEORE M610 derailleur is perfect for 10-speed MTB riding.
DYNA-SYS
SHIMANO’s next generation 10-speed MTB drivetrain. SHIMANO presents the drivetrain technology for mountain bikes: DYNA-SYS. This revolutionary technology uses a 10-speed cassette, but that is not the only feature of this system. Highlight is a completely redesigned drivetrain that creates real added benefits for the rider. It’s not only an extra gear… It’s about closer gear ratios for a smoother shifting performance and improved power transfer. It’s about riding optimized gear combinations that improve efficiency and durability. It’s all about performance: DYNA-SYS offers a more stable drivetrain for any type of rider!
SHIMANO SHADOW RD
The mechanism rear derailleur, SHIMANO SHADOW RD, is intended for more aggressive riding. Its super low profile design carries many benefits. Because of its low profile and single tension construction, the derailleur does not hit the chain stay in rough riding conditions. The result is smooth and silent performance.
HG-X Chain
Further evolution of shifting performance. A directional mountain bike specific 10-speed HG-X chain means smoother shifts, lighter weight and greater overall performance. HG-X directional chain: Outer side is optimized for front shifting and inner side is optimized for rear shifting.
|
MODEL NO |
RD-M610-SGS |
|
SERIES |
DEORE M610 Series |
|
Color |
Black | Silver |
|
Remarks |
* w/o Bracket spec. available |
|
Rear speeds |
10 |
|
Compatible chain |
HG-X 10-speed |
|
Top-normal spring type|SHIMANO SHADOW RD |
✔ |
|
Mount|Direct attachment (conventional) |
✔ |
|
Mount|Direct mount |
X* |
|
Max. front difference |
22T |
|
Total capacity |
43T |
|
Low sprocket|Max. |
36T |
|
Low sprocket|Min. |
32T |
|
Top sprocket|Max. |
11T |
|
Top sprocket|Min. |
11T |
|
Fluoric coated link bushings |
3 |
|
Pulley|Teeth |
11T |
|
Pulley|Sunken type pulley screw |
✔ |
|
B-axle|Hollow axle |
✔ |
|
B-axle 2|Hollow axle |
✔ |
