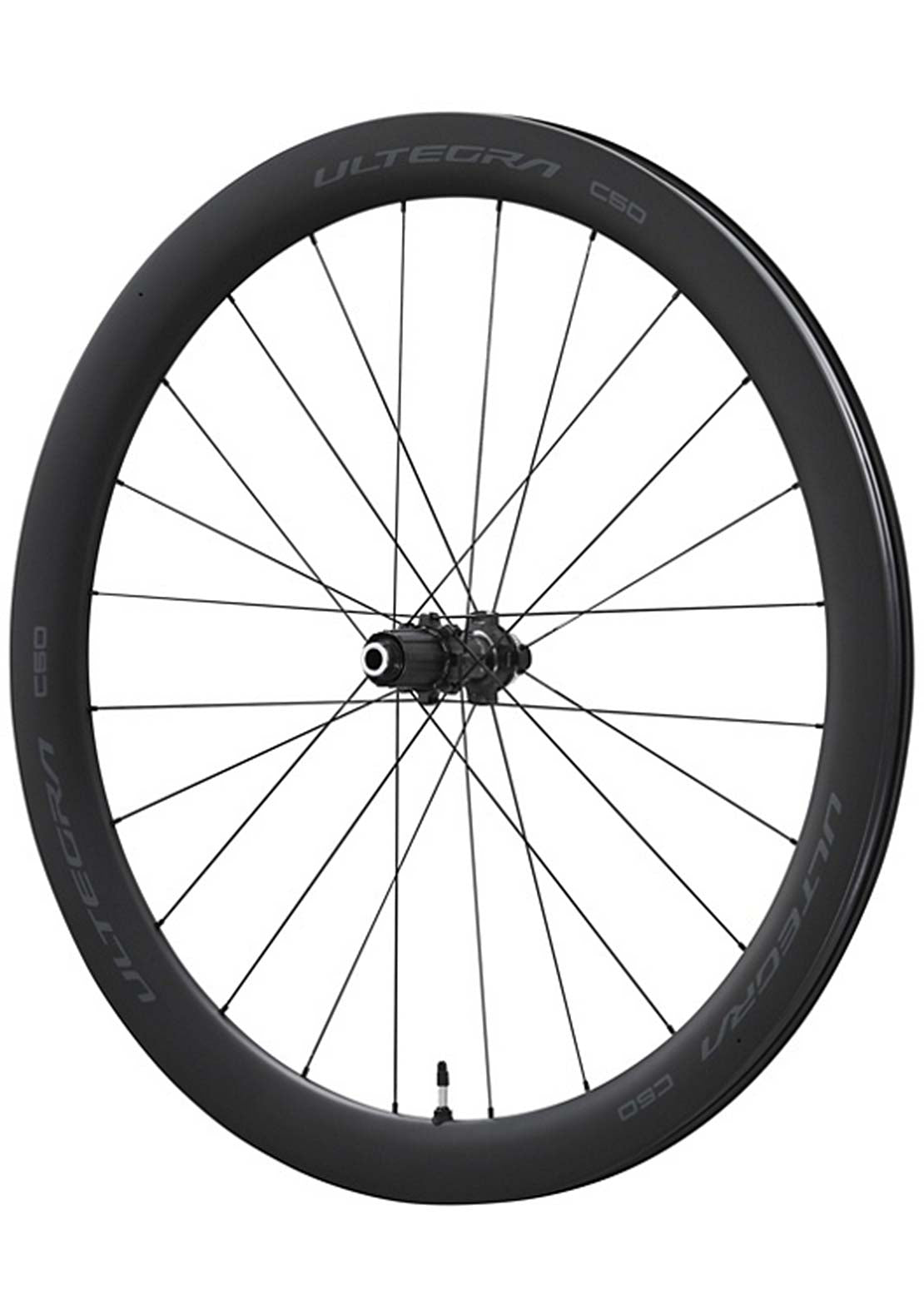

Summiting climbs, carving descents, or cruising the flats, the new C50 is the jack of all trades among the new ULTEGRA R8170 wheel lineup. The tubeless, carbon rim features a 21 mm internal width that pairs nicely with wider, modern tires while the HYPERGLIDE cassette body is compatible with 11 and 12-speed cassettes.
CENTER LOCK
The CENTER LOCK system makes an easy rotor installation possible with spline mount and a lock ring. The lock ring mounting system reduces the total working hours by shortening the amount of time of both installation and de-installation. In addition, the secure fixing by the spline mount enhances precision and rigidity while improving braking efficiency.
D2 RIM
Aerodynamic performance is affected by wind direction. To create the D2 rim, SHIMANO engineers considered both frontal and cross winds, aiming to achieve optimal performance in real-world riding conditions. Extensive prototype testing, in the wind-tunnel and on the road, proved that a wide rim shape with a deep tire bed performs best across a wide range of conditions. At yaw angles ranging from 0 to 15 degrees, the SHIMANO D2 rim profile reduces air drag better than others aero shape rims. This rim design also boosts lateral wheel stiffness and offers improved vertical compliance for increased control, comfort and durability on the road.
OPTBAL
The OPTBAL rear wheel spoke system features 21 spokes—14 on the drive side and 7 on the non-drive side. Cassette spacing in today’s wheels produces unbalanced tension in traditional 1:1 spoke systems. This unbalance is intensified with the 11-speed cassette, producing nearly double the tension on the drive side spokes. Generally high and low tension spokes have respectively tendency toward breaking down and coming loose spoke nipples. Unbalanced tension affects durability and strength. The OPTBAL design rebalances spoke tension, enhancing wheel rigidity and strength for a more durable wheel.
E-THRU
The tool-less type thru-axle skewer system optimizes rigidity and weight balance and enables easy operation with a reliable internal cam mechanism. The 15 mm thru-axle system is 15% stiffer torsionally and 25% stiffer in transverse shear than a traditional 9 mm quick release front axle system. High rigidity is secured while keeping the optimum weight balance. The E-THRU axle hub system minimizes the distortion of suspension while maintaining lightweight for riding around sharp corners at high speed.
Series: ULTEGRA
Specification: R
Color - 1 Hub shell: Series color
Front/Rear: Rear
Brake type: CENTER LOCK disc brake
Rear speeds: 12/11
O.L.D. (mm): 142
Wheel size: 622 x 21C (700C)
Tire - Type: Tubeless
Tire - Recommended size: 25-622 - 32-622
Rim - Height (mm): 50
Rim - Internal width (mm): 21
Rim - External width (mm): 28
Rim - Requires rim tape: ✔
Spokes - Number: 24
Spokes - Straight pull: ✔
Spokes - Bladed: ✔
Spokes - Butted: ✔
Spokes - Diameter (mm): 2.0-1.6-2.0
Axle fixing method: 12 mm E-THRU
Spline type - HG spline L (ROAD 12/11-speed): ✔
Engagement type: Pawl ratchet
Disc mount - CENTER LOCK: ✔
Disc mount - 140 mm disc brake rotor compatible: ✔
OPTBAL (2:1)✔
D2 rim: ✔
Seal - Hub: Contact
Seal - FREEHUB body: Contact
Internal grease sleeve: ✔
Compatible spoke protector: CP-WR81A
Reflector - JIS/CPSC: CATEYE RR-550-WUW SW
Reflector - AS: CATEYE RR-550-WUA SW
Reflector - DIN: CATEYE RR-317-WUA SW
Average weight: 872
