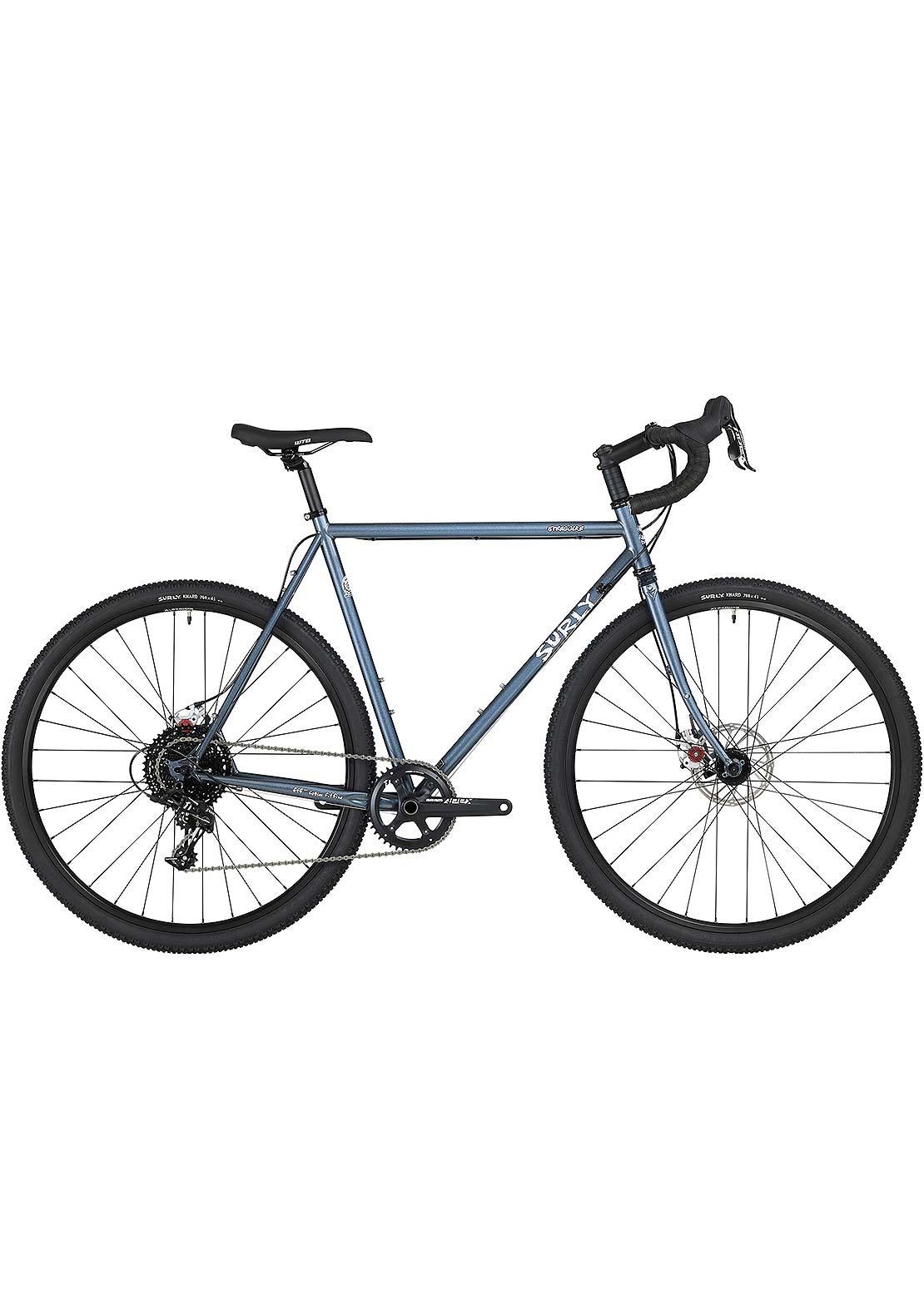

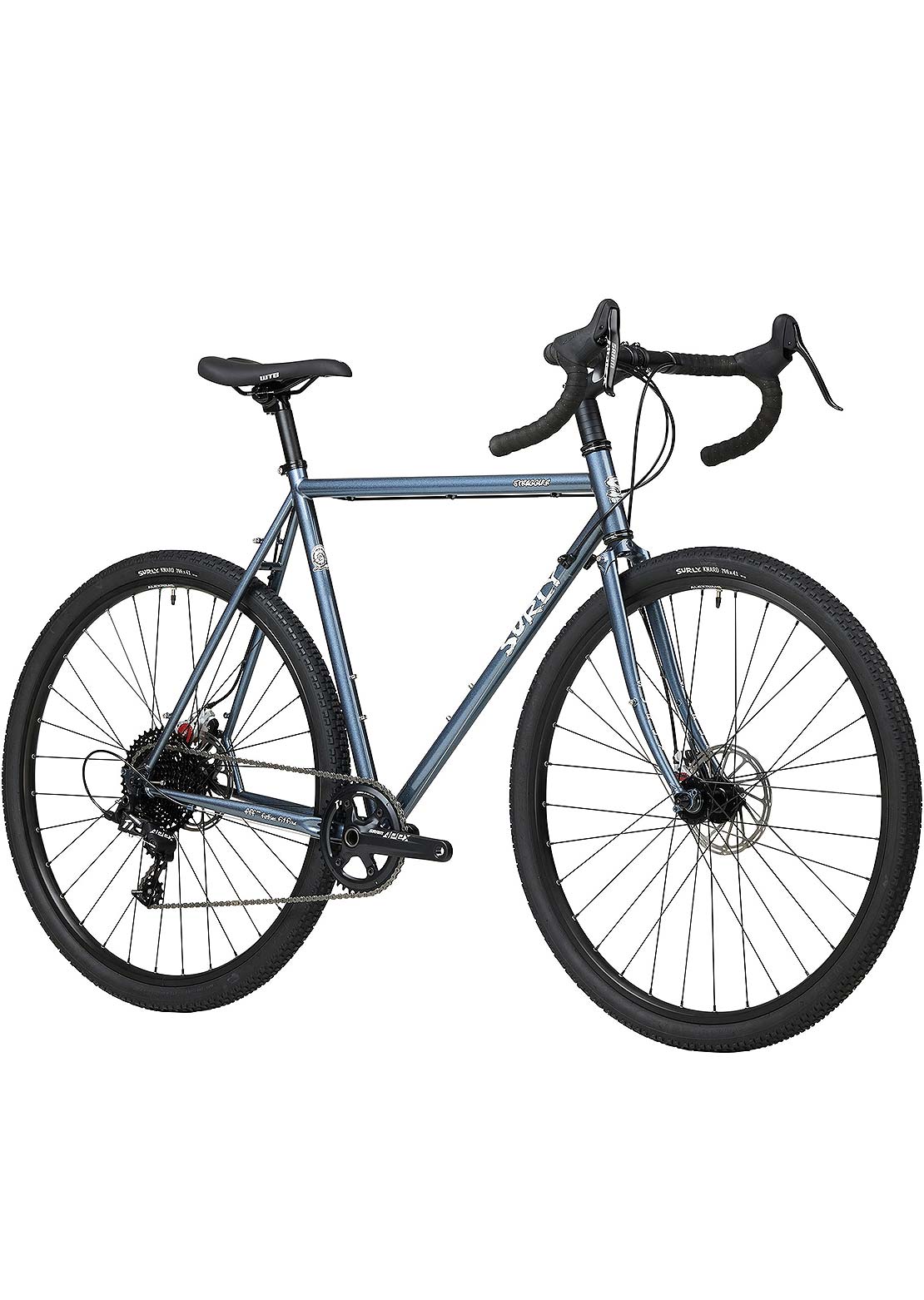

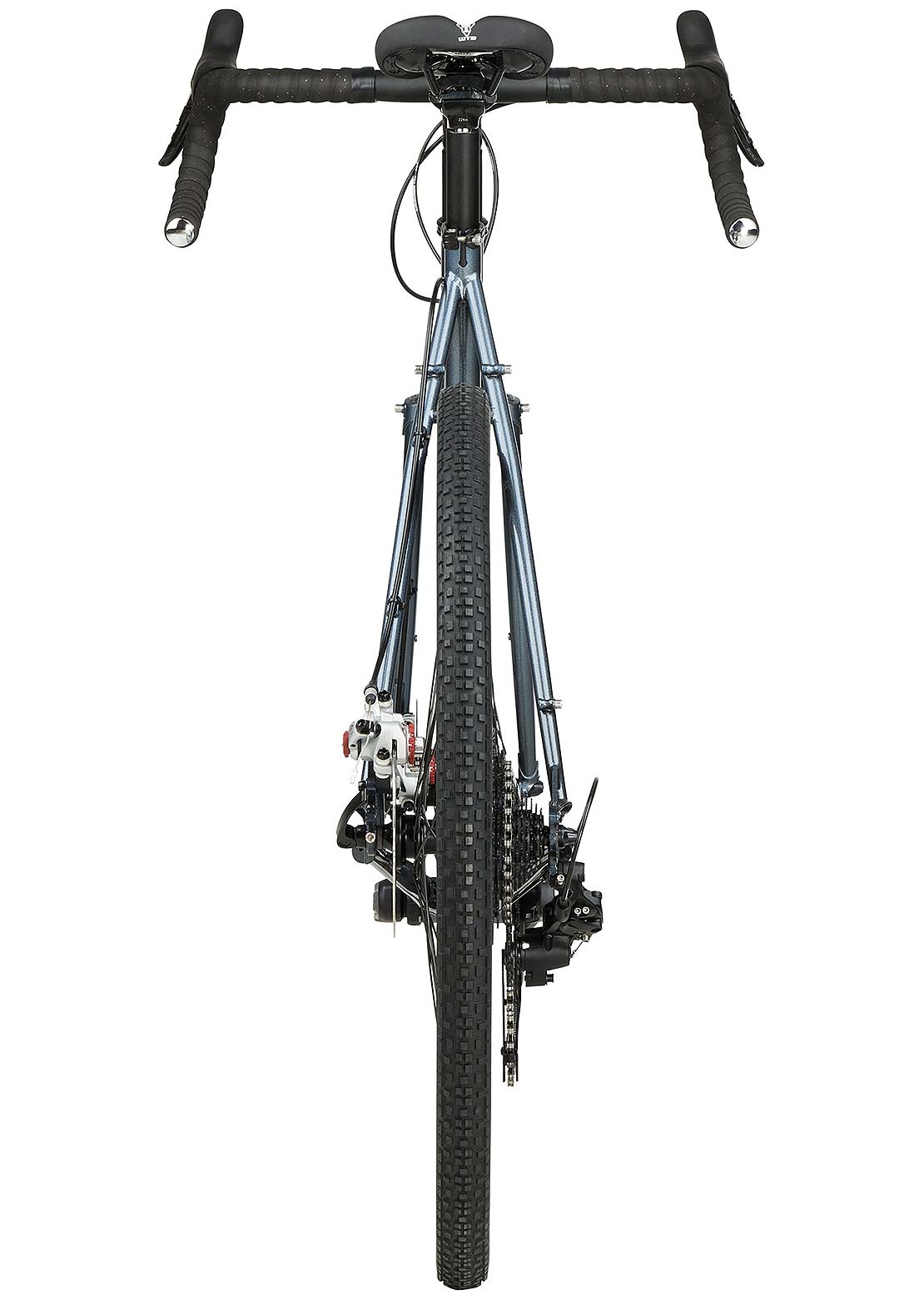

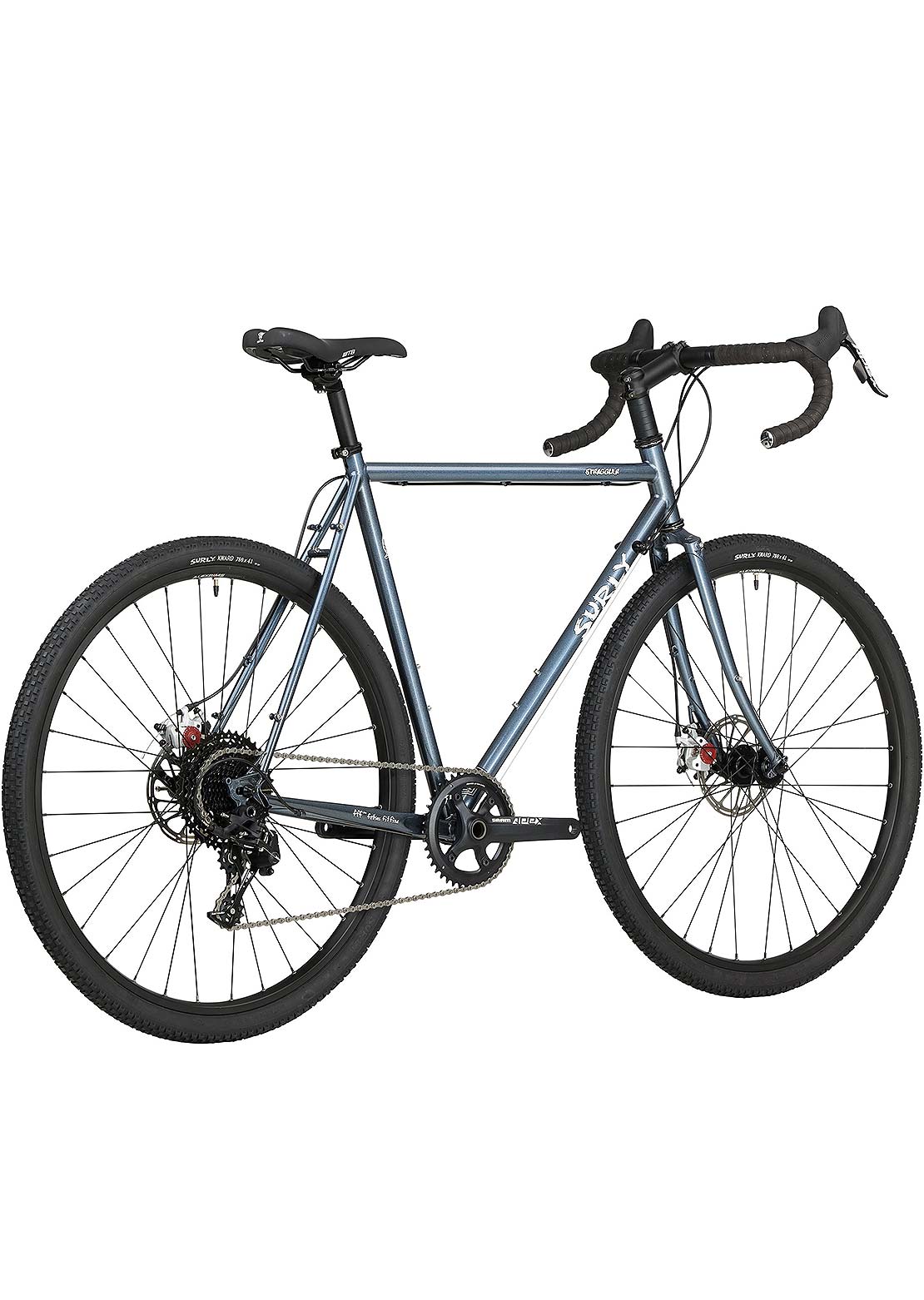

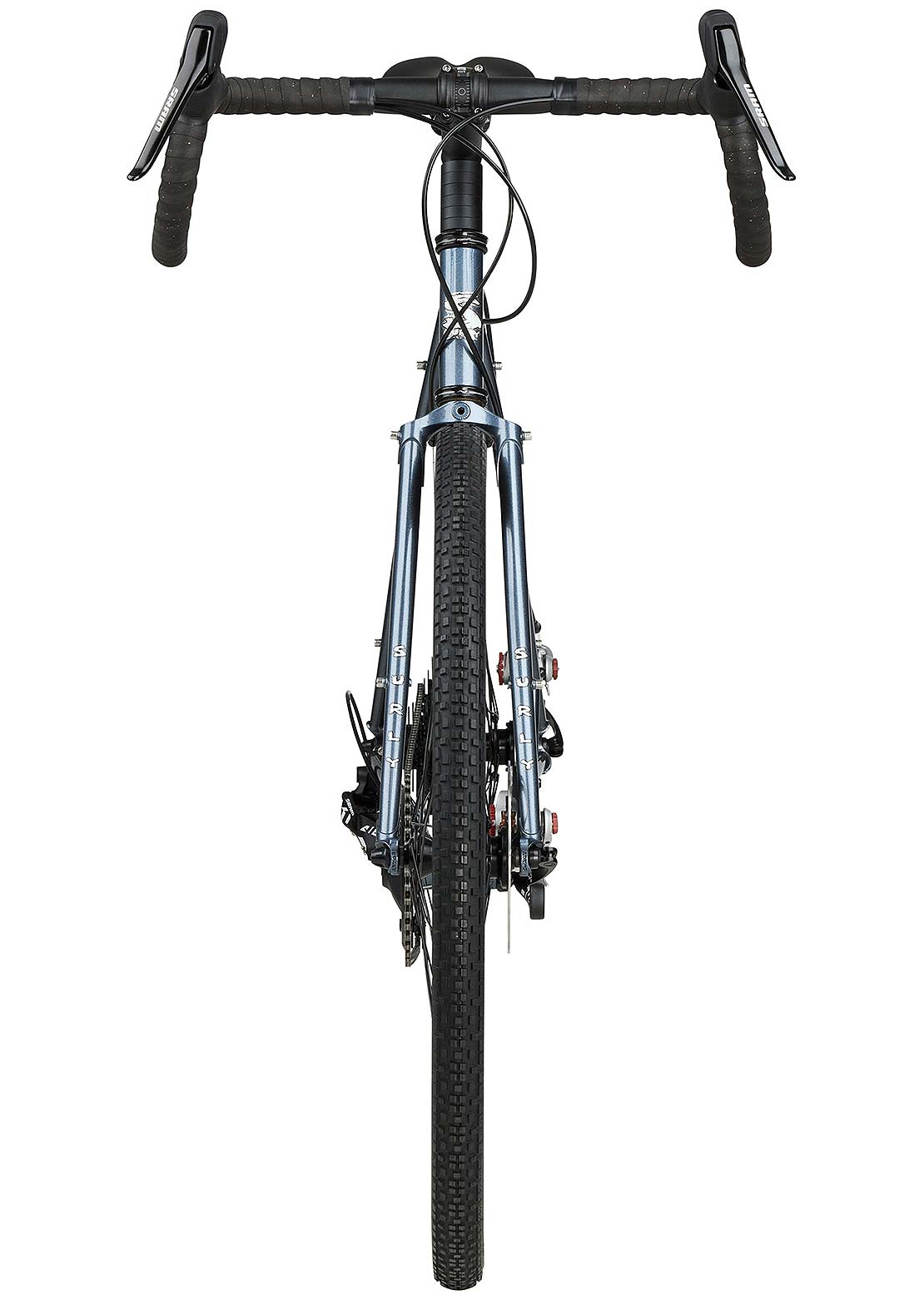

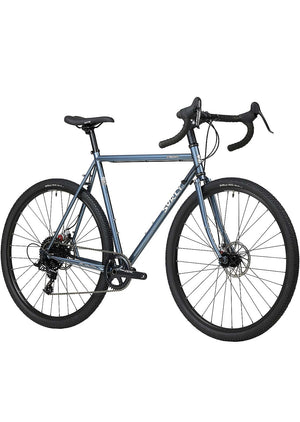

Straggler is tuned for cross-over exploration on a wide variety of terrain conditions. It’s a day-tripper and a weekender. It’s a ‘rough road’ road bike, a cyclocross bike with no pretense about racing, a utilitarian townie, a light-duty touring bike and an all-weather commuter. It’s a steel gravel bicycle that thrives on the road. Think of it as a “mountain biker’s road bike.” If you only have room for one bike in your life, Straggler can (and should) be your one and only.
Straggler’s capabilities go well beyond asphalt. It also lends itself well to light touring setups. We're talking frame bags, seat bags, and "credit card touring” rather than full-blown touring. Straggler also handles our 8- and 24-Pack Racks well, so you have some heavier-duty loading options.
Available in 650b and 700c wheel diameters
Accommodations for racks and fenders
Forward-exiting horizontal dropouts for singlespeed compatibility and wheelbase adjustability
Clearance for 650b x 41mm or 700c x 41mm tires with fenders!
Frame: Surly Straggler, 100% Surly proprietary 4130 CroMoly tubing. ED Coated. TIG-welded. Double-butted main triangle
Color: Cold Steel Blue
Fork: Surly Straggler, 4130 CroMoly, disc only, lugged and brazed. Sloping crown with threaded eylets, tapered and butted curved blades with mid-blade rack eyelets, dual dropout eyelets
Headset: Cane Creek 40
Seatpost Clamp: Surly Stainless, 30.0mm
Seatpost: Kalloy 27.2 x 350mm, offset on 52-62cm frames
Stem: Kalloy 31.8
Grips/Bar Tape: Black Cork
Saddle: WTB Volt
Handlebar: Salsa Cowbell
Front Derailleur: N/A
Rear Derailleur: SRAM Apex 1
Cassette: SunRace CSMS7, 11–42t, 11spd
Chain: SRAM PC-1110
Crankset: SRAM Apex 1, 42T
Shifter: SRAM Apex
Brake Levers: SRAM Apex
Brake Calipers: SRAM Avid BB7
Bottom Bracket: SRAM
Rotors: SRAM Centerline 160/160, 6-Bolt
Front Tire: Surly Knard 700c x 41mm, 33 tpi
Rear Tire: Surly Knard 700c x 41mm, 33 tpi
Front Hub: Novatec 10 x 100mm QR, 6-Bolt, 32h
Rear Hub: Novatec 10 x 135mm QR, 6-Bolt, 32h
Spoke: 14G Black
Rim: Alex Adventurer 2, tubeless ready
Complete Bike: 27 lb 2 oz for 56cm
*Specifications are subject to change without notice
Geometry
|
Grandeur |
54cm |
56cm |
58cm |
60cm |
62cm |
|
A. Effective Top Tube |
565.0 |
580.0 |
595.0 |
610.0 |
625.0 |
|
B. Stand Over |
791.7 |
809.4 |
828.7 |
846.1 |
865.0 |
|
C. Reach |
396.3 |
400.7 |
408.2 |
412.1 |
420.9 |
|
D. Stack |
549.2 |
567.3 |
591.1 |
609.1 |
628.2 |
|
E. Total Seat Tube Length |
540.0 |
560.0 |
580.0 |
600.0 |
620.0 |
|
F. Headtube Length |
107.0 |
121.0 |
146.0 |
165.0 |
185.0 |
|
G. Headtube Angle |
72.0 |
72.0 |
72.0 |
72.0 |
72.0 |
|
H. Seat Tube Angle |
73.0 |
72.5 |
72.5 |
72.0 |
72.0 |
|
I. BB Drop |
72.0 |
72.0 |
72.0 |
72.0 |
72.0 |
|
K. Chainstay Length |
425.0 |
430.0 |
430.0 |
430.0 |
430.0 |
|
L. Fork Length Axle to Crown |
400.0 |
400.0 |
400.0 |
400.0 |
400.0 |
|
M. Fork Offset |
44.0 |
44.0 |
44.0 |
44.0 |
44.0 |
|
N. Wheelbase |
1016.5 |
1031.9 |
1047.0 |
1056.8 |
1071.8 |
|
Crank Arm Length |
172.5 |
175.0 |
175.0 |
175.0 |
175.0 |
|
Handlebar Width |
420.0 |
440.0 |
440.0 |
460.0 |
460.0 |
|
Recommended Rider Height |
|||||
|
Stem Length |
100.0 |
100.0 |
120.0 |
120.0 |
120.0 |
