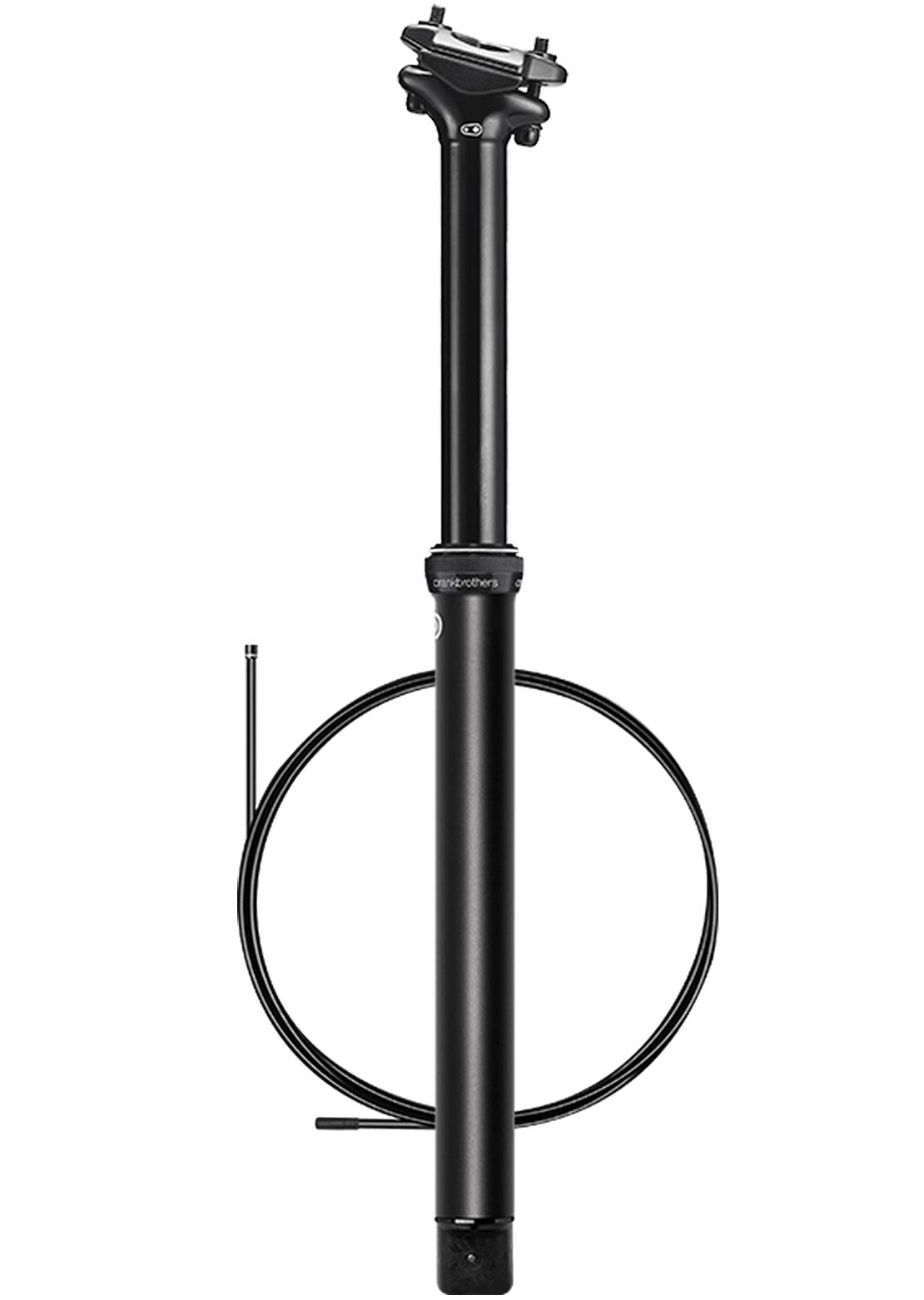

The Highline 3 delivers infinite adjustment, smooth feel, and easy installation.
Premium Trelleborg® sealing
Exclusive Igus® LL-glide bearings and keys
Jagwire® cable and housing
Self-contained hydraulic cartridge delivers industry leading quality and reliability
Internal routing
Quick connect mechanism for ease of cable installation
Linear actuator for quick return speed
2-bolt standard head
Remote sold separately
7075-T6 aluminum material
|
A - Travel: |
80mm |
100mm |
125mm |
150mm |
170mm |
200mm |
|
B - Min. Insertion Length: |
100mm |
100mm |
100mm |
100mm |
100mm |
100mm |
|
C - Max. Insertion Length: |
285mm |
220mm |
245mm |
270mm |
285mm |
319mm |
|
D - Min. Extended Length: |
125mm |
146mm |
172mm |
195mm |
216mm |
245mm |
|
E - Max. Extended Length: |
283mm |
239mm |
290mm |
338mm |
374mm |
442mm |
|
F - Total Post Length: |
410mm |
366mm |
417mm |
465mm |
501mm |
569mm |
|
G - Min. Stack Height: |
47mm |
47mm |
47mm |
47mm |
47mm |
47mm |
|
H - Setback: |
0mm |
0mm |
0mm |
0mm |
0mm |
0mm |
|
I - Weight 30.9: |
540g |
484g |
525g |
565g |
586g |
0g |
|
J - Weight 31.6: |
564g |
503g |
545g |
587g |
609g |
686g |
|
J - Weight 34.9: |
0g |
603g |
645g |
699g |
735g |
0g |
