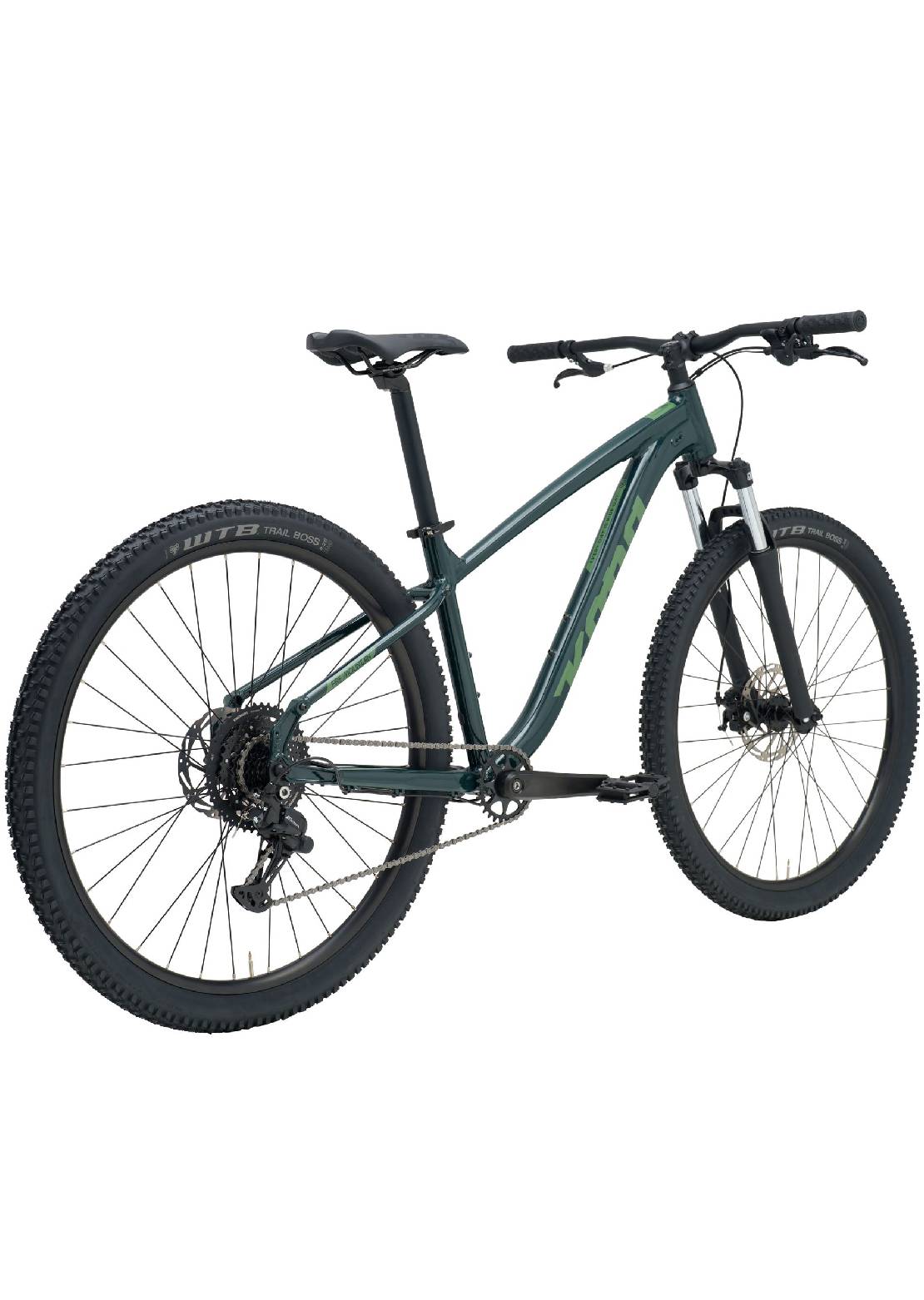

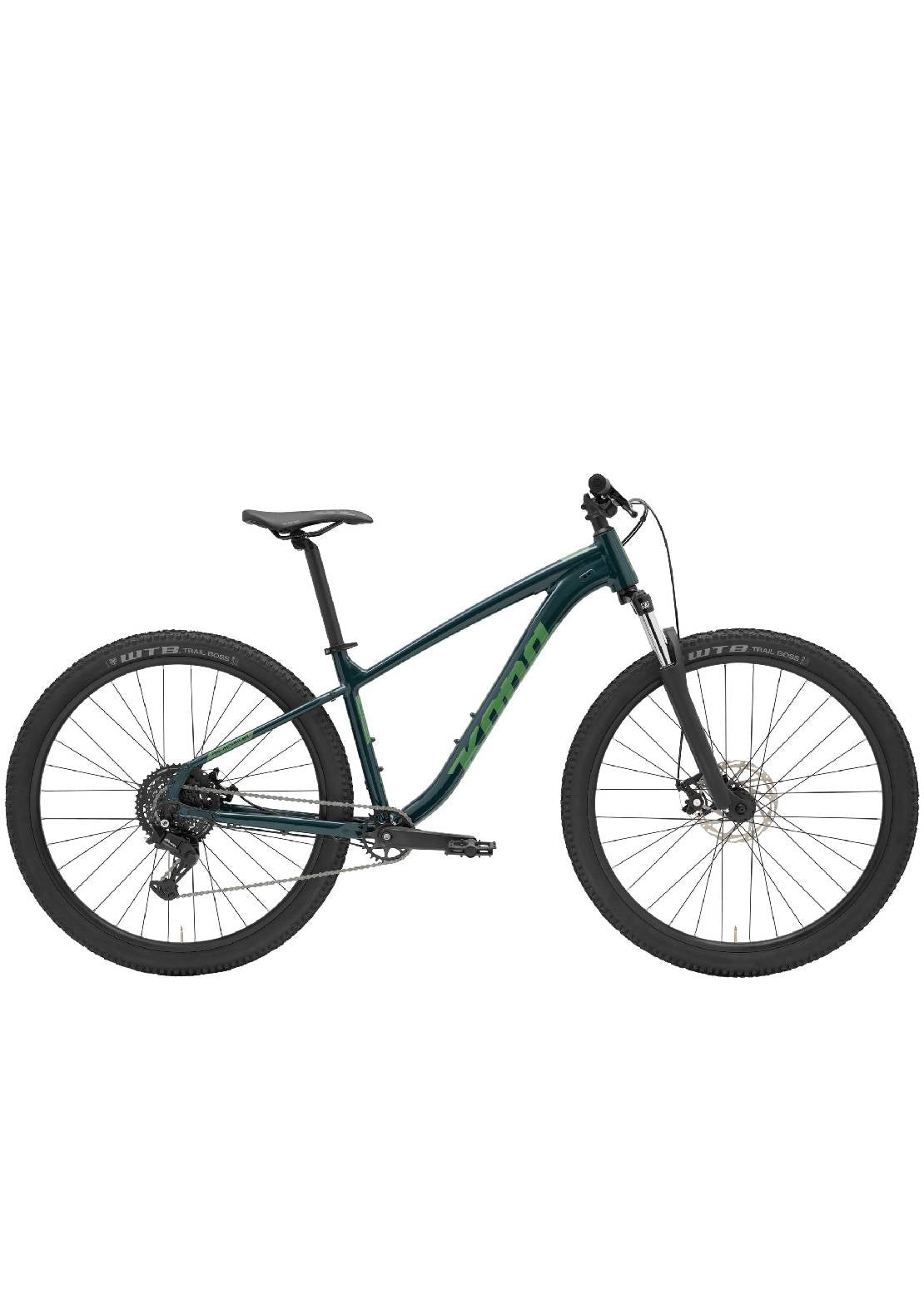

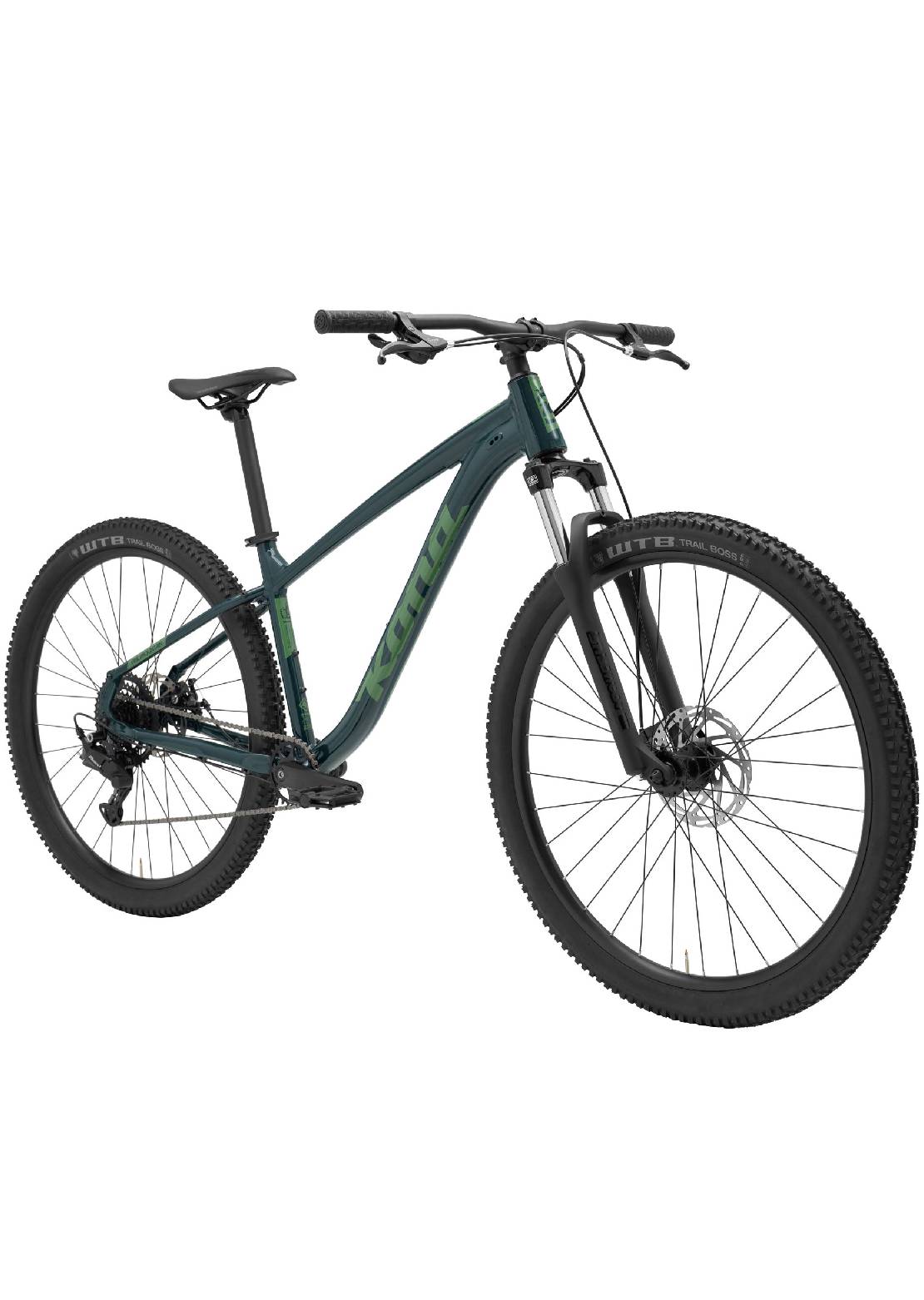

This Kona Classic brings some of the finer things to light. The Fire Mountain is running a smooth-shifting 8-speed drivetrain to keep things manageable across varying terrain and bombproof mechanical disc brakes to stop on a dime. With 100mm of suspension and sturdy tires aboard wider 27mm rims, the Fire Mountain helps build confidence off-road. Available for smaller riders in a 26” wheeled XS version, a 27.5” wheel for size S, and 29” wheel for sizes M-XL.
| FRAME | Kona 6061 Aluminum Butted |
| SIZES | XS, S, M, L, XL |
| REAR SHOCK | n/a |
| FORK | SR/Suntour XCE28 Coil 100mm |
| CRANKSET | Samox SAC40 28t / Length XS-S 170mm / M-XL 175mm |
| BOTTOM BRACKET | Feimin BSA 73 |
| PEDALS | Kona JS2 |
| CHAIN | KMC Z8.3 |
| CASSETTE | Shimano ESSA HG300 11-45t 8spd |
| CHAINGUIDE | n/a |
| FRONT DERAILLEUR | n/a |
| REAR DERAILLEUR | Shimano ESSA RDU2000 |
| SHIFTERS | Shimano ALTUS |
| BRAKE CALIPERS | Tektro MD-M280 Mechanical |
| FRONT BRAKE ROTOR | Tektro 180mm 6B 1.8mm |
| REAR BRAKE ROTOR | Tektro 160mm 6B 1.8mm |
| BRAKE LEVERS | Tektro CL-330RS Mechanical |
| HEADSET | FSA No.57B ZS44/ZS56 |
| HANDLEBAR | Kona 31.8mm / Back 6º / Rise 20mm / Width XS-S 740mm / M-XL 780mm |
| STEM | Kona 31.8mm / Rise 7º / Length XS-M 40mm / L-XL 50mm |
| SEATPOST | Kona w/Offset 31.6mm / Length XS-M 350mm / L-XL 400mm |
| SEAT CLAMP | Kona Clamp 34.9mm |
| GRIPS | Kona Key Grip |
| SADDLE | Kona MTB |
| FRONT HUB | Joytech 9x100mm |
| REAR HUB | Joytech 10x135mm |
| SPOKES | Stainless 2.0mm Black |
| RIMS | Double Wall Aluminum |
| FRONT TIRE | WTB Ranger XS 26x2.25" / WTB Trail Boss S 27x2.25" / M-XL 29x2.25" |
| REAR TIRE | WTB Ranger XS 26x2.25" / WTB Trail Boss S 27x2.25" / M-XL 29x2.25" |
| PAINT COLOR | Gloss Emerald w/ Sage Decals |
All specifications are subject to change without notice.
GEOMETRY
| Size | XS | S | M | L | XL | |
| 1 | ST Length | 365 | 380 | 410 | 450 | 490 |
| 2 | TT Length | 560 | 587 | 622 | 650 | 687 |
| 3 | Reach | 410 | 430 | 455 | 480 | 515 |
| 4 | Stack | 561 | 586 | 624 | 633 | 642 |
| 5 | Standover | 679 | 699 | 728 | 726 | 721 |
| 6 | HT Angle | 67.5 | 67.5 | 67.5 | 67.5 | 67.5 |
| 7 | HT Length | 100 | 110 | 120 | 130 | 140 |
| 8 | ST Angle | 75 | 75 | 75 | 75 | 75 |
| 9 | CS Length | 435 | 435 | 450 | 450 | 450 |
| 10 | BB Drop | 30 | 45 | 60 | 60 | 60 |
| 11 | BB Height | 305 | 310 | 315 | 315 | 315 |
| 12 | Wheelbase | 1110 | 1132 | 1190 | 1219 | 1257 |
| 13 | Front Center | 676 | 701 | 746 | 755 | 814 |
| 14 | Fork Length | 490 | 490 | 509 | 509 | 509 |
| 15 | Fork Offset | 42 | 42 | 51 | 51 | 51 |
|
HEIGHT/INCHES |
HEIGHT/METRIC |
INSEAM/INCHES |
INSEAM/METRIC |
ROAD/ROVE |
LIBRE |
CX/SUTRA |
DEWS |
COCO |
|
4'10"-5'1" |
147-155 cm |
24”-27” |
61-69 cm |
46-48 cm |
46 cm |
46-48 cm |
N/A |
XS |
|
5'0"-5'3" |
152-160 cm |
26"-29" |
66-74 cm |
48-50 cm |
46-49 cm |
48-50 cm |
Small |
Small |
|
5'2"-5'7" |
157-170 cm |
27"-30" |
69-76 cm |
48-52 cm |
49-51 cm |
48-52 cm |
Small, Medium |
Small, Medium |
|
5'6"-5'10" |
168-178 cm |
29"-31" |
74-79 cm |
52-54 cm |
51-54 cm |
52-54 cm |
Medium |
Medium |
|
5'9"-6'0" |
175-183 cm |
30"-33" |
76-84 cm |
52-56 cm |
54-55 cm |
52-56 cm |
Medium, Large |
Medium, Large |
|
5'11"-6'2" |
180-188 cm |
32"-35" |
81-89 cm |
54-58 cm |
54-55 cm |
54-58 cm |
Large, XL |
Large |
|
6'1"-6'5" |
185-196 cm |
33"-36" |
84-91 cm |
56-58 cm |
55 cm |
56-58 cm |
XL |
N/A |
MTB / ALL MOUNTAIN / SPLICE (MTB/ALL MOUNTAIN/GRAVITY)
|
HEIGHT/INCHES |
HEIGHT/METRIC |
INSEAM/INCHES |
INSEAM/METRIC |
SPLICE |
MTB/XC TRAIL/FAT |
ALL MOUNTAIN/ENDURO |
GRAVITY/DH |
|
4'10"-5'1" |
147-155 cm |
24”-27” |
61-69 cm |
Small |
XS |
XS |
N/A |
|
5'0"-5'3" |
152-160 cm |
26"-29" |
66-74 cm |
Small |
Small |
Small |
N/A |
|
5'2"-5'7" |
157-170 cm |
27"-30" |
69-76 cm |
Small, Medium |
Small, Medium |
Small, Medium |
Medium |
|
5'6"-5'10" |
168-178 cm |
29"-31" |
74-79 cm |
Medium |
Medium |
Medium |
Medium |
|
5'9"-6'0" |
175-183 cm |
30"-33" |
76-84 cm |
Medium, Large |
Medium, Large |
Medium, Large |
Medium, Large |
|
5'11"-6'2" |
180-188 cm |
32"-35" |
81-89 cm |
Large, XL |
Large, XL |
Large, XL |
Large, XL |
|
6'1"-6'5" |
185-196 cm |
33"-36" |
84-91 cm |
Large, XL |
Large, XL |
Large, XL |
Large, XL |
