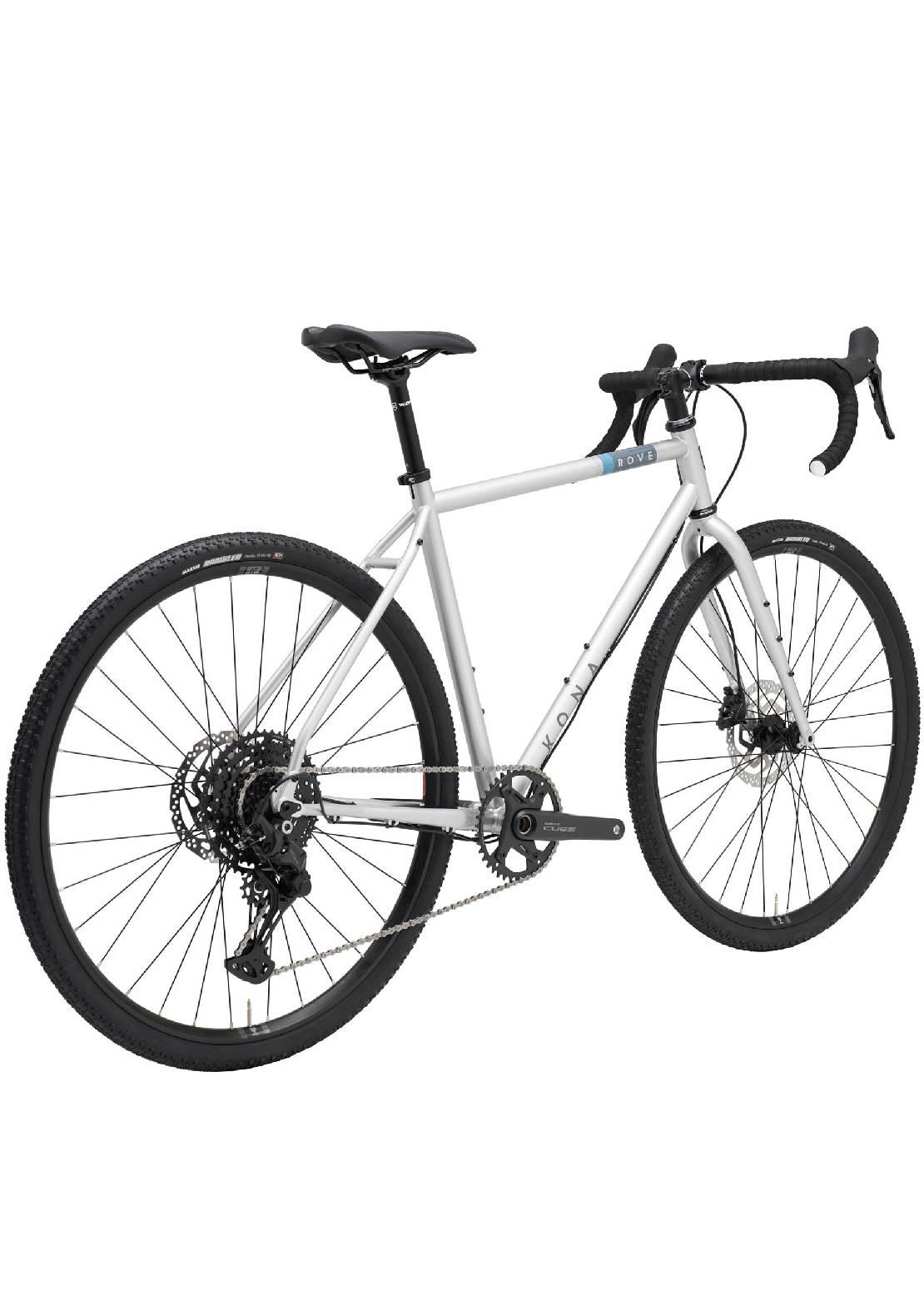

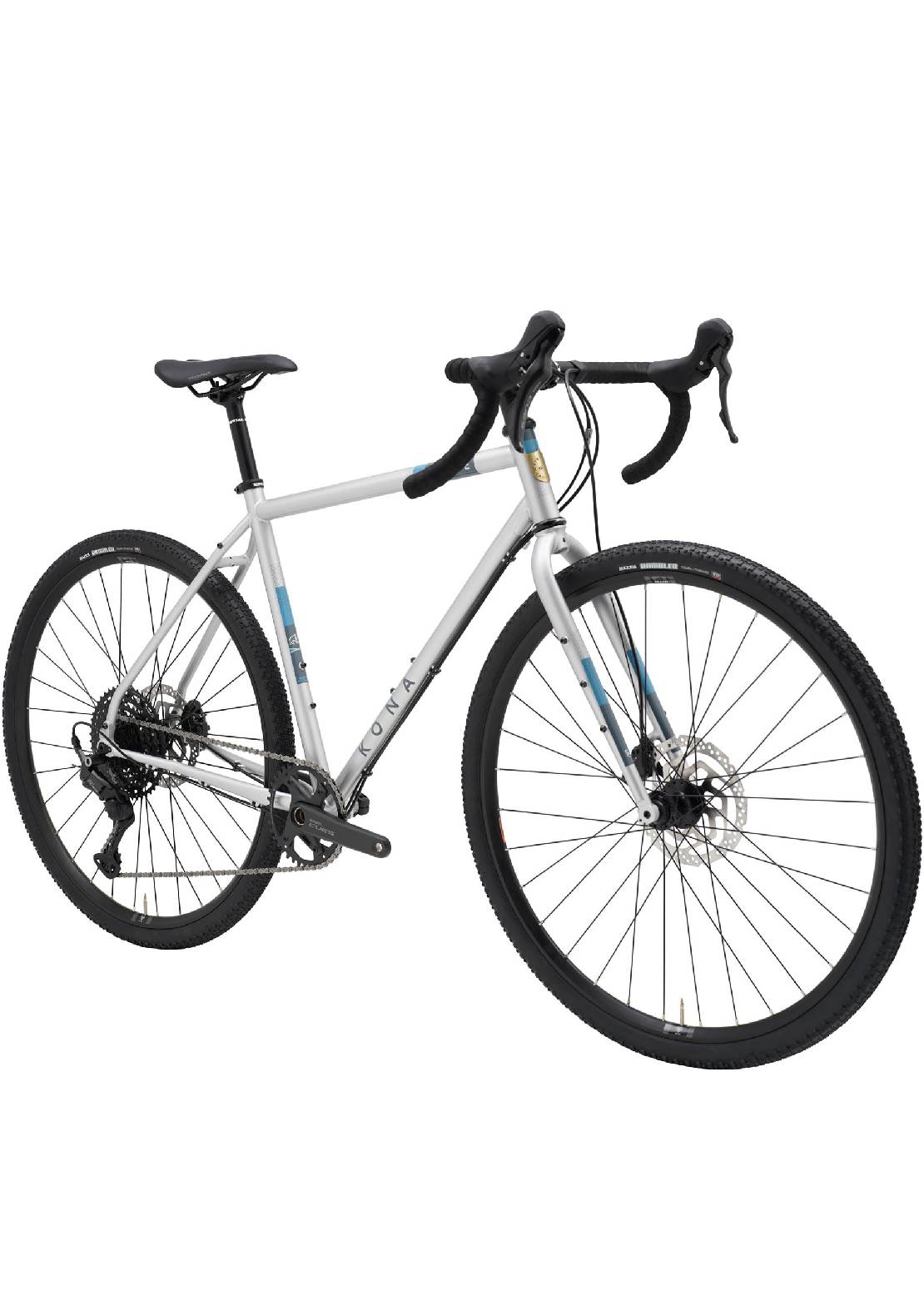

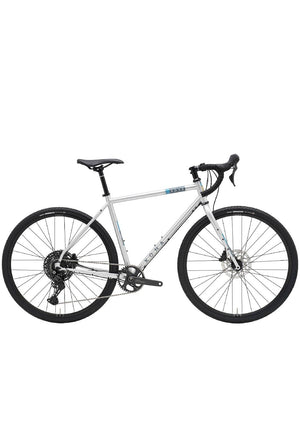

A refined classic, the new Rove keeps its cromoly soul but adds stronger brakes, and updated geometry inspired by our high-end gravel line. It’s built for comfort, control, and all-day adventures. It’s the steel do-it-all that just keeps going!
| FRAME | Kona Butted Cromoly |
| SIZES | 48, 50, 52, 54, 56, 58 |
| REAR SHOCK | n/a |
| FORK | Kona Cromoly |
| CRANKSET | Shimano CUES 6030 40t / 48 165mm / 50 170mm / 52-54 172.5mm / 56-58 175mm |
| BOTTOM BRACKET | Shimano BSA 68mm |
| PEDALS | n/a |
| CHAIN | Shimano CUES LG500 |
| CASSETTE | Shimano CUES LG300 11-48t 10spd |
| CHAINGUIDE | n/a |
| FRONT DERAILLEUR | n/a |
| REAR DERAILLEUR | Shimano CUES 6000 |
| SHIFTERS | Shimano CUES 6030 |
| BRAKE CALIPERS | Shimano CUES 6030 |
| FRONT BRAKE ROTOR | Shimano 180mm 6B |
| REAR BRAKE ROTOR | Shimano 180mm 6B |
| BRAKE LEVERS | Shimano CUES 6030 |
| HEADSET | FSA Orbit No.1 EC34/EC34 |
| HANDLEBAR | Kona Gravel Dropbar 31.8mm / Width 48 42cm / 50-52 44cm / 54 46cm / 56-58 48cm |
| STEM | Kona 31.8mm / Rise 6º / Length 48-52 60mm / 54-56 70mm / 58 80mm |
| SEATPOST | Kona w/Offset 27.2mm / 48-52 350mm / 54-58 375mm |
| SEAT CLAMP | Kona Clamp 31.8mm |
| GRIPS | Kona Cork Tape |
| SADDLE | Kona Gravel |
| FRONT HUB | Formula 12x100mm |
| REAR HUB | Formula 12x142mm HG |
| SPOKES | Stainless 2mm Black |
| RIMS | WTB ST i23 TCS 2.0 |
| FRONT TIRE | Maxxis Rambler 700x40mm |
| REAR TIRE | Maxxis Rambler 700x40mm |
| PAINT COLOR | Gloss Faux Chrome w/ Dark Concrete & Blue Smoke Decals |
All specifications are subject to change without notice.
GEOMETRY
| Size | 48 | 50 | 52 | 54 | 56 | 58 | |
| 1 | ST Length | 480 | 500 | 520 | 540 | 560 | 580 |
| 2 | TT Length | 524 | 539 | 554 | 570 | 586 | 603 |
| 3 | Reach | 380 | 385 | 390 | 395 | 400 | 405 |
| 4 | Stack | 536 | 555 | 573 | 592 | 609 | 628 |
| 5 | Standover | 749 | 769 | 790 | 809 | 829 | 847 |
| 6 | HT Angle | 69.5 | 69.5 | 70 | 70 | 70 | 70 |
| 7 | HT Length | 90 | 110 | 130 | 150 | 170 | 190 |
| 8 | ST Angle | 75 | 74.5 | 74 | 73.5 | 73 | 72.5 |
| 9 | CS Length | 435 | 435 | 435 | 435 | 435 | 435 |
| 10 | BB Drop | 74 | 74 | 72 | 72 | 70 | 70 |
| 11 | BB Height | 281 | 281 | 283 | 283 | 285 | 285 |
| 12 | Wheelbase | 1035 | 1047 | 1055 | 1066 | 1079 | 1091 |
| 13 | Front Center | 611 | 623 | 630 | 641 | 653 | 665 |
| 14 | Fork Length | 410 | 410 | 410 | 410 | 410 | 410 |
| 15 | Fork Offset | 50 | 50 | 50 | 50 | 50 | 50 |
|
HEIGHT/INCHES |
HEIGHT/METRIC |
INSEAM/INCHES |
INSEAM/METRIC |
ROAD/ROVE |
LIBRE |
CX/SUTRA |
DEWS |
COCO |
|
4'10"-5'1" |
147-155 cm |
24”-27” |
61-69 cm |
46-48 cm |
46 cm |
46-48 cm |
N/A |
XS |
|
5'0"-5'3" |
152-160 cm |
26"-29" |
66-74 cm |
48-50 cm |
46-49 cm |
48-50 cm |
Small |
Small |
|
5'2"-5'7" |
157-170 cm |
27"-30" |
69-76 cm |
48-52 cm |
49-51 cm |
48-52 cm |
Small, Medium |
Small, Medium |
|
5'6"-5'10" |
168-178 cm |
29"-31" |
74-79 cm |
52-54 cm |
51-54 cm |
52-54 cm |
Medium |
Medium |
|
5'9"-6'0" |
175-183 cm |
30"-33" |
76-84 cm |
52-56 cm |
54-55 cm |
52-56 cm |
Medium, Large |
Medium, Large |
|
5'11"-6'2" |
180-188 cm |
32"-35" |
81-89 cm |
54-58 cm |
54-55 cm |
54-58 cm |
Large, XL |
Large |
|
6'1"-6'5" |
185-196 cm |
33"-36" |
84-91 cm |
56-58 cm |
55 cm |
56-58 cm |
XL |
N/A |
MTB / ALL MOUNTAIN / SPLICE (MTB/ALL MOUNTAIN/GRAVITY)
|
HEIGHT/INCHES |
HEIGHT/METRIC |
INSEAM/INCHES |
INSEAM/METRIC |
SPLICE |
MTB/XC TRAIL/FAT |
ALL MOUNTAIN/ENDURO |
GRAVITY/DH |
|
4'10"-5'1" |
147-155 cm |
24”-27” |
61-69 cm |
Small |
XS |
XS |
N/A |
|
5'0"-5'3" |
152-160 cm |
26"-29" |
66-74 cm |
Small |
Small |
Small |
N/A |
|
5'2"-5'7" |
157-170 cm |
27"-30" |
69-76 cm |
Small, Medium |
Small, Medium |
Small, Medium |
Medium |
|
5'6"-5'10" |
168-178 cm |
29"-31" |
74-79 cm |
Medium |
Medium |
Medium |
Medium |
|
5'9"-6'0" |
175-183 cm |
30"-33" |
76-84 cm |
Medium, Large |
Medium, Large |
Medium, Large |
Medium, Large |
|
5'11"-6'2" |
180-188 cm |
32"-35" |
81-89 cm |
Large, XL |
Large, XL |
Large, XL |
Large, XL |
|
6'1"-6'5" |
185-196 cm |
33"-36" |
84-91 cm |
Large, XL |
Large, XL |
Large, XL |
Large, XL |
