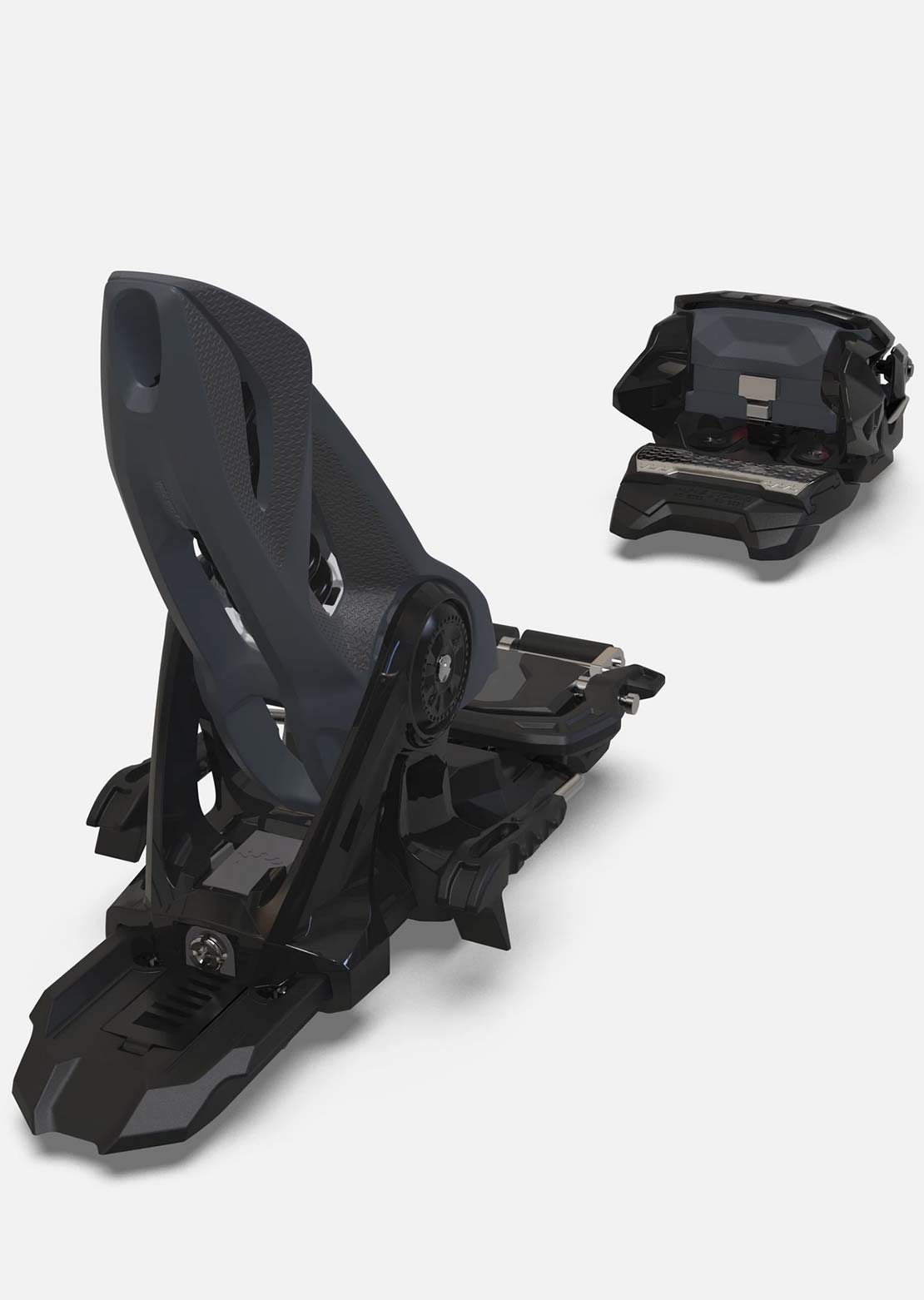

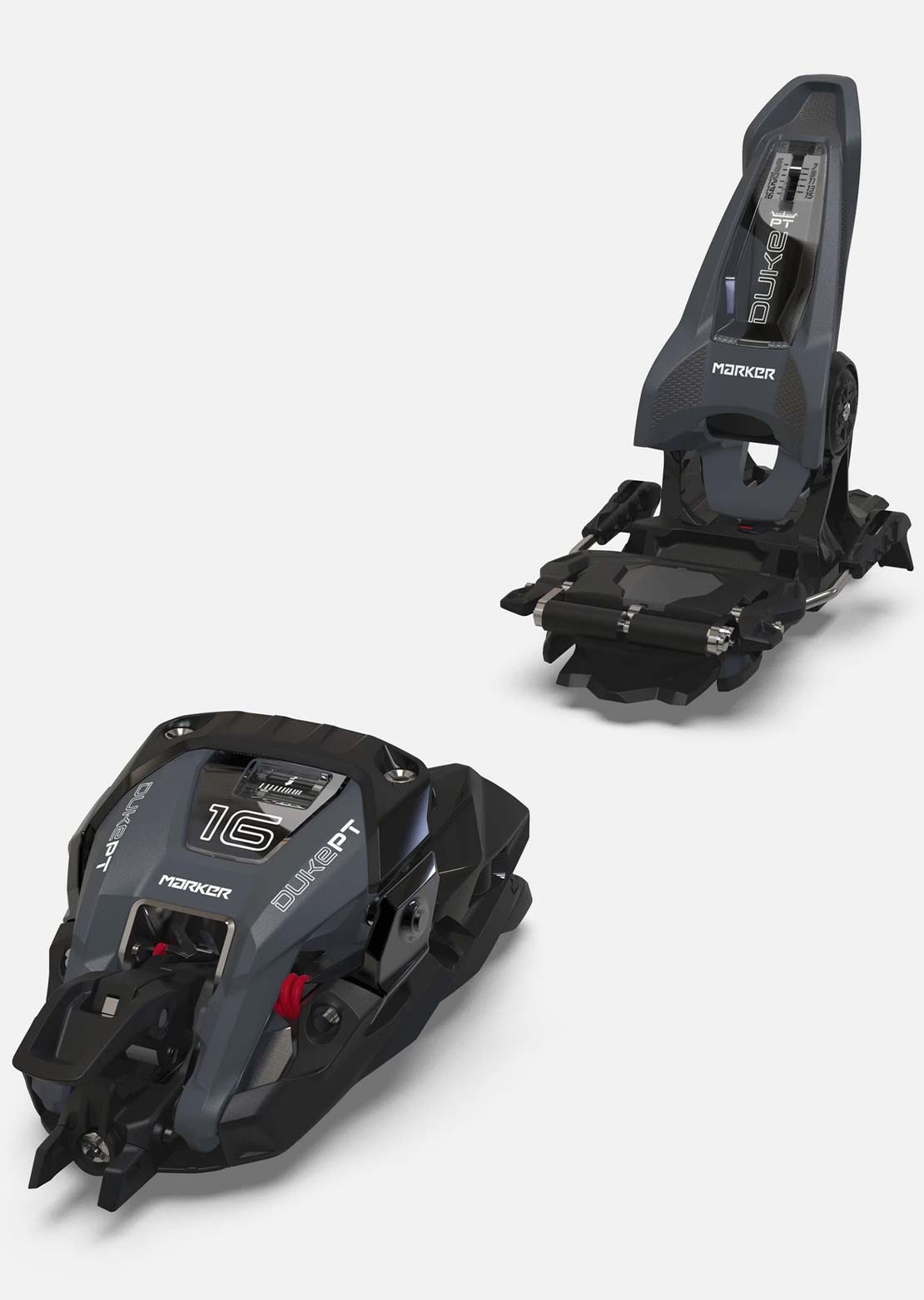

The Duke PT 16 (DIN 6-16) is Royal Family´s top model and sets another milestone. It combines the superior functionality and downhill performance of a Jester with comfortable uphill properties of a pin binding. An absolute highlight is the innovative Ride & Hike toe. For walking mode the upper part is simply unlocked and tilted forward, uncovering the pin binding. To save swing weight the upper jaw part can be taken off and stored in the backpack.
The multi functional Lock & Walk unit automatically locks the brakes and provides a 10° climbing aid. For downhill mode the front jaw section is clicked back onto the base plate being quadruple secured by the Auto Quad Lock technology. Now the toe piece works just like an alpine toe with all of its advantages! The heel is the latest generation of Interpivot 3 freeride heels with lightweight magnesium housing and improved stiffness. The low height of 24 mm allows for direct power transmission and fast edge changes. Thanks to Multinorm, all Duke PT are compatible to alpine, touring and GripWalk boots.
LOCK & WALK BRAKE
The multi functional Lock & Walk unit automatically locks the brakes and provides a 10° climbing aid. For downhill mode the front jaw section is clicked back onto the base plate, quadruple secured by the Auto Quad Lock technology. Now the toe piece works just like an alpine toe with all of its advantages!
INTER PIVOT 3 FREERIDE HEEL
The third and newest generation completely redone: improved power transmission, energy absorption and vertical heel elasticity combined with an improved step in comfort.
RIDE & HIKE TOE
Great Royal Family downhill performance and release function combined with pin-technology for strong uphill performance. For walking mode the upper part is simply unlocked and tilted forward, uncovering the pin binding. Thanks to this convertible toe 300g per foot can be saved for the ascent.
MULTINORME (SOLE.ID)
Height-adjustable gliding plate to be compatible with all boot soles on the market. Compatible with: Alpine (ISO 5355 A), Touring (ISO 9523) and GripWalk (ISO 23223 A) soles. Easy to adjust: Pozi screw at the front to adjust height of gliding plate.
GRIPWALK
The sole-binding system for better walking comfort and top skiing performance. GripWalk contains of a new co-polymer sole with rocker profile. The convex shape and ribbed tread of the rubber add a lot of walking comfort and provide a much better grip. Still, integrated pads made of stiff and rigid materials, enable great power transmission and more precise release function of the binding. GripWalk soles are the perfect tuning parts designed for selected premium ski boots and bindings.
GLIDING AFD
All MARKER bindings are equipped with a moveable AFD (anti friction device) leading to a highly precise release almost entirely unhindered by dirt, snow and ice! Individual adjustment of the AFD to the area of application ensures perfect functionality - from racing, for children’s bindings or on ski tours.
ANTI ICE RAIL
Use the metal rail to scratch off ice and snow below your boot sole.
AUTO QUAD LOCK
Toe part locks itself at 4 different points automatically when stepping into the binding.
|
MARKER BINDING DIN RANGE |
RECOMMENDED SKIER'S WEIGHT (LBS) |
RECOMMENDED SKIER'S WEIGHT (KGS) |
MODELS FEATURING THIS DIN RANGE |
|
8 - 18 |
130 + lbs |
59+ kg |
Jester 18 Pro ID, XComp 18 |
|
6 - 16 |
130 + lbs |
59+ kg |
Duke PT 16, Jester 16 ID, XComp 16, XComp 16 GW Black |
|
4 - 13 |
80 + lbs |
36+ kg |
Griffon 13 ID, Baron EPF 13 |
|
4 - 12 |
80 - 250 lbs |
36 - 113 kg |
Squire 12 TCX, Duke PT 12, F12 Tour EPF, XComp 12, XComp 12 GW Black |
|
3 - 11 |
65 - 240 lbs |
29.5 - 109 kg |
Squire 11 |
|
3 - 10 |
65 - 230 lbs |
29.5 - 104 kg |
Squire 10, 10.0 TP, F10 Tour, Race 10 TCX, Race 10 |
|
5 - 12 |
100 - 250 lbs |
45 - 113 kg |
Kingpin M-WERKS 12 |
|
6 - 13 |
130 + lbs |
59+ kg |
Kingpin 13 |
|
5 - 10 |
100 - 230 lbs |
45 - 104 kg |
Kingpin 10 |
|
6 - 12 |
130 + lbs |
59+ kg |
Alpinist 12 |
|
4 - 10 |
80 - 230 lbs |
36 - 104 kg |
Alpinist 10 |
|
3 - 8 |
65 - 165 lb |
29.5 - 75 kg |
Alpinist 8 |
|
2 - 8 |
53 - 165 lbs |
24- 75 kg |
Race Junior 8 |
|
2 - 7 |
53 - 165 lbs |
24 - 75 kg |
Free 7, 7.0 |
|
0.75 - 4.5 |
29 - 125 lbs |
13 - 57 kg |
4.5 |
