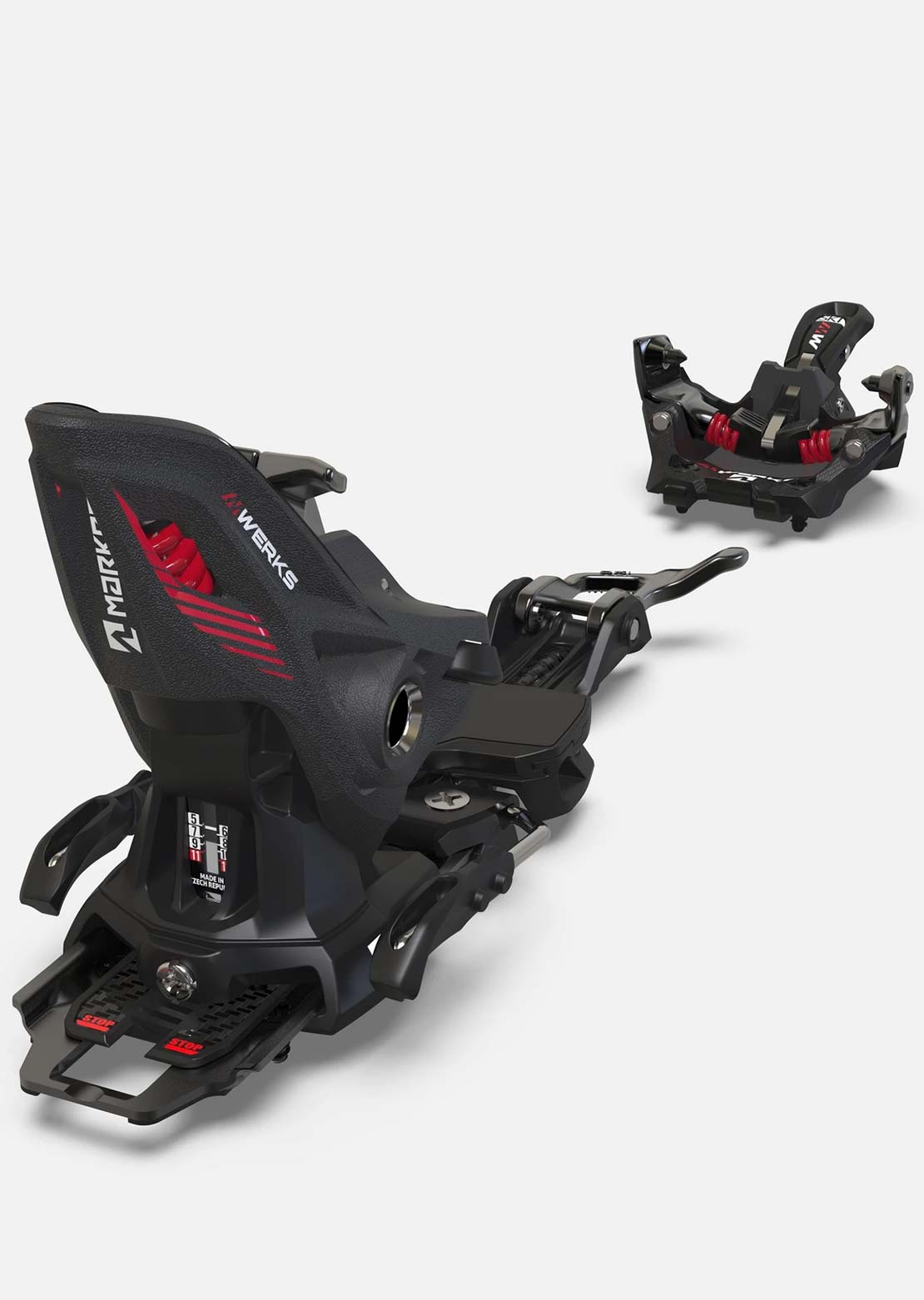

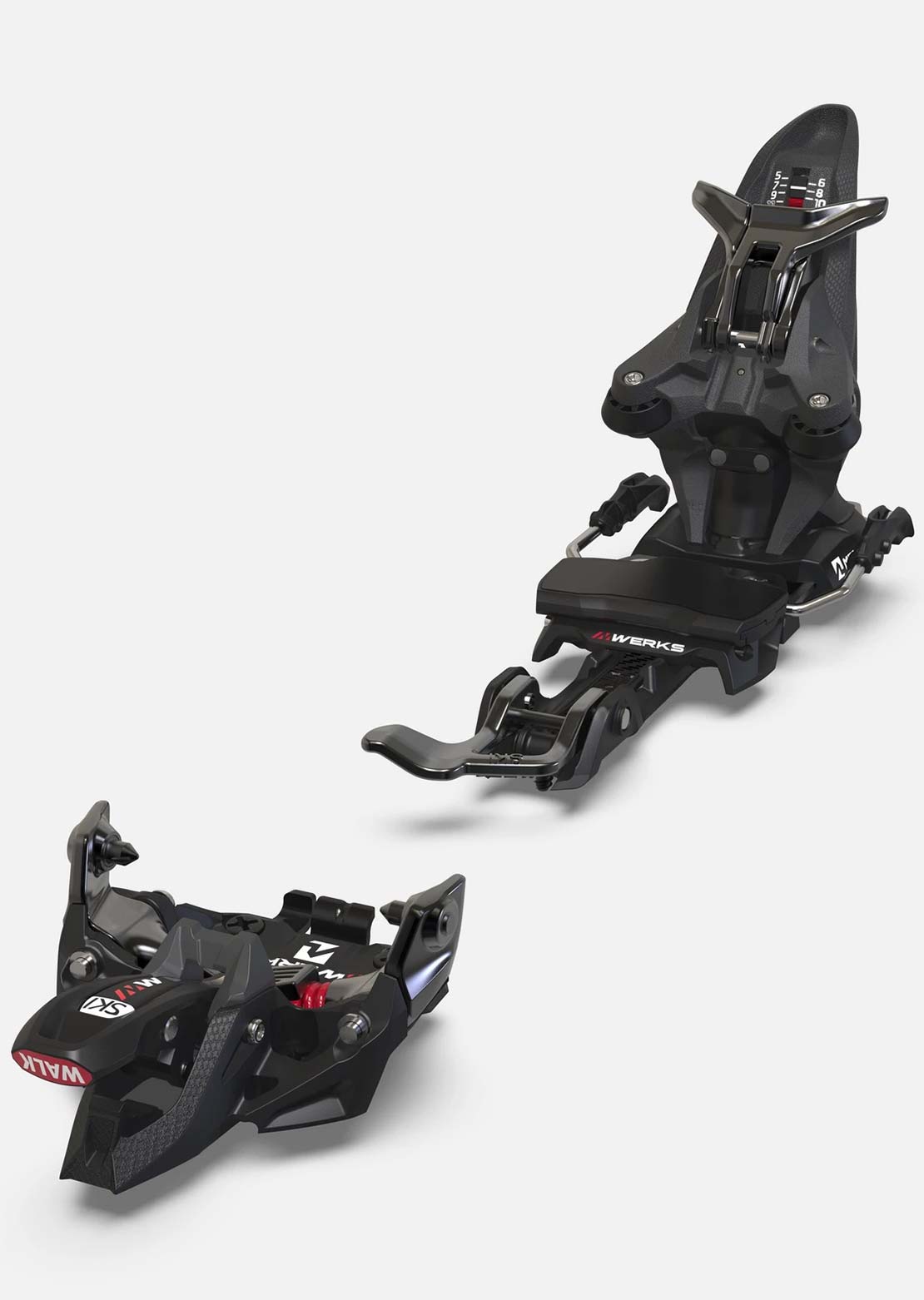

MARKER’s state-of-the-art performance pin binding with DIN settings of up to 12. The Kingpin M-Werks 12 has a carbon-reinforced heel and weighs just 655 g including brake. It offers the ultimate in uphill and downhill performance thanks to features such as an XXL power transmitter and ergonomically shaped climbing aid.
A very stiff, similarly carbon-reinforced front with an ISI toe piece makes the binding easier to step into, as a wide footprint with integrated stop automatically positions and aligns your boot. Kinematically optimised pin levers then allow the pins to snap shut with just a gentle push.
CLIMBING AIDS KINGPIN
The climbing aid offers two positions with 7° and 13° which can easily be accessed with the ski pole, even in an unstable standing position. Integrated elastomer paddings dampen the impact reducing the irritating traditional “clack” and allow more comfortable hiking.
KINGPIN LENGTH ADJUSTMENT
The Kingpin heel offers a heel adjustment range of 25 mm (from -10 mm to +15 mm).
KINGPIN HEEL
The revolutionary heel construction for the Pin Technology bindings features wide sole contact points to deliver the kind of direct, lossless power transfer more frequently seen in alpine bindings. The KingPin heel is also many times safer than traditional Pin Technology bindings.
ISI TOE
The ISI toe ensures that you'll be able to get in and out of the toe really quickly and easily.
CRAMPON KINGPIN/ALPINIST
Easy to install crampons for KINGPIN and Alpinist available in the sizes 80mm, 90mm, 105mm, 120mm
ANTI ICE PADS
Anti Ice Pads in the base of toe and heel (if no brake is installed) to prevent icing in critical areas
CARBON REINFORCED TOE AND HEEL
Carbon fiber reinforced material for improved stiffness and super lightweight.
VERTICAL & LATERAL ADJUSTABLE RELEASE FUNCTION
Vertical and lateral individually adjustable release in the heel for improved release functionality.
XXL POWER TRANSMITTER M.WERKS
Extra large power transmitters in the heel with reduced weight for minimum friction and maximum centering for the lateral movement of the heel
|
MARKER BINDING DIN RANGE |
RECOMMENDED SKIER'S WEIGHT (LBS) |
RECOMMENDED SKIER'S WEIGHT (KGS) |
MODELS FEATURING THIS DIN RANGE |
|
8 - 18 |
130 + lbs |
59+ kg |
Jester 18 Pro ID, XComp 18 |
|
6 - 16 |
130 + lbs |
59+ kg |
Duke PT 16, Jester 16 ID, XComp 16, XComp 16 GW Black |
|
4 - 13 |
80 + lbs |
36+ kg |
Griffon 13 ID, Baron EPF 13 |
|
4 - 12 |
80 - 250 lbs |
36 - 113 kg |
Squire 12 TCX, Duke PT 12, F12 Tour EPF, XComp 12, XComp 12 GW Black |
|
3 - 11 |
65 - 240 lbs |
29.5 - 109 kg |
Squire 11 |
|
3 - 10 |
65 - 230 lbs |
29.5 - 104 kg |
Squire 10, 10.0 TP, F10 Tour, Race 10 TCX, Race 10 |
|
5 - 12 |
100 - 250 lbs |
45 - 113 kg |
Kingpin M-WERKS 12 |
|
6 - 13 |
130 + lbs |
59+ kg |
Kingpin 13 |
|
5 - 10 |
100 - 230 lbs |
45 - 104 kg |
Kingpin 10 |
|
6 - 12 |
130 + lbs |
59+ kg |
Alpinist 12 |
|
4 - 10 |
80 - 230 lbs |
36 - 104 kg |
Alpinist 10 |
|
3 - 8 |
65 - 165 lb |
29.5 - 75 kg |
Alpinist 8 |
|
2 - 8 |
53 - 165 lbs |
24- 75 kg |
Race Junior 8 |
|
2 - 7 |
53 - 165 lbs |
24 - 75 kg |
Free 7, 7.0 |
|
0.75 - 4.5 |
29 - 125 lbs |
13 - 57 kg |
4.5 |
