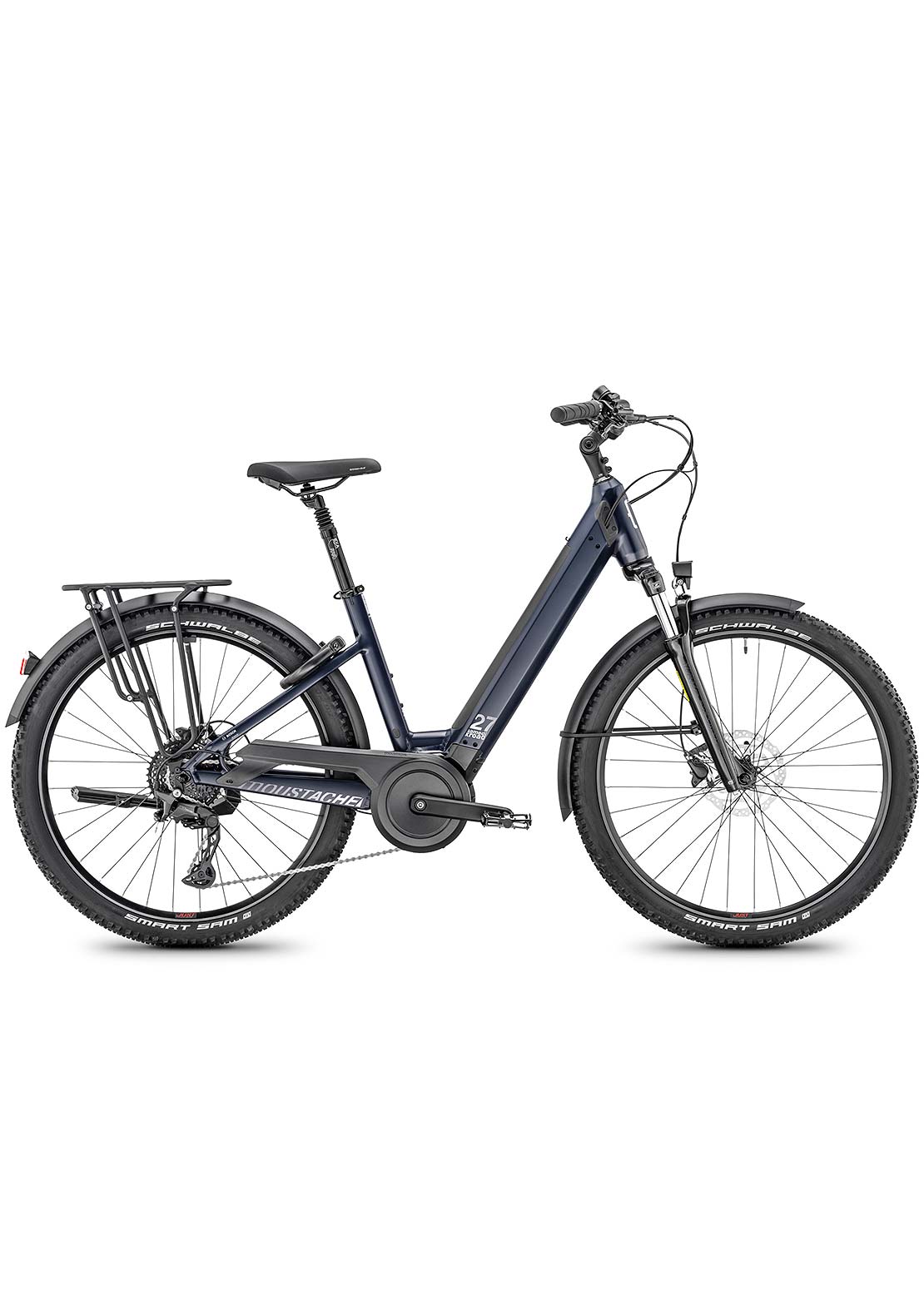

As comfortable on country paths as in the heart of the urban jungle, more powerful than ever and just as solidly equipped, the Samedi 27 Xroad 4 is also connected, offering new features! For example, use the navigation function, enhance theft protection, customize the assistance modes and screen displays to your preferences, or unlock your e-bike via the screen.
Frame
Suspensions
Fork: SR Suntour, XCM32-ATB, NLO, preload adjustment & lockout function, 100mm travel
Motor system
Motor: Bosch, Performance Line, 250W, Smart System, 75Nm
Battery: Bosch, PowerTube 625Wh, vertical, Smart System
Autonomy: 156km
Charger: Bosch, 4Ah
Remote: Bosch, Purion 200, Smart System, compact, color screen, navigation, « Walk assist »
Transmission
Shifter: Shimano, CUES, SL-U6000-10R, 10-speed
Cranks: Moustache, aluminium, 170mm moteur Gen3
Rear Derailleur: Shimano, CUES, RD-U6020, 10-speed
Chainring: 40 dents, Narrow Wide moteur Gen3 Lundi Mardi Samedi 28 Xraod
Cassette: Shimano, CUES, CS-LG300 10-speed, 11-39T
Chain: Shimano, CN-LG500, 120 links
Brakes
Front brake: Shimano, MT200 or Alhonga HJ-472, hydraulic disc brake
Rear Brake: Shimano, MT200 or Alhonga HJ-472, hydraulic disc brake
Front Rotor: Shimano, 180mm or Alhonga, 180mm
Rear Rotor: Shimano, 160mm or Alhonga, 160mm
Wheels
Front Hub: Shimano, 32H, 9x100mm, QR (Quick Release)
Rear Hub: Shimano, 32H, 9x135mm, QR (Quick Release)
Front rim: Moustache, asymmetric, alloy 6061E, welded, 32 holes, 27.5", internal width 23mm
Rear rim: Moustache, asymmetric, alloy 6061E, welded, 32 holes, 27.5", internal width 23mm
Front tyre: Schwalbe, Smart Sam, 27.5x2.25
Cockpit
Saddle: Selle Royal, Essenza + moderate
Seatpost: Suspension, alloy, 31.6mm, 350mm, 40mm travel
Seatclamp: Moustache, alloy, 34.9mm
Handlebar: Moustache, ergonomic, alloy, 680mm, 25° backsweep
Stem: Moustache, alloy, adjustable, 90mm
Headset: FSA, No 57B
Grips: Ergonomic, dual-density
Equipment
Front light: AXA, NXT, 30 lux, alimenté par la batterie principale
Rear light: Spanninga, Presto2Guard, powered by main battery
Lock: AXA, Block XXL, same key for framelock & battery lock
Kickstand: Moustache, adjustable
Mudguard: Moustache, alloy, double wall design, w/alloy stays
Carrier: Moustache, alloy, removable QL3 lateral fixation, MIK HD platform
Pedals: alloy platform with reflectors
Features
Colors: Dark Blue mat
Weight: 26.5kg
GVWR: 135kg
Geometry
|
ST - Taille / Size |
mm |
390 (S) |
450 (M) |
510 (L) |
|
Taille utilisateur / User Size |
m |
1,49 - 1,61 |
1,59 - 1,76 |
1,74 - 1,90 |
|
TT - Tube supérieur / Top tube |
mm |
555 |
580 |
605 |
|
RC - Bases / Rear center |
mm |
475 |
475 |
475 |
|
HT - Douille de direction - Headtube |
mm |
170 |
170 |
170 |
|
WB - Empattement / Wheelbase |
mm |
1109 |
1118 |
1143 |
|
FL - Longueur de fourche / Fork Length |
mm |
487 |
487 |
487 |
|
BB - Hauteur du boitier / BB height |
mm |
298 |
298 |
298 |
|
SA - Angle de selle / Seat angle |
° |
71 |
71 |
71 |
|
HA - Angle de direction / Head angle |
° |
67,2 |
68 |
68 |
|
Reach |
mm |
336 |
360 |
385 |
|
Stack |
mm |
643 |
648 |
648 |
|
SO - Enjambement / Standover |
mm |
438 |
438 |
438 |
