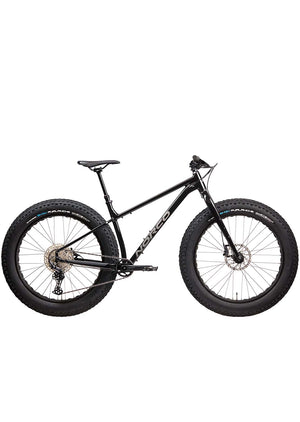

Norco Bigfoot 2 27.5" Fat Bike

    Sale
    Color: Black/Grey
    Black/Grey
    Size: 27.5" - SMALL

    Shipping is not available on this product. Local pick-up only.

    RETURNS

    MADE EASY

    PROUDLY

    CANADIAN

    BEST PRICE

    GUARANTEE

    Description
    Features
    Specs
    Description

    The redesigned Bigfoot 2 elevates fat bike performance to downright fun, anywhere, anytime. The confident, aggressive handling tracks precisely where you want on a descent or technical trail, and the simple one-by drivetrain offers reliable, simple shifts with gloved hands. Balanced weight distribution for maximum traction and a powerful pedaling position keep the Bigfoot 2 charging forward all year.

    Features

    MOUNTAIN
    All Season Evolution. The Bigfoot excels in all season weather and extreme terrain to make every ride big fun. With maximum traction in the most extreme riding conditions imaginable, Bigfoot claws its way up, and the finely-tuned steering geometry and massive tires provide confident, aggressive handling to rip back down.

    PROGRESSIVE DESIGN
    Built from the powder-up with our holistic approach to fit & geometry. A combination of longer reach, slack head tube angle and steep seat tube angle gives every Bigfoot a powerful pedal position, increased climbing traction and added control when descending.

    BIGGER THAN BIG
    Fat’s where it’s at. 75mm wide 27.5” rims and frame clearance for up to 4.6" tires to put more rubber onto whatever surface you're riding and allow for lower pressures and greater traction.

    MULTI-FUNCTIONAL
    Frame details add versatility. Rack mounts in the rear, bottle mounts above and beneath the down tube and triple mounts on the fork give you the option of running a barebones setup, or loading up for a massive excursion.

    STANDOVER HEIGHT
    Top tube clearance is critical in fat biking. Getting off the pedals in deep snow requires lots of space over the top tube. Bigfoot strikes a perfect balance between max clearance and making space for a frame bag in the front triangle.

    WINTER RIDER
    Optimized for the cold, capable year-round. All models feature disc brakes with DOT fluid or cable actuation for consistent performance over varying temperatures. When included, dropper posts are spec’d for reliable cold weather performance.

    FRAME FEATURES
    Evolved, thoughtful details make it even better. Generous standover clearance and extra stiffness provided by 12x197mm thru-axles and internally routed cables make the Bigfoot’s aluminum frame ideal for extreme terrain.

    Specs
    Frameset

    FRAME

    Butted X6 Aluminum

    FORK

    6061 Aluminum



    Drivetrain

    REAR SHIFTER

    Shimano Deore SL-M6100-R

    REAR DERAILLEUR

    Shimano Deore RD-M6100

    CRANKSET

    Praxis Cadet M30, 32T, 170mm (S), 175mm (M, L, XL)

    BOTTOM BRACKET

    Praxis M30, BSA Threaded

    CASSETTE

    Shimano Deore CS-M6100-12, 10/51T, 12 Speed

    CHAIN

    Shimano Deore CN-M6100



    Brakes

    FRONT BRAKE

    SRAM Level, Organic Pads

    FRONT BRAKE ROTOR

    Avid G2, 180mm

    REAR BRAKE

    SRAM Level, Organic Pads

    REAR BRAKE ROTOR

    Avid G2, 160mm

    BRAKE LEVERS

    SRAM Level



    Components

    HANDLEBAR

    Butted 6061 Alloy 760mm, 15mm Rise

    STEM

    Alloy, 50mm Length, 31.8mm Clamp

    SEATPOST

    TranzX YSP18 Dropper, 31.6mm, 130mm (S, M), 150mm (L, XL)

    HEADSET

    Sealed Bearing, Tapered

    HEADSET SPACER

    2x10mm - Black

    SADDLE

    Norco XC

    GRIPS

    VP Lock-On

    PEDALS

    VP Nylon Flat

    SEATPOST CLAMP

    Alloy Nutted



    Wheels

    FRONT HUB

    Sealed Bearing, 15x150mm, 6 bolt

    REAR HUB

    Bear Pawls Sealed Bearing, 12x197mm, Micro Spline, 6 bolt

    RIMS

    Alloy TR, 27.5", 32H

    FRONT TIRE

    Vee Snow Avalanche TLR 4.5", 120 TPI, Studdable

    REAR TIRE

    Vee Snow Avalanche TLR 4.5", 120 TPI, Studdable

    REAR HUB SKEWER

    197mm x 12mm TA

    FRONT HUB SKEWER

    150mm x 15mm TA

    SPOKES/NIPPLES

    Stainless 14g, Black



    GEOMETRY



    S

    M

    L

    XL


    Wheel Size

    27.5"

    27.5"

    27.5"

    27.5"


    Reach

    410

    440

    470

    500


    Stack

    612

    621

    631

    HTA

    Head Tube Angle

    69

    OS

    Fork Offset

    51

    ST

    Seat Tube Length

    400

    425

    450

    500

    STA

    Effective Seat Tube Angle

    74

    RC

    Rear Center Length

    440

    BB

    Bottom Bracket Drop

    59

    BBH

    Bottom Bracket Height

    332

    HTT

    Horizontal Top Tube

    586

    616

    648

    681

    WB

    Wheelbase

    1113

    1143

    1177

    1210

    SOH

    Standover

    675

    676

    690

    718

    HT

    Head Tube Length

    100

    110

    120


    Trail

    95


    Recommended Seatpost Drop

    100

    125

    150


    Maximum Post Insertion

    215

    240

    280

    320


    Stem Length

    50


    Crank Length

    170

    175


    Tire Size

    4.0" – 4.6"


    Water Bottle Compatible

    2 x 750 mL
