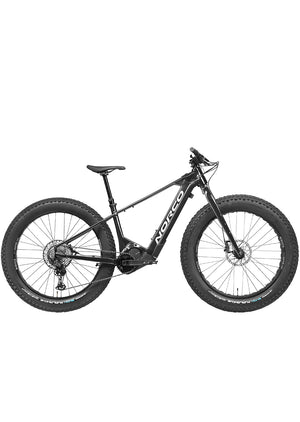

Norco Bigfoot VLT 2 Electric Fat Bike

Color: Black/Silver
Black/Silver
Size:

Shipping is not available on this product. Local pick-up only.

Please contact us for price at info@prfo.com

RETURNS

MADE EASY

PROUDLY

CANADIAN

BEST PRICE

GUARANTEE

Description
Features
Specs
Description

*BATTERY NOT INCLUDED*

With handling that satisfies the demands of the most discerning rider, the Bigfoot VLT 2 shreds. Heat up your off-road adventure with Gen 3 VLT technology. Shimano’s EP8 drive system combines high torque electric assist with your choice of 540Wh, 720Wh or 900Wh in-tube batteries. (sold separately)

Features

MOUNTAIN
Less Work - Even More Play. The new Bigfoot VLT shreds more than ever before. All new progressive frame design optimized for 27.5” wheels and three big, bold custom VLT battery options. No-compromise cold-weather features combine with Shimano’s STEPS EP8 drive system to make the Bigfoot VLT the electric fat bike that’ll heat up all 4 seasons of off-road adventure.

CHARGES FORWARD
Modern MTB handling through treacherous terrain. The Bigfoot VLT’s rider cockpit is optimized for quick, efficient climbing and its progressive geometry makes for confident, stable descents.

EXTRA
VLT gives you more of what you love about Fat Biking. Generous standover clearance and thru axles set the Bigfoot VLT’s aluminum frame apart and internally routed cables provide a clean look and keep critical systems working great.

YEAR-ROUND PERFORMANCE
Components optimized for the cold – and beyond. Cold-weather optimized Manitou suspension, DOT hydraulic disc brakes and a dropper post that works best when the temps plummet are the kind of details that make a real difference.

SHIMANO STEPS
ALL the power you need. Shimano STEPS EP8 drive units give you extra everything and provide the push you need to get through the tough stuff.

REMOVABLE BATTERY
Removes and installs in seconds with one tool. Batteries are encased inside the downtube for protection and are easily removed for charging on and off the bike or for easy swaps.

CHOOSE YOUR JUICE
Determine how far and how fast you want to ride. Custom select your battery capacity from 540Wh, 720Wh or massive, industry-leading 900Wh depending on how you ride. Lighter weight for speedy laps, mammoth range for epic adventures, or somewhere in between.

BIG OL’ WHEELS & TIRES
Fat 27.5 x 4.5” rubber for max grip and cush. 80mm rims and clearance for 4.6” tires put more rubber on the ground. The massive footprints float over snow and sand and soften the blow from gnarly trail features with immense amounts of traction.

BRAKE CHECK
With all that go - you have to stop, too. Control the added momentum and take advantage of all the grip offered by the fat tires with hydraulic disc brakes and oversized rotors.

Specs
Frameset

FRAME

Butted X6 Aluminum

FORK

6061 Aluminum



Drivetrain

REAR SHIFTER

Shimano Deore SL-M6100-R

REAR DERAILLEUR

Shimano Deore RD-M6100

FRONT SHIFTER

N/A

FRONT DERAILLEUR

N/A

CRANKSET

Praxis Cadet M30, 32T, 170mm (S), 175mm (M, L, XL)

CASSETTE

Shimano Deore CS-M6100-12, 10/51T, 12 Speed

CHAIN

Shimano Deore CN-M6100



Brakes

FRONT BRAKE

SRAM Code R, Organic Pads

FRONT BRAKE ROTOR

SRAM CenterLine, 203mm

REAR BRAKE

SRAM Code R, Organic Pads

REAR BRAKE ROTOR

SRAM CenterLine, 180mm

BRAKE LEVERS

SRAM Code R



Components

HANDLEBAR

Butted 6061 Alloy 760mm, 15mm Rise

STEM

6061 Alloy, 50mm Length, 35mm Clamp

SEATPOST

TranzX YSI22PLQ Dropper, 34.9mm, 150mm (S), 170mm (M, L), 200mm (XL)

HEADSET

FSA No.55R, Sealed Bearing, Tapered

HEADSET SPACER

2x10mm - Black

SADDLE

SDG Bel-Air V3

GRIPS

WTB Waffle, Lock-On

PEDALS

Nylon Flat

SEATPOST CLAMP

Alloy Nutted



Wheels

FRONT HUB

Bear Pawls Sealed Bearing, 15x150mm, 6 bolt

REAR HUB

Bear Pawls Sealed Bearing, 12x197mm, Micro Spline, 6 bolt

RIMS

Sun Ringle Mulefut SL V2, 27.5", 32H

FRONT TIRE

Vee Snow Avalanche TLR 4.5", 120 TPI, Studdable

REAR TIRE

Vee Snow Avalanche TLR 4.5", 120 TPI, Studdable

REAR HUB SKEWER

197mm x 12mm TA

FRONT HUB SKEWER

150mm x 15mm TA

SPOKES/NIPPLES

Stainless 14g, Black


Geometry

S

M

L

XL

27.5"

27.5"

27.5"

27.5"

Travel (mm front)

100

Reach

410

440

470

500

Stack

638

638

647

656

HTA Head Tube Angle

67

OS Fork Offset

51

ST Seat Tube Length

385

390

410

460

STA Effective Seat Tube Angle

75

75.3

75.7

76

RC Rear Centre Length

460

BB Bottom Bracket Drop

65

BBH Bottom Bracket Height

329

HTT Horizontal Top Tube

581

607

635

664

WB Wheelbase

1164

1194

1228

1262

SOH Standover

683

684

694

732

HT Head Tube Length

110

110

120

130

Trail

112

Stem Length

50

Crank Length

165

Tire Size

4.0" – 4.5"

Water Bottle Compatible

1 x 750 mL
