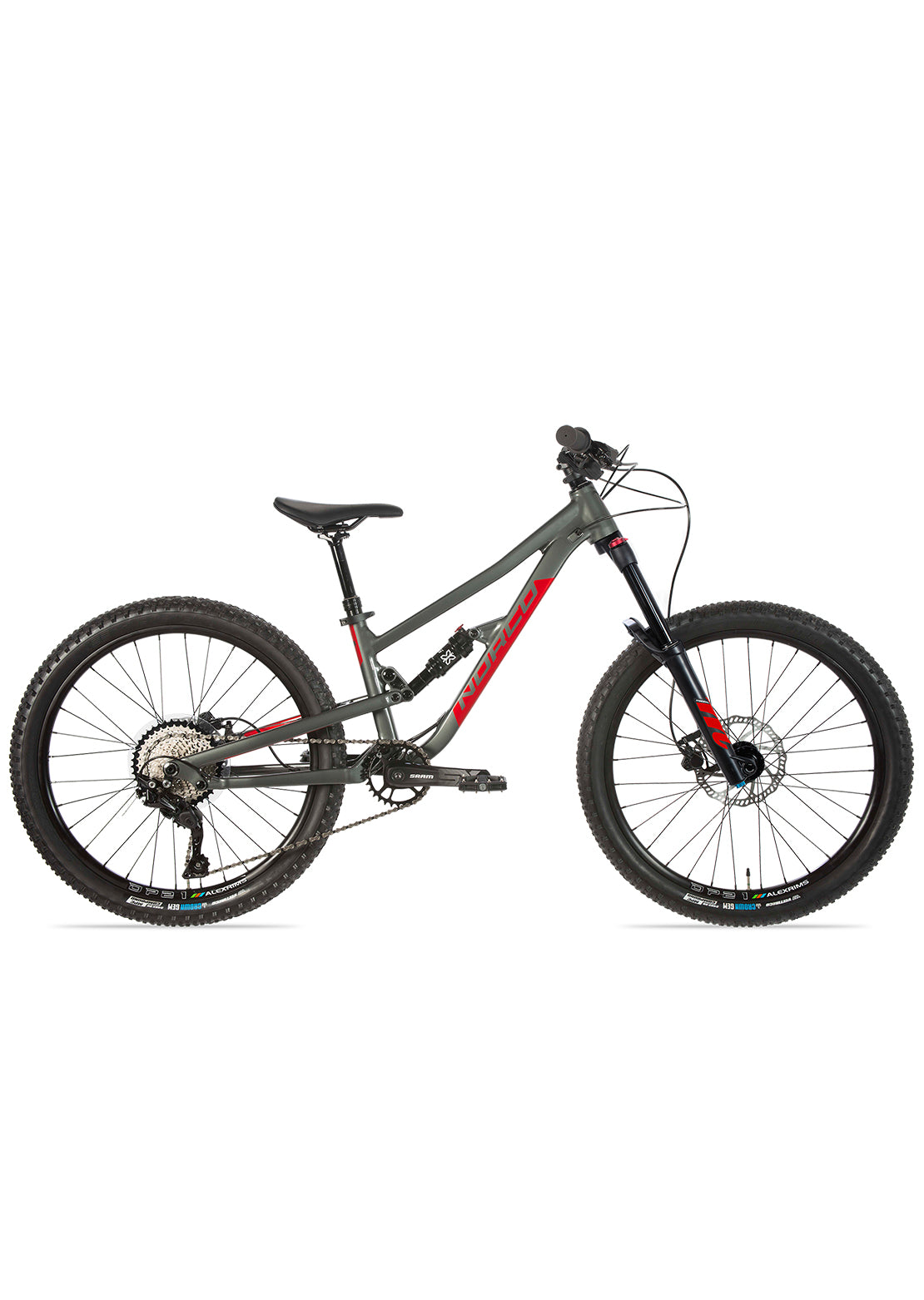

The Fluid FS 2 24 features progressive handling, low standover, youth-tuned suspension and a dropper that is optimized for 9-12 year old riders below 90 pounds. The Fluid FS 2 24 is an aggressive trail bike designed to tackle demanding trails. The quality and build reflect everything we put into our full-size bikes, so you know the new Fluid FS Youth is up for every trail they are, and its quality parts will keep it out of the shop.
MOUNTAIN
Ripper Ready. The Fluid FS Youth’s progressive design provides the features and ride quality of our best adult bikes in a pint-sized package. Standover has been maximized, suspension tunes optimized and frame geometry honed to bring the distinct Norco ride to every 20 and 24-inch model.
PROGRESSIVE DESIGN
A holistic approach to design gives young rippers real, uncompromised performance. The Fluid FS Youth’s combination of long reach, slack head tube angle and steep seat tube angle make for powerful pedaling, increased climbing traction and added grip and control.
DETAILED TUNE
Suspension components built for your riders. Smaller riders require less spring force in their suspension components and dropper posts. Less spring force needs less damping, so the suspension and droppers move properly under riders below 90 pounds.
YOUTH-SPECIFIC FRAME
Designed to fit small and perform big. Low BB heights, generous standover clearance and a specially tuned linkage give young riders the same level of control and suspension performance as our adult bikes.
ADULT CALIBER
All the quality and durability of adult parts but built to fit. Youth-specific touch points, sized to provide ample grip and support for smaller bodies, don’t sacrifice the performance and durability that dedicated riders need.
|
FRAME |
6061 Aluminum,120mm Travel, tapered headtube, boost axle spacing, ISCG05 mount |
|
FORK |
Manitou J-Unit 24" TS Air, Alloy Steerer, 145mm Travel |
|
REAR SHOCK |
X-Fusion 02 Pro R, custom light tune |
Drivetrain
|
REAR SHIFTER |
Shimano Deore SL-M6000 10 speed |
|
REAR DERAILLEUR |
Shimano Deore M6000 |
|
CRANKSET |
SRAM SX Eagle, 155mm, 30T |
|
BOTTOM BRACKET |
SRAM PowerSpline |
|
CASSETTE |
Shimano Deore HG500 11/42T |
|
CHAIN |
KMC X10 |
|
PEDALS |
Jr flat resin, metal pins |
Brakes
|
FRONT BRAKE |
Tektro HD-M276 Hydraulic, 180mm |
|
REAR BRAKE |
Tektro HD-M276 Hydraulic, 160mm |
Components
|
HANDLEBAR |
Alloy 660mm, 15mm Rise |
|
STEM |
35mm reach MTB |
|
SEATPOST |
JD TransX Light Action Dropper, 100mm,1x lever |
|
HEADSET |
FSA #57 E |
|
SADDLE |
Norco Jr. MTB |
|
GRIPS |
Jr. Soft Krayton Rubber lock on |
|
SEATPOST CLAMP |
Norco Alloy QR |
Wheels
|
FRONT HUB |
15x110 Boost |
|
REAR HUB |
Alloy, 12x148mm Boost |
|
RIMS |
Alloy Double Wall Disc |
|
FRONT TIRE |
Vee Rubber Crown Gem 24x2.25" |
|
REAR TIRE |
Vee Rubber Crown Gem 24x2.25" |
|
REAR HUB SKEWER |
12mm TA |
|
FRONT HUB SKEWER |
Included with fork |
|
SPOKES/NIPPLES |
Stainless 14g, Black |
Geometry
|
Wheel Size |
24" |
|
|
Travel (mm front/mm rear) |
145/120 |
|
|
Reach |
350 |
|
|
Stack |
531 |
|
|
HTA |
Head Tube Angle |
64.5 |
|
OS |
Fork Offset |
40 |
|
ST |
Seat Tube Length |
305 |
|
STA |
Effective Seat Tube Angle |
75.0 |
|
RC |
Rear Centre Length |
407 |
|
BB |
Bottom Bracket Rise/Drop |
-5 |
|
BBH |
Bottom Bracket Height |
305 |
|
HTT |
Horizontal Top Tube |
492 |
|
WB |
Wheelbase |
1052 |
|
SOH |
Standover |
569 |
|
HT |
Head Tube Length |
100 |
|
Trail |
106 |
|
|
Recommended Seatpost Drop |
100 |
|
|
Maximum Post Insertion |
160 |
|
|
Stem Length |
35 |
|
|
Crank Length |
152 |
|
|
Tire Size |
2.35" - 2.6" |
