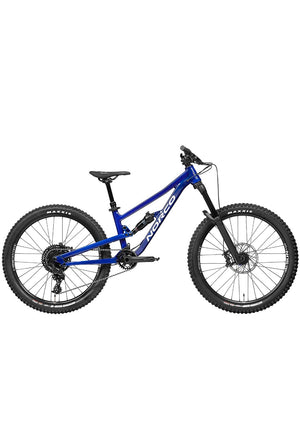

The Fluid 2 FS 24 features progressive handling, low standover, youth-tuned suspension and a dropper that is optimized for 9-12-year-old riders below 90 pounds. The Fluid FS 2 24 is an aggressive trail bike designed to tackle demanding trails. The quality and build reflect everything we put into our full-size bikes, so you know the new Fluid FS Youth is up for every trail they are, and its quality parts will keep it out of the shop.
MOUNTAIN
Ripper Ready. The Fluid FS Youth’s progressive design provides the features and ride quality of our best adult bikes in a pint-sized package. Standover has been maximized, suspension tunes optimized and frame geometry honed to bring the distinct Norco ride to every 20 and 24-inch model.
PROGRESSIVE DESIGN
A holistic approach to design gives young rippers real, uncompromised performance. The Fluid FS Youth’s combination of long reach, slack head tube angle and steep seat tube angle make for powerful pedaling, increased climbing traction and added grip and control.
DETAILED TUNE
Suspension components built for your riders. Smaller riders require less spring force in their suspension components and dropper posts. Less spring force needs less damping, so the suspension and droppers move properly under riders below 90 pounds.
YOUTH-SPECIFIC FRAME
Designed to fit small and perform big. Low BB heights, generous standover clearance and a specially tuned linkage give young riders the same level of control and suspension performance as our adult bikes.
ADULT CALIBER
All the quality and durability of adult parts but built to fit. Youth-specific touch points, sized to provide ample grip and support for smaller bodies, don’t sacrifice the performance and durability that dedicated riders need.
|
FRAME |
6061 Alloy Frame, 120mm Travel, Tapered Head Tube, ISCG05 Mount |
|
FORK |
Manitou Machete J-Unit Comp 24", 145mm Travel |
|
REAR SHOCK |
X-Fusion 02 Pro R, 170x35mm |
Drivetrain
|
REAR SHIFTER |
Box Four Multi |
|
REAR DERAILLEUR |
Box Four Wide |
|
CRANKSET |
Alloy Two Piece, 28T Narrow Wide, 140mm |
|
BOTTOM BRACKET |
BSA Threaded |
|
CASSETTE |
Box Four, 11-42T, 8 Speed |
|
CHAIN |
Box Four 8 Spd Chain |
Brakes
|
FRONT BRAKE |
Tektro HD-J285 Hydraulic, Organic Pads |
|
FRONT BRAKE ROTOR |
Tektro 160mm |
|
REAR BRAKE |
Tektro HD-J285 Hydraulic, Organic Pads |
|
REAR BRAKE ROTOR |
Tektro 160mm |
|
BRAKE LEVERS |
Tektro 2-Finger Jr. |
Components
|
HANDLEBAR |
6061 Aluminum, 660mm, 15mm Rise |
|
STEM |
6061 Alloy, 35mm Length, 31.8mm Clamp |
|
SEATPOST |
TranzX YSP18B, 31.6mm, 100mm, Kid's Tune |
|
HEADSET |
Sealed Cartridge Bearing, Tapered |
|
SADDLE |
Norco Youth |
|
GRIPS |
Jr. Lock-On |
|
PEDALS |
VP-225 Jr. Flat |
Wheels
|
FRONT HUB |
Bear Pawls 15x110mm Boost, 32H, 6 Bolt |
|
REAR HUB |
Bear Pawls 12x148 Boost, 32H, HG, 6 Bolt |
|
RIMS |
Stan's Flow K 24", 32H |
|
FRONT TIRE |
Maxxis Minion DHF EXO/TR 2.4" |
|
REAR TIRE |
Maxxis Minion DHR II EXO/TR 2.3" |
|
REAR HUB SKEWER |
- |
|
SPOKES/NIPPLES |
Stainless, Black |
Geometry
|
Wheel Size |
24" |
|
|
Travel (mm front/mm rear) |
145/120 |
|
|
Reach |
350 |
|
|
Stack |
531 |
|
|
HTA |
Head Tube Angle |
64.5 |
|
OS |
Fork Offset |
40 |
|
ST |
Seat Tube Length |
305 |
|
STA |
Effective Seat Tube Angle |
75.0 |
|
RC |
Rear Centre Length |
407 |
|
BB |
Bottom Bracket Rise/Drop |
-5 |
|
BBH |
Bottom Bracket Height |
305 |
|
HTT |
Horizontal Top Tube |
492 |
|
WB |
Wheelbase |
1052 |
|
SOH |
Standover |
569 |
|
HT |
Head Tube Length |
100 |
|
Trail |
106 |
|
|
Recommended Seatpost Drop |
100 |
|
|
Maximum Post Insertion |
160 |
|
|
Stem Length |
35 |
|
|
Crank Length |
152 |
|
|
Tire Size |
2.35" - 2.6" |
