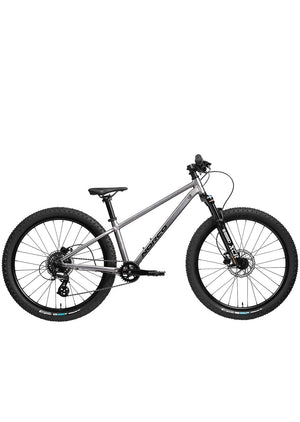

Norco Junior Fluid HT 24.1 24" Mountain Bike

Color: Grey/Black
Grey/Black
Size:

Shipping is not available on this product. Local pick-up only.

Please contact us for price at info@prfo.com

RETURNS

MADE EASY

PROUDLY

CANADIAN

BEST PRICE

GUARANTEE

Description
Features
Specs
Description

The Fluid HT 24.1 provides evolved fit, handling and ride quality that’ll elevate every young riders’ trail experience. The Fluid HT 24.1 is the ultimate singletrack adventure hardtail. The progressive aluminum hardtail is dropper post compatible, features internal cable routing and provides next-level Trail performance for riders from 4’2” to 4’8”.

Features

MOUNTAIN
Youth is Truth. The Fluid HT gives young riders all the confidence and capability they need to discover how fun real mountain biking is and develop skills that will last them a lifetime. This modern aluminum platform creates a strong pedaling position and keeps the knobby tires connected to the trail so when they find their limits, they can blow past them and improve every ride.

PROGRESSIVE ALUMINUM
Engineered for real rides and unlimited potential. As young riders start to progress, finding a bike that meets their needs, but invests in their future can be a challenge. The Aluminum Fluid frames are engineered to stand up to the most challenging rides, but are light enough to keep the wheels turnin’, even on the toughest climbs.

WIDE RANGE GEARING
Always find the right gear with quality components. Learning to use gears early can help kids enjoy riding a lot sooner without struggling every time pedaling feels hard. Trigger shifters on 24” models, and twisters on 20” are optimized for hand size and strength.

DISC BRAKES
Stopping power with minimal effort for maximum control. Strong hydraulic and mechanical disc brakes with levers optimized for little hands are potentially the most important element in giving kids the confidence to push themselves.

OPTIMIZED CABLE ROUTING
Keep mechanical systems functioning smoothly. Every Fluid HT is designed to ensure mechanical systems like shifting and brakes work great from Day 1. Each frame’s cable routing design ensures a perfect balance between keeping things tidy and providing easy maintenance.

PURPOSE BUILT
Created to meet the needs of evolving riders. Each Fluid HT Youth model is targeted at a specific rider. Front suspension creates a path to Trail supremacy, while the 20”+ model provides max traction and shock absorption through simplicity and pneumatic cushion.

Specs
Frameset

FRAME

Aluminum, Internal Routing, Internal Dropper Post Compatible

FORK

SR Suntour XCR Air, Lockout, 80mm Travel, Light Tune

Drivetrain

REAR SHIFTER

Shimano Altus SL-M315 RapidFire

REAR DERAILLEUR

Shimano Altus, Black

CRANKSET

Alloy 3 Piece, 28T Narrow Wide, 152mm

BOTTOM BRACKET

Sealed Bearing, Square Taper

CASSETTE

SunRace, 11-34T, 8 Speed

CHAIN

KMC



Brakes

FRONT BRAKE

Tektro HD-M286 Hydraulic

FRONT BRAKE ROTOR

Tektro, 6-Bolt

REAR BRAKE

Tektro HD-M286 Hydraulic

REAR BRAKE ROTOR

Tektro, 6-Bolt

BRAKE LEVERS

Tektro 2-Finger Jr.



Components

HANDLEBAR

Alloy Jr., 600mm, 30mm Rise

STEM

Alloy, 45mm Length, 31.8mm Clamp

HEADSET

External Cup

SADDLE

Norco Youth

GRIPS

Norco Youth

PEDALS

Jr. MTB Flat, Black



Wheels

FRONT HUB

Alloy, 9x100mm, 6 Bolt

REAR HUB

Alloy, 10x135mm, HG, 6 Bolt

RIMS

Aluminum Double Wall, 28H, 24"

FRONT TIRE

Vee Crown Gem 2.25"

REAR TIRE

Vee Crown Gem 2.25"

SPOKES/NIPPLES

Stainless



Geometry


Wheel Size

24"


Travel (mm front)

80


Reach

365


Stack

513

HTA

Head Tube Angle

66

ST

Seat Tube Length

305

STA

Effective Seat Tube Angle

73

RC

Rear Centre Length

380

BB

Bottom Bracket Drop

43

BBH

Bottom Bracket Height

267

HTT

Horizontal Top Tube

522

WB

Wheelbase

995

HT

Head Tube Length

90


Crank Length

152
