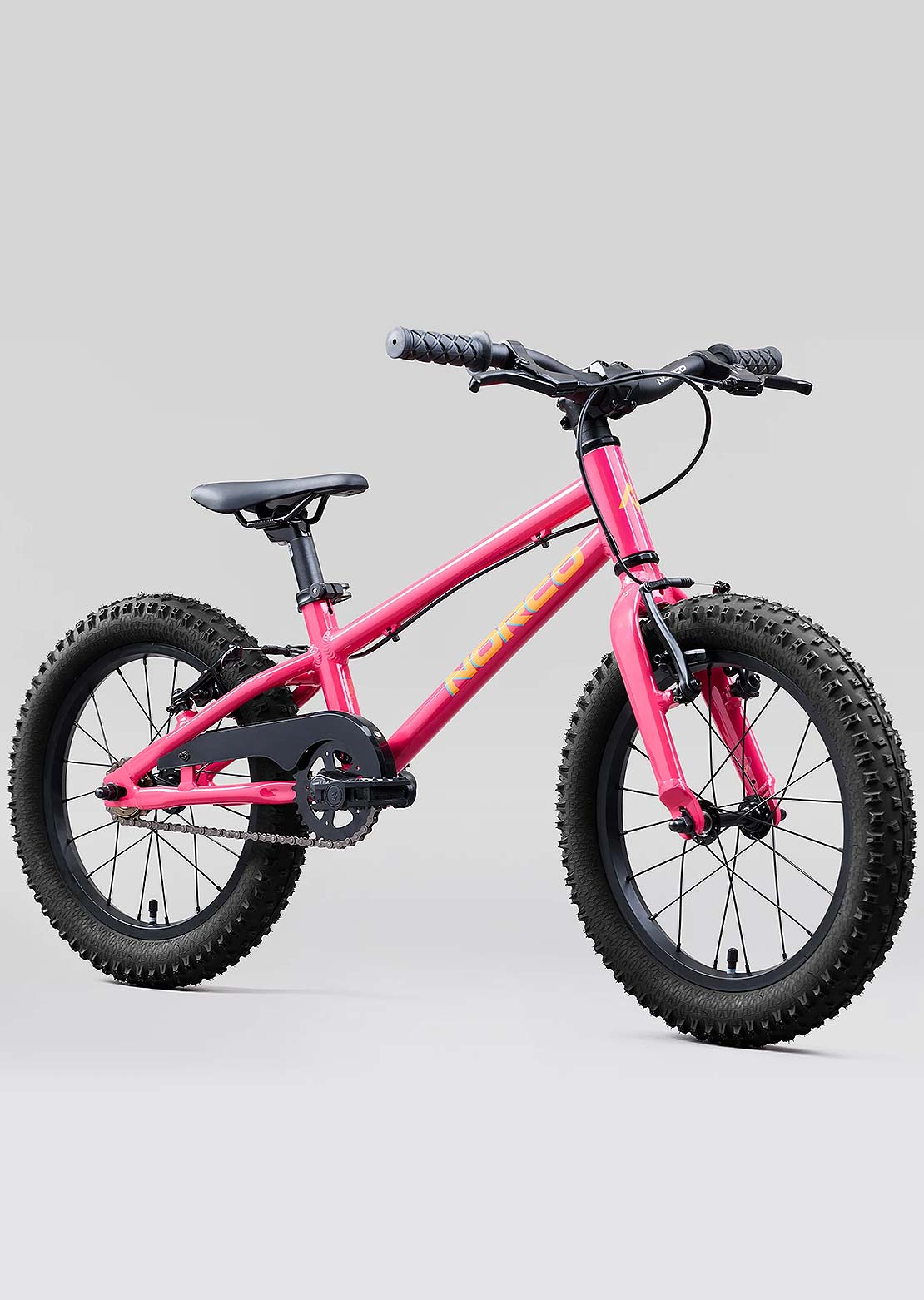

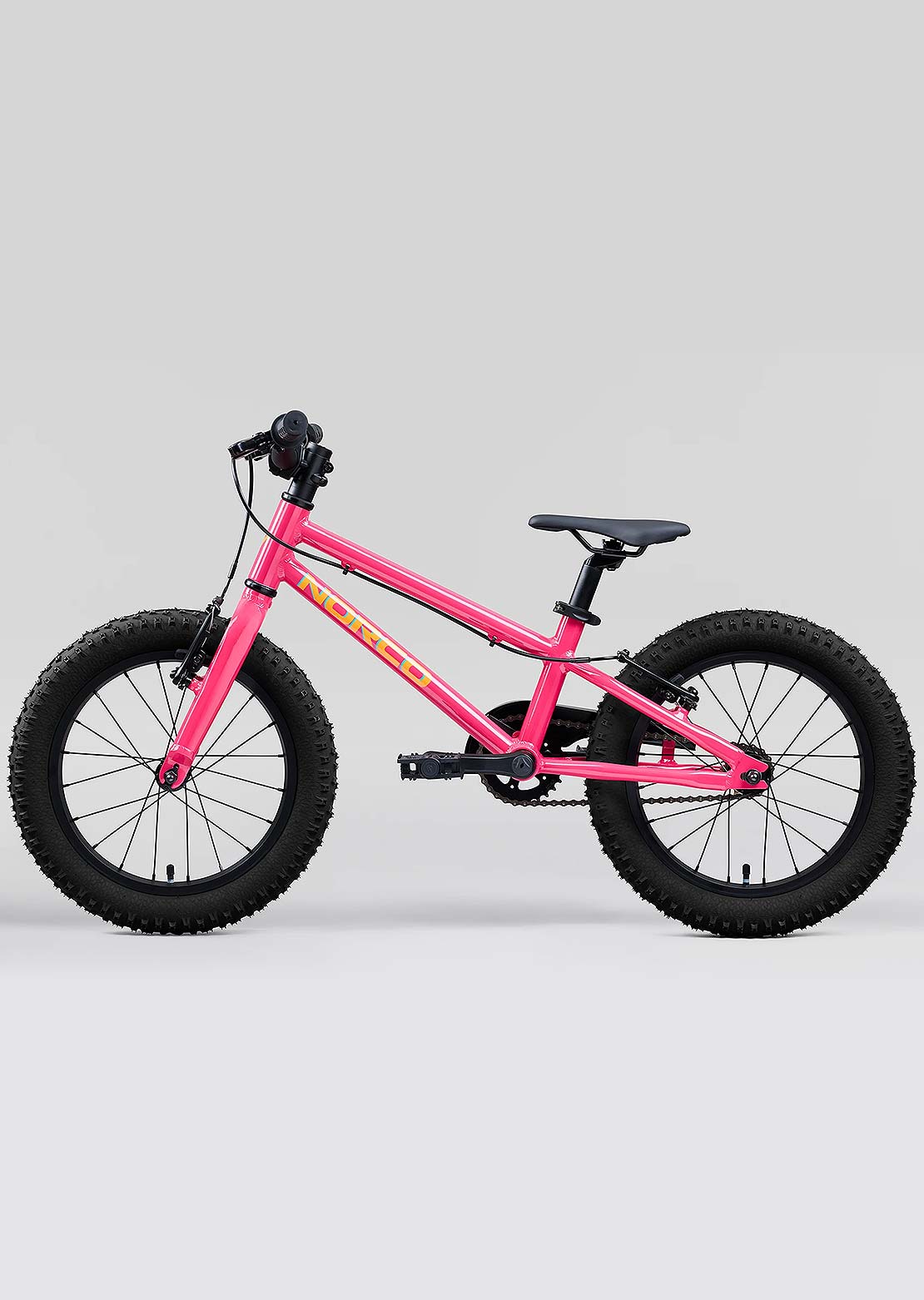

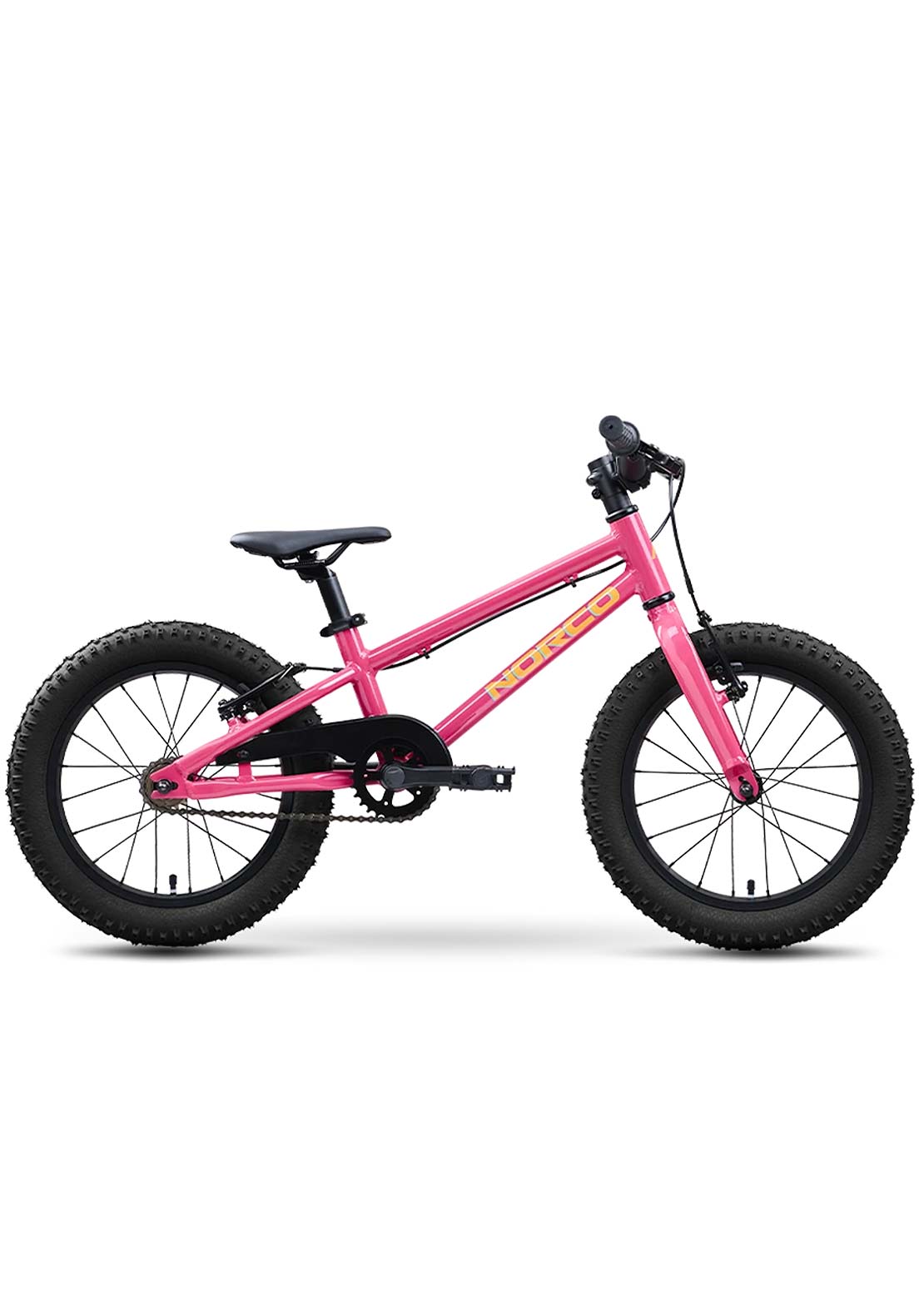

The Storm 16 provides simple upkeep and operation to help young riders find the best line and stop on a dime. The Storm 16 lightweight, durable aluminum frame and fork combine with a simple, lightweight drivetrain, quality linear-pull brakes and optimized fit for riders from 3’5” to 3’10”, building and a love for dirt that’ll last.
FOR THE LOVE OF DIRT
Keeping a kid’s bike tough enough to take all the thrills and spills of becoming a better rider, but light enough to keep them motivated is a challenge that our engineering team took VERY seriously. The result: Quality fit and finish of the best Norco bikes in a package optimized for small riders.
QUALITY FEATURES
Top-tier components and touch points built for young riders. Premium components like stainless steel spokes, quality saddles, krayton rubber grips and Jr. BMX pedals have been selected for durability, safety and long-lasting performance.
EASY STOPS

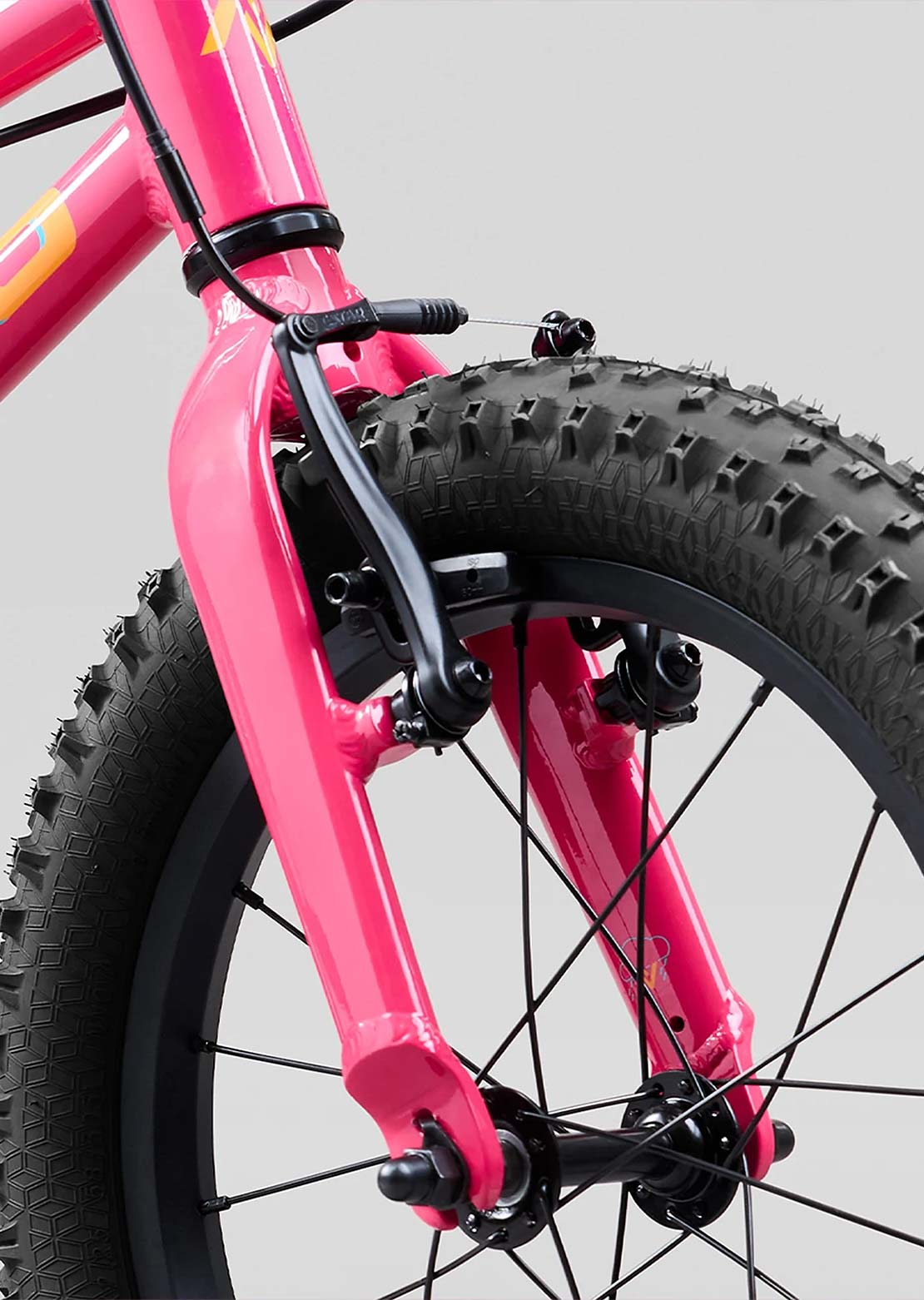

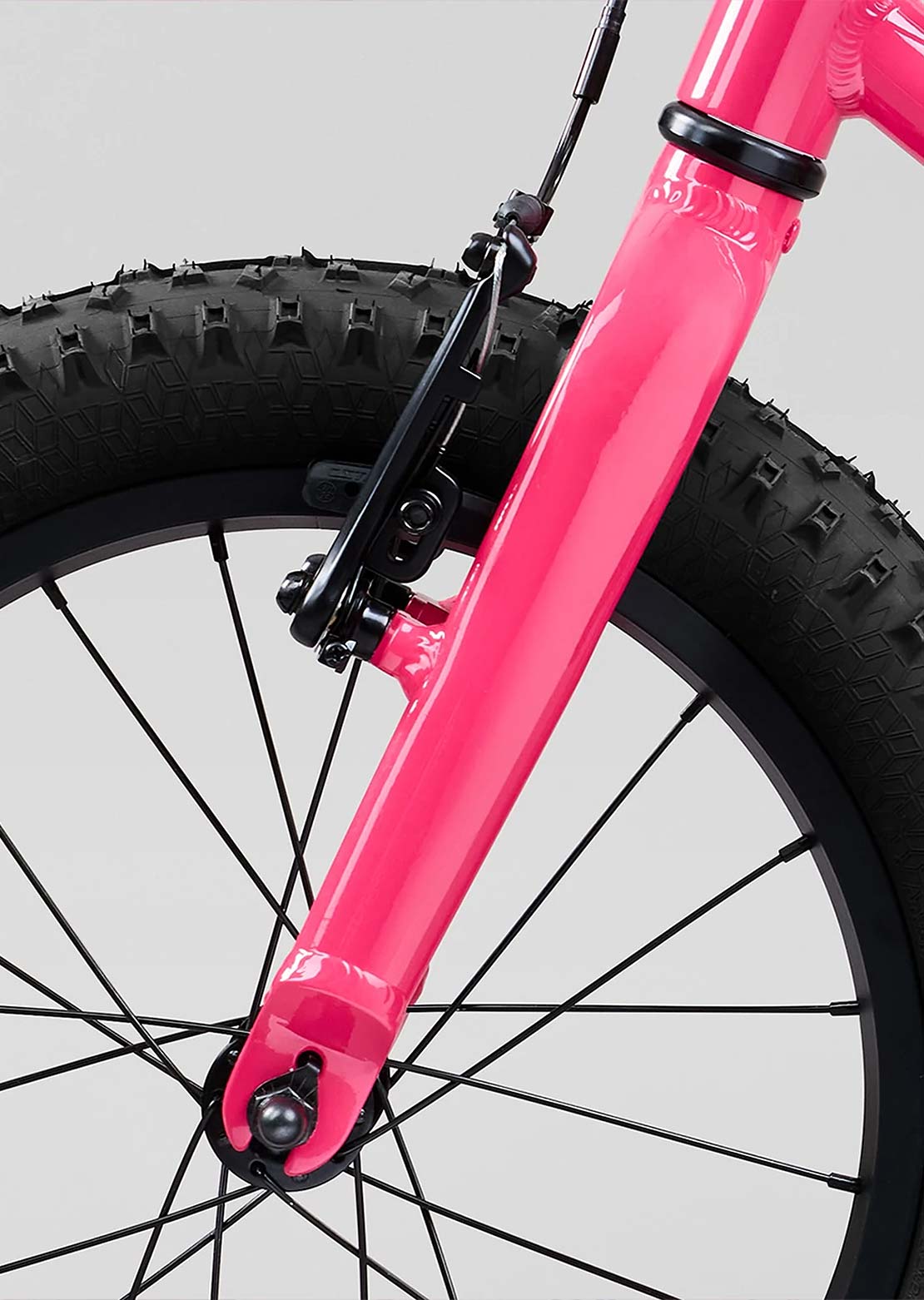

Putting a stop to sketchy brakes. Every Storm features quality brakes with short reach levers that are easy to pull with kid-sized hands. That way, when they need to stop or slow down, it doesn’t take every ounce of energy they’ve got.
JUST ENOUGH TRAVEL
Just enough fork travel to ease skill building and save weight. It's important to rightsize suspension travel for kids bikes to balance a comfortable, progressive ride feel, while maintaining light weight for maneuverability. Storm 26, 24, and 20 each have suspension travel chosen for the individual bike size, and kid weight.
Frameset
|
FRAME |
Aluminum Frame |
|
FORK |
Rigid Alloy |
Drivetrain
|
REAR SHIFTER |
N/A |
|
REAR DERAILLEUR |
N/A |
|
CRANKSET |
Alloy 3pc, 28T, 114mm |
|
BOTTOM BRACKET |
Sealed Bearing , ST 68mm |
|
CASSETTE |
16T Freewheel |
|
CHAIN |
KMC |
Brakes
|
FRONT BRAKE |
C-Star Linear Pull |
|
FRONT BRAKE ROTOR |
N/A |
|
REAR BRAKE |
C-Star Linear Pull |
|
REAR BRAKE ROTOR |
N/A |
|
BRAKE LEVERS |
C-Star Jr. Levers |
Components
|
HANDLEBAR |
Alloy Jr. Riser, 500mm, 25mm Rise |
|
STEM |
Alloy 35mm Length, 31.8mm Clamp |
|
SEATPOST |
Alloy 27.2mm |
|
HEADSET |
External Cup Ball Bearing |
|
SADDLE |
Norco Jr. MTB |
|
GRIPS |
Norco Jr. Soft |
|
PEDALS |
Jr. MTB Flat, 9/16 |
|
SEATPOST CLAMP |
Alloy QR |
Wheels
|
FRONT HUB |
Alloy Nutted |
|
REAR HUB |
Alloy Nutted, Freewheel |
|
RIMS |
Alloy 16" |
|
FRONT TIRE |
16 x 2.25, Wire |
|
REAR TIRE |
16 x 2.25, Wire |
Geometry
|
Wheel Size |
16" |
|
|
Reach |
295 |
|
|
Stack |
330 |
|
|
HTA |
Head Tube Angle |
67 |
|
ST |
Seat Tube Length |
210 |
|
STA |
Effective Seat Tube Angle |
71 |
|
RC |
Rear Centre Length at Sag |
292 |
|
BB |
Bottom Bracket Rise/Drop |
13 |
|
HTT |
Horizontal Top Tube |
408 |
|
WB |
Wheelbase |
743.5 |
|
HT |
Head Tube Length |
110 |
|
Crank Length |
114 |
|
|
Max 26" Tire Size (* w/ Fender) |
2.25" |
