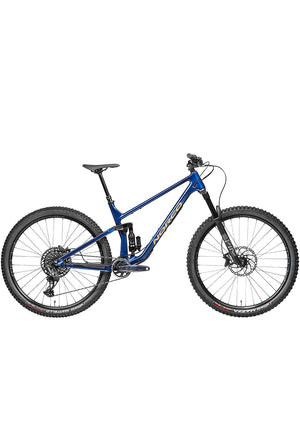

The Optic 2 SRAM is an aggressive short-travel sled that rips on descents and can get back to the top without a gondola. The Optic C2 SRAM sharpens your view on high speed trails.
The precision suspension kinematics and custom DH spec shock creates 125mm of rear travel, matched with a gravity-eating 140mm fork for the control you need to keep your mind on the trail ahead.
MOUNTAIN
Find Focus. There’s a few good reasons why the Optic won the Pinkbike 2019 Mountain Bike of the Year – but the only one that matters is that it’s faster and more fun than any 125mm Trail bike should be.
SPEED BY DESIGN
Fast never felt this fun. Steering geometry is perfect for charging descents without sacrificing precision and maneuverability on every part of your favorite high-speed rides.
CUSTOM SUSPENSION
Designed to work so you can play. The Optic’s evolved suspension design is designed around custom tuned RockShox and Fox shocks that makes the most of every one of the 125mm of travel.
EQUIPPED TO DESCEND
Components selected with speed on the brain. Four-piston 180mm disc brakes, short seat tubes, long-stroke dropper posts and aggressive knobby tires tame the wildest descents and attack every turn.
RIDE ALIGNED™
Matching each Optic to the human who rides it. The Ride Aligned™ Design System optimizes performance using individual rider metrics, precise suspension kinematics, and proprietary app technology.
|
FRAME |
Carbon Front Triangle, Aluminum Rear, 125mm Travel, Ride Aligned™ |
|
FORK |
RockShox Pike Select + RC, DebonAir, 140mm Travel, 42mm Offset |
|
REAR SHOCK |
RockShox Super Deluxe Ultimate DH Custom RC, 190x45mm |
Drivetrain
|
REAR SHIFTER |
SRAM GX Eagle |
|
REAR DERAILLEUR |
SRAM GX Eagle |
|
CRANKSET |
SRAM GX Eagle DUB Lunar, 32T, 170mm |
|
BOTTOM BRACKET |
SRAM DUB PF92 |
|
CHAIN TENSIONER |
e*thirteen |
|
CASSETTE |
SRAM XG1275 Eagle, 10-52T |
|
CHAIN |
SRAM GX Eagle |
Brakes
|
FRONT BRAKE |
SRAM DB8, 4 Piston, Organic Pads |
|
FRONT BRAKE ROTOR |
SRAM CenterLine 203mm |
|
REAR BRAKE |
SRAM DB8, 4 Piston, Organic Pads |
|
REAR BRAKE ROTOR |
SRAM CenterLine 180mm |
|
BRAKE LEVERS |
SRAM DB8 |
Components
|
HANDLEBAR |
e*thirteen, 800mm, 20mm Rise |
|
STEM |
6061 Alloy, 45mm Length, 35mm Clamp |
|
SEATPOST |
X-Fusion Manic Dropper, 31.6mm, 125mm (S), 150mm (M,L), 170mm (XL) |
|
HEADSET |
FSA Internal Sealed Bearing |
|
SADDLE |
Fizik Alpaca Terra, Wingflex |
|
GRIPS |
WTB Waffle Lock-On |
Wheels
|
FRONT HUB |
DT Swiss 350 15x110mm Boost, 6 Bolt |
|
REAR HUB |
DT Swiss 350 12x148mm Boost, XD, 6 Bolt |
|
RIMS |
Stan's Flow S1 29", 32H |
|
FRONT TIRE |
Vittoria Mazza 2.4" Trail G2.0 |
|
REAR TIRE |
Vittoria Martello 2.35" Trail G2.0 |
|
SPOKES/NIPPLES |
Sapim Sprint DB Stainless |
|
VALVES |
Stan's Universal 35mm Presta Valve Stem |
|
SEALANT |
Stan's - 200ml |
Geometry
|
XL |
L |
M |
S |
|
29" |
29" |
29" |
29" |
|
Travel (mm front/mm rear) |
|||
|
140/125 |
|||
|
Reach |
|||
|
510 |
480 |
450 |
420 |
|
Stack |
|||
|
638 |
629 |
620 |
611 |
|
HTA Head Tube Angle |
|||
|
65 |
|||
|
OS Fork Offset |
|||
|
42 |
|||
|
ST Seat Tube Length |
|||
|
485 |
445 |
415 |
395 |
|
STA Effective Seat Tube Angle |
|||
|
76 |
|||
|
RC Rear Centre Length |
|||
|
440 |
435 |
430 |
425 |
|
BB Bottom Bracket Drop |
|||
|
38 |
|||
|
BBH Bottom Bracket Height |
|||
|
337 |
|||
|
HTT Horizontal Top Tube |
|||
|
669 |
637 |
605 |
572 |
|
WB Wheelbase |
|||
|
1275 |
1235 |
1196 |
1157 |
|
SOH Standover |
|||
|
719 |
698 |
680 |
664 |
|
HT Head Tube Length |
|||
|
130 |
120 |
110 |
100 |
|
Trail |
|||
|
129 |
|||
|
Recommended Seatpost Drop |
|||
|
170 |
170 |
150 |
125 |
|
Maximum Post Insertion |
|||
|
250 |
240 |
220 |
205 |
|
Stem Length |
|||
|
45 |
|||
|
Crank Length |
|||
|
170 |
|||
|
Tire Size |
|||
|
2.35" – 2.6" |
|||
|
Water Bottle Compatible |
|||
|
1 x 750 mL |
|||
