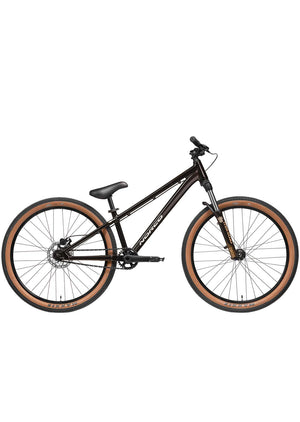

Norco Rampage 1 26" Dirt Jump Bike

    Sale
    Color: Black/Chrome
    Black/Chrome
    Size: 26" - MEDIUM

    Shipping is not available on this product. Local pick-up only.

    RETURNS

    MADE EASY

    PROUDLY

    CANADIAN

    BEST PRICE

    GUARANTEE

    Description
    Features
    Specs
    Description

    The Rampage 1 is the ultimate evolution in Dirt Jumpers with a light frame that gets up to speed fast with the perfect mix of agility and stability. It’s purpose-built for big air and features components hand-selected to rip.

    Features

    MOUNTAIN
    Commit. The Rampage focuses Norco’s two decades of riding and building dirt jumpers into a platform that brings modern design, engineering and jump-specific spec together to push style and adrenaline to the next level.

    STYLE & SUBSTANCE
    How your bike looks is just as important as how it rides. The Rampage features the best in Street/Dirt frame design with massive standover clearance and perfected geometry for riders who need a bike that lives up to their skills and looks great.

    LIGHT & TOUGH
    Lightweight aluminum frame built to last. Team riders and local rippers have been asking for a light, stiff frame that they can punish every day, so we engineered the aluminum Rampage to shred.

    GENUINE PARTS
    Hand-picked components for function and reliability. Tough 2 & 3-piece cranks, BMX-style, compact single speed drivetrains and disc brakes with lots of line for bar spins and tailwhips – We cover the nitty gritty so you can just ride.

    DETAILS MATTER
    Evolved frame features push the potential. A tapered head tube adds strength and fork compatibility, a custom designed yoke allows shorter chainstays for agility and slotted dropouts feature low key chain tension adjusters.

    SIZES & MODELS
    Find your perfect ride. The Rampage is available in three frame sizes in three different models, so no matter where you’re coming from, or what kind of budget you have, the Rampage will open the floodgates of flow.

    Specs
    Frameset

    FRAME

    X6 Aluminum DJ 26"

    FORK

    Manitou Circus Comp, 100mm Travel



    Drivetrain

    CRANKSET

    Forged Aluminum, 2 Piece, 30T, 170mm

    CASSETTE

    14T Single Speed

    CHAIN

    KMC Z1, Black



    Brakes

    FRONT BRAKE

    Tektro MD-280 Mechanical

    FRONT BRAKE ROTOR

    Tektro 160mm

    REAR BRAKE

    Tektro HD-M286 Hydraulic

    REAR BRAKE ROTOR

    Tektro 160mm

    BRAKE LEVERS

    Tektro Hydro Rear, Cable Front



    Components

    HANDLEBAR

    X6 Alloy, 785mm, 30mm Rise

    STEM

    Alloy, 45mm Length, 31.8mm Clamp

    SEATPOST

    Pivotal Stealth II, 6061 Aluminum, 27.2 x 200mm

    HEADSET

    FSA Sealed Bearing, Tapered

    SADDLE

    Norco/Pivotal thick padded, grip cover

    GRIPS

    Norco, Small Flange

    PEDALS

    Resin flat with metal pins



    Wheels

    FRONT HUB

    Novatec Sealed Bearing 15x100mm, 6 Bolt

    REAR HUB

    Novatec Sealed Bearing Single Speed Cassette, 14T, 135mm, 6 Bolt

    RIMS

    Alex MUS 30, 26", 32H

    FRONT TIRE

    Maxxis DHT folding 2.3

    REAR TIRE

    Maxxis DHT folding 2.3

    SPOKES/NIPPLES

    Stainless, Black


    Geometry

    S

    M

    L

    26"

    26"

    26"

    Travel (mm front)

    100

    Reach

    380

    405

    430

    Stack

    559

    564

    569

    HTA Head Tube Angle

    69

    OS Fork Offset

    40

    ST Seat Tube Length

    300

    STA Effective Seat Tube Angle

    73

    RC Rear Centre Length

    389

    BB Bottom Bracket Rise/Drop

    -20

    BBH Bottom Bracket Height

    322

    HTT Horizontal Top Tube

    551

    577

    604

    WB Wheelbase

    1018

    1045

    1072

    SOH Standover

    581

    576

    577

    HT Head Tube Length

    110

    115

    120

    Trail

    88

    Stem Length

    35

    Crank Length

    170

    Tire Size

    2.0-2.3"
