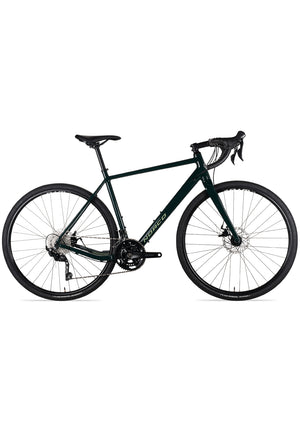

Norco Search XR A2 Gravel Bike - 55.5 cm

    Size: 55.5 cm
    Color: Green/Green
    Green/Green

    Shipping is not available on this product. Local pick-up only.

    RETURNS

    MADE EASY

    PROUDLY

    CANADIAN

    BEST PRICE

    GUARANTEE

    Description
    Features
    Specs
    Description

    The X6 butted aluminum frame and carbon fork offer lightweight, agile stability, efficient pedaling, and comfortable vertical compliance.

    With generous tire clearance, rack, fender and bottle mounts, and a comfortably quick rider compartment, the Search XR A2 allows you to explore singletrack trails, tackle a gravel loop, or head out for an extended bike-packing excursion.

    With thru-axle hubs, WTB ST i23 TCS 2.0 tubeless-ready rims, a wide range Shimano GRX/Tiagra 20-speed drivetrain and Tektro dual piston mechanical disc brakes, the Search XR A2 is ready to take on whatever adventure you’re up for.

    The internally routed cables keep critical mechanical systems away from the elements on those especially adventurous adventures.

    Features

    SEARCH XR ALUMINUM FRAME

    Smooth welded, lightweight aluminum frame creates a robust, elegant looking adventure rig. Bent chain stays, thinned seat tube and top tube, and optimized fork designs maximize comfort and reduce rider fatigue.

    DESIGNED FOR ADVENTURE

    Designed to excel on rougher surfaces, Search XR geometry is a little slacker and longer than conventional road bikes for a confident ride.

    VERSATILE PERFORMANCE & POWER TRANSFER

    Front and rear thru-axles, oversized downtube, BB shell and chainstays deliver lateral stiffness for maximum power transfer and control over rough terrain.

    INTERNAL ROUTING

    Internal cable routing with adaptable port covers keeps cables tight and secure and prevents water from entering the frame. The Search XR is also compatible with a wide range of configurations such as 1x or 2x drivetrains.

    MULTIPLE CONFIGURATIONS

    The Search XR aluminum models are spec’d with flared drop bars, with an available a flat bar model, and the Search XR Suspension features a 50mm gravel-specific SR Suntour suspension fork.

    TIRE CLEARANCE

    Generous tire clearance lets you customize your Search XR to the type of ride that best suits you, or the ride your planning on any given day. Larger tires provide more comfort and control on paved surfaces, and greater traction on off-road or gravel excursions. See Geo Chart for tire clearance details.

    ACCESSORY MOUNTS

    Multiple bottle cage mounts on the frame & fork, custom removable fender bridge mount, and stealth rack & fender mounting points expand Search XR’s versatility.

    Specs
    FRAMESET
    FRAME

    Butted X6 Aluminum, Smooth Welds

    FORK

    Search XR Carbon

    HEADSET

    Integrated Sealed Bearing

    DRIVETRAIN
    SHIFTER FRONT

    Shimano Tiagra ST-4700

    SHIFTER REAR

    Shimano Tiagra ST-4700

    FRONT DERAILLEUR

    Shimano GRX FD-RX400

    REAR DERAILLEUR

    Shimano GRX RD-RX400 Shadow RD+

    CASSETTE

    Shimano CS-HG50, 11-36T, 10 Speed

    CHAIN

    KMC X10

    CRANKSET

    Shimano GRX FC-RX600, 46/30T, 170mm (50.5), 172.5mm (53, 55.5), 175mm (58, 60.5)

    BOTTOM BRACKET

    Shimano BB-RS500 PF86

    COMPONENTS
    GRIPS

    Norco Griptacular Shockproof Tape

    HANDLEBAR

    Norco Super Flare Aluminum, 16deg Flare, 42cm (45.5, 48, 50.5), 44cm (53, 55.5), 46cm (58, 60.5)

    STEM

    Norco SL Aluminum

    SEAT POST

    Norco Aluminum, 27.2mm

    SADDLE

    Selle Royal Vivo, Mag Rails

    FRONT BRAKE

    Tektro MD-C550 Dual-Piston Mechanical Disc

    FRONT BRAKE ROTOR

    Tektro 160mm

    REAR BRAKE

    Tektro MD-C550 Dual-Piston Mechanical Disc

    REAR BRAKE ROTOR

    Tektro 160mm

    BRAKE LEVERS

    Shimano Tiagra ST-4700

    WHEELS
    FRONT HUB

    Alloy 12x100mm, 6 Bolt

    REAR HUB

    Alloy 12x142mm, HG, 6 Bolt

    RIMS

    WTB ST i23 TCS 2.0 32H, 650b (45.5, 48), 700c (50.5-60.5)

    SPOKES/NIPPLES

    Sapim Leader Stainless Black

    FRONT TIRE

    Vittoria Terreno Dry, 38mm

    REAR TIRE

    Vittoria Terreno Dry, 38mm

    RIM TAPE

    Nylon

    Due to Covid-related scheduling and component availability challenges, Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.

    GEOMETRY

    Frame Size: 700 C

    50.5

    53

    55.5

    58

    60.5

    Reach:

    396

    398

    400

    409

    417

    Stack:

    547

    563

    580

    600

    620

    Head Tube Angle:

    71.00

    71.50

    71.75

    72.00

    72.25

    Fork Offset:

    49

    Seat Tube Length:

    460

    490

    520

    550

    580

    Effective Seat Tube Angle:

    74.25

    73.75

    73.25

    73.00

    72.75

    Rear Centre Length:

    422.5

    422.5

    425.0

    425.0

    425.0

    Bottom Bracket Drop:

    75.0

    72.5

    72.5

    70.0

    70.0

    Bottom Bracket Height:

    279

    282

    282

    284

    284

    Horizontal Top Tube:

    550.0

    562.5

    575.0

    592.5

    610.0

    Wheel Base:

    1026

    1030

    1038

    1052

    1064

    Stand Over:

    687

    717

    744

    774

    802

    Head Tube Length:

    120.0

    137.5

    155.0

    177.5

    197.5

    Trail:

    70

    67

    65

    63

    62

    Stem Length:

    70

    80

    90

    100

    100

    Crank Length:

    170

    172.5

    172.5

    175

    175

    Water Bottle Compatible:

    3 x 620 mL

    Max 700c Tire Size:

    42c (38c with fender)
