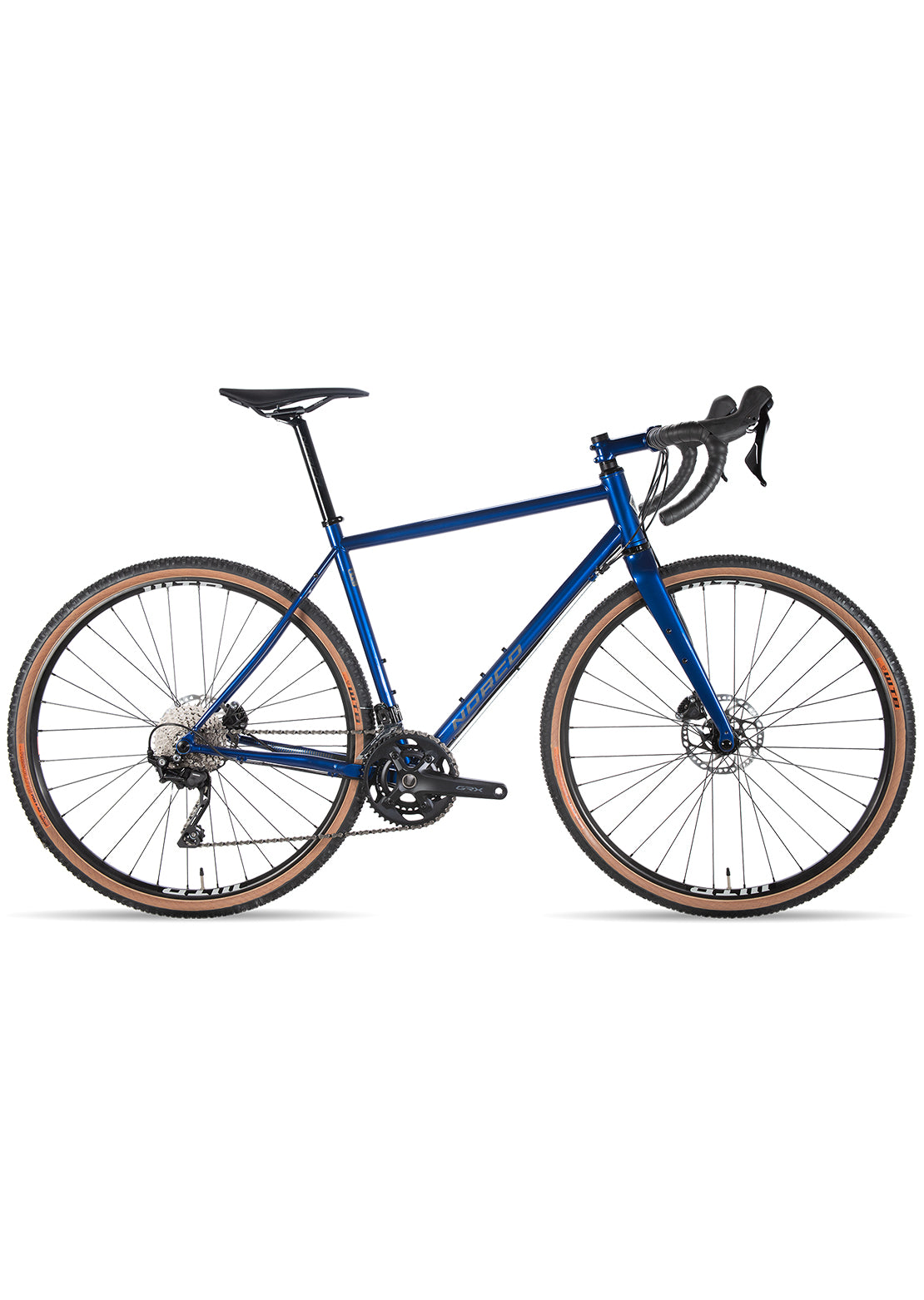

Norco Search XR S2 Gravel Bike - 58 cm

    Size: 58 cm
    Color: Steeler's Blue
    Steeler's Blue

    Shipping is not available on this product. Local pick-up only.

    RETURNS

    MADE EASY

    PROUDLY

    CANADIAN

    BEST PRICE

    GUARANTEE

    Description
    Features
    Specs
    Description

    The light, Reynolds air-hardened, back-tempered 725 chromoly frame and mid-modulus carbon fork offer agile stability, efficient pedaling, and comfortable vertical compliance and classic style.

    With generous tire clearance, rack, fender and bottle mounts, and a comfortably quick rider compartment, the Search XR S2 allows you to explore singletrack trails, tackle a gravel loop, or head out for an extended bike-packing excursion.

    With Shimano thru-axle hubs, WTB ST Light i23 TCS 2.0 tubeless-ready rims and ultra-wide range Shimano GRX 20 speed gravel group, the Search XR S2 is ready to take on whatever adventure you’re up for. Its external cable routing makes for quick, easy service when the opportunity arises.

    Features

    STEEL FRAME, CARBON FORK

    Heat-treated, back-tempered Reynolds 725 steel features thinner tubes to reduce weight and retain strength. Curved seat stay tubing enhances the material’s comfort, while the carbon fork reduces road vibrations up front for a lively, comfortable ride.

    DESIGNED FOR ADVENTURE

    Designed to excel on rougher surfaces, Search XR geometry is a little slacker and longer than conventional road bikes, creating a stable ride.

    STYLISH, RESILIENT STEEL FRAME

    Front and rear 12mm thru axles plus an oversized head tube junction, downtube, BB shell and chainstays deliver lateral stiffness for maximum power transfer and added control through rough terrain.

    EXTERNAL ROUTING

    External cable housing with cable guides along the downtube ensures easy and quick serviceability. The option to run 1x gearing creates an even cleaner look.

    TIRE CLEARANCE

    Generous tire clearance lets you customize your Search XR to the type of ride that best suits you, or the ride you’re planning on any given day. Larger tires provide more comfort and control on paved surfaces, and greater traction on off-road or gravel excursions. See Geo Chart for tire clearance details.

    ACCESSORY MOUNTS

    Multiple bottle cage mounts on the frame and fork, custom low key fender eyelets and stealth rack mounts expand the Search XR’s versatility without sacrificing strength, lightweight or design.

    Specs
    FRAMESET
    FRAME

    Reynolds 725 Chromoly Steel

    FORK

    Mid-Modulus Carbon

    HEADSET

    FSA 44mm Cartridge Bearing

    DRIVETRAIN
    SHIFTER FRONT

    Shimano GRX ST-RX400 2 speed

    SHIFTER REAR

    Shimano GRX ST-RX400 10 speed

    FRONT DERAILLEUR

    Shimano GRX FD-RX400

    REAR DERAILLEUR

    Shimano GRX RD-RX400

    CASSETTE

    Shimano CS-HG50-10 11-36T

    CHAIN

    KMC X10

    CRANKSET

    Shimano GRX FC-RX600 46/30T

    BOTTOM BRACKET

    Shimano BB-RS500 PressFit BB86

    COMPONENTS
    HANDLEBAR

    Norco Super Flare Aluminum, 16deg Flare

    BAR TAPE

    Norco Griptacular Shockproof

    STEM

    Norco SL Aluminum - Custom Painted

    SEAT POST

    Norco SL Aluminum

    SEAT POST CLAMP

    Aluminum

    SADDLE

    Norco SL Race, Cromo Rails

    FRONT BRAKE

    Shimano GRX BR-RX400 Hydraulic Disc

    REAR BRAKE

    Shimano GRX BR-RX400 Hydraulic Disc

    BRAKE LEVERS

    Shimano GRX RX400 Hydraulic

    WHEELS
    FRONT HUB

    Shimano HB-RS470 12x100mm TA

    REAR HUB

    Shimano FH-RS470 12x142mm TA

    RIMS

    WTB ST Light i23 TCS 2.0, Black, Tubeless Ready

    SPOKES/NIPPLES

    Sapim Race Butted, Black, Black Brass Nipples

    FRONT TIRE

    WTB Resolute TCS 700x42c, Tubeless Compatible System, Tanwall

    REAR TIRE

    WTB Resolute TCS 700x42c, Tubeless Compatible System, Tanwall

    REAR HUB SKEWER

    Tooled 12x142mm TA

    FRONT HUB SKEWER

    Tooled 12x100mm TA

    Due to Covid-related scheduling and component availability challenges, Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.

    GEOMETRY

    CHOOSE YOUR WHEEL SIZE: 650B

    Frame Size:

    45.5

    48

    Reach:

    355

    362

    Stack:

    507

    526

    Head Tube Angle:

    70.75

    71.00

    Fork Offset:

    49

    Seat Tube Length:

    410

    435

    Effective Seat Tube Angle:

    74.00

    73.75

    Rear Centre Length:

    420.0

    Bottom Bracket Rise/Drop:

    -57.0

    Bottom Bracket Height:

    273

    Horizontal Top Tube:

    500

    515

    Wheel Base:

    980

    991

    Stand Over:

    635

    659

    Head Tube Length:

    100

    120

    Trail:

    63

    62

    Stem Length:

    80

    90

    Crank Length:

    165.0

    170.0

    Max 650b Tire Size:

    47 (38 w/ fender)

    Max 26" Tire Size:

    2.1" (1.95" w/ fender)


    CHOOSE YOUR WHEEL SIZE: 700C

    Frame Size:

    50.5

    53

    55.5

    58

    60.5

    Reach:

    375

    383

    390

    399

    407

    Stack:

    549

    563

    583

    600

    620

    Head Tube Angle:

    71.00

    71.50

    71.75

    72.00

    72.25

    Fork Offset:

    49

    Seat Tube Length:

    460

    490

    520

    550

    580

    Effective Seat Tube Angle:

    74.25

    73.75

    73.25

    73.00

    72.75

    Rear Centre Length:

    430.0

    430.0

    430.0

    432.5

    432.5

    Bottom Bracket Rise/Drop:

    -75.0

    -72.5

    -72.5

    -70.0

    -70.0

    Bottom Bracket Height:

    277

    280

    280

    282

    282

    Horizontal Top Tube:

    530

    548

    565

    583

    600

    Wheel Base:

    1014

    1023

    1033

    1050

    1062

    Stand Over:

    688

    718

    745

    775

    803

    Head Tube Length:

    110

    125

    145

    165

    185

    Trail:

    69

    66

    64

    63

    61

    Stem Length:

    90

    100

    100

    110

    110

    Crank Length:

    170.0

    172.5

    172.5

    175.0

    175.0

    Max 700c Tire Size:

    42 (40 w/ fender)

    Max 650b Tire Size:

    51 (48 w/ fender)
