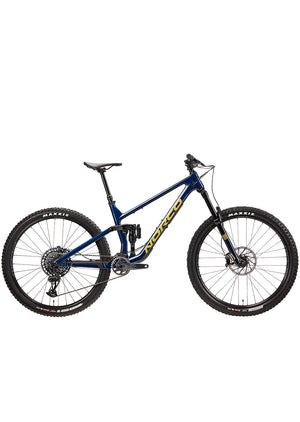

Norco Sight C2 SRAM 29" Mountain Bike

Color: Blue/Orange
Blue/Orange
Size:

Shipping is not available on this product. Local pick-up only.

Please contact us for price at info@prfo.com

RETURNS

MADE EASY

PROUDLY

CANADIAN

BEST PRICE

GUARANTEE

Description
Features
Specs
Description

The Sight C2 boosts your All-Mountain confidence with incredible descending capability, adept, sure-footed climbing, and efficient pedaling. To make the Sight Carbon, we had to re-think how you connect with the trail.

With maximum front and rear wheel grip on climbs and descents, Sight C2 maintains momentum and cadence in technical situations and allows the suspension to move freely without absorbing drivetrain energy.

Features

MOUNTAIN
Science of Send. The Sight’s unparalleled descending capability, adept, sure-footed climbing, and efficient pedaling translates All-Mountain theory into a category smashing reality. Dynamic pedaling under rider input in a confident, stable chassis through rough terrain, the Sight elevates your All-Mountain experience.

PRECISION SUSPENSION
Exact suspension tune perfects every ride. RockShox and Fox suspension components are mated to our precisely-engineered Ride Aligned™ kinematics to produce 150mm of travel in back and 160mm up front.

LONG-TRAVEL DROPPER
Drop the saddle, send the drop. Every Sight features short seat tubes for maximum standover clearance and size-specific, long-travel dropper posts to get seats completely out of the way in the rough stuff.

DETAILS MATTER
Sweating the little stuff makes the ride better. Full sized water bottles fit on the full size range of every 27.5" and 29" model. Supportive side-wall 2.4” and 2.5” tires are equipped, but there’s clearance for up 2.6” because details matter. All of them.

ADDED FRAME FEATURES
Details that make a difference. Custom frame protection and a new shuttle guard protects each Sight from long, rowdy days on the trail and when it’s hanging off the back of your buddy’s pickup. Under-top tube mounts provide easy mounting for some of the most popular aftermarket storage bags or accessories.

SPEED CONTROL
Exactly the speed you need when you need it. Every Sight features 4-piston hydraulic disc brakes and 200/180mm rotors to hit the perfect line on every ride and pull you back when the ruckus gets a little out of hand.

Specs
Frameset

FRAME

Carbon All-Mountain, Aluminum CS, 150mm Travel, 27.5" and 29" Options, Ride Aligned™

FORK

RockShox Lyrik Ultimate, Charger 2 RC2, 160mm, 37mm Offset (27.5), 44mm Offset (29)

REAR SHOCK

RockShox Super Deluxe Ultimate DH, LINM Tune, Meg Neg Air Can, 185x52.5mm Trunnion



Drivetrain

REAR SHIFTER

SRAM GX Eagle

REAR DERAILLEUR

SRAM GX Eagle

CRANKSET

SRAM GX Eagle DUB, 34T (27.5), 32T (27.5 S), 32T (29), 170mm

BOTTOM BRACKET

SRAM DUB PF92

CHAIN TENSIONER

e*thirteen Vario Top Guide

CASSETTE

SRAM Eagle XG 1275, 10-52T

CHAIN

SRAM Eagle



Brakes

FRONT BRAKE

SRAM Code RSC, 4 Piston, Metallic Pads

FRONT BRAKE ROTOR

SRAM CenterLine, 200mm

REAR BRAKE

SRAM Code RSC, 4 Piston, Metallic Pads

REAR BRAKE ROTOR

SRAM CenterLine, 180mm

BRAKE LEVERS

SRAM Code RSC



Components

HANDLEBAR

Deity Ridgeline, 800mm, 25mm Rise

STEM

Alloy, 40mm Length, 35mm Clamp

SEATPOST

TranzX YS105, Adjustable Travel, 34.9mm, 150mm (S), 170mm (M), 200mm (L, XL)

HEADSET

FSA #57 E Sealed Bearing, Tapered

SADDLE

SDG Bel Air V3

GRIPS

DMR DeathGrip Soft, Thin (S, M), Thick (L, XL)

SEATPOST CLAMP

Norco design alloy nutted clamp 38.5mm



Wheels

FRONT HUB

DT Swiss 370, 15x110mm Boost, 6 Bolt

REAR HUB

DT Swiss 370, 12x148mm Boost, XD, 6 Bolt

RIMS

Stan's Flow S2, 32H

FRONT TIRE

Maxxis Assegai 2.5" 3C Maxx Terra/EXO+/TR, Folding

REAR TIRE

Maxxis Minion DHR II 2.4" WT 3C, Maxx Terra/EXO+/TR, Folding

SPOKES/NIPPLES

DT Competition DB Stainless Black

VALVES

Stan's 35mm Tubeless Presta

SEALANT

Stan's - 200ml



Geometry



XL

L

M

S

XL

L

M

S


Wheel Size

29"

29"

29"

29"

27.5"

27.5"

27.5"

27.5"


Travel (mm front/mm rear)

160/150


Reach

515

485

455

425

515

485

455

425


Stack

630

621

612

603

612

603

594

585

HTA

Head Tube Angle

64

63.5

OS

Fork Offset

42

37

ST

Seat Tube Length

465

435

395

370

465

435

395

370

STA

Effective Seat Tube Angle

78

77.7

77.3

77

78

77.7

77.3

77

RC

Rear Centre Length

445

440

435

430

445

440

435

430

BB

Bottom Bracket Drop

25

15

BBH

Bottom Bracket Height

350

342

HTT

Horizontal Top Tube

649

621

593

564

645

617

588

560

WB

Wheelbase

1301

1262

1222

1183

1299

1259

1220

1180

SOH

Standover

726

704

687

682

701

683

677

668

HT

Head Tube Length

120

110

100

90

130

120

110

100


Trail

136

137


Recommended Seatpost Drop

200

170

150

200

170

150


Maximum Post Insertion

270

250

225

270

250

225


Stem Length

40


Crank Length

170


Tire Size

2.35" – 2.6"


Water Bottle Compatible

1x750mL

1x620mL

1x750mL

1x620mL
