** BATTERY NOT INCLUDED**

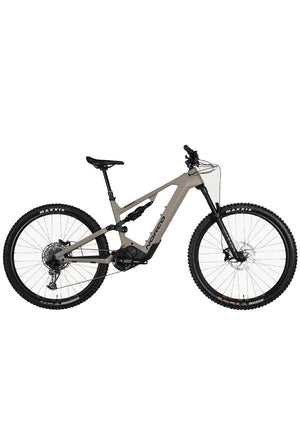

The Sight VLT C2 29 is a carbon electric All-Mountain bike with Norco’s legendary descending capability and quick, confident climbing with an award-winning electric kick. Combining the e-MTB of the Year with the Ride Aligned™ Design System.
Shimano STEPS e-MTB drive system combines with a high capacity in-tube battery, range extender compatibility (sold separately) and e-optimized 29” wheels to make the Sight VLT C2 29 the next level in electric All-Mountain.
*Note: Battery not included. Sold separately.
Roll fast and maintain momentum over rough terrain. The ultimate combination of strength and performance to withstand everything electric mountain biking can dish out wrapped with reinforced Maxxis Double Down tires.
All the power you need. Shimano STEPS drive units and integrated batteries extend the fun with a smooth, stable power delivery to maintain the natural ride feel over every section of trail.
Long-lasting power with Range Extender compatibility. Norco's unique power management system and the highly efficient Shimano motor maximize range. Adding the optional 360Wh Range Extender battery (sold separately), you'll ride further than ever.
Components optimized for the demands of e-MTB. Every Sight VLT 29 features e-spec suspension forks, e-rated freehub mechanisms, robust DT Swiss spokes and single-click shifters on SRAM-equipped models help maximize strength and durability under power.
Low standover, long-travel droppers and big tire clearance. Steep seat tube design and low standover allow longer-travel, size-specific 34.9mm dropper posts to get your seat right out of the way on steep descents without sacrificing stiffness or strength.
Align with your ride experience like never before. The Sight VLT 29 uses Norco's Ride Aligned™ Design System which matches each individual bike to the human who rides it, creating a customized platform that is both stable and balanced, allowing the rider to push harder.
|
FRAME |
Carbon Front Triangle and Seatstay, Aluminum Chainstay, 150mm Travel, Ride Aligned™ |
|
FORK |
RockShox Lyrik Select, 160mm, E-Rated, 44mm Offset, 1.8" Tapered, E-Rated |
|
REAR SHOCK |
RockShox Super Deluxe Select + RT DebonAir 2, MegNeg Air Can, Custom Tune, 210x55mm |
|
HEADSET |
FSA No.55R Sealed Bearing |
Drivetrain
|
REAR SHIFTER |
SRAM SX Eagle Single Click |
|
REAR DERAILLEUR |
SRAM GX Eagle |
|
CASSETTE |
SRAM Eagle PG 1210, 11-50T |
|
CHAIN |
SRAM SX Eagle |
|
CRANKSET |
Shimano FC-EM600, 34T, 165mm |
Components
|
GRIPS |
DMR DeathGrip A20 Soft, Thin (S, M), Thick (L, XL) |
|
HANDLEBAR |
Butted 6061 Alloy, 800mm, 25mm Rise |
|
STEM |
CNC Alloy 40mm Length, 35mm Clamp |
|
SEATPOST |
TranzX YS105 Dropper, 34.9mm, 125mm (S), 150mm (M), 170mm (L), 200mm (XL) |
|
DROPPER LEVER |
Norco Dropper Lever |
|
SADDLE |
Ergon SM-10 E-Mountain Sport |
|
FRONT BRAKE |
Shimano BR MT520, 4 Piston, Metallic Pads |
|
FRONT BRAKE ROTOR |
Shimano SLX SM-RT 66, 203mm |
|
REAR BRAKE |
Shimano BR MT520, 4 Piston, Metallic Pads |
|
REAR BRAKE ROTOR |
Shimano RT-EM600 203mm, Integrated Sensor Magnet |
|
BRAKE LEVERS |
Shimano BR MT520 |
Wheels
|
FRONT HUB |
DT Swiss H370, 15x110mm Boost 6 bolt, E-MTB |
|
REAR HUB |
DT Swiss H370 12x148mm Boost, HG, 6 bolt, E-MTB |
|
RIMS |
e*thirteen LG1 DH, 32H, 29" |
|
SPOKES/NIPPLES |
DT Swiss Stainless Butted Front, Alpine Rear |
|
FRONT TIRE |
Maxxis Assegai 2.5" 3C MaxxGrip/DD/TR/WT |
|
REAR TIRE |
Maxxis Disector 2.4" WT 3C MaxxTerra/DD/TR |
|
VALVES |
Tubeless Presta |
|
SEALANT |
Stan's - 200ml |
Electric Components
|
MOTOR |
Shimano STEPS EP8 |
|
BATTERY |
Sold Separately. Removable. 900Wh, 720Wh and 540Wh Options. |
|
S |
M |
L |
XL |
||
|
Wheel Size |
29" |
29" |
29" |
29" |
|
|
Travel (mm front/mm rear) |
160/150 |
||||
|
Reach |
425 |
455 |
485 |
515 |
|
|
Stack |
616 |
625 |
634 |
643 |
|
|
HTA |
Head Tube Angle |
64.0 |
|||
|
OS |
Fork Offset |
44 |
|||
|
ST |
Seat Tube Length |
395 |
415 |
440 |
455 |
|
STA |
Effective Seat Tube Angle |
77.0 |
77.3 |
77.7 |
78.0 |
|
RC |
Rear Centre Length |
462 |
|||
|
BB |
Bottom Bracket Drop |
25 |
|||
|
BBH |
Bottom Bracket Height |
350 |
|||
|
HTT |
Horizontal Top Tube |
567 |
596 |
624 |
652 |
|
WB |
Wheelbase |
1224 |
1258 |
1292 |
1327 |
|
SOH |
Standover |
700 |
703 |
720 |
731 |
|
HT |
Head Tube Length |
100 |
110 |
120 |
130 |
|
Trail |
134 |
||||
|
Recommended Seatpost Drop |
125 |
150 |
170 |
200 |
|
|
Maximum Post Insertion |
225 |
250 |
275 |
300 |
|
|
Stem Length |
40 |
||||
|
Crank Length |
165 |
||||
|
Tire Size |
2.35" – 2.6" |
||||
|
Water Bottle Compatible |
1 x 620 mL |
1 x 750 mL |
2 x 620 mL or 1 x 750 mL |
1 x 750 mL and 1 x 620 mL |
|
