The Norco Fluid FS A2 is built to tackle whatever trail leads to becoming the rider you want to be. Named Pinkbike’s Value Bike of the Year, Vital MTB’s Bike of the Year, and most recently, Bicycling Magazine’s Best Value Trail Bike.
The Fluid FS A2's 130mm travel is precision engineered, pairing custom tuned suspension components with 140mm fork travel and boutique level fit & finish for maximum Trail performance & potential.
THREAD THE NEEDLE
Intuitive precision handling to pick the perfect line. Engineered using the same Norco technology and process as our top-tier Trail bikes to give you the ride of your life no matter what path you follow. That’s why it won Pinkbike’s Value Bike of the Year, Vital MTB’s Bike of the Year, and Bicycling Magazine’s Best Value Trail Bike.
POTENTIAL FULFILLED
Top-tier design and features over-deliver as skills evolve. 6061 aluminum frame gives experienced Trail riders what they need to ride their best and helps evolving riders develop new skills and preferences without limits.
Frameset
|
FRAME |
Fluid FS 6061 Alloy Frame 130mm |
|

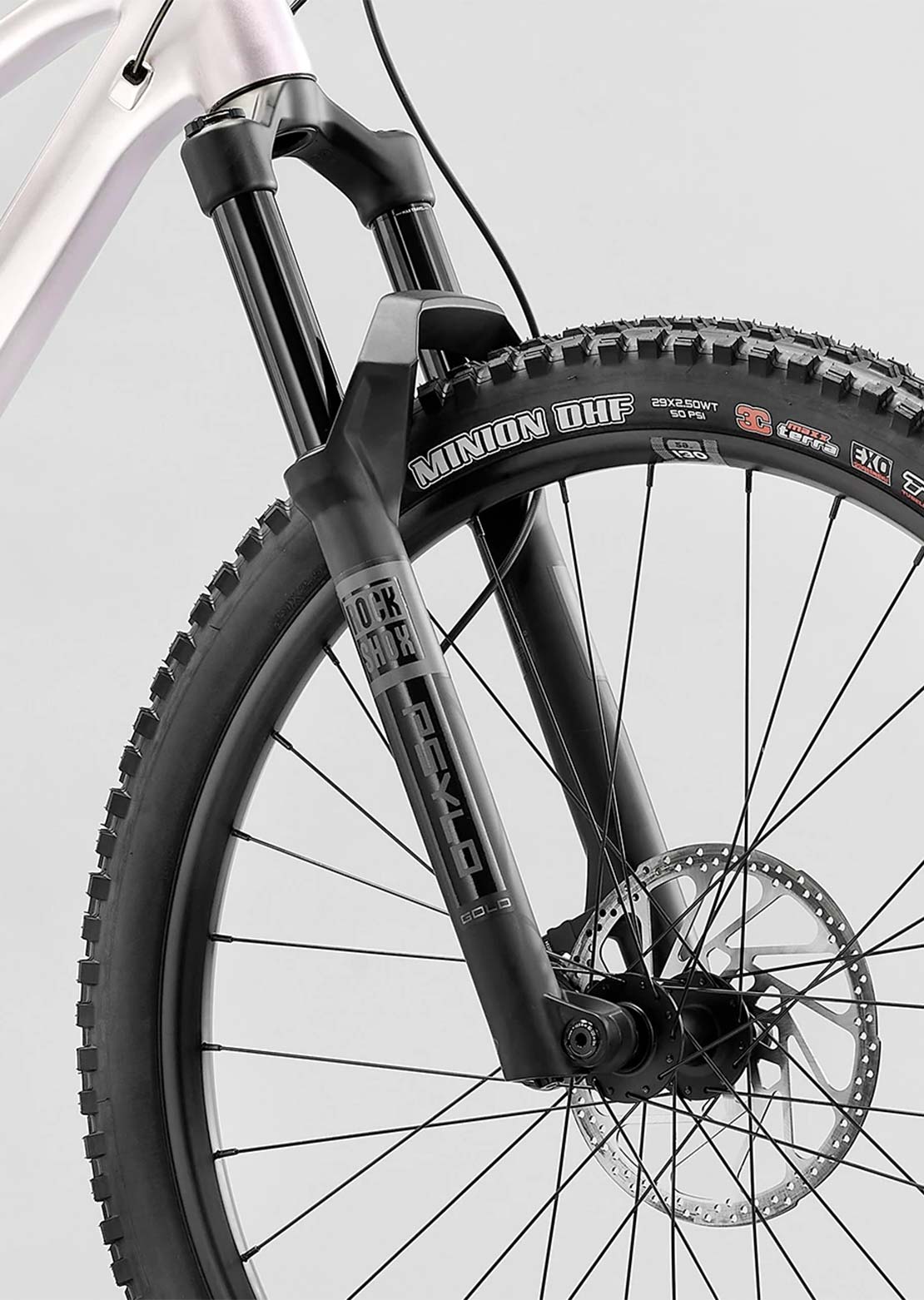

FORK |
Rock Shox Psylo Gold 140mm, 29" |
|
REAR SHOCK |
Fox Float X Performance Elite, 2 Pos Lever/LSC/LSR/LV EVOL |

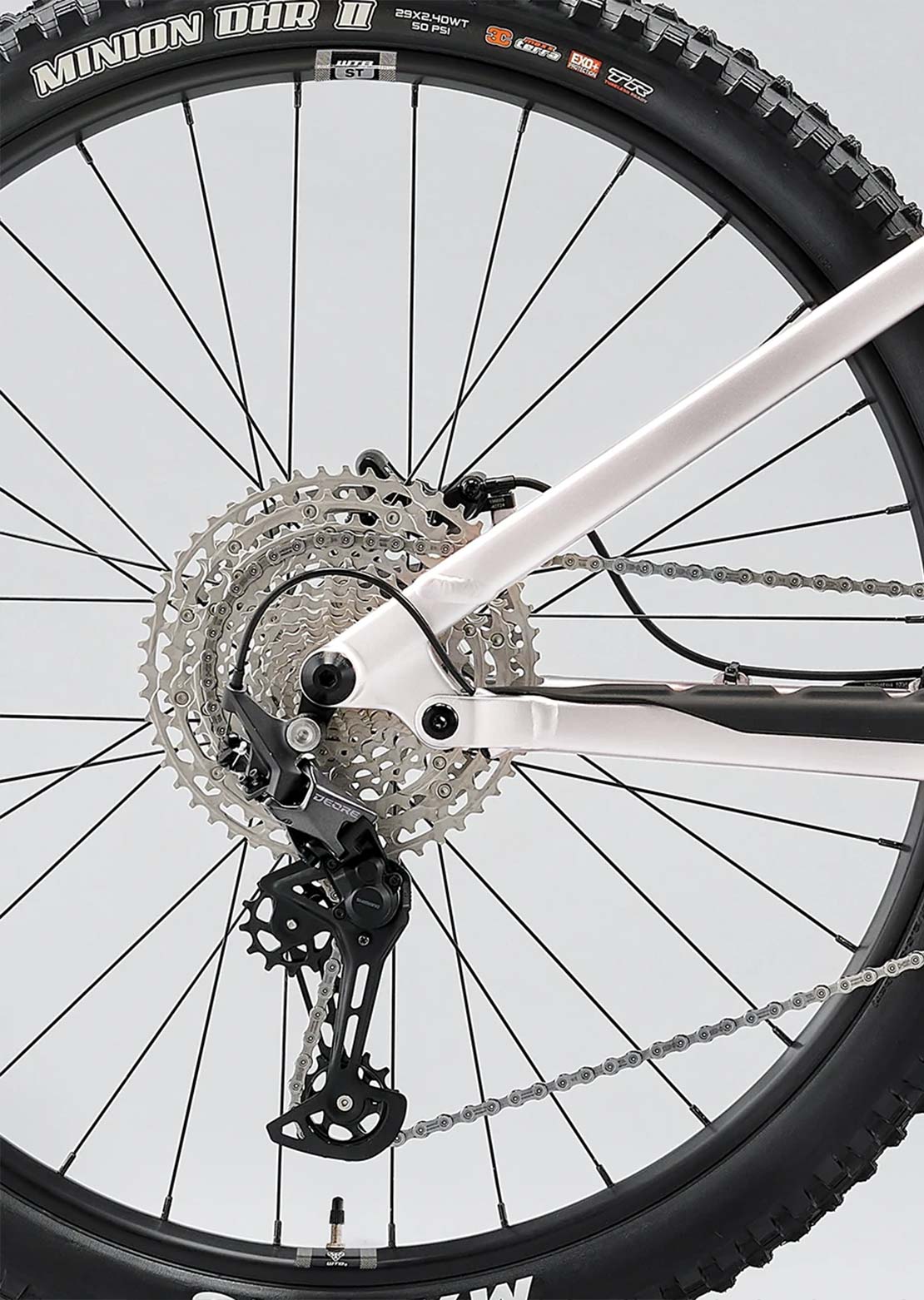

Drivetrain
|
REAR SHIFTER |
Shimano Deore SL-M6100-R 12spd |
|
REAR DERAILLEUR |
Shimano Deore RD-M6100 12spd |
|
CRANKSET |
Praxis G2 Cadet M24 30T |
|
BOTTOM BRACKET |
Praxis M24 BSA Threaded |
|
CASSETTE |
Shimano Deore CS-M6100-12 10/51T 12spd |
|
CHAIN |
Shimano Deore CN-M6100 12spd |
Brakes
|
FRONT BRAKE |
TRP Slate EVO, Metallic Pads |
|
FRONT BRAKE ROTOR |
TRP RS01E, 203mm, 2.3mm Thickness, 6 Bolt |
|
REAR BRAKE |
TRP Slate EVO, Metallic Pads |
|
REAR BRAKE ROTOR |
TRP RS01E, 180mm, 2.3mm Thickness, 6 Bolt |
|
BRAKE LEVERS |
TRP Slate EVO |
Components
|

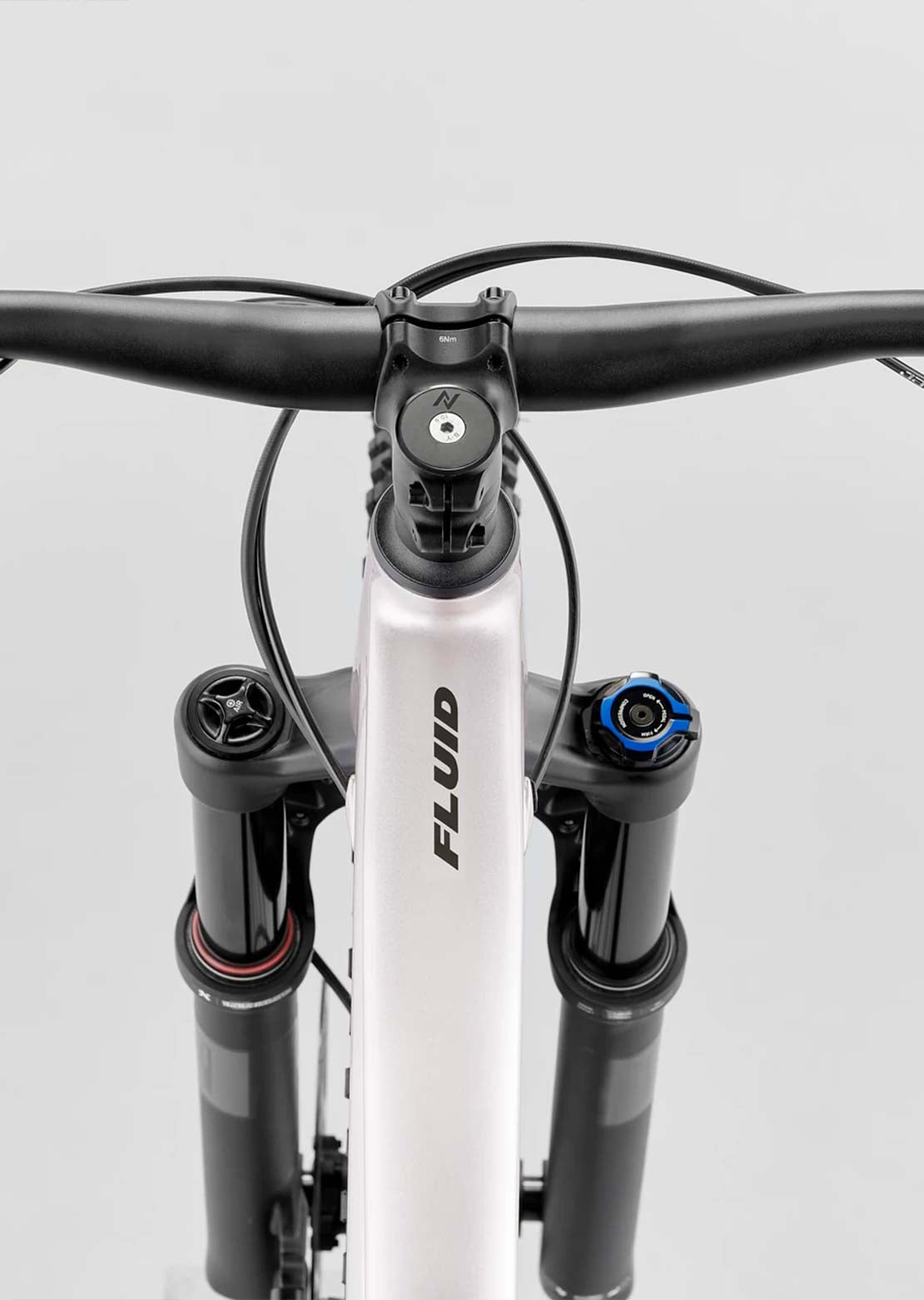

HANDLEBAR |
Norco 6061 DB Alloy, 800mm, 25mm |
|
STEM |
Norco 6061 Alloy 40mm/35mm |
|
SEATPOST |
TranzX YSI34 Post 34.9mm |
|
HEADSET |
Zero Stack Sealed Cartridge Bearings - Tapered |
|
HEADSET SPACER |
2x10mm & 1x5mm- Black |
|
SADDLE |
SDG Bel Air V3 |
|
GRIPS |
WTB Wavelength Grip |
|
PEDALS |
VP Nylon Flat Pedal |
|
SEATPOST CLAMP |
Norco Alloy Nutted Clamp |
Wheels
|
FRONT HUB |
Bear Pawls BMB-013 110x15 32H |
|
REAR HUB |
Bear Pawls BMB-004 148x12, 6 Bolt |
|
RIMS |
WTB ST 29", 32H |
|
FRONT TIRE |
Continental Kryptotal Trail 29" x 2.4" |
|
REAR TIRE |
Continental Xynotal Trail 29" x 2.4" |
|
REAR HUB SKEWER |
148mm x 12mm TA |
|
FRONT HUB SKEWER |
Rock Shox Maxle Stealth 110x15 |
|
SPOKES/NIPPLES |
Stainless Steel 14g - Black |
Geometry
|
S |
M |
L |
XL |
XXL |
||
|
Wheel Size |
29" |
29" |
29" |
29" |
29" |
|
|
Travel (mm front/mm rear) |
140/130 |
|||||
|
Reach |
420 |
450 |
480 |
510 |
540 |
|
|
Stack |
617 |
626 |
635 |
644 |
653 |
|
|
HTA |
Head Tube Angle |
65 |
||||
|
OS |
Fork Offset |
44 |
||||
|
ST |
Seat Tube Length |
360 |
390 |
410 |
460 |
510 |
|
STA |
Effective Seat Tube Angle |
76 |
76.3 |
76.7 |
77 |
77.3 |
|
RC |
Rear Centre Length |
425 |
430 |
435 |
440 |
445 |
|
BB |
Bottom Bracket Drop |
30 |
||||
|
BBH |
Bottom Bracket Height |
348 |
||||
|
HTT |
Horizontal Top Tube |
574 |
602 |
630 |
659 |
687 |
|
WB |
Wheelbase |
1166 |
1205 |
1245 |
1284 |
1323 |
|
SOH |
Standover |
678 |
690 |
699 |
736 |
767 |
|
HT |
Head Tube Length |
110 |
120 |
130 |
140 |
150 |
|
Trail |
128 |
|||||
|
Recommended Seatpost Drop |
150 |
170 |
200 |
|||
|
Maximum Post Insertion |
250 |
270 |
300 |
|||
|
Stem Length |
40 |
|||||
|
Crank Length |
175 |
|||||
|
Tire Size |
2.4" – 2.6" |
|||||
|
Water Bottle Compatible |
1 x 750 mL |
1 x 750 mL and 1 x 620 mL |
||||
