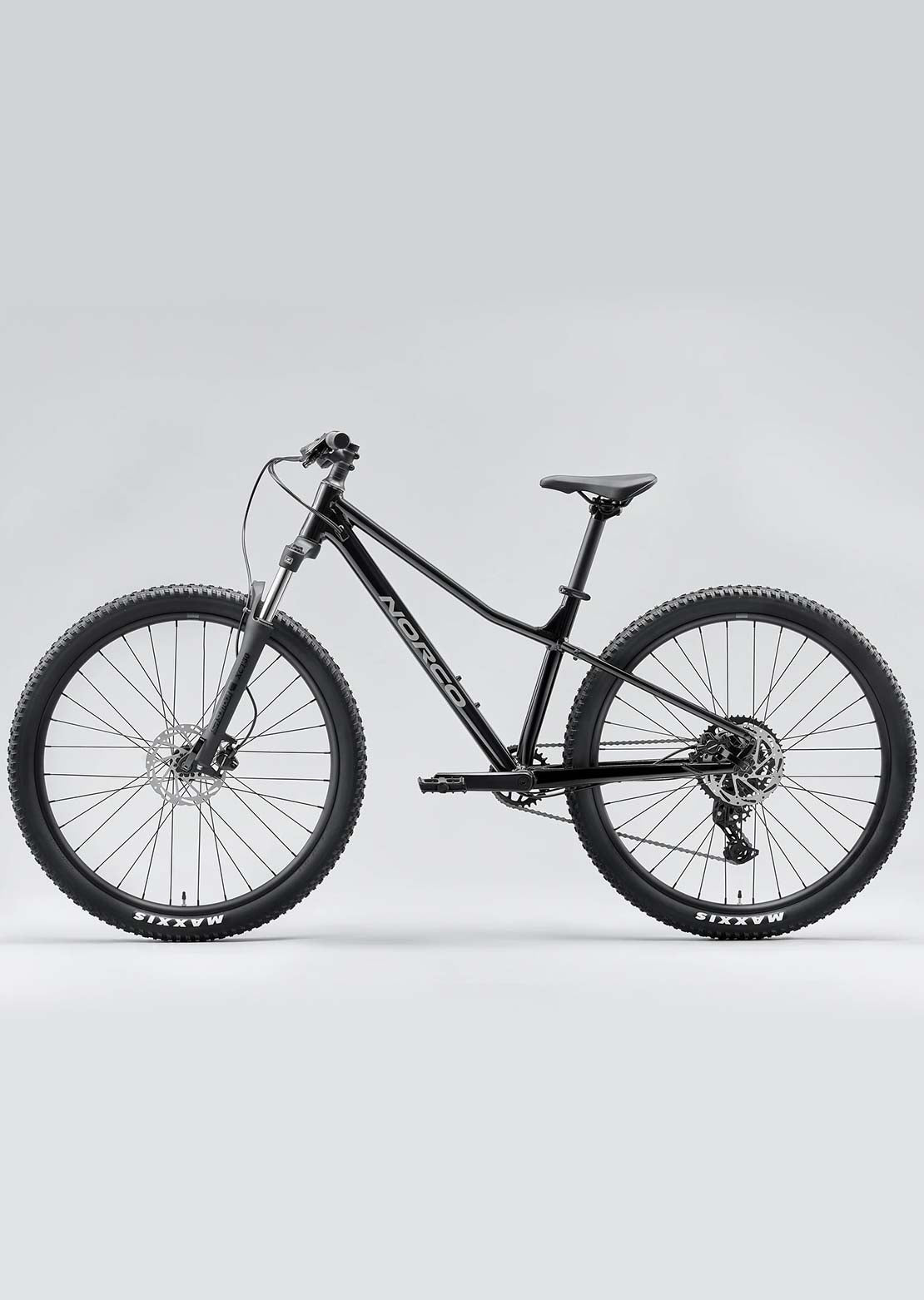

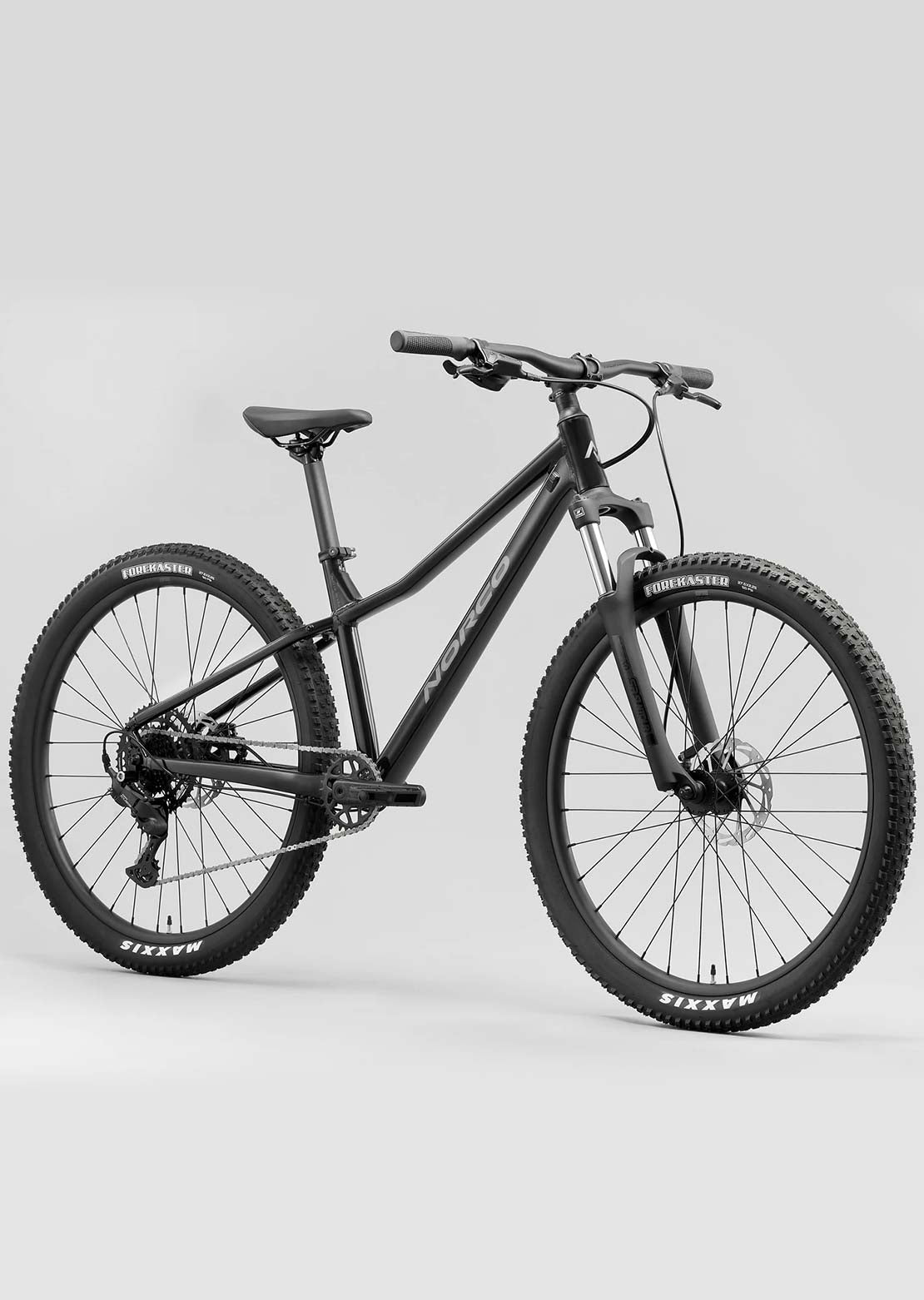

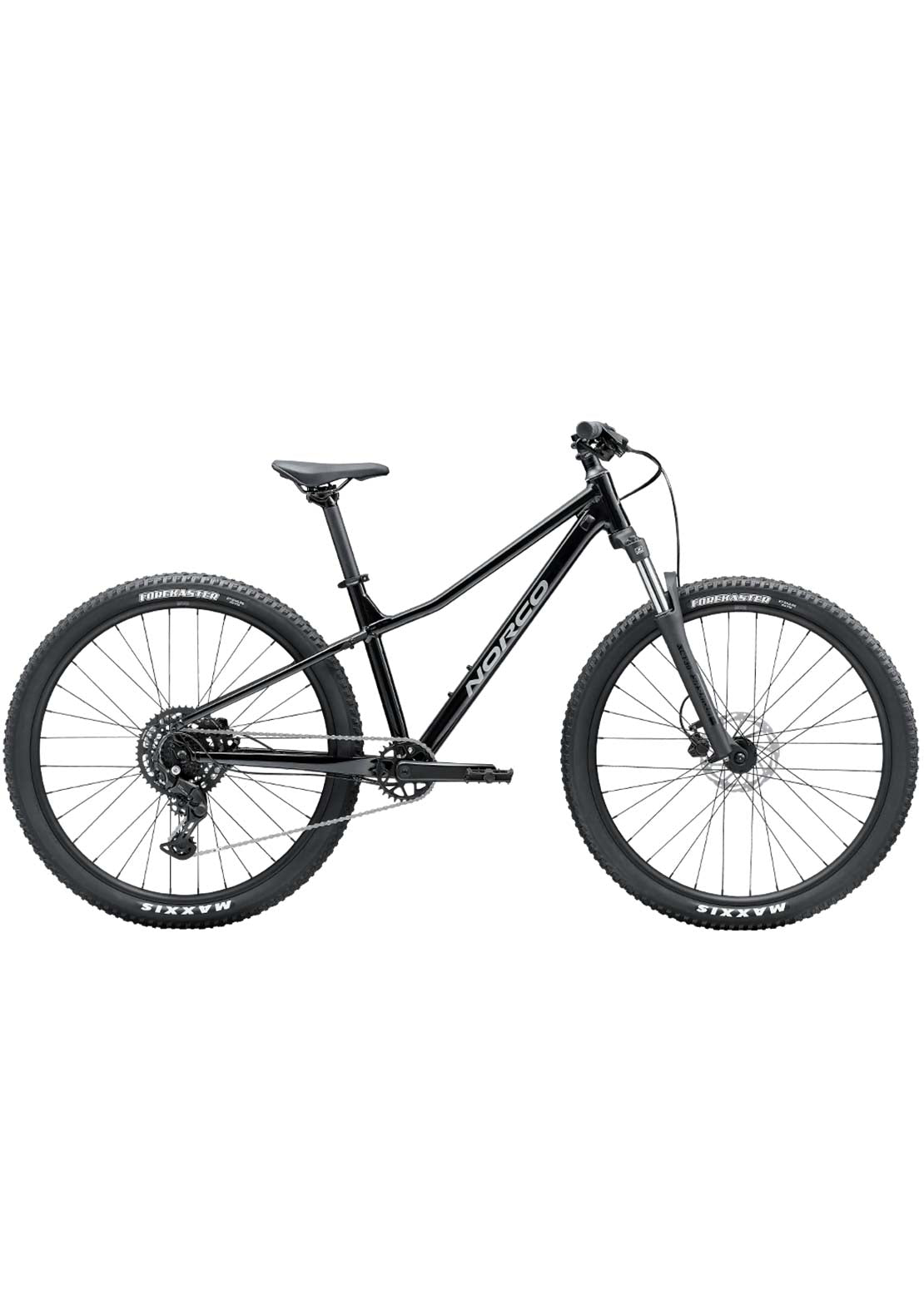

The durable and lightweight Storm 27.5 provides simple upkeep and operation to help young riders find the best line and stop on a dime. Storm 27.5’s lightweight, durable aluminum frame and size-specific fork travel of 100mm combine with a simple, lightweight drivetrain, quality mechanical disc brakes, and optimized fit for riders from 4’7.5” to 5’1.5”, building and a love for dirt that’ll last a lifetime.
ADVENTURE, YOUR WAY
All-around fun on two wheels. A staple in the lineup as a progressive off-road bike to take on your next adventure. An all-around bike for city or trails, to discover your favourite way to ride.
PROGRESSIVE DESIGN
Nimble, confident trail performance. The Storm provides a more forward weight distribution within an extended wheelbase for powerful, efficient pedaling, increased climbing traction and added grip and control on descents.
120 OR 100MM SUSPENSION
Comfort and control on the trail. The perfect amount of suspension travel for off-road adventure and exploration, without feeling like you're carrying around extra weight or bulk when you don't need it.
INTERNAL ROUTING
Mechanical systems protected from the elements. By routing brake and shift cables within the frame, they are kept out of harm's way and critical systems work longer between services.
POWERFUL DISC BRAKES
Stop on a dime. The Storm 120 and one of the Storm 100 models comes equipped with hydraulic brakes, while the other Storm 100 model has mechanical brakes, so you can choose what works best for you without compromising on powerful braking.
WHEEL OPTIONS
Size-specific wheels optimize the ride. Size small is equipped with 27.5" wheels to suit smaller riders and the M, L, XL, and XXL feature 29" wheels for a smooth ride.
FRAME FEATURES
Versatile frame features to take you anywhere. With a lightweight aluminum frame with custom tube shapes, a full breadth of frame sizes, rack and fender mounts, and dual water bottle mounts – it's ready to go anywhere, with anyone.
Frameset
|
FRAME |
Aluminum, Tig Welding, 10x135mm QR, Tapered HT |
|
FORK |
Suntour XCT-30 DS Coil, 100mm, 46mm offset, 9x100 QR |
Drivetrain
|
REAR SHIFTER |
Shimano Cues SL-U4000, 9sp |
|
REAR DERAILLEUR |
Shimano Cues RD-U4000, 9sp, GS |
|
CRANKSET |
Prowheel Alloy, 30T, 155mm |
|
BOTTOM BRACKET |
Cartridge, ST 73mm, 113mm axle length |
|
CASSETTE |
Shimano Cues CS-LG300-9, 9sp,11-46T |
|
CHAIN |
KMC Z9 |
Brakes
|
FRONT BRAKE |
Tektro HD-M276, Resin pads |
|
FRONT BRAKE ROTOR |
Tektro. 160mm rotor, 6-bolt |
|
REAR BRAKE |
Tektro HD-M276, Resin pads |
|
REAR BRAKE ROTOR |
Tektro. 160mm rotor, 6-bolt |
|
BRAKE LEVERS |
Tektro HD-M276 w/Jr Lever |
Components
|
HANDLEBAR |
6061 Alloy DB 6.1, 720mm, 30mm rise |
|
STEM |
Alloy 50mm Length, 31.8mm Clamp |
|
SEATPOST |
Alloy 31.6mm, 300mm length |
|
HEADSET |
Zero Stack, 1-1/8" Steer, ZS44/28.6 | ZS44/30 1 1/8" |
|
HEADSET SPACER |
3x10mm |
|
SADDLE |
Norco Jr XC, Steel Rail |
|
GRIPS |
DDK lock-On, 139mm length |
|
PEDALS |
Nylon Flat Pedal |
|
SEATPOST CLAMP |
Norco Alloy QR, 34.9mm ID |
Wheels
|
FRONT HUB |
Formula DC-1420 , 9x100mm QR, 32h, 6-bolt |
|
REAR HUB |
Formula DC-1422,10x135mm QR, HG, 32h, 6-bolt |
|
RIMS |
DP 27 Rims, 27mm ID, 32H |
|
FRONT TIRE |
Maxxis Forekaster, 27.5x2.25", Wire |
|
REAR TIRE |
Maxxis Forekaster, 27.5x2.25", Wire |
|
SPOKES/NIPPLES |
Stainless Steel, 14g |
Geometry
|
Wheel Size |
27.5" |
|
|
Travel (mm front) |
100 |
|
|
Reach |
370 |
|
|
Stack |
575 |
|
|
HTA |
Head Tube Angle |
67 |
|
OS |
Fork Offset |
42 |
|
ST |
Seat Tube Length |
385 |
|
STA |
Effective Seat Tube Angle |
74.25 |
|
RC |
Rear Centre Length |
430 |
|
BB |
Bottom Bracket Drop |
30 |
|
BBH |
Bottom Bracket Height |
323 |
|
HTT |
Horizontal Top Tube |
532 |
|
WB |
Wheelbase |
1076 |
|
SOH |
Standover |
627 |
|
HT |
Head Tube Length |
110 |
|
Trail |
104 |
|
|
Recommended Seatpost Drop |
100 |
|
|
Maximum Post Insertion |
363 |
|
|
Stem Length |
50 |
|
|
Crank Length |
165 |
|
|
Tire Size |
2.2" – 2.4" |
|
|
Water Bottle Compatible |
1 x 620mL |
