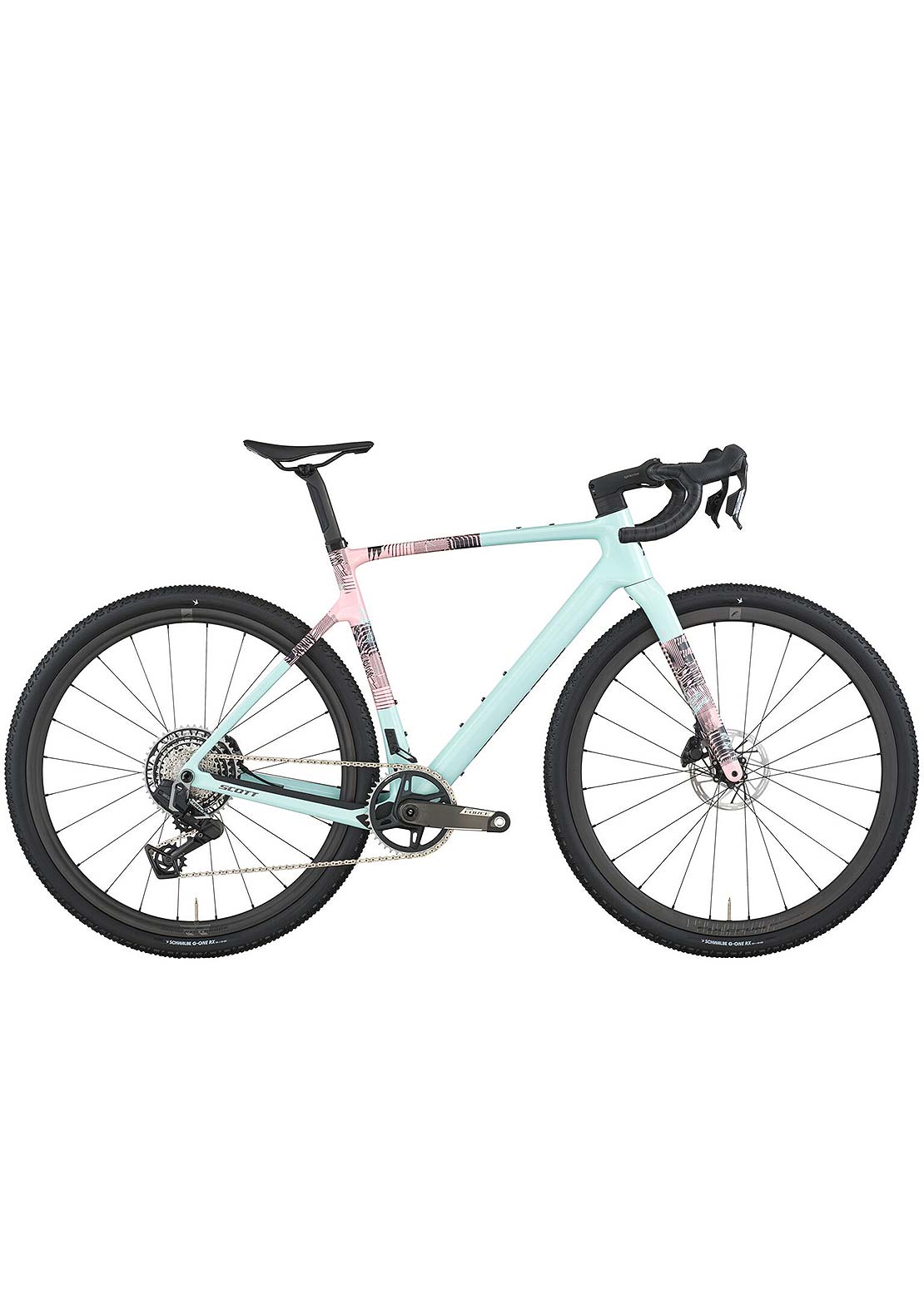

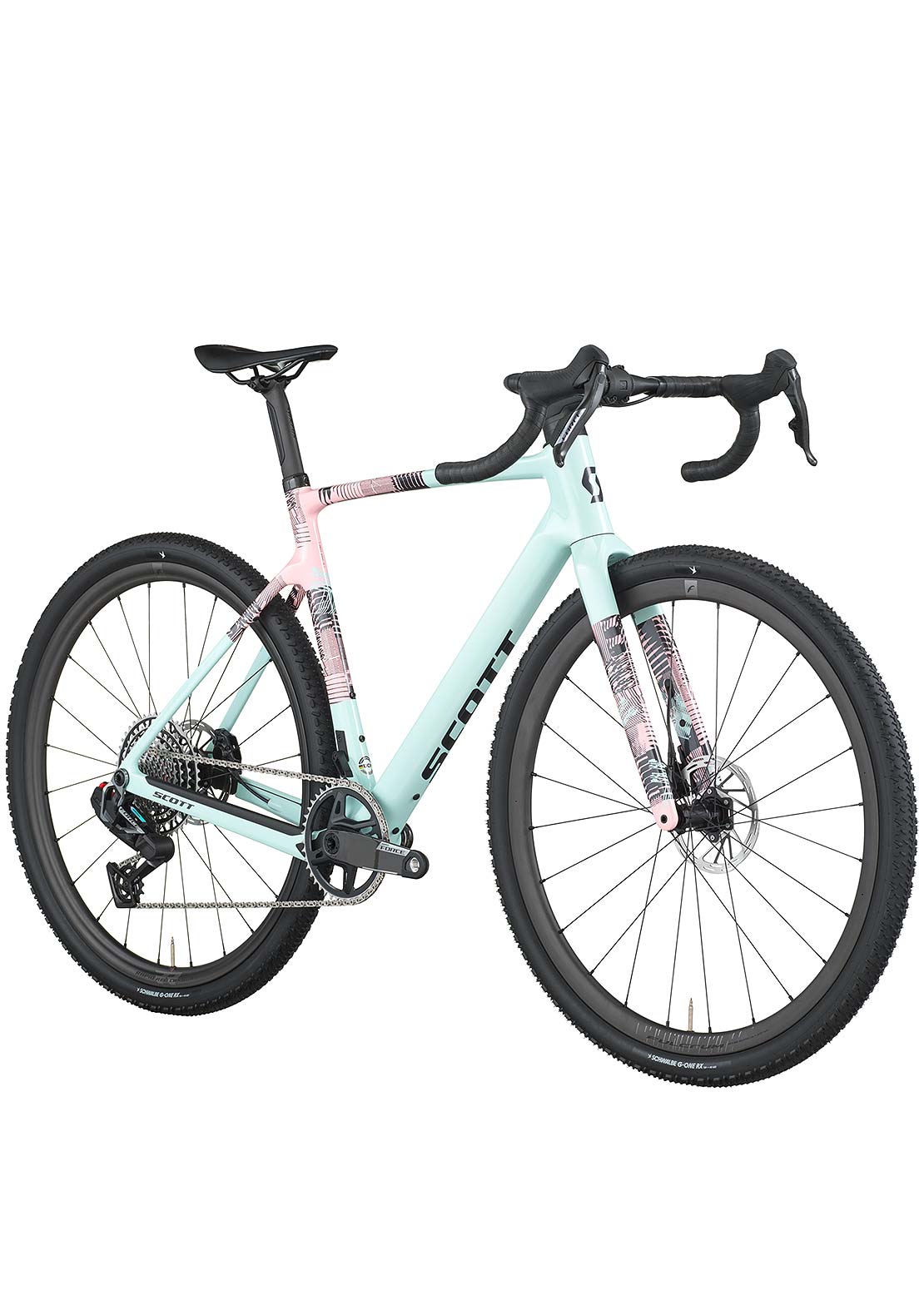

The SCOTT Addict Gravel 10 will get you wherever you’re going, no matter what the trail throws at you. More progressive, more control and more mounts mean this adventure-ready machine is your ticket to getting out there. Find yourself, get lost. *Please note that bike specifications are subject to change without prior notice
COMFORT FEATURES
To guarantee a controlled and smooth riding experience we increased the tire clearance to 45mm, lowered the seat stays and came up with a carbon layering which guarantees both optimal pedaling efficiency and enough comfort when it gets rough.
CABLE INTEGRATION
The Creston ic SL X allows for the same integrated cable routing as you know it from the Addict RC and Foil to guide both mechanical and electronical shifting wires as well as both hydraulic hoses completely internally. Integrated cable routing not only makes for a clean and premium look, but also improves the airflow in the front and provides more space with no cable rubbing for handlebar bags.
MOUNTS
The new Addict Gravel comes with smart mounts for gear and accessories that make it ready for serious adventure rides. You will find a mounting option for bolt-on top-tube bags and accessories, an extra mount on the down tube for an additional bottle cage or toolbox, and two different bottle cage positions for better access when riding with a frame bag.
AERO TUBE SHAPES
Gravel and aero can also go hand in hand. SCOTT’s patented airfoil design has been applied to the bike's main tubes (down tube, head tube, seat tube, seat post, seat stays) with the goal of optimizing the airflow and reducing the overall drag, without any compromise on comfort and compliance.
1 OR 2-BY DRIVETRAIN
Perfectly compatible with 1 and 2-by drivetrains. For 1-by, the front derailleur plate can be replaced with a bike-specific chain guide or closing plate.
FENDER MOUNTS
The Addict Gravel comes with well-hidden mounts for Syncros-specific fenders, making it a perfect commuter bike as well. The tire clearance with fenders is 40mm.
FRAME: Addict Gravel HMF Carbon, Gravel geometry / Replaceable Derailleur Hanger, Internal cable routing, Syncros fender kit ready
FORK: Addict Gravel HMF Flatmount Disc, 1 1/4"-1 1/2" Eccentric Carbon steerer
REAR DERAILLEUR: Shimano RD-RX825 GRX Di2, 24 Speed Electronic Shift System
FRONT DERAILLEUR: Shimano FD-RX825F GRX Di2, Electronic Shift System
SHIFTERS: Shimano GRX ST-RX825, Dual control 24 Speed Electronic Shift System
CRANKSET: Shimano GRX FC-RX820-2 48/31
BB-SET: Shimano SM-BB71-41B
CHAIN: Shimano CN-M8100-12
CASSETTE: Shimano CS-HG710-12, 11-36
BRAKES: Shimano BR-RX820 Hyd.Disc
ROTOR: Shimano RT-CL800 rotor 160/F and 160/R
HANDLEBAR: Syncros Creston 1.0 X, Carbon 31.8mm
H'STEM: Syncros RR2.0 1 1/4" / four Bolt 31.8mm
SEATPOST: Syncros SP-R101-CF
SEAT: Syncros Tofino Regular 2.0 Cutout
HEADSET: Acros AIF-1134
WHEELSET: Fulcrum Rapid RED Carbon, 24 Front / 24 Rear, Syncros SL Axle / Removable Lever with Tool
FRONT TIRE: Schwalbe G-One Bite Performance, 700x45C
REAR TIRE: Schwalbe G-One Bite Performance: 700x45C
APPROX WEIGHT IN KG: 8.6
APPROX WEIGHT IN LBS: 18.96
MAX. SYSTEM WEIGHT: 120kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
Geometry
|
XS/49 |
S/52 |
M/54 |
L/56 |
XL/58 |
||
|
A |
HEAD TUBE ANGLE / ANGLE TUBE DE DIRECTION |
70.0 ° |
70.0 ° |
71.0 ° |
71.0 ° |
71.0 ° |
|
B |
HEAD TUBE LENGTH / HAUTEUR TUBE DE DIRECTION |
3.7 IN |
4.8 IN |
5.5 IN |
6.5 IN |
7.4 IN |
|
C |
TOP TUBE HORIZONTAL / LONGUEUR HORIZONTALE TUBE SUPÉRIEUR |
20.4 IN |
21.0 IN |
21.8 IN |
22.8 IN |
23.3 IN |
|
D |
STANDOVER HEIGHT / HAUTEUR ENTRE-JAMBES |
29.9 IN |
30.9 IN |
31.8 IN |
32.6 IN |
33.3 IN |
|
E |
BB OFFSET / DEPORT AXE DE PÉDALIER |
-2.8 IN |
-2.8 IN |
-2.8 IN |
-2.8 IN |
-2.8 IN |
|
F |
BB HEIGHT / HAUTEUR AXE DE PÉDALIER |
11.1 IN |
11.1 IN |
11.1 IN |
11.1 IN |
11.1 IN |
|
G |
WHEEL BASE / ENTRAXE ROUES |
39.7 IN |
40.3 IN |
40.5 IN |
41.3 IN |
41.9 IN |
|
H |
BB CENTER TO TOPTUBE CENTER / DIST. BOITIER - MILIEU TUBE SUPÉRIEUR |
17.6 IN |
18.8 IN |
19.6 IN |
20.3 IN |
21.1 IN |
|
I |
BB CENTER TO TOP OF SEATTUBE / DIST. BOITIER - SOMMET TUBE DE SELLE |
18.8 IN |
20.0 IN |
20.8 IN |
21.5 IN |
22.3 IN |
|
J |
SEAT ANGLE / ANGLE TUBE DE SELLE |
74.5 ° |
74.0 ° |
73.5 ° |
73.0 ° |
73.0 ° |
|
K |
CHAINSTAY / LONGUEUR DES BASES |
16.7 IN |
16.7 IN |
16.7 IN |
16.7 IN |
16.7 IN |
|
L |
REACH / REACH |
14.7 IN |
14.9 IN |
15.2 IN |
15.7 IN |
16.0 IN |
|
M |
STACK / STACK |
20.4 IN |
21.4 IN |
22.3 IN |
23.2 IN |
24.0 IN |
|
N |
STEM LENGTH / LONGUEUR POTENCE |
3.3 IN |
3.7 IN |
4.1 IN |
4.1 IN |
4.4 IN |
