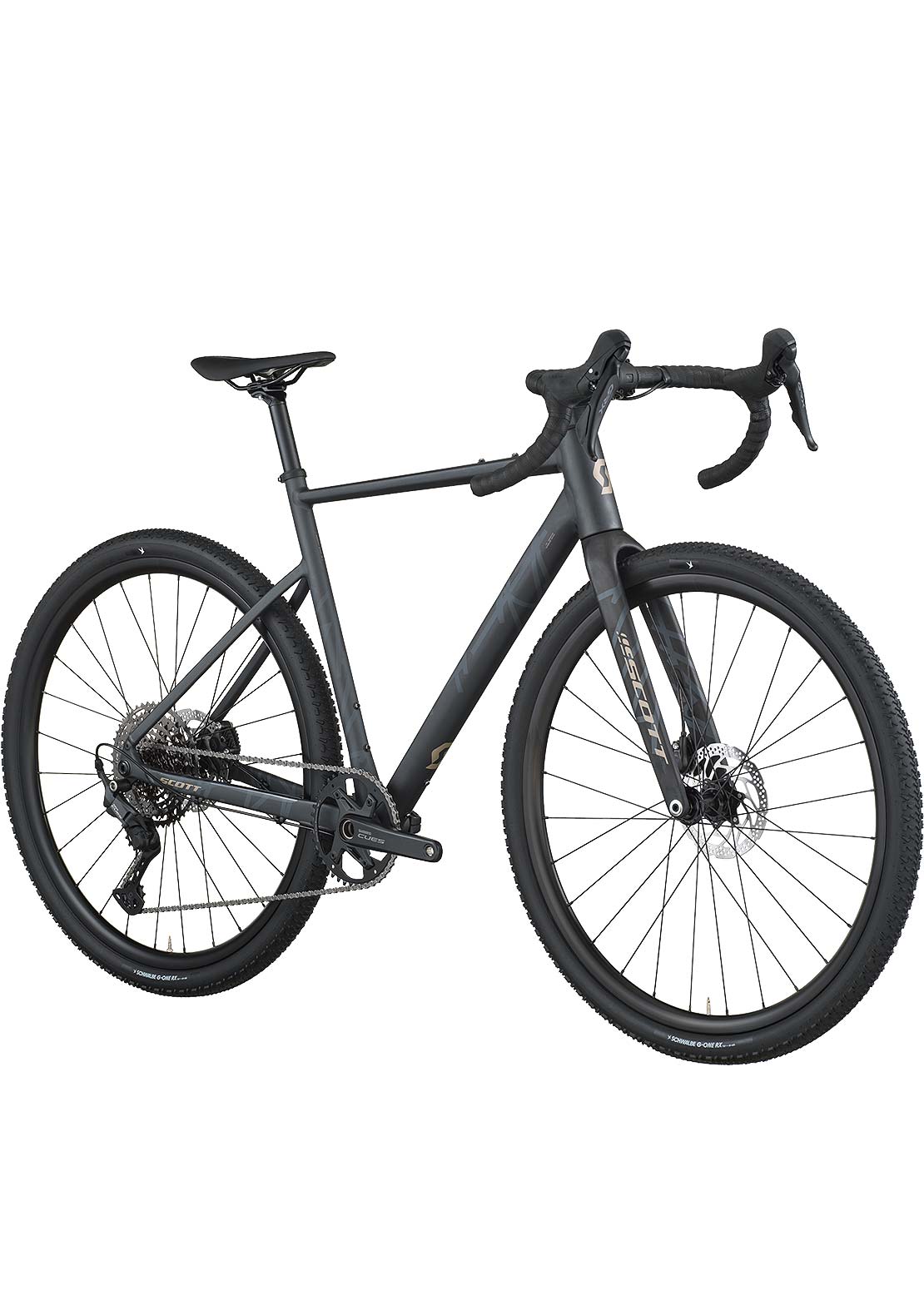

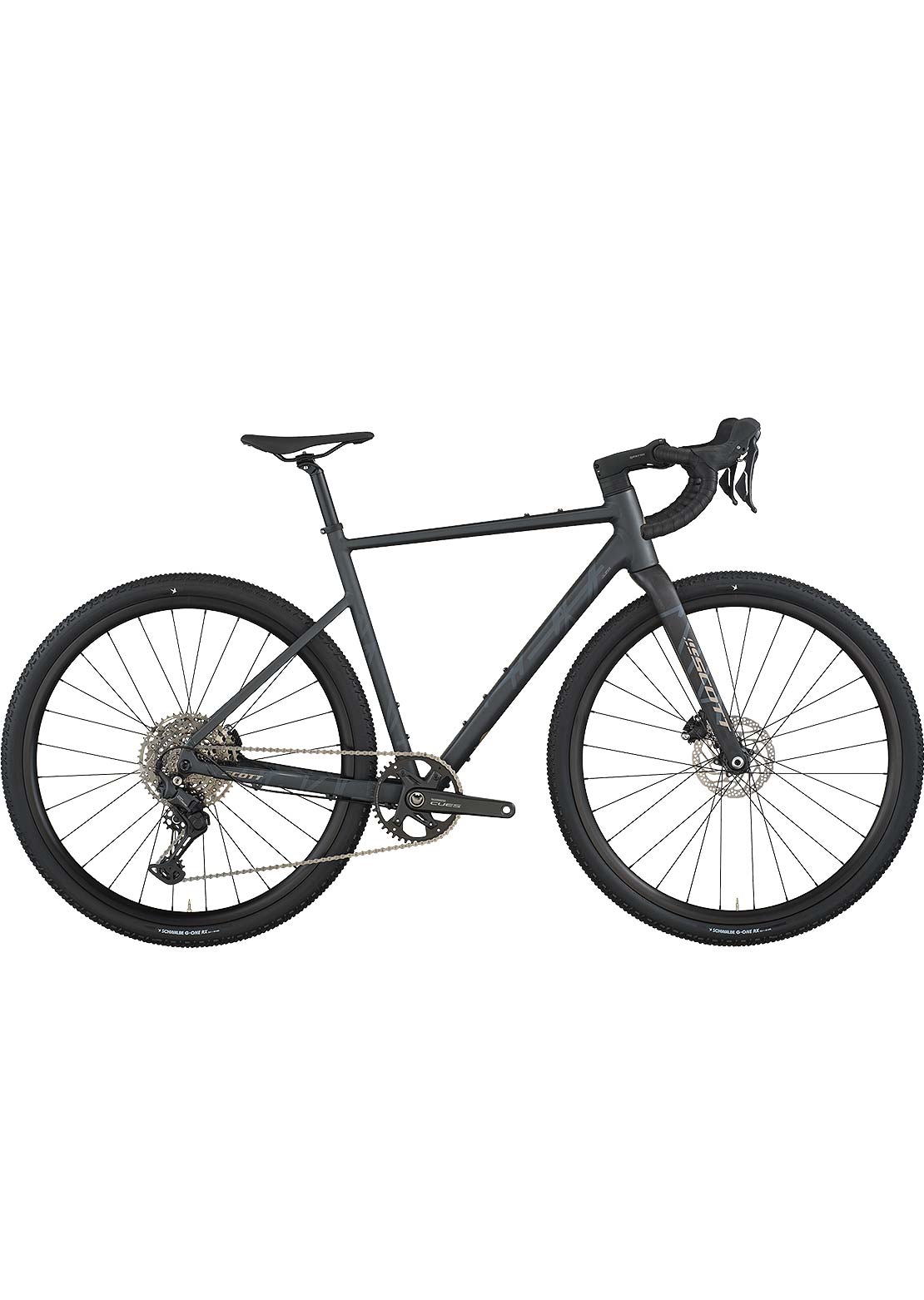

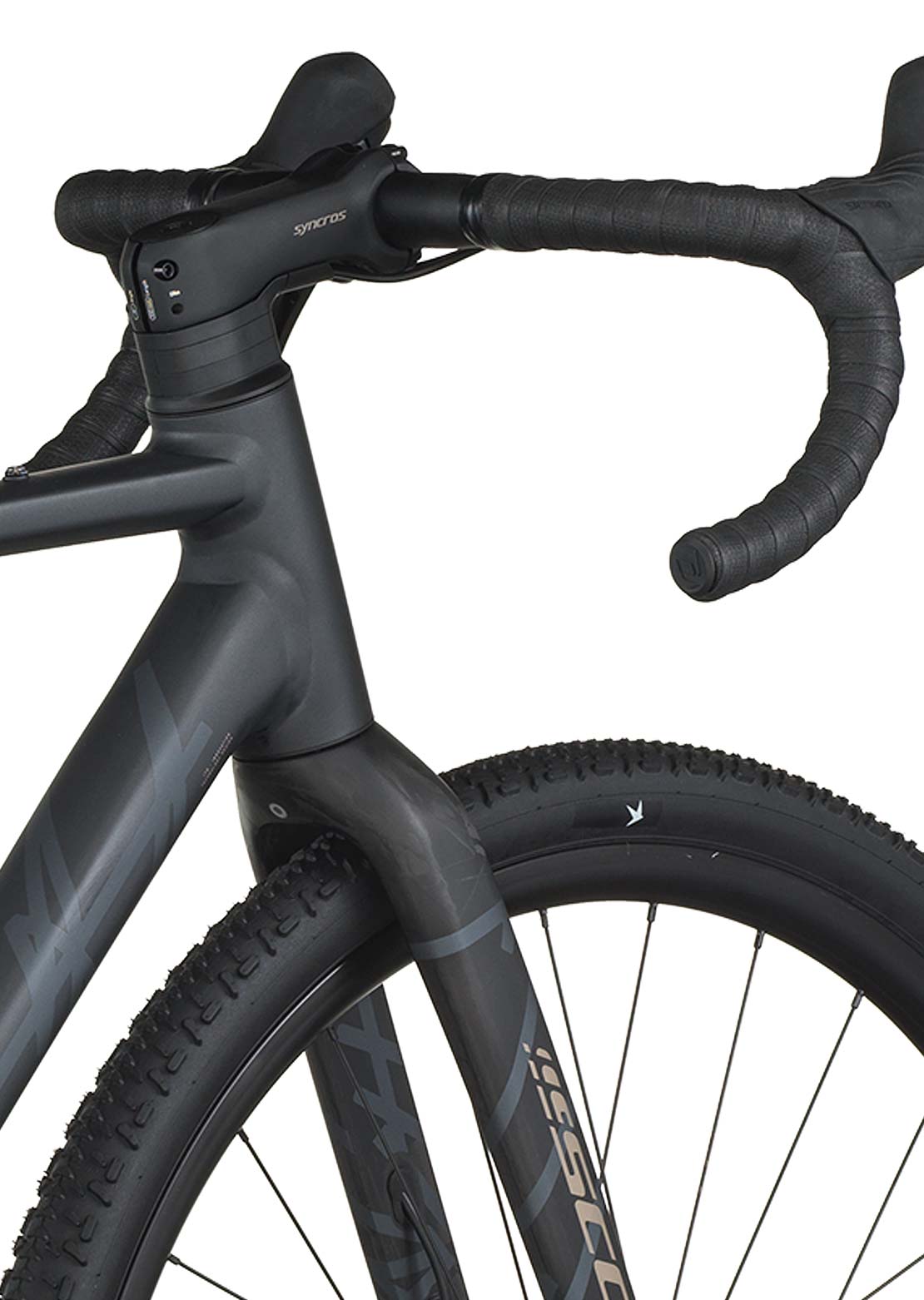

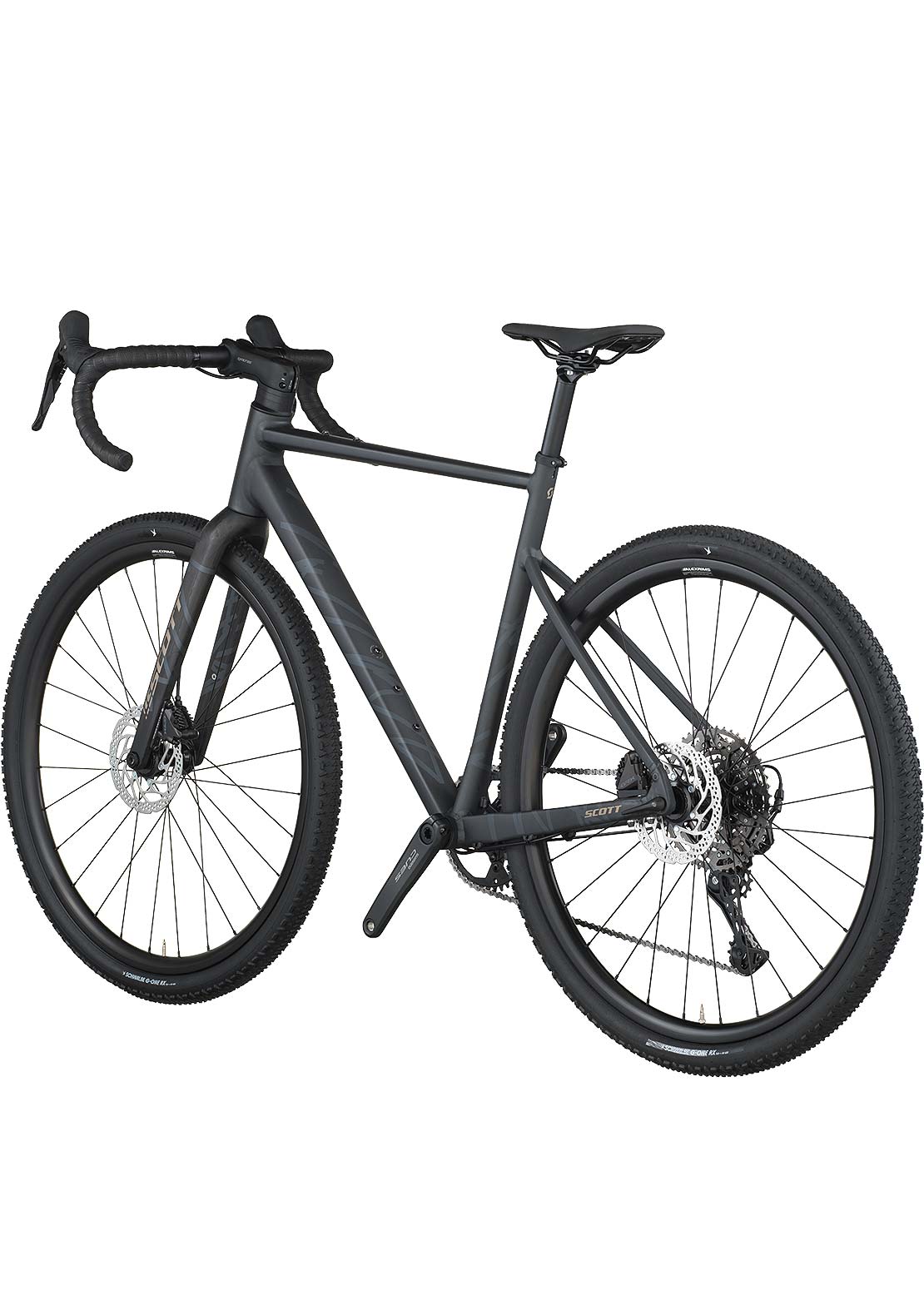

The SCOTT Speedster Gravel 30 is your one stop shop for when the path gets less traveled. Comfortable geometry for all-day rides, room for big tires and fully internal cable routing make this a great option for those looking to take it off road! *Please note that bike specifications are subject to change without prior notice
FRAME: Speedster Gravel / D.Butted 6061 Alloy, SCOTT Gravel geometry / Replaceable Derailleur Hanger, Internal cable routing, Syncros fender kit ready
FORK: Speedster Gravel HMF Flatmount Disc, 1 1/4"-1 1/2" Eccentric Carbon steerer
REAR DERAILLEUR: Shimano GRX RD-RX400, 20 Speed
FRONT DERAILLEUR: Shimano GRX FD-RX400-F
SHIFTERS: Shimano GRX ST-RX400 Disc, 20 Speed
CRANKSET: Shimano GRX FC-RX600-10, 46x30
BB-SET: Shimano BB-RS500
CHAIN: KMC X10
CASSETTE: Shimano CS-HG500, 10 Speed 11-34
BRAKES: Shimano BR-RX400 Hyd. Disc
ROTOR: Shimano SM-RT70 CL rotor 160/F and 160/R
HANDLEBAR: Syncros Creston 2.0 X, Alloy 31.8mm
H'STEM: Syncros RR2.5 1 1/4" / four Bolt 31.8mm
SEATPOST: Syncros RR2.5 27.2/350mm
SEAT: Syncros Tofino Regular 2.5
HEADSET: Acros AIF-1133
HUB (FRONT): Formula Team II CL Disc 28 H
HUB (REAR): Formula Team II CL Disc 28 H
SPOKES: Black 2mm
RIMS: Syncros Race X25 Disc, 28 Front / 28 Rear
FRONT TIRE: Schwalbe G-One Bite Performance, 700x45C
REAR TIRE: Schwalbe G-One Bite Performance, 700x45C
APPROX WEIGHT IN KG: 10.6
APPROX WEIGHT IN LBS: 23.37
MAX. SYSTEM WEIGHT: 120kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
Geometry
|
XXS/47 |
XS/49 |
S/52 |
M/54 |
L/56 |
XL/58 |
XXL/61 |
||
|
A |
HEAD TUBE ANGLE / ANGLE TUBE DE DIRECTION |
70.0 ° |
70.0 ° |
70.0 ° |
71.0 ° |
71.0 ° |
71.0 ° |
71.0 ° |
|
B |
HEAD TUBE LENGTH / HAUTEUR TUBE DE DIRECTION |
3.9 IN |
4.3 IN |
5.0 IN |
5.8 IN |
6.6 IN |
7.4 IN |
8.2 IN |
|
C |
TOP TUBE HORIZONTAL / LONGUEUR HORIZONTALE TUBE SUPÉRIEUR |
20.2 IN |
20.6 IN |
21.2 IN |
22.1 IN |
22.7 IN |
23.1 IN |
23.6 IN |
|
D |
STANDOVER HEIGHT / HAUTEUR ENTRE-JAMBES |
29.4 IN |
30.0 IN |
30.9 IN |
31.7 IN |
32.5 IN |
33.2 IN |
34.2 IN |
|
E |
BB OFFSET / EXCCENTRAGE AXE DE PÉDALIER |
-2.8 IN |
-2.8 IN |
-2.8 IN |
-2.8 IN |
-2.8 IN |
-2.8 IN |
-2.8 IN |
|
F |
BB HEIGHT / HAUTEUR AXE DE PÉDALIER |
11.1 IN |
11.1 IN |
11.1 IN |
11.1 IN |
11.1 IN |
11.1 IN |
11.1 IN |
|
G |
WHEEL BASE / ENTRAXE ROUES |
40.1 IN |
40.4 IN |
40.9 IN |
41.1 IN |
41.6 IN |
42.0 IN |
42.2 IN |
|
H |
BB CENTER TO TOPTUBE CENTER / DIST. BOITIER - MILIEU TUBE SUPÉRIEUR |
16.9 IN |
17.7 IN |
18.9 IN |
19.7 IN |
20.5 IN |
21.3 IN |
22.4 IN |
|
I |
BB CENTER TO TOP OF SEATTUBE / DIST. BOITIER - SOMMET TUBE DE SELLE |
18.5 IN |
19.3 IN |
20.5 IN |
21.3 IN |
22.0 IN |
22.8 IN |
24.0 IN |
|
J |
SEAT ANGLE / ANGLE TUBE DE SELLE |
75.0 ° |
74.5 ° |
74.0 ° |
73.0 ° |
72.5 ° |
72.5 ° |
72.5 ° |
|
K |
CHAINSTAY / LONGUEUR BASES |
17.1 IN |
17.1 IN |
17.1 IN |
17.3 IN |
17.3 IN |
17.3 IN |
17.3 IN |
|
L |
REACH / REACH |
14.7 IN |
14.8 IN |
15.0 IN |
15.2 IN |
15.4 IN |
15.5 IN |
15.8 IN |
|
M |
STACK / STACK |
20.6 IN |
21.0 IN |
21.7 IN |
22.6 IN |
23.4 IN |
24.1 IN |
24.9 IN |
|
N |
STEM LENGTH / LONGUEUR POTENCE |
2.9 IN |
3.3 IN |
3.7 IN |
4.1 IN |
4.1 IN |
4.4 IN |
4.4 IN |
