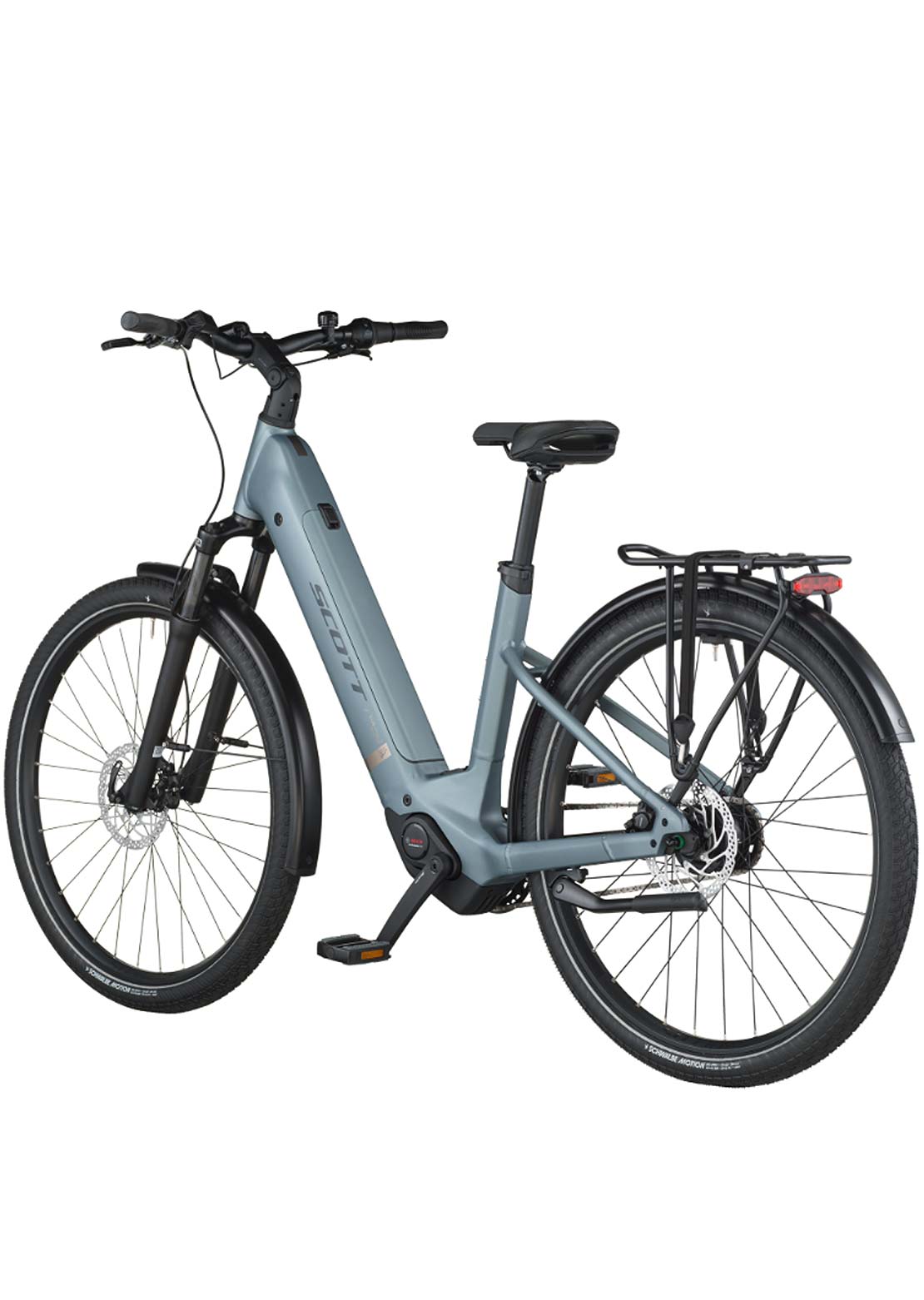

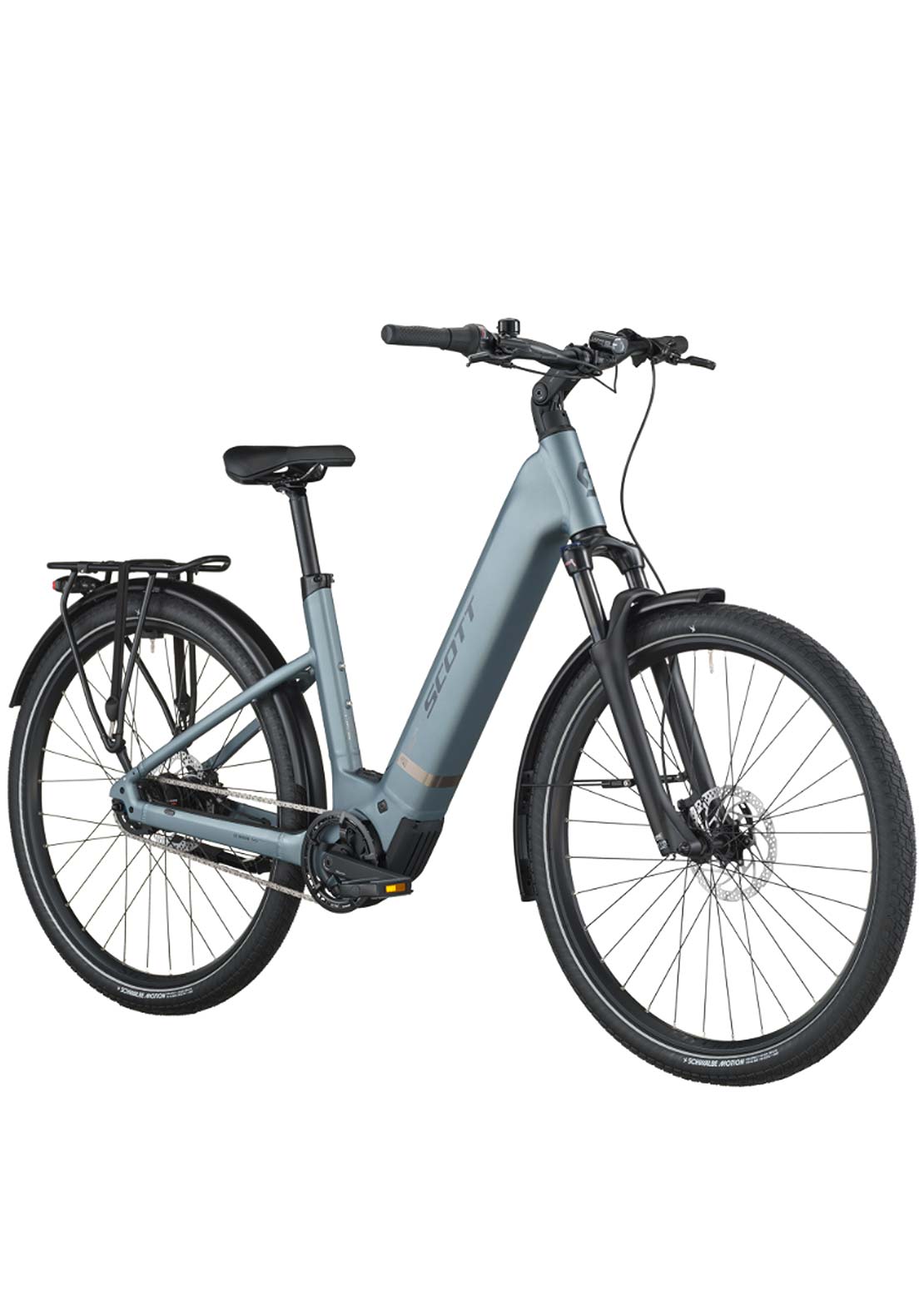

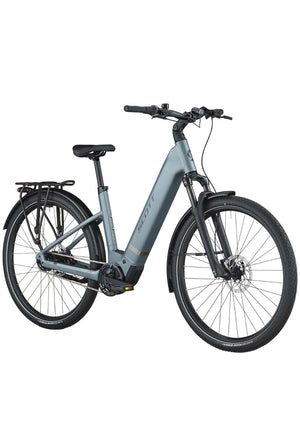

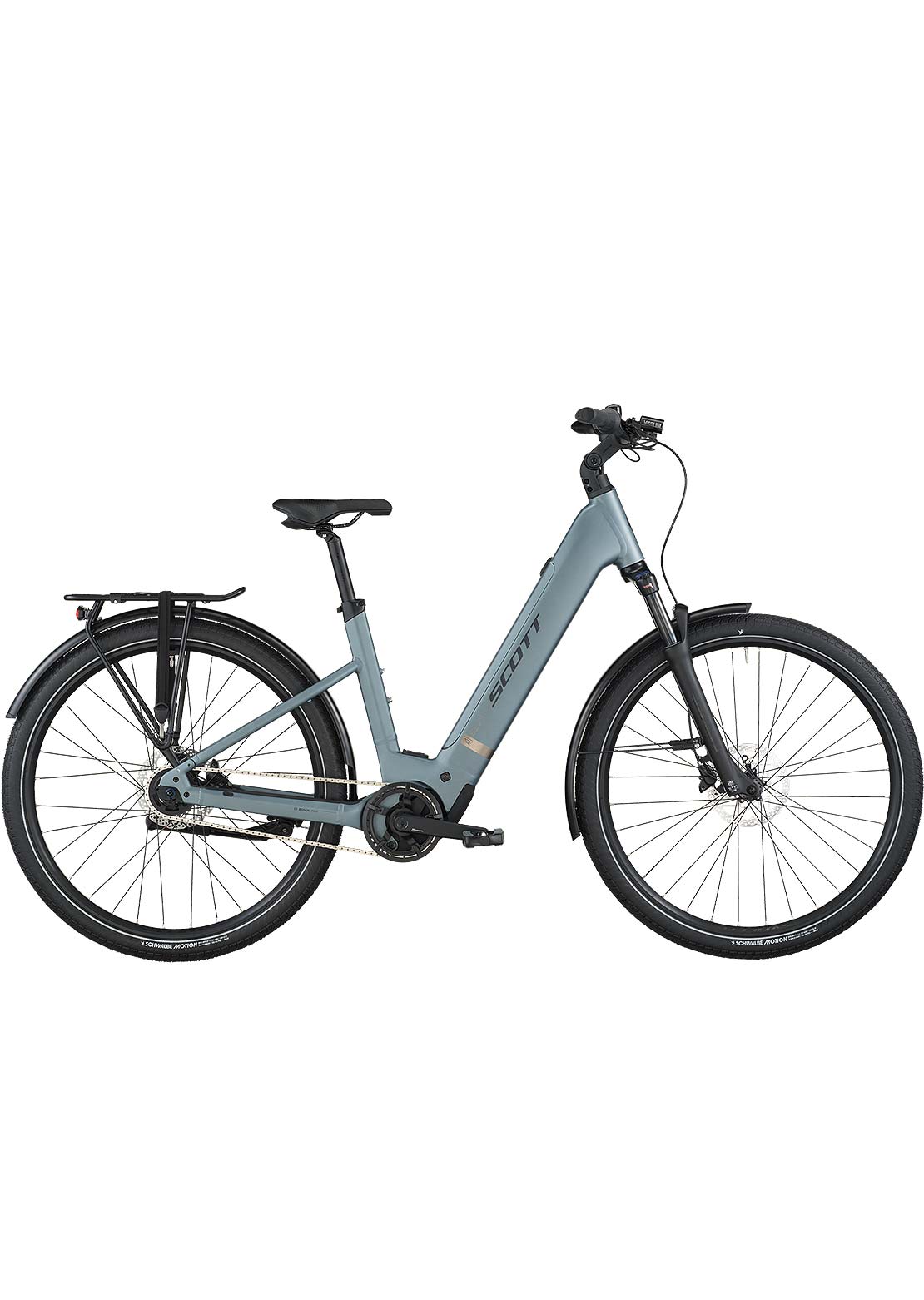

The Sub Tour 40 Wave E-Bike is our value-packed urban ride that combines affordability, convenience, and smooth power to get you out of the car and enjoying your city by bike. Its step-through design makes it easy to mount and dismount—an ideal fit for most riders and a practical choice if you’re looking to share it among family. Power is courtesy of Bosch’s Performance motor and 540Wh battery unit that deliver natural-feeling accelerations that make the bike intuitive to ride and effortless to pedal in any situation.
Heading to work? Grabbing coffee with friends across town? Or maybe just enjoying your city away from the traffic jams? The Sub Tour 40 makes riding around a breeze, and can support up to 25kg on its rear rack to carry the day’s gear—fitting an optional kids’ seat to let your lil’ one grow up loving bikes early on. *Please note that bike specifications are subject to change without prior notice.
HEAVY-DUTY REAR RACK AND POWERFUL LIGHTS
Planning to carry a heavy load? No problem. The e-bike comes with a heavy-duty rear rack that supports up to 27 kg, perfect for a kids’ seat as well. Compatible with the Racktime Snap it 2.0 system adapter, the bike also features a powerful Lezyne front light and Syncros rear light: the rear light, integrated into the rear rack, is still visible with a kids’ seat mounted and thanks to its wraparound design, ensures visibility from a broader spectrum of angles.

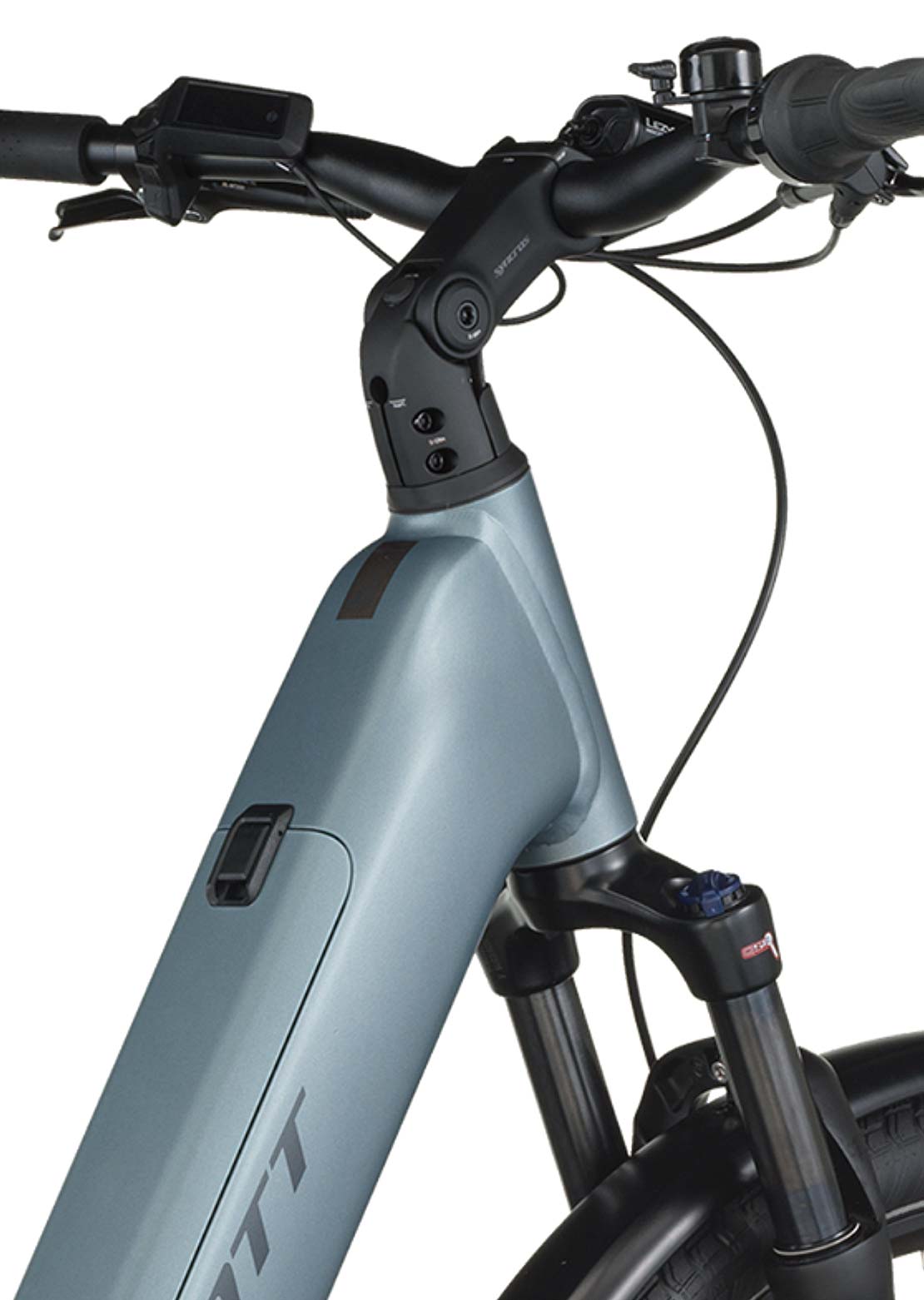

SYNCROS COCKPIT
The new Syncros cockpit, equipped with an adjustable stem, gives the handlebar a sleek and attractive look.
BELT AND NEXUS INTERNAL GEARED HUB
SUB features a belt-driven drivetrain and Shimano Nexus internal gear hub. This is the perfect combination for minimal maintenance, less noise and longer durability. A belt drive works without oil, meaning it needs to be replaced less often, no more getting dirty and no rust on the chain – a win-win-win situation!The Shimano Nexus hub shifts smoothly and, as it is protected in the hub housing the gear, it is easier to maintain.
FRAME: Alloy S-XL=29", 6061 Alloy custom butted tubing, Top extraction battery, UDH Interface, 135mm with 46mm Beltline
TRAVEL: 100mm
FORK: SR Suntour NVX 32 5TA NLO Coil, Tapered, 5x100 TA, Lock Out, 100mm Travel
DRIVE UNIT: Bosch Performance Line (BDU346Y), EU: 25kmh
BATTERY: PowerTube 540Wh
DISPLAY: Bosch Purion 200
CHARGER: 2A Charger
SHIFTERS: Shimano Nexus Inter 5e
CRANKSET: Miranda Virage 170mm
CHAINRING: Miranda 38T
CHAIN: KMC Z1
CASSETTE: Shimano CSC700027 27T
BRAKES: Shimano BR-MT200 Disc
ROTOR: Front: SM-RT30 CL 180mm, Rear: SM-RT30 CL 160mm
HANDLEBAR: Syncros UC3.0 680mm, Rise 12mm, Backsweep 15°
H'STEM: Syncros UC 3.0 adjustable with front Light mount and Intuvia 100 mount
SEATPOST: Syncros 3.0, 31.6mm, 350mm
SEAT: Syncros Capilano
HEADSET: Acros, 1.5"- 1.5", semi integ. OD 50/61mm, ID 44/55mm
HUB (FRONT): Shimano HBQC400B58LL, 5x100mm
HUB (REAR): Shimano Nexus Inter 5e
SPOKES: Black Spokes
RIMS: Syncros X18 Disc
FRONT TIRE: Schwalbe Big Apple Performance, 55-622
REAR TIRE: Schwalbe Big Apple Performance, 55-622
LIGHTS: Front Lezyne Hecto E65, Rear Super Bright Lezyne Light
RACK: Racktime carrier SnapIt 2.0 25KG
PEDALS: Marwi SP-828
APPROX WEIGHT IN KG: 29.7
APPROX WEIGHT IN LBS: 65.48
MAX. SYSTEM WEIGHT: 160kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
Geometry
|
S / 900 |
M / 900 |
L / 900 |
XL / 900 |
||
|
A |
HEAD TUBE ANGLE / ANGLE TUBE DE DIRECTION |
68.2 ° |
68.2 ° |
68.2 ° |
68.2 ° |
|
B |
HEAD TUBE LENGTH / HAUTEUR TUBE DE DIRECTION |
6.3 IN |
6.3 IN |
6.7 IN |
6.7 IN |
|
C |
TOP TUBE HORIZONTAL / LONGUEUR HORIZONTALE TUBE SUPÉRIEUR |
22.6 IN |
23.4 IN |
24.2 IN |
24.2 IN |
|
D |
STANDOVER HEIGHT / HAUTEUR ENTRE-JAMBES |
25.1 IN |
24.9 IN |
24.8 IN |
24.8 IN |
|
E |
BB OFFSET / DEPORT AXE DE PÉDALIER |
-3.0 IN |
-3.0 IN |
-3.0 IN |
-3.0 IN |
|
F |
BB HEIGHT / HAUTEUR AXE DE PÉDALIER |
11.8 IN |
11.8 IN |
11.8 IN |
11.8 IN |
|
G |
WHEEL BASE / ENTRAXE ROUES |
46.9 IN |
47.6 IN |
48.5 IN |
48.5 IN |
|
H |
BB CENTER TO TOPTUBE CENTER / DIST. BOITIER - MILIEU TUBE SUPÉRIEUR |
||||
|
I |
BB CENTER TO TOP OF SEATTUBE / DIST. BOITIER - SOMMET TUBE DE SELLE |
17.3 IN |
18.9 IN |
20.5 IN |
22.0 IN |
|
J |
SEAT ANGLE / ANGLE TUBE DE SELLE |
76.9 ° |
76.9 ° |
76.9 ° |
76.9 ° |
|
K |
CHAINSTAY / LONGUEUR DES BASES |
19.0 IN |
19.0 IN |
19.0 IN |
19.0 IN |
|
L |
REACH / REACH |
16.3 IN |
17.0 IN |
17.7 IN |
17.7 IN |
|
M |
STACK / STACK |
27.4 IN |
27.1 IN |
27.8 IN |
27.8 IN |
|
N |
STEM LENGTH / LONGUEUR POTENCE |
3.5 IN |
3.5 IN |
3.5 IN |
3.5 IN |
|
0 |
TRAIL / CHASSE AU SOL |
3.9 IN |
3.9 IN |
3.9 IN |
3.9 IN |
