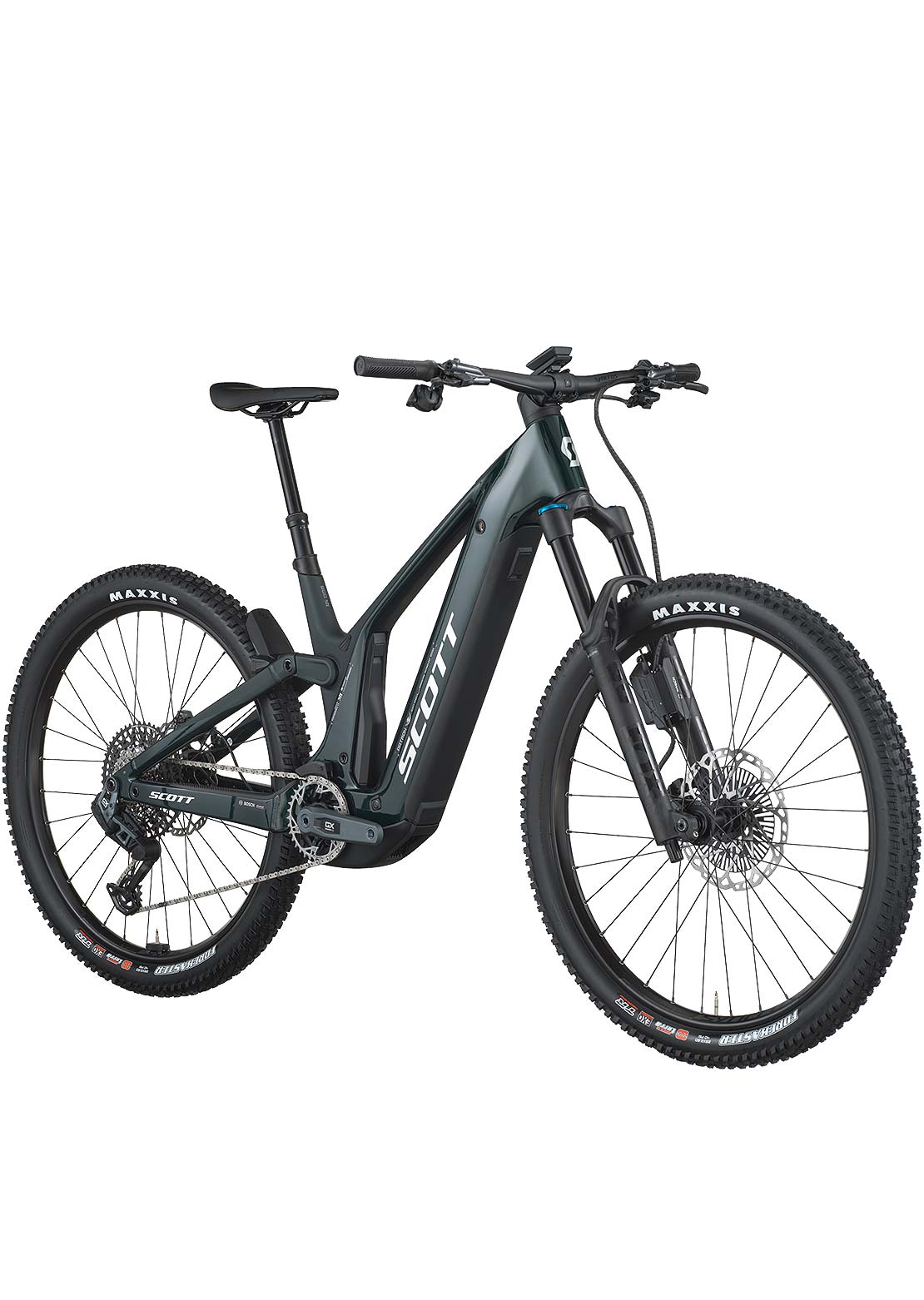

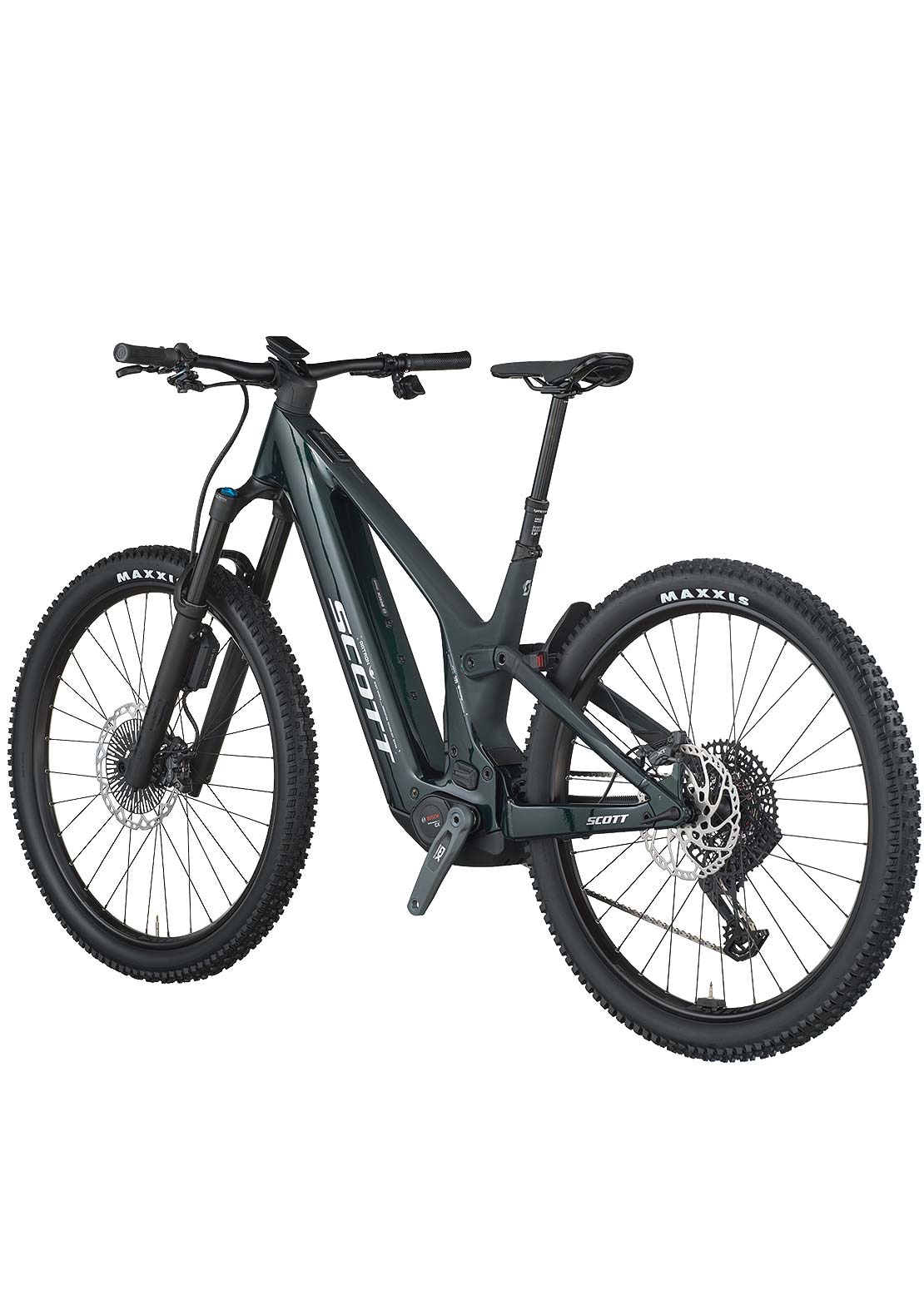

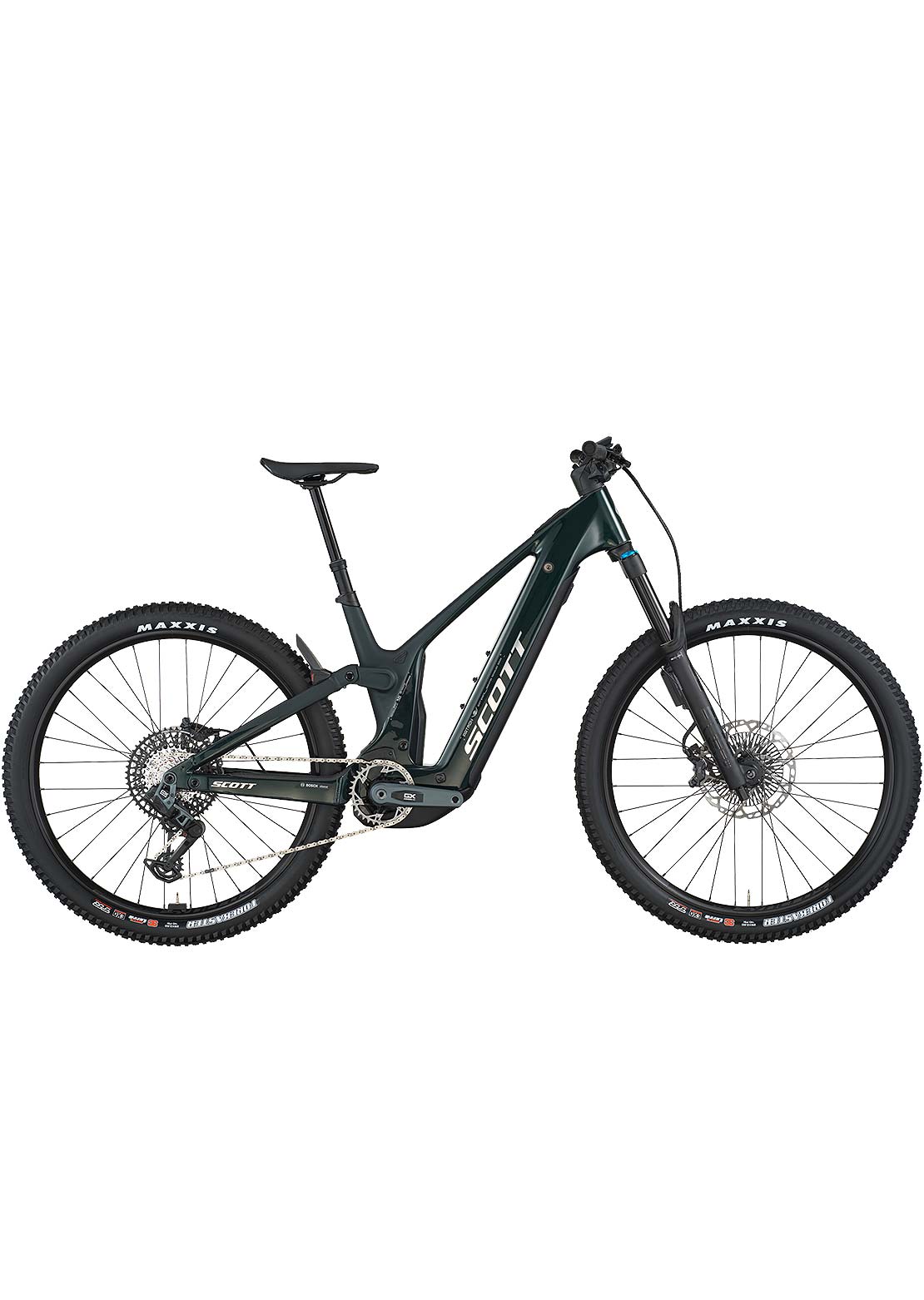

The Patron eRIDE 900 was designed as a system optimized for all day trail riding. Supreme integration and meticulously selected geometry paired with a powerful new Bosch drive unit deliver much more than a great ride. What you get, rather, is a sublime experience up and down the mountain, time and time again. Patron eRIDE - Master the trails.
BOSCH MOTOR - PERFORMANCE LINE CX SMART SYSTEM
The Bosch Performance Line CX is fully networked in the smart system, so it remains up-to-date even after purchase. With a maximum torque of 85 Nm, you really feel the difference in how your E-Bike handles. You can customize the Eco, Tour, Sport and Turbo riding modes in the E-Bike Flow app. Keep your E-Bike looking sleek thanks to the wireless speed sensor.
BOSCH POWER TUBE
Thanks to their range, long service life, intelligent battery management system and easy handling, Bosch Power Tube lithium-ion batteries are among the most modern on the market. All those decades of Bosch experience has paid off! PowerTube: 400Wh, 500Wh, 625Wh, 750Wh
BOSCH DISPLAY - KIOX 300
With its colored screen, see everything at a glance: speed, distance, power, cadence and calorie consumption – Connected to the powermeter inside the motor, the Kiox 300 shows directly your fitness data. Operating with the handlebar controller, it’s easy to change screens and modes or activate the walk assistance. The Bluetooth connection will automatically detect your phone for updates and sharing info.
PATENTED INTEGRATED SUSPENSION SYSTEM
For the optimal performance of a suspension shock, power transfer must be the most direct possible. What we want to avoid are any inefficient directional movements, in other words, lateral movements (sideways to the direction of travel) as the shock goes through its compression. Having an integrated shock allows us to improve this in several ways. Firstly, the frame construction around the shock and with the trunnion mount can be designed to be much more rigid, reducing movement and fostering more efficient power transfer. We can also add much larger bearings to the seat tube pivot, further reinforcing this area and reducing any unnecessary motion. Our integrated Suspension technology also helps us to engineer frames with a lower motor and battery placement which lowers the center of gravity. As a result, the bike benefits from better handling, and a more stable, confidence inspiring ride for the end user.
EASY SHOCK ACCESS
Accessing the shock via the top tube area is facilitated through a hatch. By rotating the dial with your fingers or a coin, it will unlock the mechanism and gives access to the shock. This makes it easy to adjust rebound, compression, shock pressure, and for installing or replacing the cable for our TwinLoc Suspension System.
INTEGRATED CABLES
Electric mountain bikes have a crowded handlebar, between the brakes, dropper post, gears, drive unit cables, remote and suspension lockout - that’s a lot of cables. Syncros’s designers worked on the shape to allow the cables to flow under the bar and around the sides of the stem before disappearing into the headset with integrated plastic parts to keep it clean and efficient. This avoids bends or kinks in the cables and provides a minimalist front end. All our bars and stems feature multiple options for computer, light and camera mounts both on top or under the bar.
FRAME: Carbon Main Frame / Alloy SST-CST-Link, Virtual 4 link kinematic VLK
29x2.6 / Boost 148x12mm UDH, 160mm travel / Bosch SmartSystem / Integr. removable Battery, 1.8" Headtube, Central Kickstand Mount, Integr. Cable
TRAVEL: Front: 160mm / Rear: 160mm
FORK: FOX 38 Perf. Elite Air / eMTB+ / FIT4, 3 modes with low Speed adj. / QR Axle 15x110mm axle, 44mm offset / tapered steerer / Reb. Adj. / Lockout / 160mm travel
REAR SHOCK: FOX NUDE T eRIDE EVOL / Trunnion, SCOTT custom w. travel / geo adj., 3 modes: Lockout-Traction Control-Descend, custom large air volume / DPS / Reb. Adj., Travel 160-115-Lockout / 205X60mm
REMOTE SYSTEM: SCOTT TwinLoc 2 Technology, Suspension & Dropper Remote, 3 modes
DRIVE UNIT: Bosch Performance CX, EU: 25kmh / INT: 20mph
BATTERY: PowerTube 750Wh
DISPLAY: Bosch LED Remote & Kiox 300
CHARGER: 4A Charger
REAR DERAILLEUR: Shimano XT / 12 Speed
SHIFTERS: Shimano SL-M8100
CRANKSET: FSA CK-745 165mm / 34T
CHAINGUIDE: e*thirteen / e*spec Slider
CHAINRING: FSA W0138+WB499 / 34T / Steel
CHAIN: Shimano CN-M8100
CASSETTE: Shimano CS-M8100 / 10-51T
BRAKES: Shimano XT / BR-M8120 4 Piston
ROTOR: Front: RT-MT800 CL 203mm / Rear: RT-EM800 CL 203mm
HANDLEBAR: Syncros Hixon 1.5 / Alloy 7050D.B., 12mm rise / 9° / 780mm, Syncros Endurance lock-on grips
H'STEM: Syncros AM1.5 / 7050 Alloy, 31.8mm / 4° / 1 1/8"
SEATPOST: FOX Transfer Dropper Post, 31.6mm / S size 125mm / M size 150mm / L size 175mm / XL size 200mm
SEAT: Syncros Tofino 1.5 Regular, Titanium rails
HEADSET: Acros / 1.8", ZS66 OD74 / integr. Cable
FRONT HUB: Formula CL-811 / 15x110mm
REAR HUB: Formula ECT-1481 / Boost 148x12mm
SPOKES: Stainless Black
RIMS: Syncros MD30 / 32H / 30mm / Pin Joint, Tubeless ready
FRONT TIRE: Maxxis Dissector 29x2.6", 120TPI Foldable Bead, EXO+ / TR Tubeless ready, 3C Maxx Terra
REAR TIRE: Maxxis Dissector 29x2.6", 120TPI Foldable Bead, EXO+ / TR Tubeless ready, 3C Maxx Terra
LIGHTS: Syncros integrated rear fender light, Front Light Cable pre-installed
EXTRAS: Syncros Fork Fender
APPROX WEIGHT IN KG: 24.6 (with tubes)
APPROX WEIGHT IN LBS: 54.23 (with tubes)
MAX. SYSTEM WEIGHT: 128kg *The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
Geometry
|
S |
M |
L |
XL |
||
|
A |
HEAD TUBE ANGLE |
64.5 ° |
65.0 ° |
65.0 ° |
65.0 ° |
|
B |
HEAD TUBE LENGTH |
4.7 IN |
4.9 IN |
5.3 IN |
5.7 IN |
|
C |
TOP TUBE HORIZONTAL |
22.8 IN |
23.4 IN |
24.6 IN |
25.8 IN |
|
D |
STANDOVER HEIGHT |
30.2 IN |
30.2 IN |
30.2 IN |
30.2 IN |
|
E |
BB OFFSET |
-1.2 IN |
-1.2 IN |
-1.2 IN |
-1.2 IN |
|
F |
BB HEIGHT |
13.7 IN |
13.7 IN |
13.7 IN |
13.7 IN |
|
G |
WHEEL BASE |
48.1 IN |
48.5 IN |
49.8 IN |
51.0 IN |
|
H |
BB CENTER TO TOPTUBE CENTER |
||||
|
I |
BB CENTER TO TOP OF SEATTUBE |
16.2 IN |
17.3 IN |
18.5 IN |
19.7 IN |
|
J |
SEAT ANGLE |
77.0 ° |
76.9 ° |
76.9 ° |
76.8 ° |
|
K |
CHAINSTAY |
17.9 IN |
17.9 IN |
17.9 IN |
17.9 IN |
|
L |
REACH |
17.0 IN |
17.6 IN |
18.6 IN |
19.7 IN |
|
M |
STACK |
25.0 IN |
25.3 IN |
25.6 IN |
26.0 IN |
|
N |
STEM LENGTH |
2.0 IN |
2.0 IN |
2.4 IN |
2.4 IN |
|
0 |
TRAIL |
5.2 IN |
5.1 IN |
5.1 IN |
5.1 IN |
|
P |
FORK LENGTH |
22.3 IN |
22.3 IN |
22.3 IN |
22.3 IN |
|
Q |
MAXIMUM SEATPOST INSERTION |
9.6 IN |
10.4 IN |
11.8 IN |
12.6 IN |
|
R |
CRANK LENGTH |
6.5 IN |
6.5 IN |
6.5 IN |
6.5 IN |
