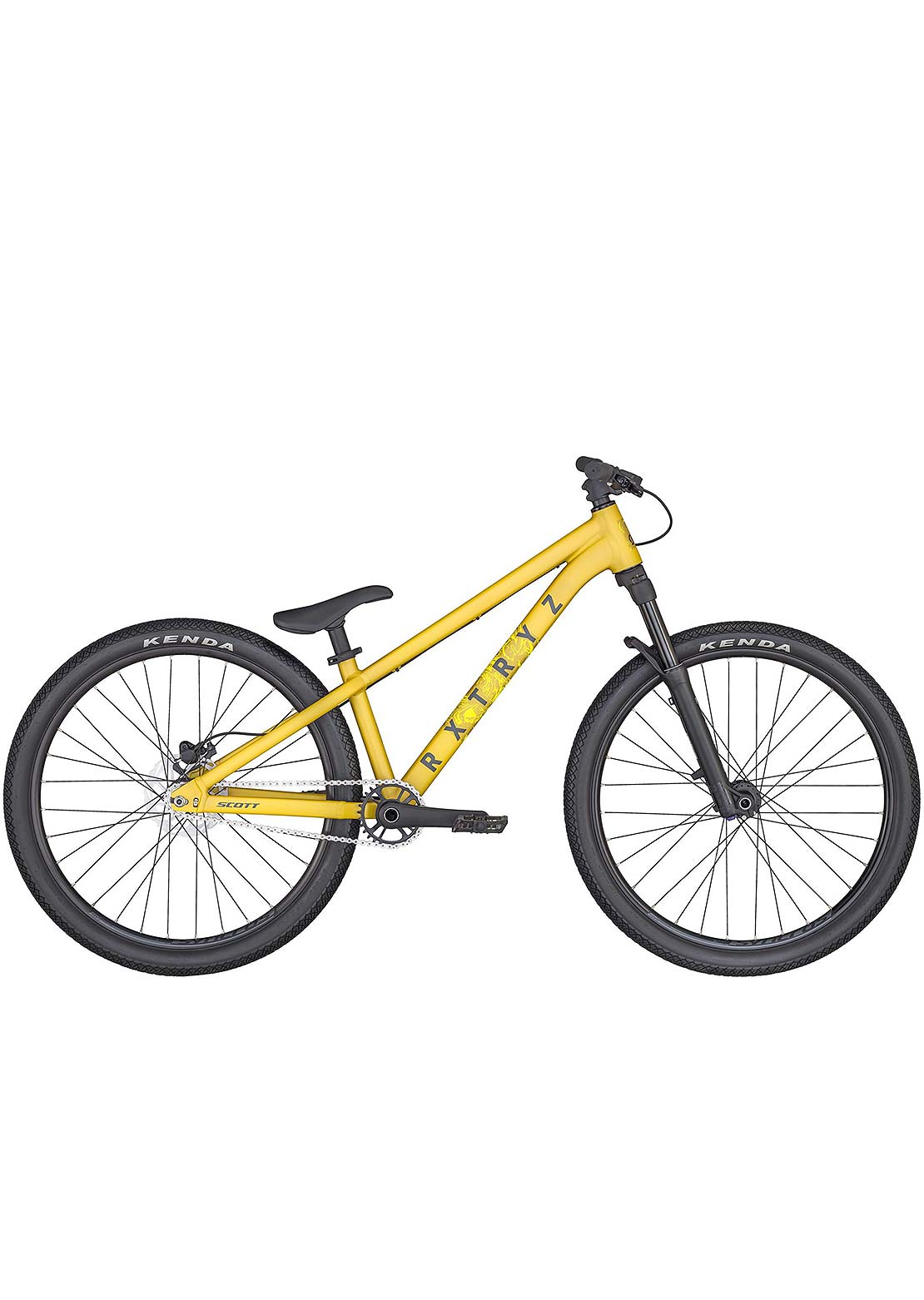

The SCOTT Roxter is built around a high-end alloy dirtjump mountain bike frame. Flips, whips or just jibbin' through the streets on your way home from school - the Roxter is down to get down. *Please note that bike specifications are subject to change without prior notice.
FRAME: Roxter YZ 6061 Alloy, Hydroformed tubing, Disc Dropout / horizontal for 135x10mm single speed
FORK: Manitou Circus Expert, Air / Comp. Reb. adjust / 20mm thru axle / 100mm travel
CRANKSET: Prowheel MPX-CR094S-TT / 165mm / 30T
BB-SET: Prowheel BSA 73mm
CHAIN: KMC Z1
CASSETTE: Sprocket / 14 T
BRAKES: Tektro HDM280 rear Hydr. Disc
ROTOR: Tektro / 6 Bolt / 160mm
HANDLEBAR: Syncros Hixon 2.0 Rise, 31.8mm / 800mm / 20mm Rise, Syncros Pro DH lock-on grips
H'STEM: Syncros XM1.5, 31.8mm / 40mm / 0°
SEATPOST: Syncros DJ1.5 / Pivotal / 31.6mm
SEAT: Syncros DJ1.5 / Pivotal
HEADSET: Syncros OE Press Fit E2 / Tapered 1.5"-1 1/8", OD 50/62mm / ID 44/56mm
FRONT HUB: Formula DHL-92 / 110x20mm / thru axle
REAR HUB: Formula DC42-N, w/tracknut / single Speed
SPOKES: Stainless 14G / black / 2.0mm
RIMS: Syncros DP25 Disc / 32H
FRONT TIRE: Kenda 3-Sixty, 30TPI / wire / 26x2.25"
REAR TIRE: Kenda 3-Sixty, 30TPI / wire / 26x2.25"
PEDALS: Wellgo B107.N flat
APPROX WEIGHT IN KG: 11.5 (with tubes)
APPROX WEIGHT IN LBS: 25.35 (with tubes)
MAX. SYSTEM WEIGHT: 128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
Geometry
|
M |
||
|
A |
HEAD TUBE ANGLE |
69.0 ° |
|
B |
HEAD TUBE LENGTH |
4.7 IN |
|
C |
TOP TUBE HORIZONTAL |
22.6 IN |
|
D |
STANDOVER HEIGHT |
26.3 IN |
|
E |
BB OFFSET |
-1.4 IN |
|
F |
BB HEIGHT |
11.9 IN |
|
G |
WHEEL BASE |
41.1 IN |
|
I |
BB CENTER TO TOP OF SEATTUBE |
12.2 IN |
|
J |
SEAT ANGLE |
73.0 ° |
|
K |
CHAINSTAY |
15.5 IN |
|
L |
REACH |
16.1 IN |
|
M |
STACK |
22.2 IN |
|
N |
STEM LENGTH |
1.6 IN |
