Shimano BL-M820-B & BR-M820 Front Disc Brake Assembled Set

This item ships for free in Canada

Please contact us for price at info@prfo.com

RETURNS

MADE EASY

PROUDLY

CANADIAN

BEST PRICE

GUARANTEE

Description
Features
Specs
Description

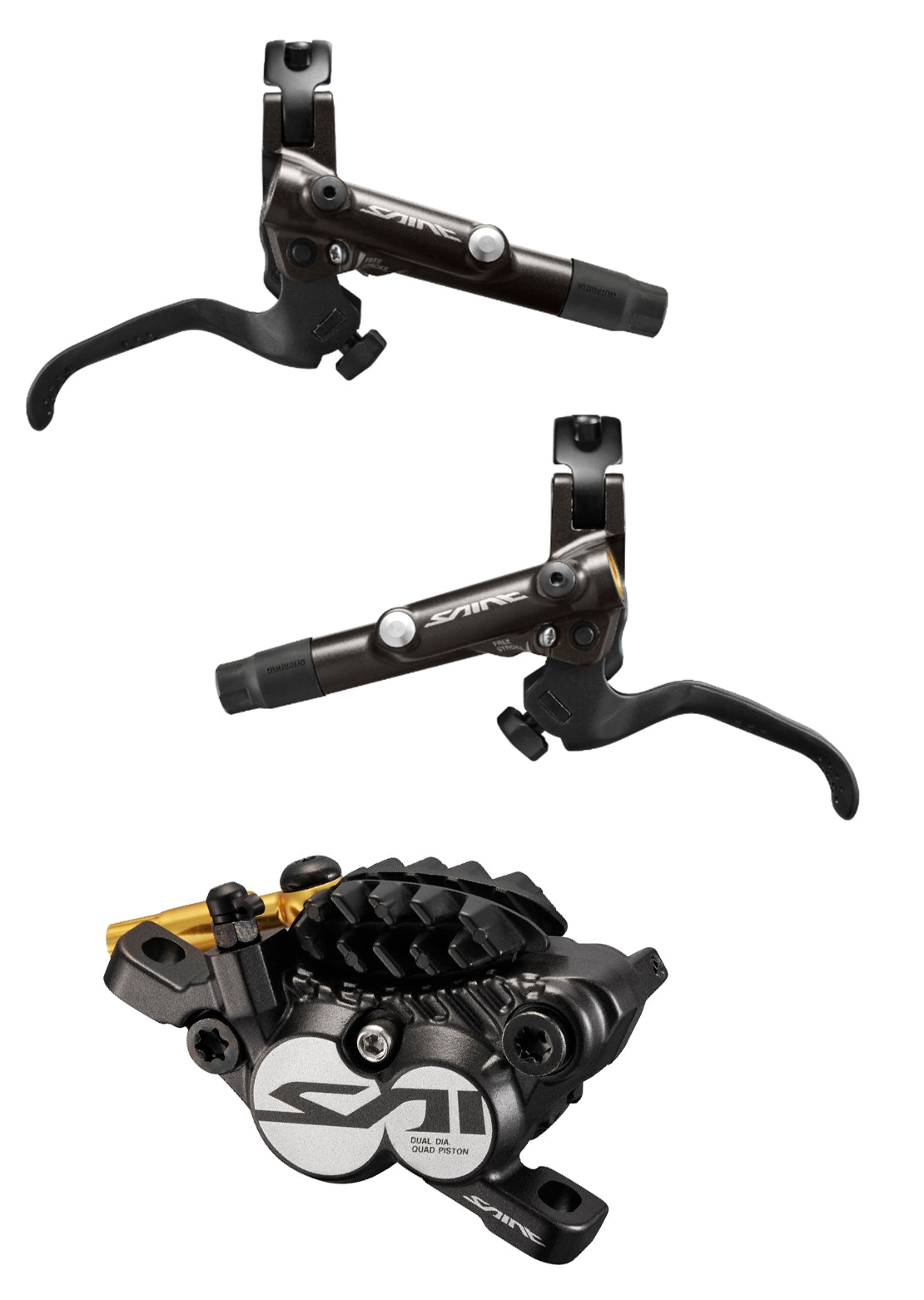

SHIMANO SAINT- Hydraulic Disc Brake Lever - I-SPEC B Clamp Band - SERVO WAVE Action

The world's best gravity riders rely on SHIMANO SAINT brakes to deliver ultimate stopping power and nuanced modulation no matter the conditions.

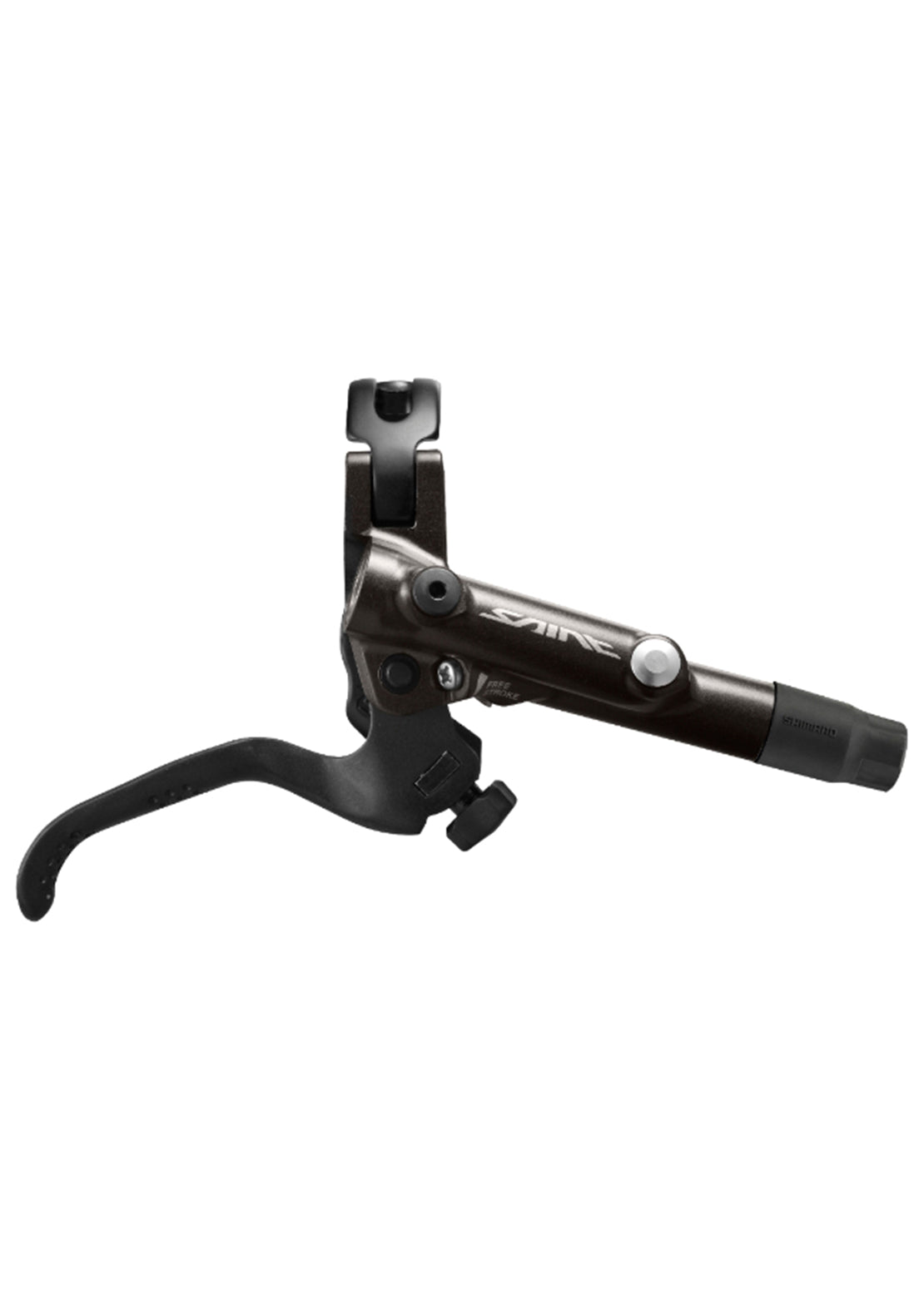

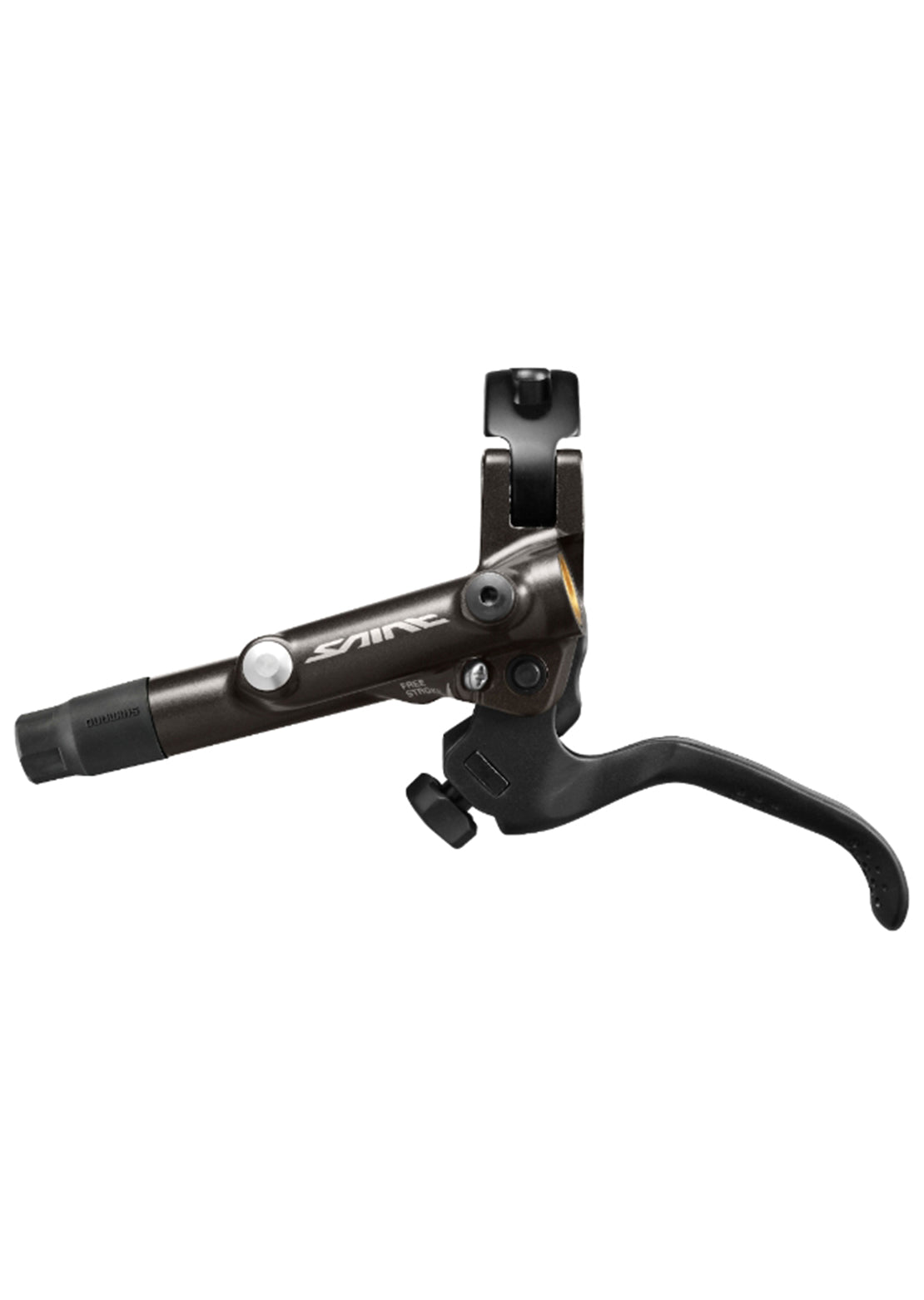

For sure braking in the roughest terrain, the BL-M820 levers are textured and feature tool-free reach adjust, Free Stroke adjustment, and I-spec B compatibility.

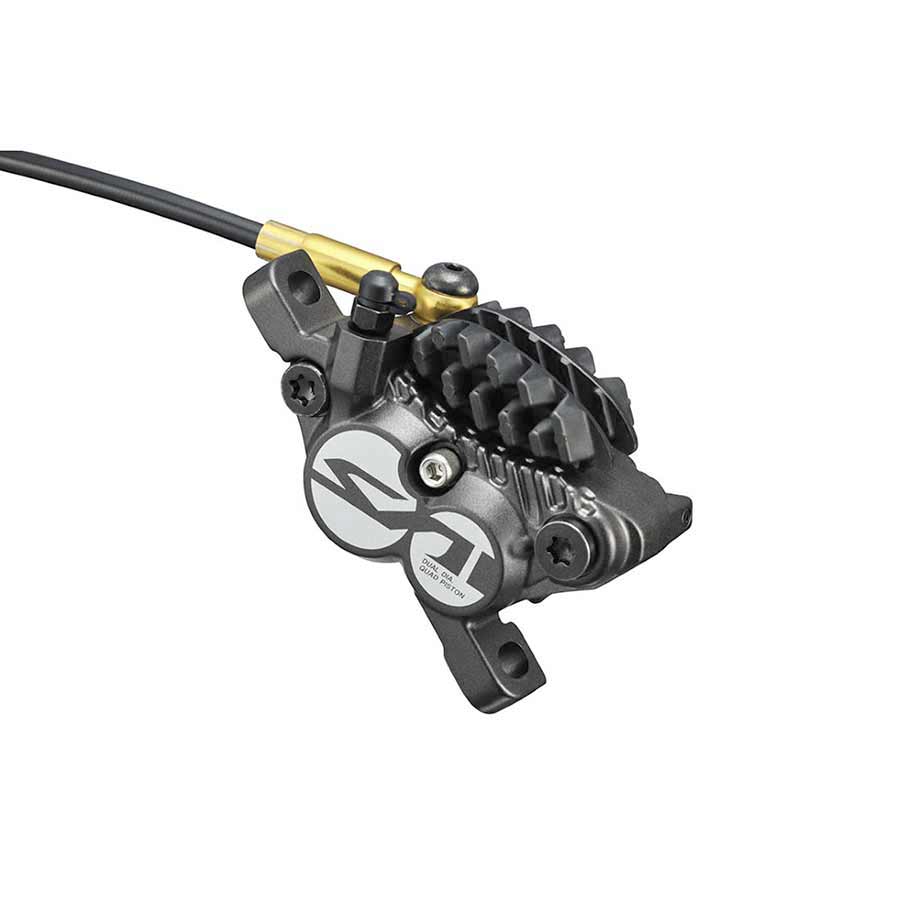

SAINT - ICE TECHNOLOGIES - 4-Piston - Hydraulic Disc Brake Caliper

The ultimate gravity and downhill brake, the SAINT hydraulic disc brake features a rigid caliper, 4-ceramic pistons, and integrated ICE TECHNOLOGIES heat management.

Features

BL-M820-B

  • Ergonomic antiskid lever
  • Lighter short Servo Wave lever
  • Free Stroke & tool less Reach Adjust
  • I-spec compatible
  • Weight: 103.2g

BR-M820

  • ICE TECHNOLOGIES heat management
  • High power 4-ceramic piston caliper
  • Easy and clean bleeding
  • One Way Bleeding caliper
  • Funnel bleeding tool
  • Pad: H01A Resin/H03C Metal
  • Weight: 306g (Resin pad with radiator fin)
Specs

MODEL NO

BL-M820-B

SERIES

SAINT M820 Series

Color

Series color

Average weight

103.2 *


Remarks

* Single item weight

Brake hose (Kit)

SM-BH90-SBLS

Brake hose color (Kit)

Black | White

Brake Type

Hydraulic disc brake

Clamp band_Open clamp band

Free stroke adjust

Funnel bleeding

Hose joint

Straight

J-kit option available

Lever size (Finger)

2

Oil

SHIMANO Mineral

Reach adjust_Toolless

Recommended brake caliper

BR-M820

Servo wave mechanism

Compatible shifting lever mount_Clamp band

Compatible shifting lever mount_I-SPEC B





MODEL NO

BR-M820

SERIES

SAINT M820 Series

Color

Series color

Average weight

306 ** (w/ radiator fin)


Remarks

** Single item weight

Brake hose color (kit)

Black | White

Brake hose (kit)

SM-BH90-SBLS

Brake Type

Hydraulic disc brake

Caliper fixing bolt_Anti loosen method

Snap ring

Caliper fixing bolt_Tool size

5 mm

Hose joint

Banjo

J-Kit spec (for OEM)

Mount type(available for IS mount with mount adapter)

Post-type

Oil

SHIMANO Mineral

One way bleeding

Pad_Standard

H01A Resin, H03A Resin | H03C Metal

Pad mount

Pad axle

Piston

4

Recommended brake lever

BL-M820

Recommended brake rotor

SM-RT99, SM-RT86

Ice technology pad compatible caliper
