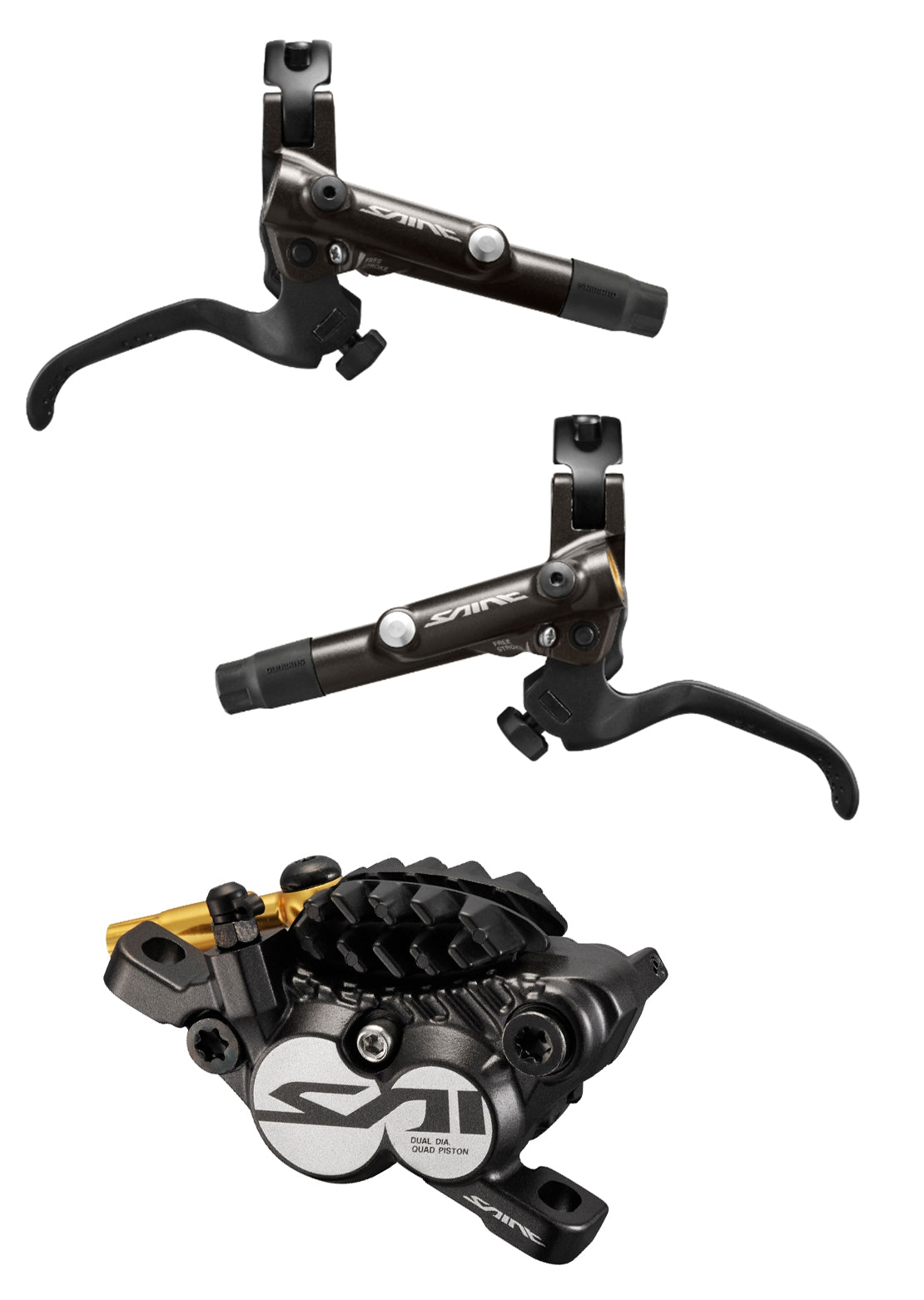

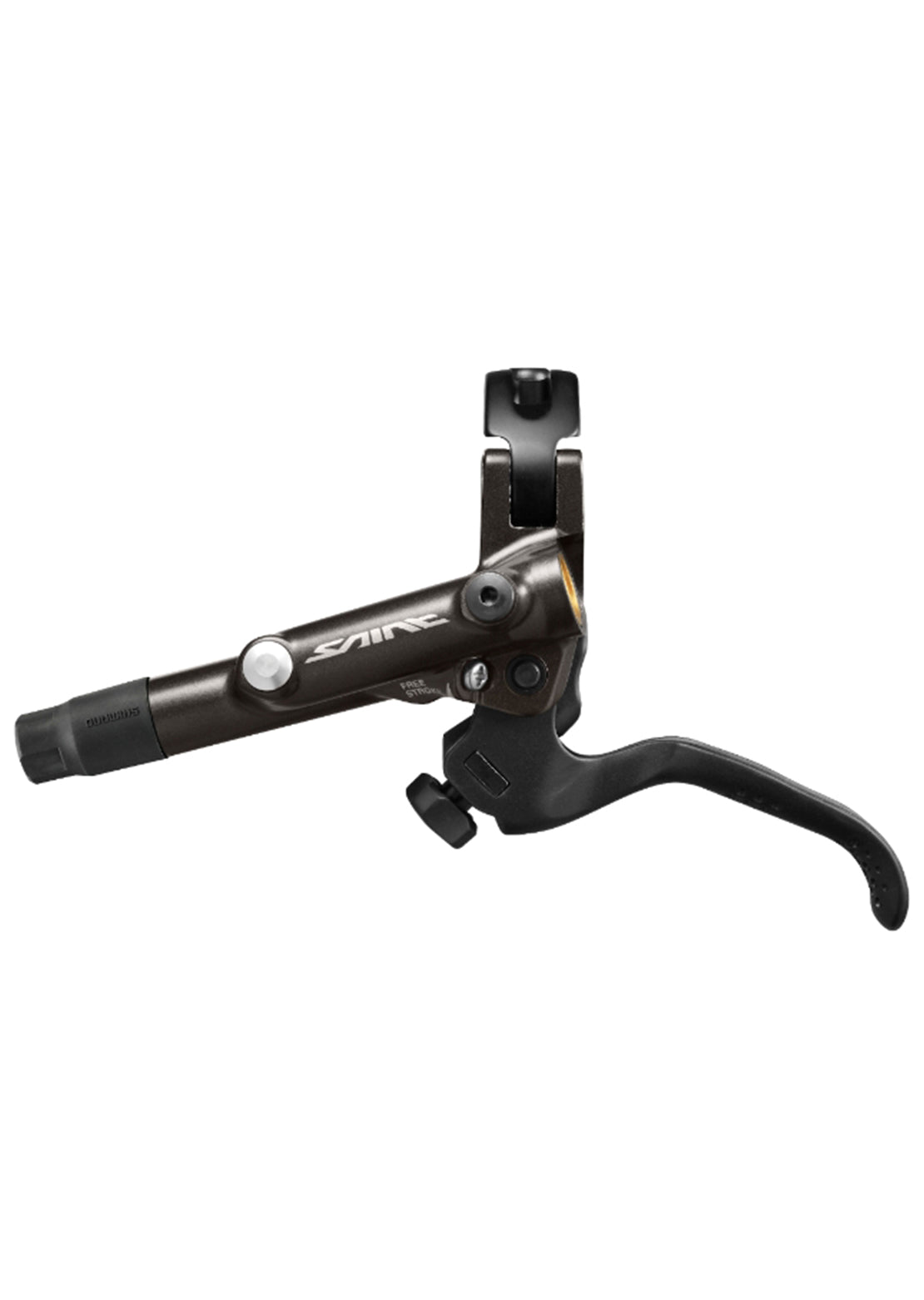

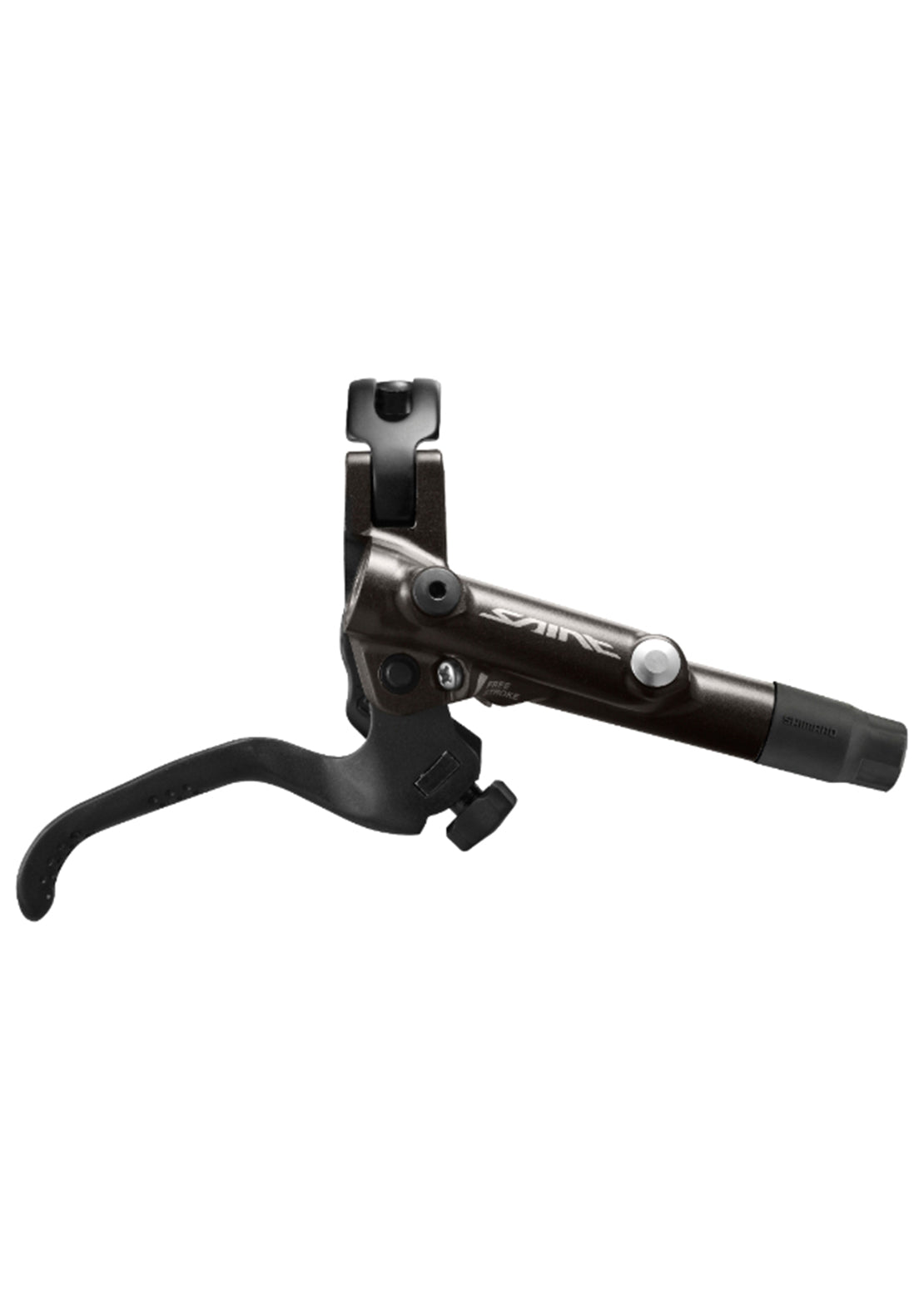

The world's best gravity riders rely on SHIMANO SAINT brakes to deliver ultimate stopping power and nuanced modulation no matter the conditions. For sure braking in the roughest terrain, the BL-M820 levers are textured and feature tool-free reach adjust, Free Stroke adjustment, and I-spec B compatibility.
The ultimate gravity and downhill brake, the SAINT hydraulic disc brake features a rigid caliper, 4-ceramic pistons, and integrated ICE TECHNOLOGIES heat management.
|
MODEL NO |
BL-M820-B |
|
SERIES |
SAINT M820 Series |
|
Color |
Series color |
|
Average weight |
103.2 * |
|
Remarks |
* Single item weight |
|
Brake hose (Kit) |
SM-BH90-SBLS |
|
Brake hose color (Kit) |
Black | White |
|
Brake Type |
Hydraulic disc brake |
|
Clamp band_Open clamp band |
✔ |
|
Free stroke adjust |
✔ |
|
Funnel bleeding |
✔ |
|
Hose joint |
Straight |
|
J-kit option available |
✔ |
|
Lever size (Finger) |
2 |
|
Oil |
SHIMANO Mineral |
|
Reach adjust_Toolless |
✔ |
|
Recommended brake caliper |
BR-M820 |
|
Servo wave mechanism |
✔ |
|
Compatible shifting lever mount_Clamp band |
✔ |
|
Compatible shifting lever mount_I-SPEC B |
✔ |
|
MODEL NO |
BR-M820 |
|
SERIES |
SAINT M820 Series |
|
Color |
Series color |
|
Average weight |
306 ** (w/ radiator fin) |
|
Remarks |
** Single item weight |
|
Brake hose color (kit) |
Black | White |
|
Brake hose (kit) |
SM-BH90-SBLS |
|
Brake Type |
Hydraulic disc brake |
|
Caliper fixing bolt_Anti loosen method |
Snap ring |
|
Caliper fixing bolt_Tool size |
5 mm |
|
Hose joint |
Banjo |
|
J-Kit spec (for OEM) |
✔ |
|
Mount type(available for IS mount with mount adapter) |
Post-type |
|
Oil |
SHIMANO Mineral |
|
One way bleeding |
✔ |
|
Pad_Standard |
H01A Resin, H03A Resin | H03C Metal |
|
Pad mount |
Pad axle |
|
Piston |
4 |
|
Recommended brake lever |
BL-M820 |
|
Recommended brake rotor |
SM-RT99, SM-RT86 |
|
Ice technology pad compatible caliper |
✔ |
