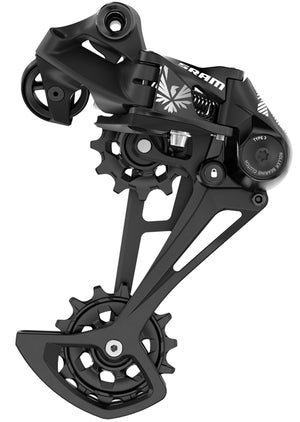

This new NX Eagle™ derailleur features the proven SRAM 1x-specific X-HORIZON™ design.
The larger, 14-tooth X-SYNC™ lower pulley easily facilitates 11- to 50- and 10- to 50-tooth cassette capacity, and also adds to NX Eagle's overall smooth-pedaling feel.
The Type-3 ROLLER BEARING CLUTCH™ provides quiet, consistent performance and durability.
With CAGE LOCK technology in the rear derailleur, wheel removal and installation—as well as chain installation—becomes faster and simpler. Just push the cage forward to create slack and lock it into place.
ROLLER BEARING CLUTCH
ROLLER BEARING CLUTCH technology eliminates derailleur bounce and chain slap without sacrificing precision.
Developed specifically for SRAM lx, X-ACTUATION keeps shifting sharp and consistent across the entire cassette.
This rear derailleur's "straight parallelogram" design limits all movement to the horizontal axis, which makes ghost shifting impossible while also reducing shift force. For quicker, more exact shifting, the large upper pulley offset design maintains a constant chain gap across all gears.
X-SYNC lx chainrings provide the highest level of performance and durability. The SRAM X-SYNC tall square teeth edges engage the chain earlier than traditional triangle shaped teeth. The sharp and narrow tooth profile, as well as rounded chamfer edges, help manage a deflected chain. To provide the best possible performance in muddy conditions, the X-SYNC chainrings have been designed with mud-clearing recesses for the inner chain links and rollers. Engineered in Germany, X-SYNC rings are an integral part of the SRAM lx drivetrain. Accept no imitation.
Eagle technology represents our newest lx drivetrain technology. Eagle is a lighter, simpler, more durable, and easier to use drivetrain. Eagle features all-new lx components, engineered for even greater durability and performance while maintaining a significant weight advantage over other drivetrain solutions. Eagle technology also provides an expanded gear range of 520%, which is equal to 2x11 drivetrains.
CABLE PULL RATIO
CAGE MATERIAL (RD)
PULLEY BEARINGS MATERIAL
Completely new rear derailleur incorporating our proven X-HORIZON™ design and new Type-3 ROLLER BEARING CLUTCH™ technology.
Eagle™ ecosystem-engineered mounting system and CAGE LOCK™ positioning add robustness.
