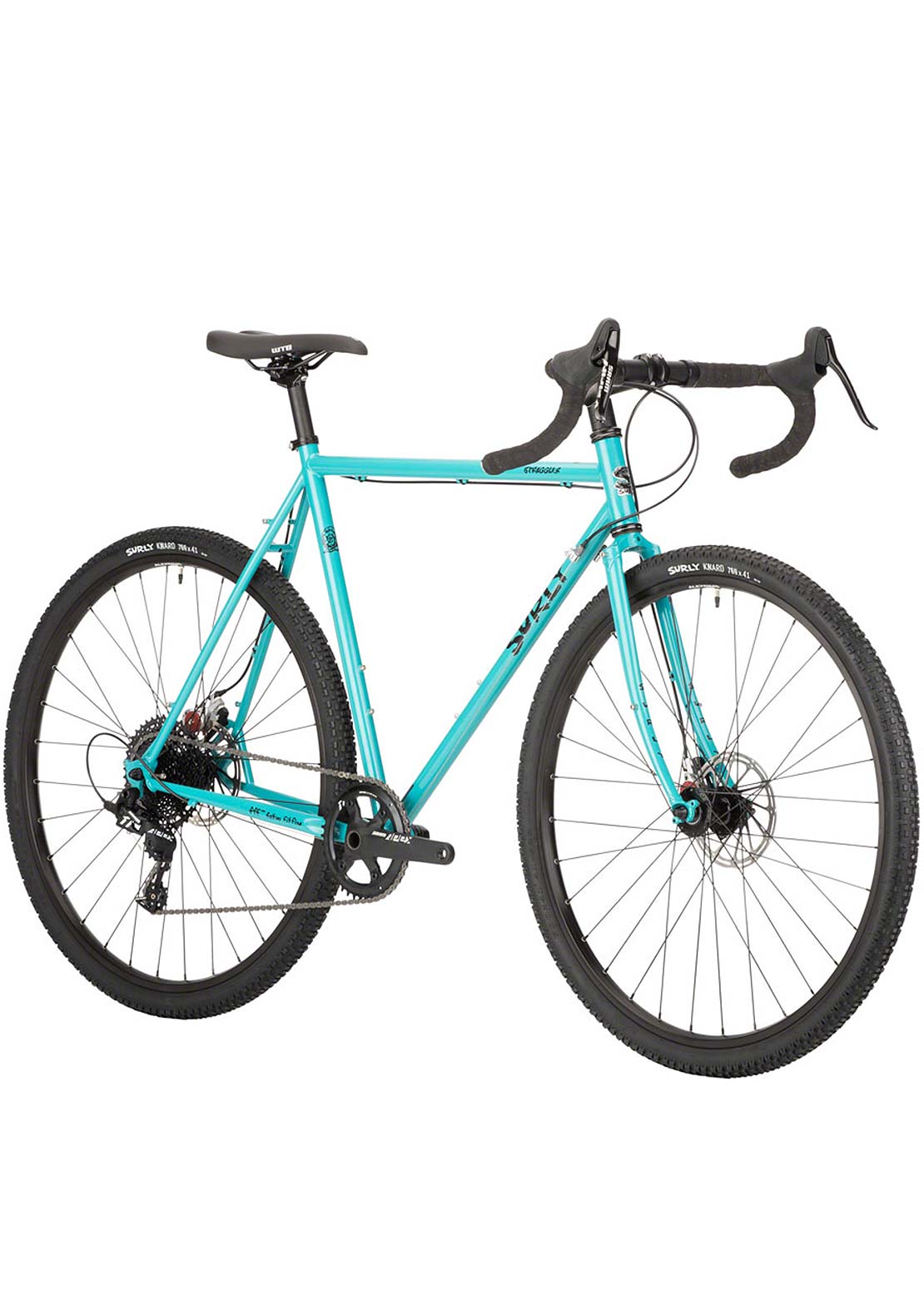

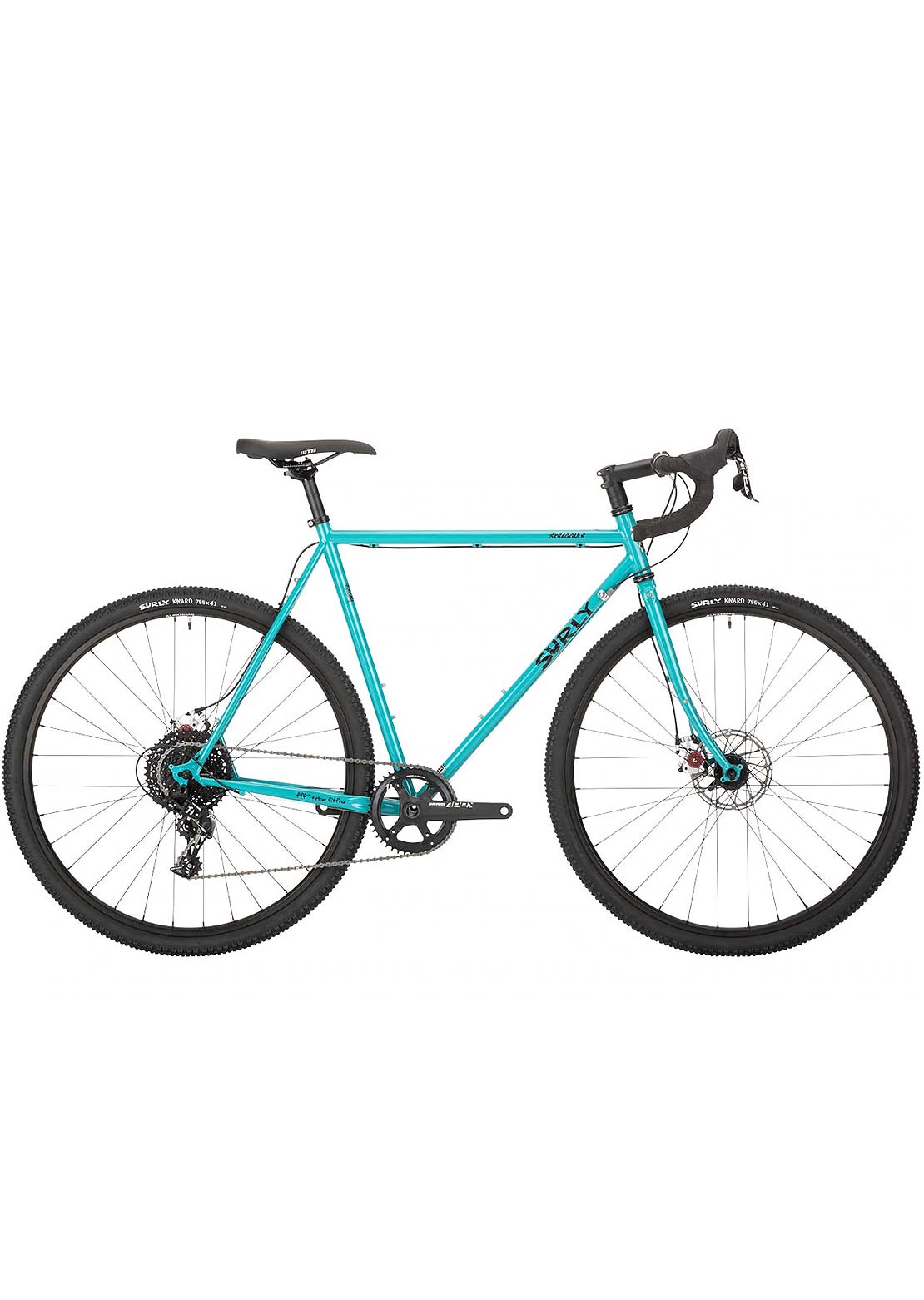

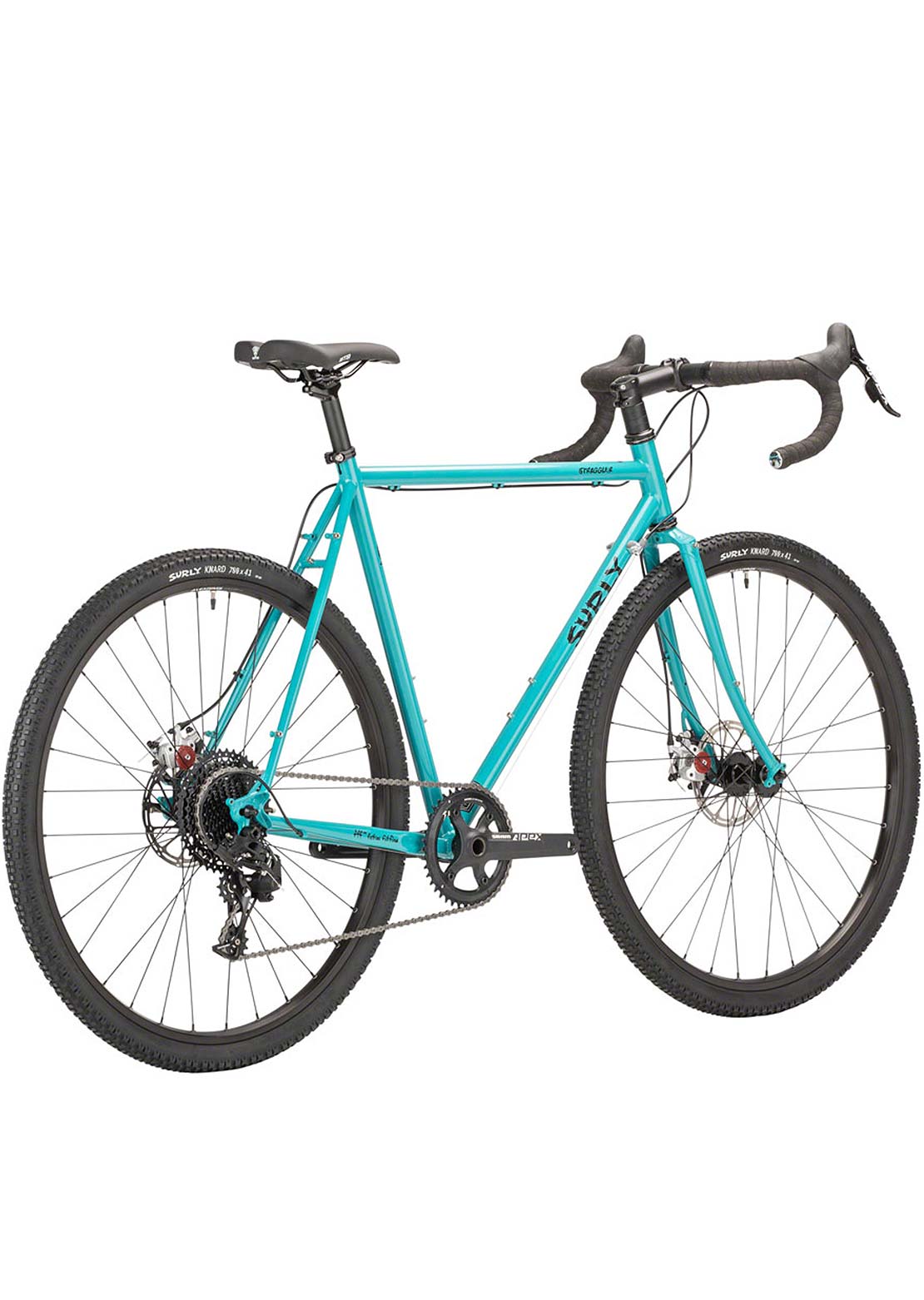

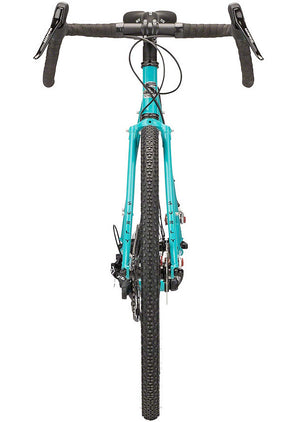

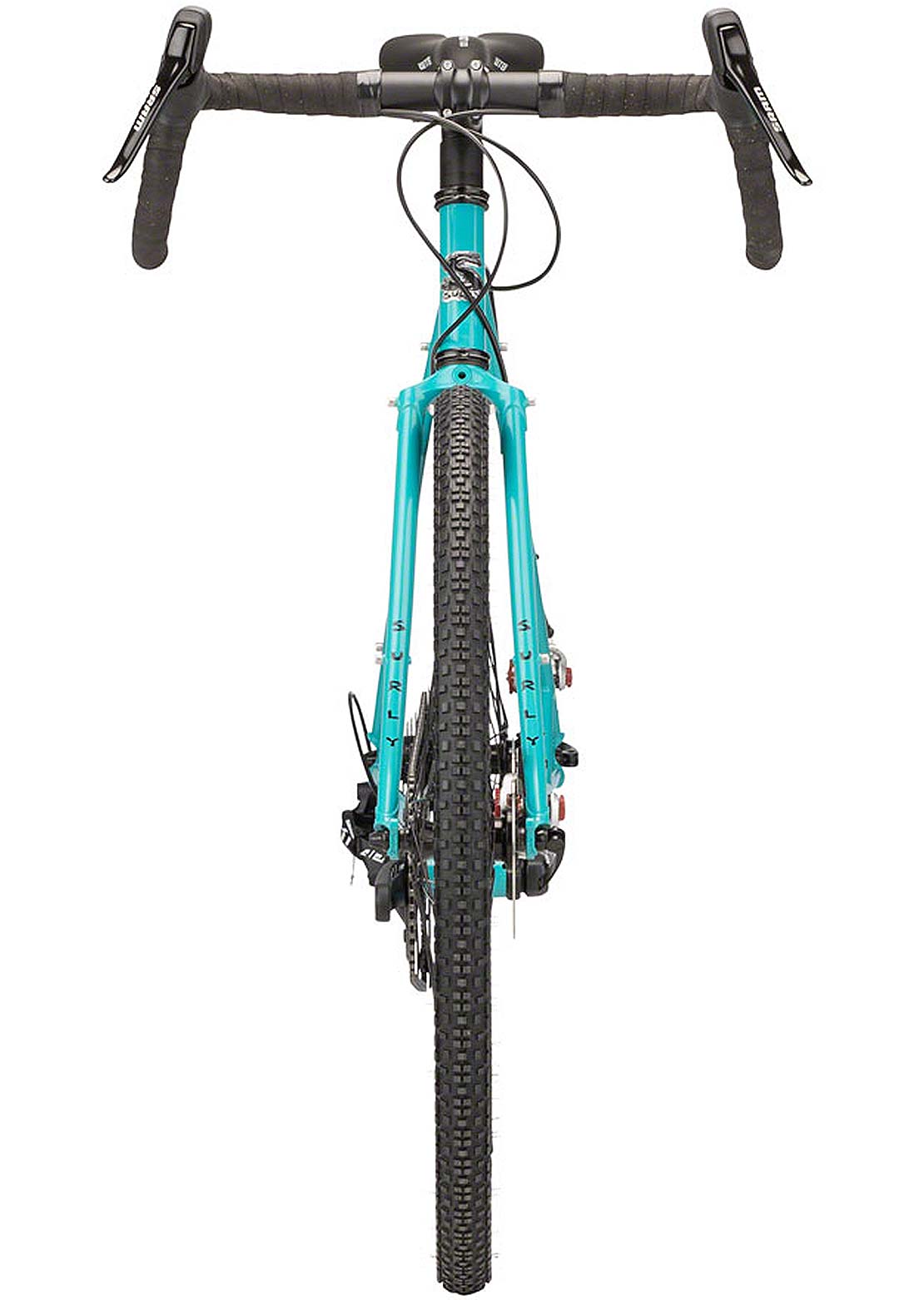

Surly Straggler Bike - 700C Chlorine Dream

Surly Straggler Bike - 700C

Name: Surly Straggler Bike - 700C
Brand: Surly
SKU: BK2124
Price: 1999.99 CAD
Availability: OutOfStock

Sold out

$1,999.99 $2,349.99

Shipping is not available on this product. Local pick-up only.

RETURNS

MADE EASY

PROUDLY

CANADIAN

BEST PRICE

GUARANTEE

Description

Features

Specs

Video

Description

Straggler is tuned for cross-over exploration on a wide variety of terrain conditions. It’s a day-tripper and a weekender. It’s a ‘rough road’ road bike, a cyclocross bike with no pretense about racing, a utilitarian townie, a light-duty touring bike and an all-weather commuter.

It’s a steel gravel bicycle that thrives on the road. Think of it as a “mountain biker’s road bike.” If you only have room for one bike in your life, Straggler can (and should) be your one and only.

Straggler’s capabilities go well beyond asphalt. It also lends itself well to light touring setups. We're talking frame bags, seat bags, and "credit card touring” rather than full-blown touring. Straggler also handles our 8- and 24-Pack Racks well, so you have some heavier-duty loading options.

Features

Frameset

Frame: Surly Straggler, 100% Surly proprietary 4130 CroMoly tubing.
Fork: Surly Straggler, 4130 CroMoly, disc only, lugged and brazed.
Seatpost Clamp: Surly Stainless, 30.0mm

Components

Headset: Cane Creek 40, 1-1/8"
Brakes: SRAM Avid BB7 Road, 160 rotors
Brake Levers: SRAM Apex
Shifters: SRAM Apex 1x11
Stem: 31.8, 4-bolt
Handlebar: Salsa Cowbell
Grip/Tape: Black Cork
Saddle: WTB Volt 142
Seatpost: Promax SP-2016 offset on 54-64cm frames, 27.2 x 350mm

Drivetrain

Crankset: SRAM FC Apex 42t
Bottom Bracket: SRAM GXP
Front Derailleur: N/A
Rear Derailleur: SRAM Apex 1x11
Cog or Cassette: SunRace CSMS7, 11–42t, 11-speed
Chain: CNP1110
Wheels: Front Hub - Novatec, 6 bolt Disc, 32H, QR
Rear Hub: Novatec, 6 bolt Disc, 32H, QR
Rims: Alex Adventurer 2, tubeless ready
Tires: Surly Knard 700c x 41mm, 33 tpi & 650b x 41mm, 33 tpi

More

700c wheel diameters
Accommodations for racks and fenders
Forward-exiting horizontal dropouts
Singlespeed compatibility and wheelbase adjustability
Clearance for 700c x 41mm tires with fenders!

*Complete bike spec subject to change

Specs

Specs

Frame Construction: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Fork Construction: 4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, ED coated
Rear Dropout Configuration: Forward-exiting horizontal
Rear Hub Spacing: 10 x 135mm
Front Hub Spacing: 10 x 100mm
Rear Brake: Disc - 51mm I.S. (160mm max rotor)
Front Brake: Disc - 51mm I.S. (160mm max rotor)
Head Tube: Ø34mm
Steerer Tube: Ø28.6mm (1-1/8")
Crown Race: Ø30mm (1-1/8")
Stock Headset Upper (S.H.I.S.): EC34/28.6
Stock Headset Lower (S.H.I.S.): EC34/30
Seat Collar: Ø30mm
Seatpost: Ø27.2mm
Front Derailleur (Clamp): Bottom-pull (Ø28.6mm)
Max Chainring (CL)[3]: 1x (Road): 50T, 2x (Road): 39/53T
Bottom Bracket: 68mm threaded (1.37" x 24TPI)
Tire Clearance Frame [1]/[2]: 700c: 700c x 42mm (with or without fenders)
Tire Clearance Fork [1]: 700c: 700c x 42mm (w/ fenders), 700c: 29 x 2.0" (w/o fenders)
Rigid Fork Spec: 700c: 400 x 44mm
Max Suspension Fork Length [4]: N/A
Bottle Mounts Frame: 2 Standard
Bottle Mounts Fork: N/A
Rack Mounts Frame: Yes (upper and lower threaded)
Rack Mounts Fork: Yes (upper, lower, and mid-blade threaded)
Fender Mounts Frame: Yes
Fender Mounts Fork: Yes

Other Features

Downtube mounted shifter bosses (cable housing stops not included with frameset)
[1] Different tire and rim combinations will result in different clearances.
[2] Depending on drivetrain configuration, tire clearance may be limited by the chain and not frame.
[3] Listed chainring clearance is worst case scenario. Clearances vary widely depending on components and configurations.
[4] Suspension fork length listed at full extension (not at sag)

Geometry (mm)

SIZE	54cm	56cm	58cm	60cm	62cm
Reach	396.3	400.7	408.2	412.1	420.9
Stack	549.2	567.3	591.1	609.1	628.2
Head Tube Angle	72.0°	72.0°	72.0°	72.0°	72.0°
Head Tube Length	107.0	121.0	146.0	165.0	185.0
Seat Tube Length	540.0	560.0	580.0	600.0	620.0
BB Drop	72.0	72.0	72.0	72.0	72.0
Wheelbase	1016.5	1031.9	1047.0	1056.8	1071.8
Chainstay Length	425.0	430.0	430.0	430.0	430.0
Top Tube Length, Actual	563.3	579.7	593.2	608.0	623.0
Top Tube Length, Effective	565.0	580.0	595.0	610.0	625.0
Seat Tube Angle	73.0°	72.5°	72.5°	72.0°	72.0°
Standover Height	791.7	809.4	828.7	846.1	865.0
Stem Length	100	100	120	120	120
Stem Angle	6°	6°	6°	6°	6°
Handlebar Width	420	440	440	460	460
Crank Length	172.5	175	175	175	175
Fork Length	400.0	400.0	400.0	400.0	400.0
Fork Rake	44.0	44.0	44.0	44.0	44.0

All dimensions are preliminary and subject to change * Standover is measured from the top of the TT, at the center, with a tire measuring approximately Ø718mm
