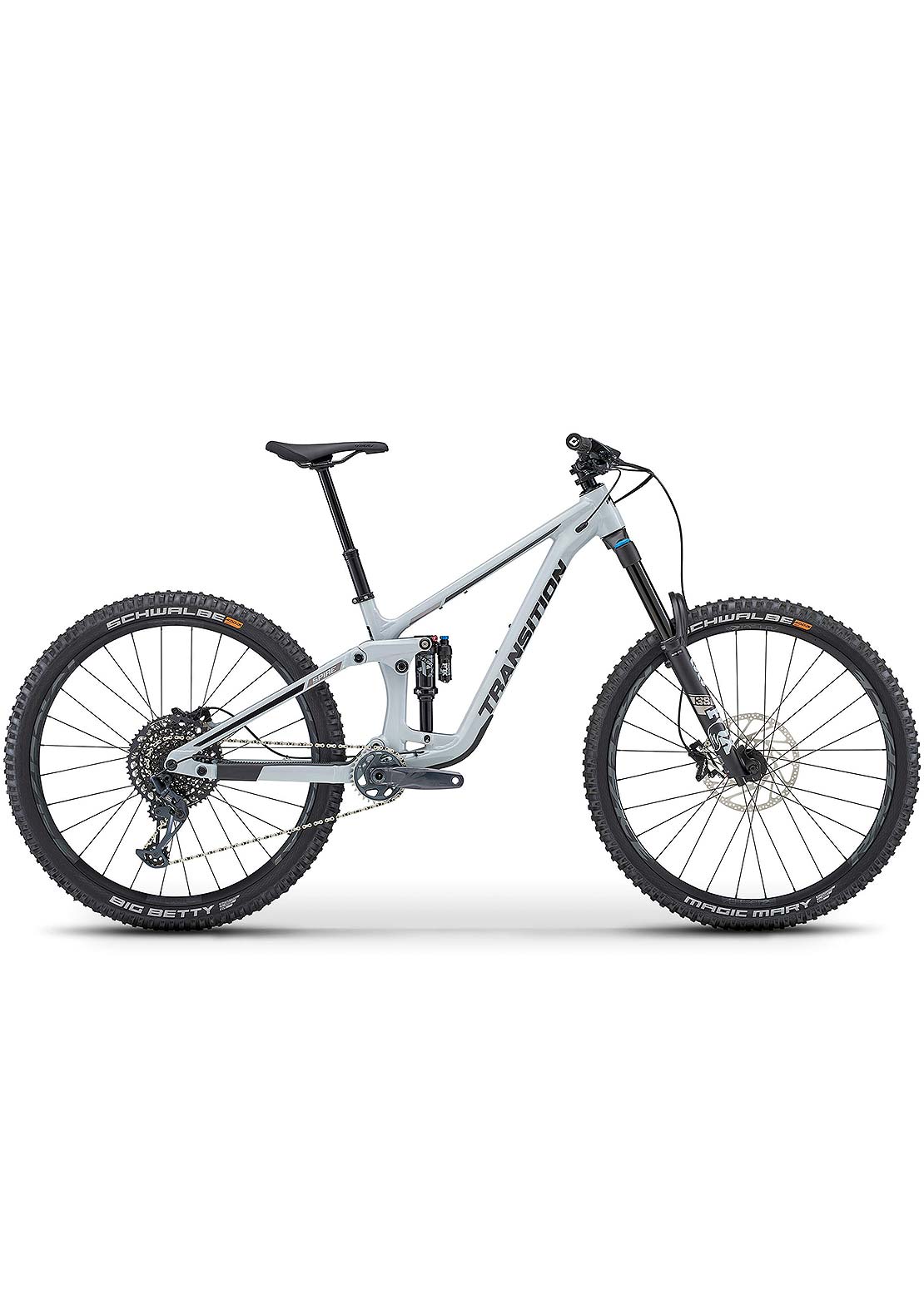

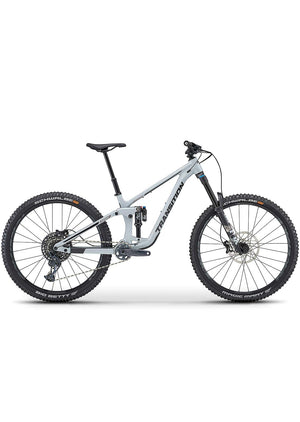

Take on the biggest terrain without the penalty, Long travel doesn't have to mean single purpose. The Spire blends DH bike capability with mid-travel efficiency in such a way it's almost two bikes in one. A delicately tuned pedaling and pumping platform, super supple beginning stroke sensitivity and all the travel you could ask for makes for a mind bending ride. Happily climb up to your favorite challenging descent, then cruise on over to your local flow trail and you'll be rewarded on both ends of the spectrum.
Don't be fooled though, while it's no one-trick pony, the Spire lives to push your limits. Get in-Spired. SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with a reduced offset fork standard, preventing the front wheel from being too far in front of the rider.
This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed maneuvering as well as improved traction, control and confidence for any skill level of rider.
|
REAR TRAVEL: |
170mm (Compatible with 160mm) |
|
FRONT TRAVEL: |
170mm (Compatible with 180mm single crown fork or dual crown forks on alloy only) |
|
WHEEL SIZE: |
29" |
|
SIZES: |
SM, MD, LG, XL, XXL |
|
FRAME BEARINGS: |
2x 6903, 2x 6902, 4x 6802, 2x 3802, 2x 6900 |
|
FORK AXLE TO CROWN: |
584mm |
|
FORK OFFSET: |
44mm |
|
REAR SHOCK SIZE: |
205mm x 65mm (Compatible with 205mm x 60mm) |
|
SHOCK HARDWARE: |
Trunnion Mount Top / 30mm x 8mm Bottom |
|
HEADSET (TOP): |
56mm Zero Stack |
|
HEADSET (BOTTOM): |
56mm Zero Stack |
|
BB SHELL: |
73mm BSA Threaded |
|
CHAINLINE: |
52mm |
|
REAR BRAKE MOUNT: |
180mm Post Mount, Max Rotor Size 223mm |
|
DERAILLEUR HANGER: |
SRAM UDH |
|
REAR AXLE: |
Transition Axle For UDH, 12mm x 148mm Spacing |
|
ISCG TABS: |
ISCG05 |
|
SEATPOST DIAMETER: |
31.6mm |
|
SEAT CLAMP: |
Carbon: 37.0mm Alloy: 34.9mm |
|
MAX SEATPOST INSERTION: |
Carbon: Small 200mm | Medium 230mm | Large 260mm | XL 280mm | XXL 300mm Alloy: Small 200mm | Medium 230mm | Large 270mm | XL 300mm | XXL 330mm |
|
MAX CHAINRING SIZE: |
34T Standard Single Ring (Based on 52mm Boost Chainline) |
|
MAX TIRE SIZE: |
29 x 2.6 (*see FAQ) |
|
REAR SHOCK SAG: |
170mm/65mm: 18-22mm (28-34%) 160mm/60mm: 16-20mm (27-33%) |
Geometry
|
SM HIGH/LOW |
MD HIGH/LOW |
LG HIGH/LOW |
XL HIGH/LOW |
XXL HIGH/LOW |
|
|
A.REACH |
430 / 425 |
460 / 455 |
485 / 480 |
510 / 505 |
535 / 530 |
|
B.STACK |
619 / 624 |
619 /624 |
628 / 633 |
637 / 642 |
646 / 651 |
|
C.EFFECTIVE TOPTUBE LENGTH |
547 / 550 |
577 / 580 |
605 / 608 |
633 / 636 |
661 / 664 |
|
D.SEATTUBE LENGTH |
360 |
390 |
430 |
460 |
490 |
|
E.EFFECTIVE SEATTUBE ANGLE |
79.6° / 79.1° |
78.8° / 78.3° |
78.1° / 77.6° |
77.5° / 77° |
77.2° / 76.7° |
|
SADDLE HEIGHT FOR EFFECTIVE SEATTUBE ANGLE |
600 |
660 |
720 |
780 |
820 |
|
ACTUAL SEATTUBE ANGLE |
70.5° / 70° |
70.5° / 70° |
70.5° / 70° |
70.5° / 70° |
70.5° / 70° |
|
SEATTUBE OFFSET AT BOTTOM BRACKET |
100 |
100 |
100 |
100 |
100 |
|
F.HEADTUBE LENGTH |
100 |
100 |
110 |
120 |
130 |
|
G.HEADTUBE ANGLE |
63° / 62.5° |
63° / 62.5° |
63° / 62.5° |
63° / 62.5° |
63° / 62.5° |
|
H.CHAINSTAY LENGTH |
446 / 448 |
446 / 448 |
446 / 448 |
452 / 454 |
452 / 454 |
|
I.WHEELBASE |
1227 / 1229 |
1257 / 1259 |
1287 / 1289 |
1322 / 1324 |
1352 / 1354 |
|
J.BOTTOM BRACKET DROP |
25 / 32 |
25 / 32 |
25 / 32 |
25 / 32 |
25 / 32 |
|
K.ESTIMATED BOTTOM BRACKET HEIGHT |
350 / 343 |
350 / 343 |
350 / 343 |
350 / 343 |
350 / 343 |
|
L.STAND OVER HEIGHT |
685 / 680 |
700 / 695 |
715 / 710 |
730 / 725 |
745 / 740 |
|
M.FORK OFFSET |
44 |
44 |
44 |
44 |
44 |
